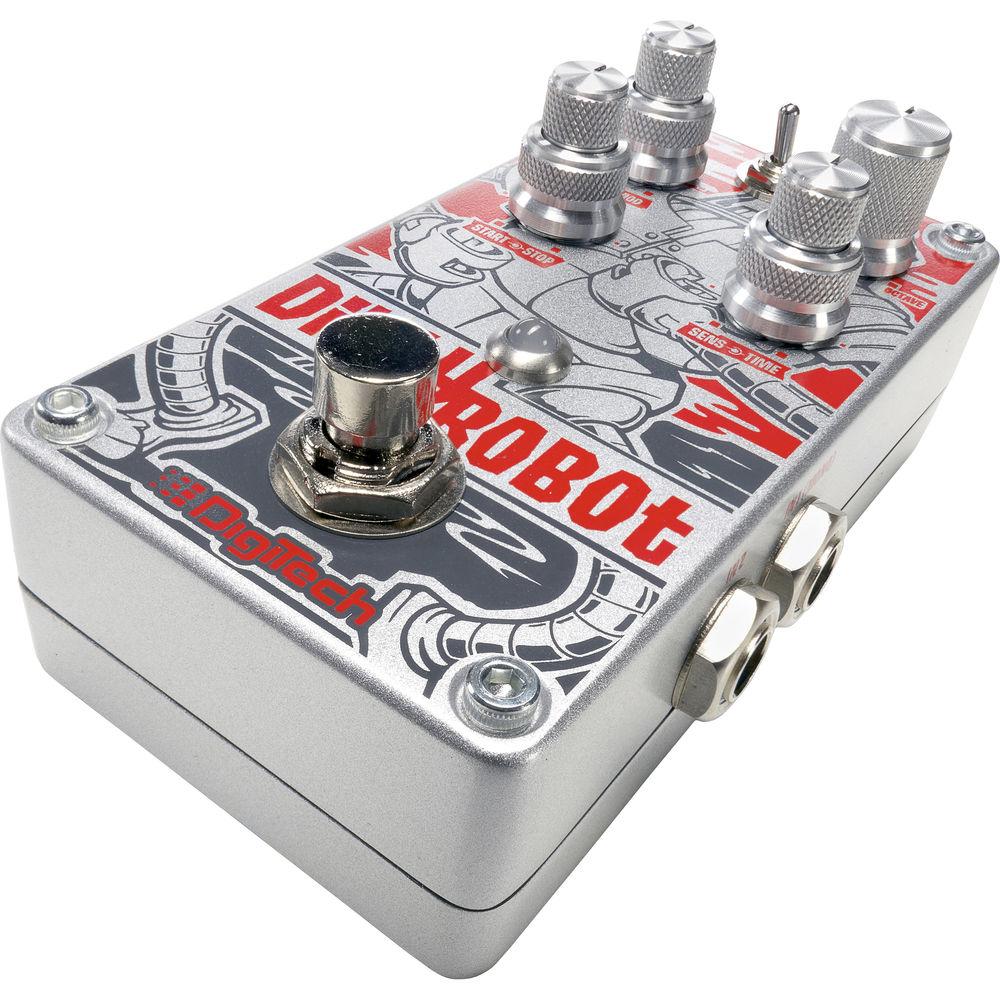

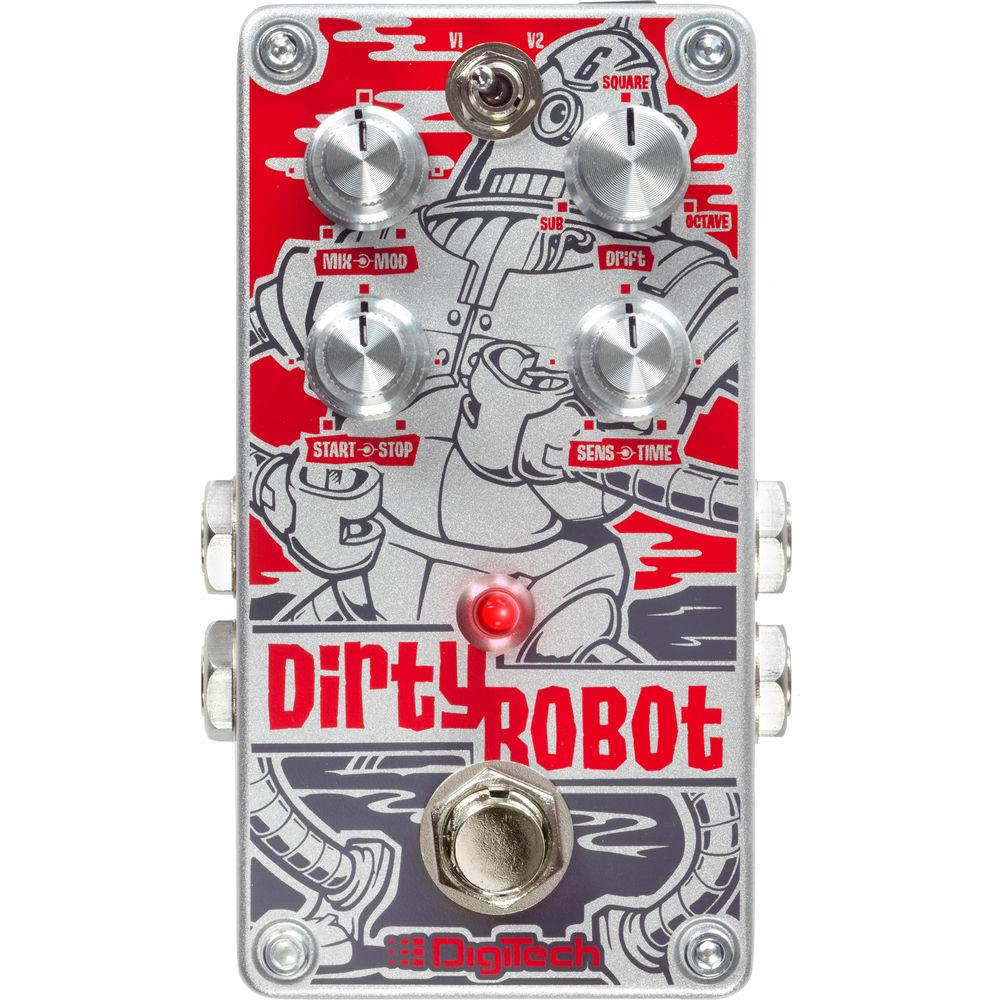

Product description Designed for use with guitars and basses, the Dirty Robot from DigiTech is a pedal providing two kinds of synthesizer emulation, selectable via a Voice switch. Warm analog synthesis, replete with envelope sweeps that can recall 1980s timbres with the twist of a knob, is provided by V1. V2, on the other hand, gives you vocal formant synthesis to approximate talkbox effects and vocoder stylings. While both settings can be used to emulate the classic tones of erstwhile eras, you can also use this pedal to create unique soundscapes.
Other features abound, such as a 360° Drift knob which allows you to blend square waves with octave and sub-synthesis parameters. Built-in chorus and vibrato effects provide further sound-mangling possibilities. For connections, the Dirty Robot provides two 1/4" sets of inputs and outputs, making stereo routing possible. An included StompLock allows you to keep your settings place, minimizing the frustration that occurs when movement in changes all the knobs. - Notable Features
-
- 2 selectable synth voicings
- Selectable start and stop frequency controls
- Selectable trigger sensitivity
- Variable sweep speed control
- Chorus modulation effect
- Momentary vibrato
- Morph between sub, octave, and square waveforms
- Wet/dry mix control
- Stereo 1/4" inputs and outputs with true stereo processing
- True bypass
- Constant high-voltage power rails
- Effect on/off LED indicator
- Soft touch vacuum switch
- Included StompLock and Pedalboard hook-and-loop Pad

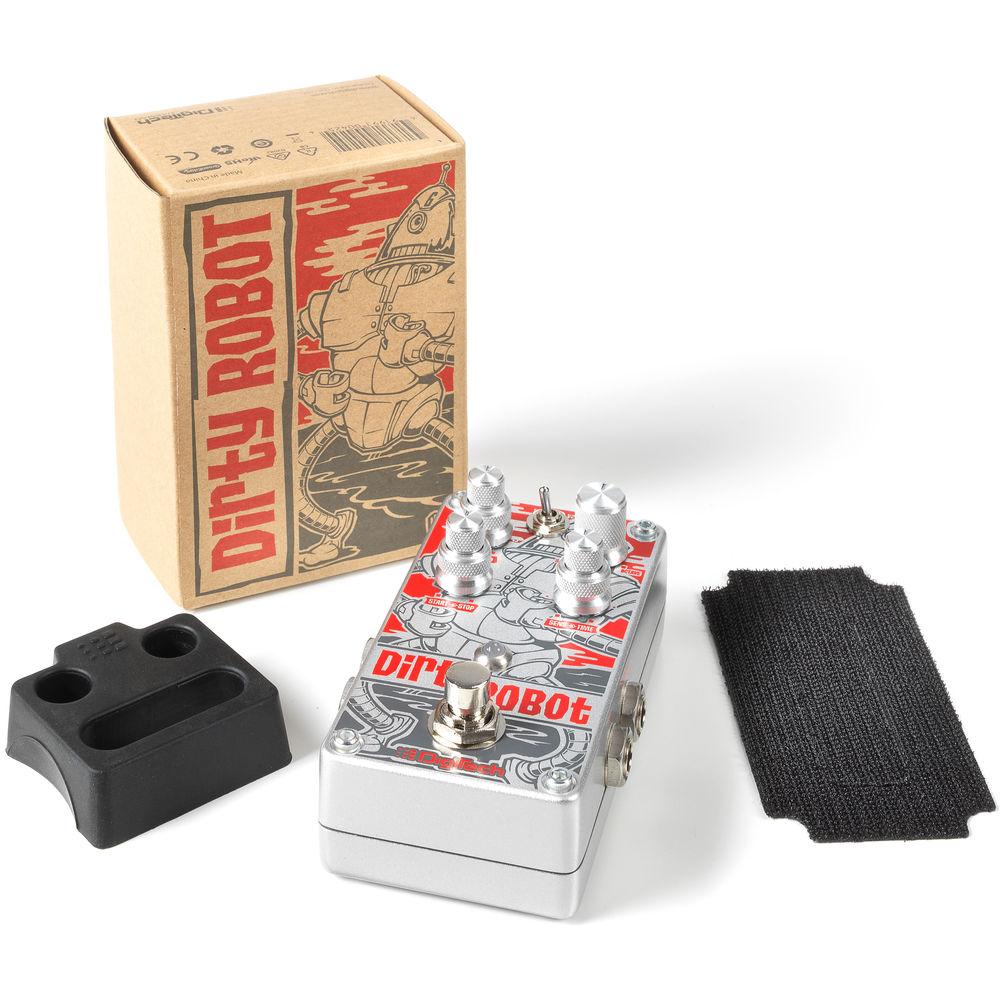

UPC: 691991004254 In the Box DigiTech Dirty Robot - Stereo Mini-Synth Pedal for Guitars and Basses StompLock Settings Securer Pedalboard Hook-and-Loop Pad Limited 1-Year Warranty (Extendable to 6-Years with Online Registration) Table of Contents
|
Upload User Manual
Have you got an user manual for the DigiTech Dirty Robot - Stereo Mini-Synth Pedal for Guitars and Basses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigiTech DIRTYROBOT Specs | | | Controls | Mix
Modulation
Drift
Start
Stop
Sensitivity
Time
Voice switch

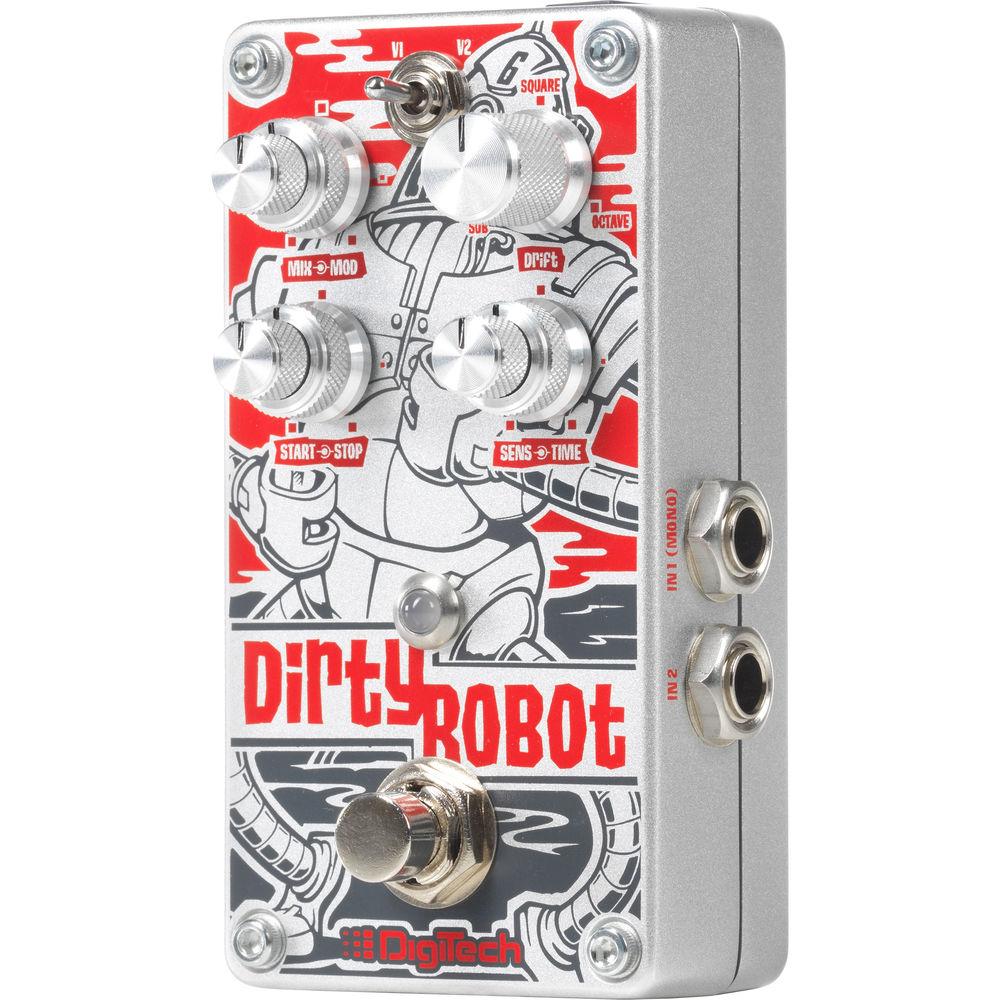

Effect on/off footswitch | | Indicator LEDs | Effect on/off | | Jacks | 1x 1/4" phone jack: Input 1 (Mono)
1x 1/4" phone jack: Input 2

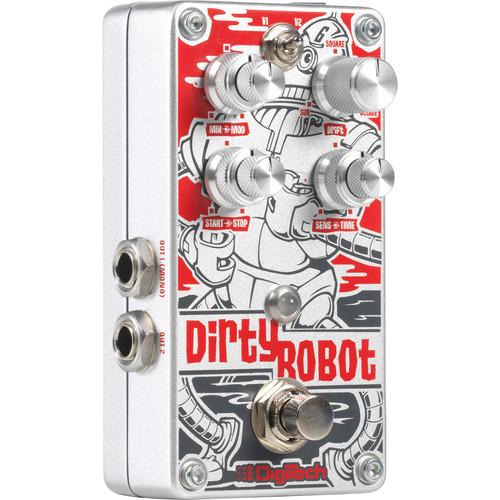

1x 1/4" phone jack: Output 1 (Mono)
1x 1/4" phone jack: Output 2 | | | | Input Impedance | Effect on: > 1 MOhm (stereo), > 500 kOhms (mono)
Effect off: 1 MOhm (stereo), > 500 kOhms (mono)
Effect off: True hardwire bypass | | Output Impedance | Effect on: 1 kOhm
Effect off: 1 kOhm

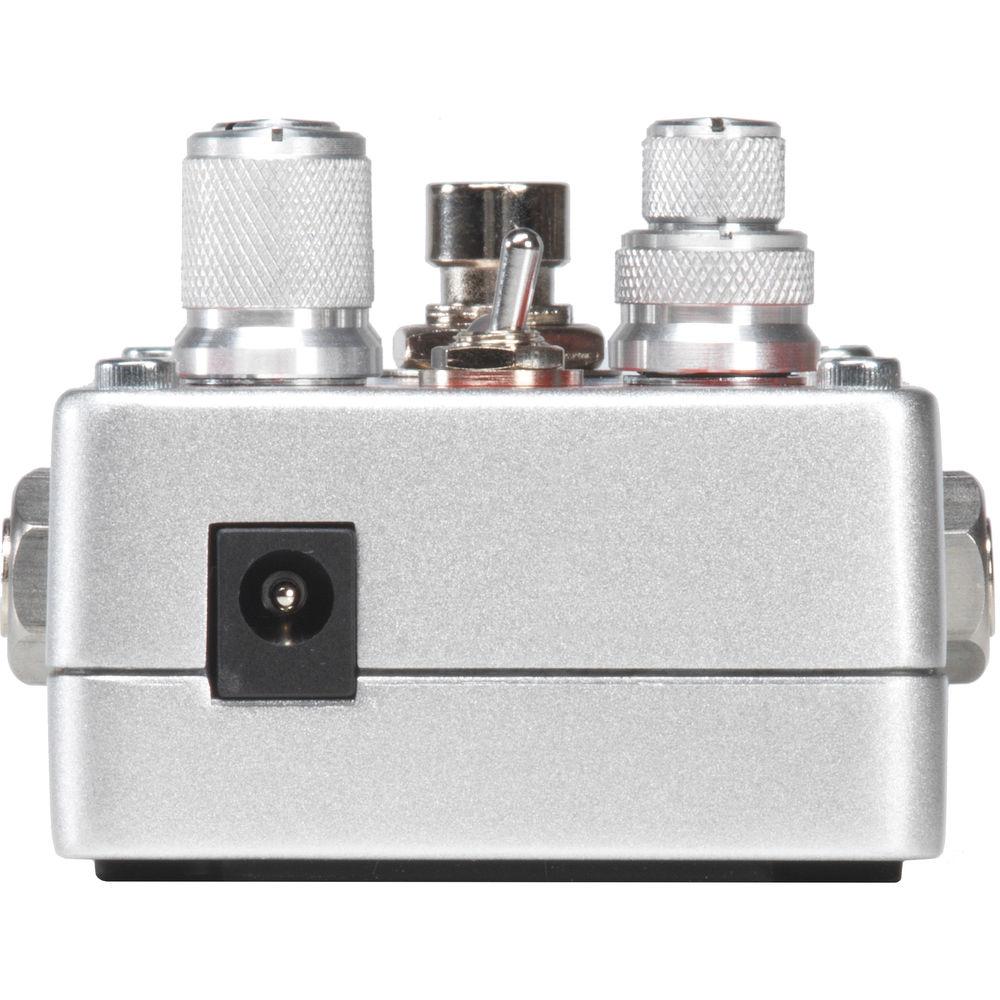

Effect off: True hardwire bypass | | | | Power Requirements | 9 VDC external power supply | | Recommended Power Supply | PS0913DC-01 (available separately) | | Power Consumption | 675 mW (< 75 mA @ 9 VDC) | | Current Draw | 75 mA (typical at 9 VDC) | | | | Dimensions (L x W x H) | 4.4 x 2.7 x 2.0" / 11.2 x 6.7 x 5.1 cm | | Weight | 1.0 lb / 0.5 kg | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 4.7 x 3.3 x 2.3" |
