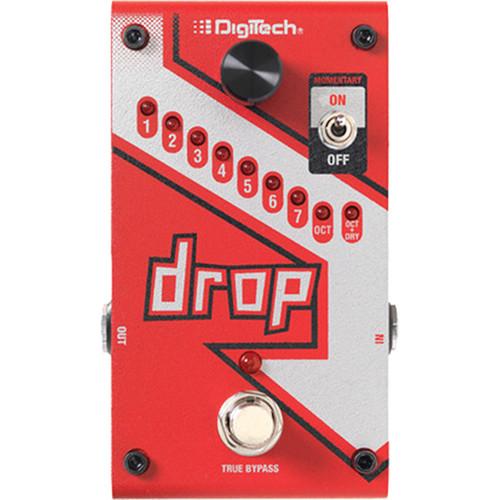

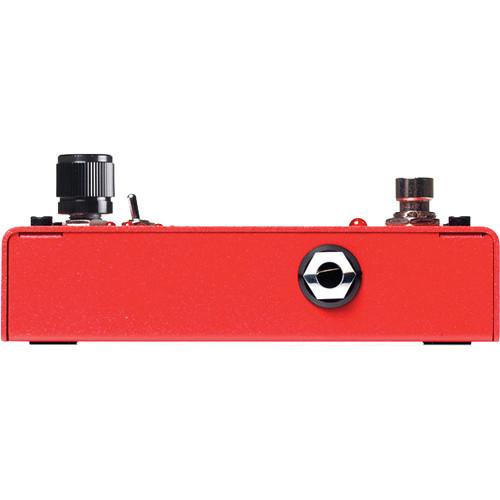

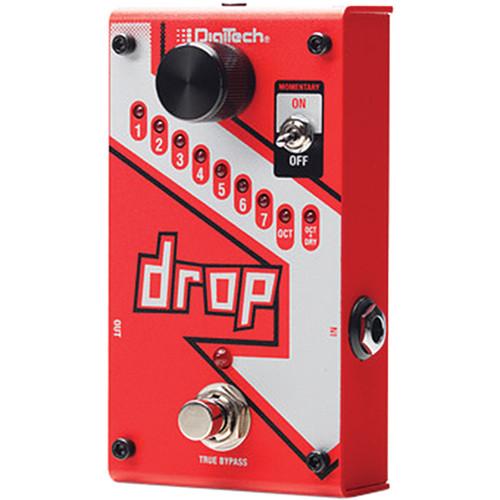

Product description The DigiTech Drop is a dedicated polyphonic drop tune pedal that allows you to drop your tuning from one semitone all the way down to a full octave. The pedal allows you to achieve down-tuned "chunk" without having to retune or change guitars. The Drop also features a momentary/latching switch. With the switch set to momentary, you can turn the Drop into a true performance pedal, allowing for fast trills and pitch dips. - Controls
-
- EFFECT SELECTOR KNOB - Selects which of the Drop effect settings is used when the effect is active
- MOMENTARY ON/OFF SWITCH - Selects how the effect footswitch will operate. Setting this switch to "ON" will cause the footswitch to act as a momentary switch (the effect will be enabled or disabled only as long as the footswitch is pressed and held). Setting this switch to "OFF" will cause the footswitch to act as a standard latching on/off switch
- Drop Effects Settings
-
- Setting 1 - Transposes guitar signal down 1 semitone
- Setting 2 - Transposes guitar signal down 2 semitones
- Setting 3 - Transposes guitar signal down 3 semitones
- Setting 4 - Transposes guitar signal down 4 semitones
- Setting 5 - Transposes guitar signal down 5 semitones
- Setting 6 - Transposes guitar signal down 6 semitones
- Setting 7 - Transposes guitar signal down 7 semitones
- Setting OCT - Transposes guitar signal down 1 octave
- Setting OCT + DRY - Transposes guitar signal down 1 octave and adds dry signal
UPC: 691991202902 In the Box DigiTech Drop Polyphonic Drop Tune Pedal Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DigiTech Drop Polyphonic Drop Tune Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigiTech DROP Specs | Input | 1/4" unbalanced (tip-sleeve) | | Output | 1/4" unbalanced (tip-sleeve) | | Max Input | +5 dBu | | Controls | Amount, Momentary On/Off | | Input Impedance | 1 MΩ (effect enabled) | | True Bypass | Yes | | A/D/A Converter | 24-bit | | Frequency Response | 20 Hz - 11 kHz (effect enabled) | | Signal to Noise Ratio | > -105 dB (A weighted); ref = max level, 22 kHz bandwidth | | THD | 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain | | Sampling Rate | 44.1 kHz | | Bit Depth | 24-bit | | Range | Drop Tune Range: 1-7 Semitones Down, Octave Down, Octave Down + Dry | | Power Requirement | 9 VDC External Adapter | | Power Consumption | 2.3 Watts (< 250 mA @ 9 VDC | | Power Supply | PS0913DC-01 (US, JA); PS0913DC-02 (EU, AU, UK) | | Dimensions | 4.8 x 2.9 x 1.8" (120 x 73.7 x 44.5 mm) | | Weight | 0.36 lb (0.16 kg) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 5.1 x 4.4 x 3.6" |
