User Manual for DigiTech Element - Guitar Multi-Effects Pedal Click to enlarge the picture
Contents of the user manual for the DigiTech Element - Guitar Multi-Effects Pedal
- Product category: Effects Pedals DigiTech
- Brand: DigiTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DigiTech Effects Pedals
 |
User manual for the DigiTech Element - Guitar Multi-Effects Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DigiTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DigiTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DigiTech product will considerably shorten its lifespan!
|

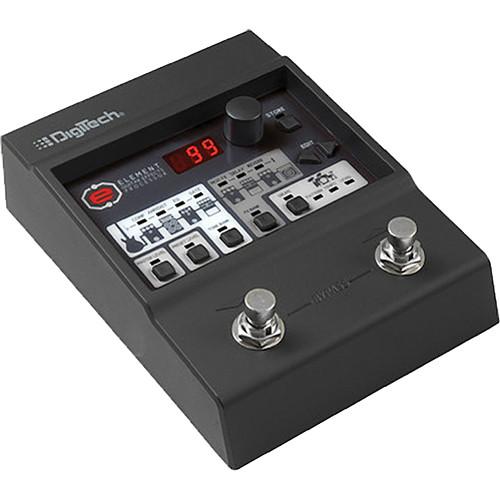

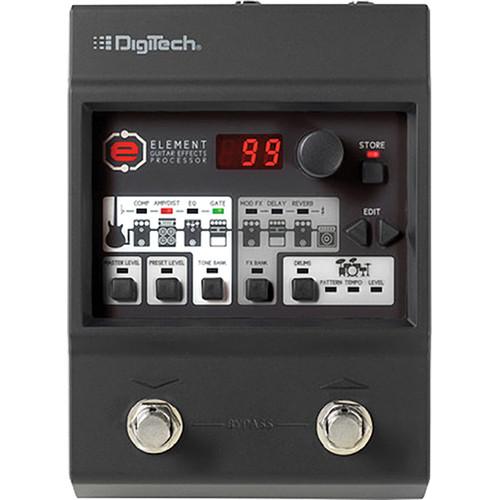

Product description The Element from DigiTech is multi-effect guitar pedal that provides everything needed to explore a wide gamut of guitar tones. The unit models thirty-one different pedals, twelve amplifiers, and nine speaker cabinets, and also includes a guitar tuner and headphone jack for playing without disturbing others. The one-hundred factory presets allow for creating custom presets, which can be saved in any of the one-hundred user locations.
Using a simple pedalboard style layout and editor, settings for the fifty-two effects can be quickly adjusted. The Tone Bank and FX Bank each have twenty different tone and effects combinations for quick and easy sound selection. When drums are needed to play along with, trigger one of the forty-five drum tracks with the touch of a button.

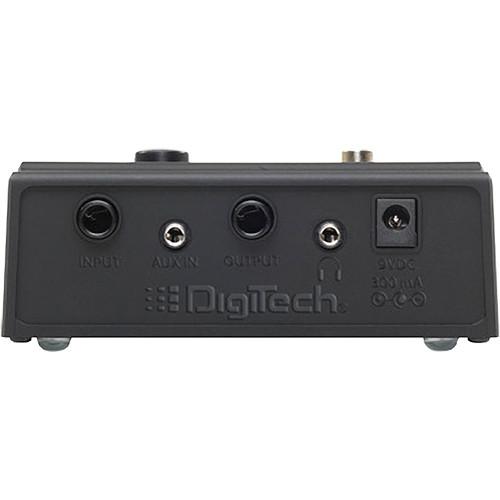

The unit features a 1/4" guitar input along with stereo 1/4" output jacks that can be connected to either an amplifier or mixer for direct recording. A press of the Amp/Mixer mode engages the internal speaker cabinets for direct recording. A stereo mini auxiliary input is included for connecting audio playback devices to play along with. - 52 effects consisting of 12 amps, 9 cabinets, 31 stompboxes
- 200 presets (100 factory, 100 user)
- 20 Tone Bank combinations
- Up to nine effects to each preset
- Up to five seconds of delay time
- Stereo mini headphone output
- Stereo mini auxiliary input
- Amp/Mixer mode optimizes 1/4" outputs for amps and mixers
- 24-bit/44.1 kHz sample rate
- Durable metal footswitches
- Amplifiers
-
- '01 Mesa Boogie Dual Rectifier
- '57 Fender Tweed Deluxe
- '63 Vox AC30 Top Boost
- '65 Fender Blackface Twin Reverb
- '68 Marshall 100 Watt Super Lead (plexi)
- '77 Marshall Master Volume
- '83 Marshall JCM800
- '96 Matchless HC30
- DigiTech Bright Clean
- DigiTech Clean Tube
- DigiTech Metal
- DigiTech Solo
- Speaker Cabinets
-
- 1 x 12" '57 Fender Tweed Deluxe Reverb
- 2 x 12" '63 Vox AC30 Top Boost with Jensen Blue Backs
- 2 x 12" '65 Fender Blackface Twin Reverb
- 4 x 12" DigiTech Metal
- 4 x 12" DigiTech Solo
- 4 x 12" DigiTech Bright Clean
- 4 x 12" Johnson Straight with Celestion Vintage 30s
- 4 x 12" Marshall 1960 Straight with Celestion G12-T70s
- 4 x 12" Marshall 1960 Slant with Celestion 25W Greenbacks
- Effects
- Compression Noise Gate
- DigiTech Auto Swell Gate
- DigiTech Silencer Noise Gate
Distortion - Acoustic Guitar Simulator
- Boss DS-1 Distortion
- DOD 250 Overdrive/Preamp
- DigiTech Death Metal
- DigiTech Grunge
- Electro-Harmonix Big Muff Pi
- Ibanez TS-9 Tube Screamer
Chorus - Boss CE-2 Chorus
- DigiTech Chorus
- DigiTech Dual Chorus
Flanger Phaser Pitch - DigiTech Detune
- DigiTech Pitch Shift
Vibrato/Rotary - DigiTech Panner
- DigiTech Rotary
- DigiTech Vibrato
Tremolo Envelope - DigiTech Auto Yah
- DigiTech Envelope Filter
- DigiTech Step Filter
EQ Delay - Analog Delay
- Digital Delay
- Pong Delay
- Tape Delay
Reverb - DigiTech Hall
- DigiTech Room
- Fender Twin Spring Reverb

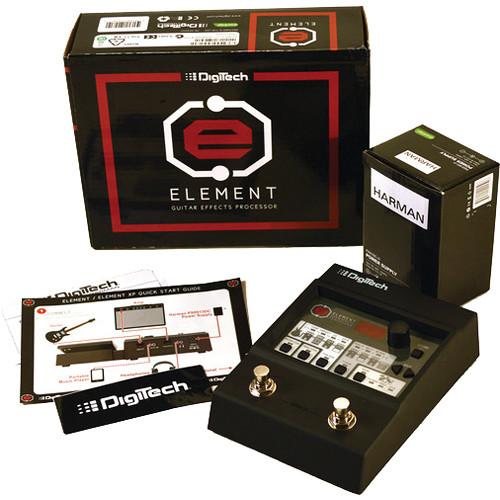

UPC: 691991202810 In the Box DigiTech Element - Guitar Multi-Effects Pedal - PS0913DC 9VDC Power Adapter aucrvctaavdvwesxy
- One (1) Year Limited Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the DigiTech Element - Guitar Multi-Effects Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the DigiTech Element - Guitar Multi-Effects Pedal can be downloaded in PDF format at the link stated below.
Technical parametersDigiTech ELMT Specs | A/D Converter | 24-bit high performance audio | | Sampling Rate | 44.1 kHz | | DSP Section | Audio DNA2 DSP processor | | Simultaneous Effects | 9 | | Presets | Factory: 100
User: 100 | | Drum Patterns | 45 | | Headphone | 1 x 1/8" TRS stereo mini | | Power | Via included external adapter | | Dimensions (L x W x H) | 6.25 x 4.5 x 2.25" (159 x 114 x 57 mm) | | Weight | 0.7 lb (0.3 kg) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 8.4 x 6.5 x 2.7" |
