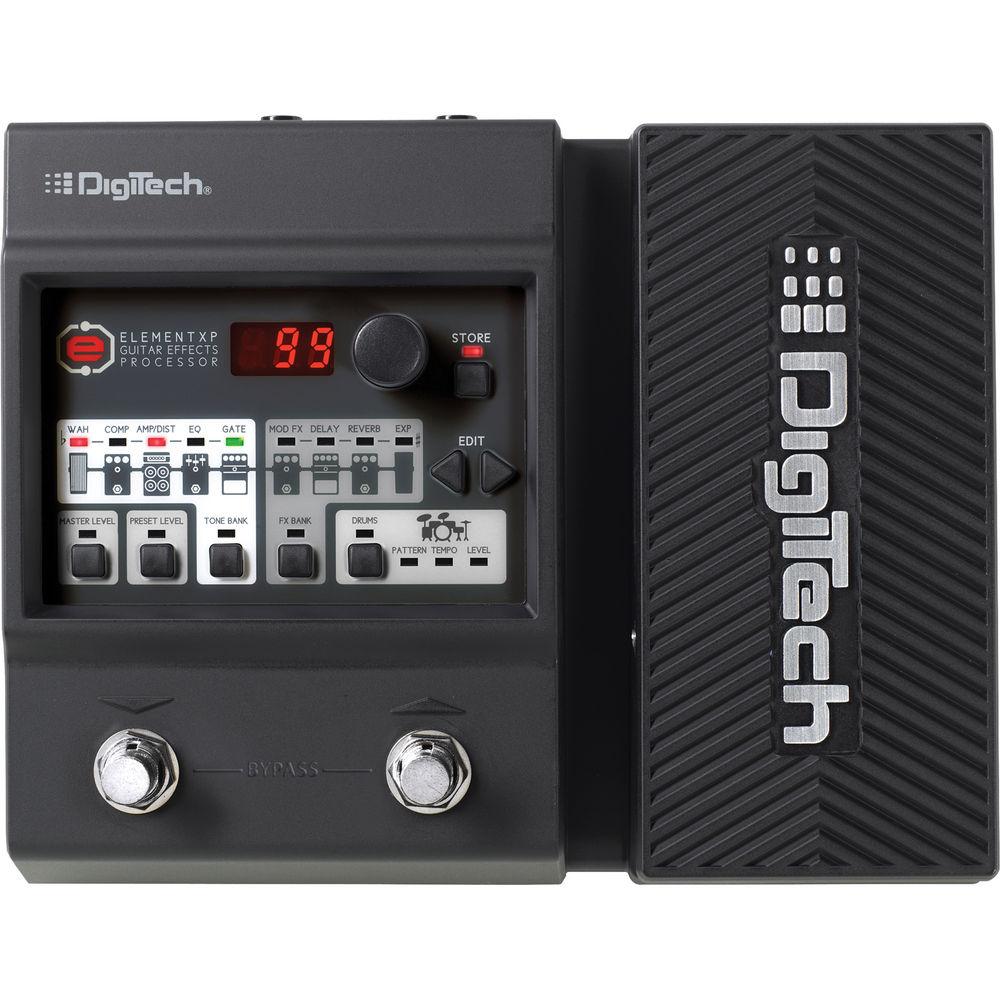

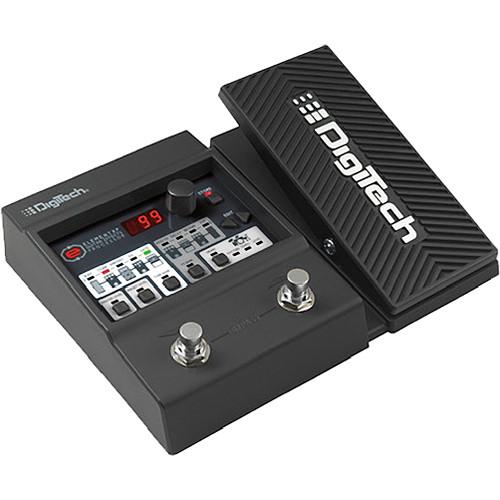

Product description The Element XP from DigiTech is multi-effect guitar pedal that provides everything needed to explore a wide gamut of guitar tones. The unit models thirty-seven different pedals, twelve amplifiers, and nine speaker cabinets, and also includes a built-in expression pedal, a guitar tuner and headphone jack for playing without disturbing others. The one-hundred factory presets allow for creating custom presets, which can be saved in any of the one-hundred user locations.
Using a simple pedalboard style layout and editor, settings for the fifty-eight effects can be quickly adjusted. The Tone Bank and FX Bank each have twenty different tone and effects combinations for quick and easy sound selection. When drums are needed to play along with, trigger one of the forty-five drum tracks with the touch of a button.

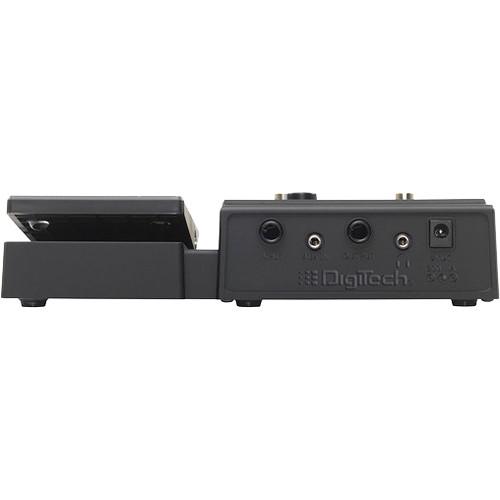

The unit features a 1/4" guitar input along with stereo 1/4" output jacks that can be connected to either an amplifier or mixer for direct recording. A press of the Amp/Mixer mode engages the internal speaker cabinets for direct recording. A stereo mini auxiliary input is included for connecting audio playback devices to play along with. - 58 effects consisting of 12 amps, 9 cabinets, 37 stompboxes
- 200 presets (100 factory, 100 user)
- 20 Tone Bank combinations
- Expression pedal built-in
- Up to nine effects to each preset
- Up to five seconds of delay time
- Stereo mini headphone output
- Stereo mini auxiliary input
- Amp/Mixer mode optimizes 1/4" outputs for amps and mixers
- 24-bit/44.1 kHz sample rate
- Durable metal footswitches
- Amplifiers
-
- '01 Mesa Boogie Dual Rectifier
- '57 Fender Tweed Deluxe
- '63 Vox AC30 Top Boost
- '65 Fender Blackface Twin Reverb
- '68 Marshall 100 Watt Super Lead (plexi)
- '68 Marshall JMP Panel
- '77 Marshall Master Volume
- '96 Matchless HC30
- DigiTech Bright Clean
- DigiTech Clean Tube
- DigiTech Metal
- DigiTech Solo
- Speaker Cabinets
-
- 1 x 12" '57 Fender Tweed Deluxe Reverb
- 2 x 12" '63 Vox AC30 Top Boost with Jensen Blue Backs
- 2 x 12" '65 Fender Blackface Twin Reverb
- 4 x 12" DigiTech Metal
- 4 x 12" DigiTech Solo
- 4 x 12" DigiTech Bright Clean
- 4 x 12" Johnson Straight with Celestion Vintage 30s
- 4 x 12" Marshall 1960 Straight with Celestion G12-T70s
- 4 x 12" Marshall 1960 Slant with Celestion 25W Greenbacks
- Effects
- Wah
- DigiTech Full Range
- Dunlop Cry Baby Wah
- Vox Clyde McCoy Wah
Compression Noise Gate - DigiTech Auto Swell Gate
- DigiTech Silencer Noise Gate
Distortion - Acoustic Guitar Simulator
- Boss DS-1 Distortion
- DOD 250 Overdrive/Preamp
- DigiTech Death Metal
- DigiTech Grunge
- Electro-Harmonix Big Muff Pi
- Ibanez TS-9 Tube Screamer
Chorus - Boss CE-2 Chorus
- DigiTech Chorus
- DigiTech Dual Chorus
Flanger Phaser Pitch - DigiTech Detune
- DigiTech Pitch Shift
- DigiTech Whammy
Vibrato/Rotary - DigiTech Panner
- DigiTech Rotary
- DigiTech Vibrato
Tremolo Envelope - DigiTech Auto Yah
- DigiTech Envelope Filter
- DigiTech Step Filter
- DigiTech YaYa
EQ Delay - Analog Delay
- Digital Delay
- Pong Delay
- Tape Delay
Reverb: - DigiTech Hall
- DigiTech Room
- Fender Twin Spring Reverb

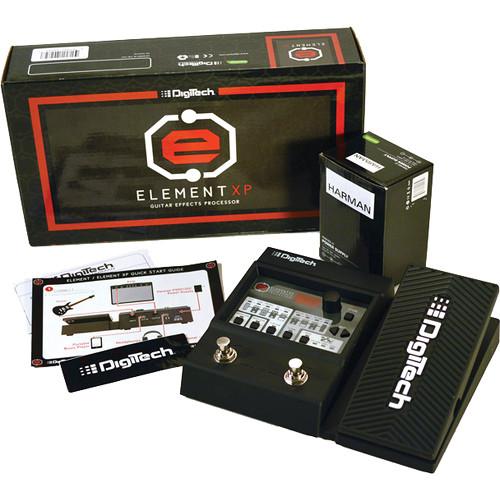

Volume UPC: 691991202827 In the Box DigiTech Element XP - Guitar Multi-Effects Pedal PS0913DC 9VDC Power Adapter aucrvctaavdvwesxy One (1) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DigiTech Element XP - Guitar Multi-Effects Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigiTech ELMTXP Specs | A/D/A Converter | 24-bit high performance audio | | Sampling Rate | 44.1 kHz | | DSP Section | Audio DNA2 DSP processor | | Simultaneous Effects | 9 | | Presets | Factory: 100
User: 100 | | Drum Patterns | 45 | | Headphone | 1 x 1/8" TRS stereo mini | | Power | Via included external adapter | | Dimensions (L x W x H) | 6.25 x 8 x 2.25" (159 x 202 x 57 mm) | | Weight | 1.4 lb (0.6 kg) | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 11.9 x 6.6 x 2.7" |
