DigiTech Mosaic Polyphonic 12-String Effect Pedal

Search your instruction manual in PDF to download

User Manual for DigiTech Mosaic Polyphonic 12-String Effect Pedal

Click to enlarge the picture
DigiTech Mosaic Polyphonic 12-String Effect Pedal Contents of the user manual for the DigiTech Mosaic Polyphonic 12-String Effect Pedal
  • Product category: Effects Pedals DigiTech
  • Brand: DigiTech
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for DigiTech Effects Pedals

DigiTech Mosaic Polyphonic 12-String Effect Pedal DigiTech Mosaic Polyphonic 12-String Effect Pedal DigiTech Mosaic Polyphonic 12-String Effect Pedal DigiTech Mosaic Polyphonic 12-String Effect Pedal DigiTech Mosaic Polyphonic 12-String Effect Pedal
User manual for the DigiTech Mosaic Polyphonic 12-String Effect Pedal contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any DigiTech product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official DigiTech user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a DigiTech product will considerably shorten its lifespan!



Product description

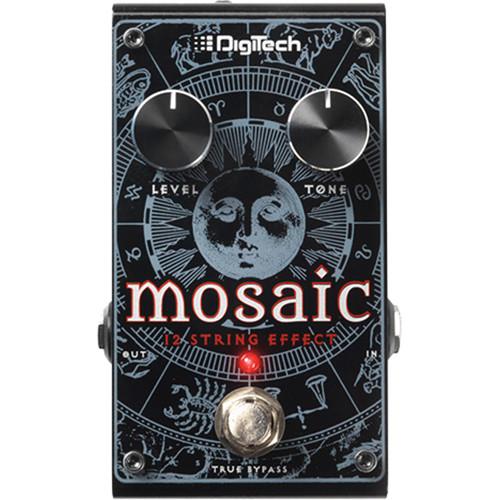

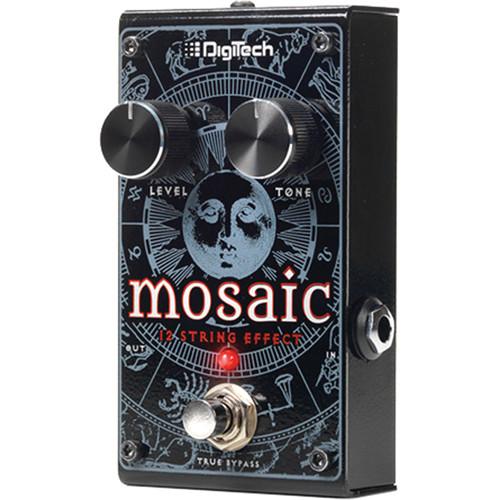

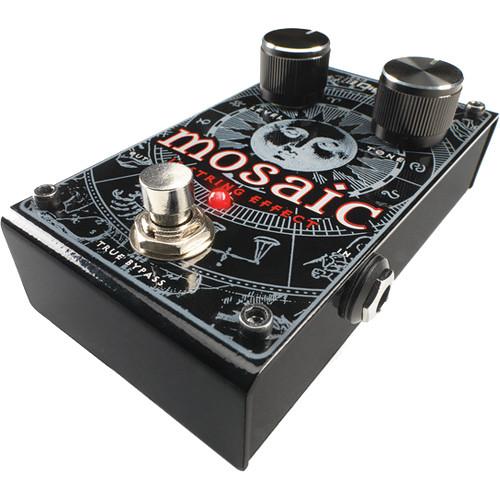

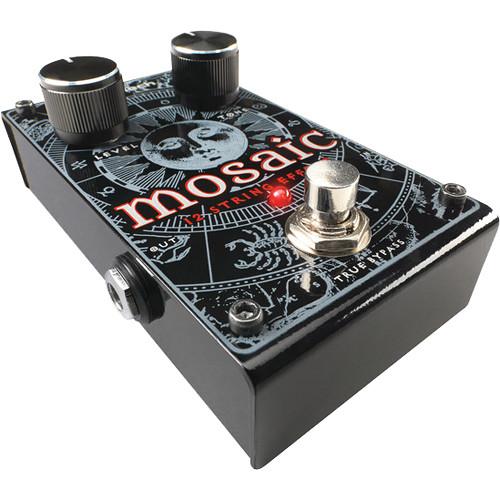

DigiTech's Mosaic Polyphonic 12-String Effect Pedal enables you to create lush and chimey 12-string sounds using a 6-string electric or amplified acoustic guitar. By using advanced polyphonic pitch shifting and "intelligent" doubling algorithms, the Mosaic approximates the sound of a 12-string, duplicating a monophonic and/or polyphonic input signal an octave below, down to 20 Hz, and doubling high frequencies up to 1 kHz.

The Mosaic's controls are easy to use. The Level control blends a chosen amount of effect into your dry signal to intensify the 12-string effect, and the Tone knob allows you to control the overall brightness of the effect by adjusting the amount of high-frequency enhancement added to your effect signal. A red LED indicates the effect's on/off status, while the pedal's true bypass design preserves your original signal when the effect is off. The Mosaic is powered by a 9 VDC power supply (included).
    • Level and Tone controls
    • True bypass
    • Compact design
    • Solid construction
    • Power adapter included
UPC: 691991202926 In the Box DigiTech Mosaic Polyphonic 12-String Effect Pedal
  • PS0913DC 9VDC Power Adapter
  • Limited 1-Year Warranty (Extendable to 6 Years with Registration)
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the DigiTech Mosaic Polyphonic 12-String Effect Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    DigiTech MOSAIC Specs

    Sample Rate Sample Rate: 44.1 kHz
    Frequency Response 20 Hz to 11 kHz (Effect Enabled)
    Signal to Noise Ratio > -105 dB (A-weighted); ref = max level, 22 kHz bandwidth
    THD 0.004% @ 1 kHz; ref = 1 dBu with unity gain
    A/D Conversion 24-bit
    Input Type 1 x 1/4" mono
    Maximum Input Level +5 dBu
    Input Impedance 1 MOhm (Effect Enabled)
    True bypass (Effect off)
    Output Type 1 x 1/4" mono
    Maximum Output Level +10 dBu
    Output Impedance 1 kOhm (Effect Enabled)
    True bypass (Effect Off)
    Power Consumption 2.3 W (< 250 mA at 9 VDC)
    Power Requirements PS0913DC 9 VDC external power adapter (center negative)
    Dimensions (L x W x H) 4.75 x 2.88 x 1.75" / 12.1 x 7.3 x 4.4 cm
    Weight 5.76 oz / 163 g
    Package Weight 1.4 lb
    Box Dimensions (LxWxH) 5.1 x 4.5 x 3.7"
