DigiTech Nautila Stereo Chorus and Flanger

Search your instruction manual in PDF to download

User Manual for DigiTech Nautila Stereo Chorus and Flanger Pedal

Click to enlarge the picture
DigiTech Nautila Stereo Chorus and Flanger Pedal Contents of the user manual for the DigiTech Nautila Stereo Chorus and Flanger
  • Product category: Effects Pedals DigiTech
  • Brand: DigiTech
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for DigiTech Effects Pedals

DigiTech Nautila Stereo Chorus and Flanger Pedal DigiTech Nautila Stereo Chorus and Flanger Pedal DigiTech Nautila Stereo Chorus and Flanger Pedal
User manual for the DigiTech Nautila Stereo Chorus and Flanger contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any DigiTech product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official DigiTech user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a DigiTech product will considerably shorten its lifespan!



Product description

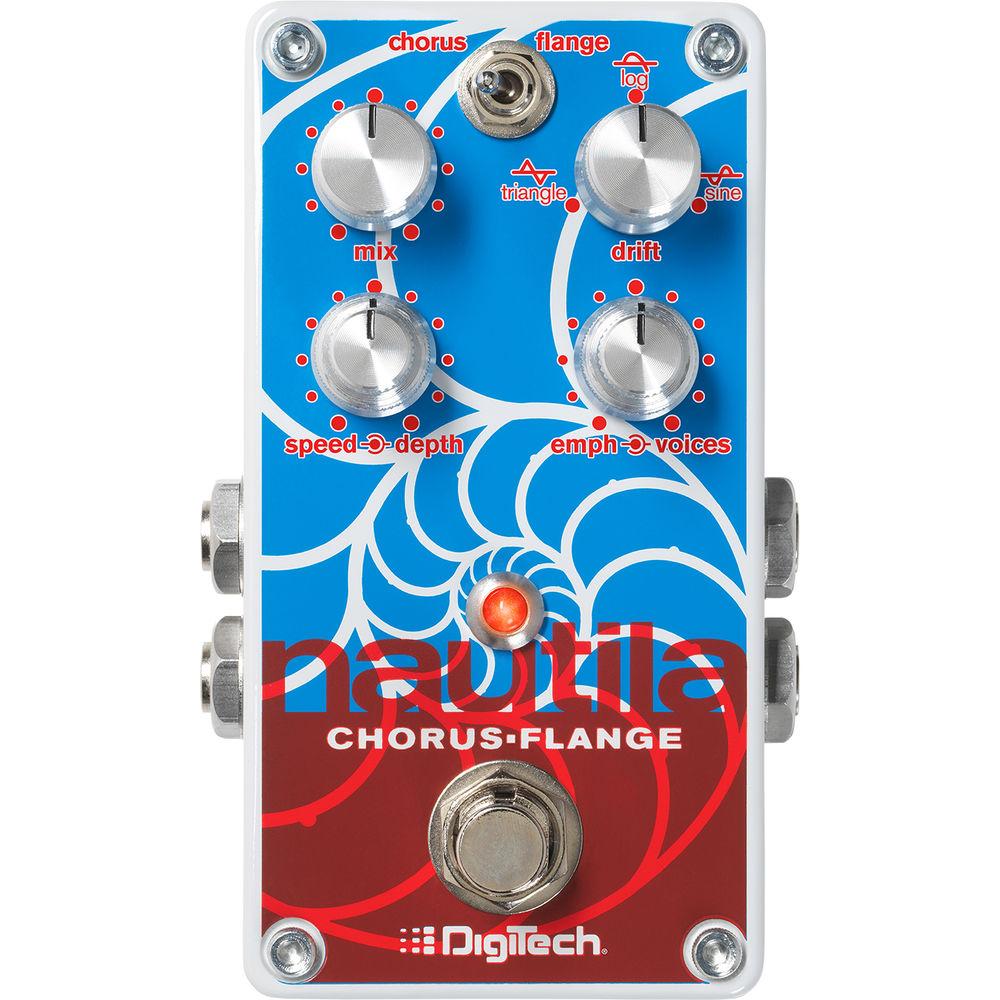

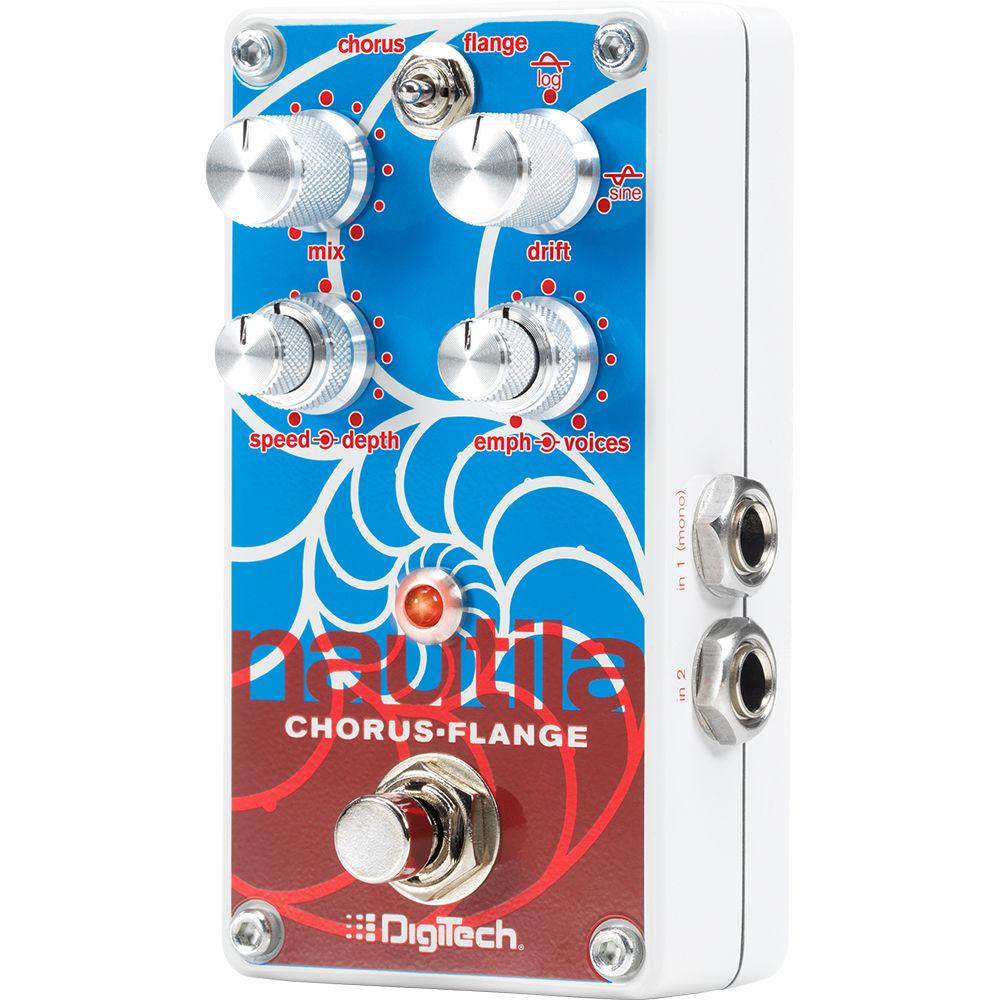

The Nautila by DigiTech is a multi-voice chorus and flanger pedal intended for use with electric guitars. It provides stereo inputs and outputs, allowing you to create a chorus or flanged sound that vacillates between two amplifiers, two speakers of a PA, or two inputs of an audio interface—depending on how you hook it up.The pedal itself offers modulation speed, depth, drift, tonal/regeneration and mix controls, allowing you to fabricate a variety of different modulated tones. The footswitch provided is true bypass, preserving your signal’s integrity when the effect is off. The footswitch also has a separate function: Holding it down results in changes of the modulation speed.This pedal can be used in mono operations with a single guitar and a single amplifier. It can also route a mono source to two destinations, allowing you to use a second amplifier. However, you can also plug two inputs into the pedal, in which case each input is processed separately, keeping true stereo separation between channels, allocating your chorus to move around amplifiers, or your flanger to swirl between input channels on a mixer.Included with the Nautila is a StompLock to protect your settings by preventing accidental knob adjustments, and a hook-and-loop pad to attach the pedal to your pedalboard.
    Footswitch Tricks
  • The speed of the modulation effect can be altered during performance by pressing and holding the footswitch while the effect is engaged. The Nautila's LED will turn green and the speed will change in the following manner: If the Speed knob is set in the slow range, the modulation speed will increase; if the Speed knob is set in the fast range, the modulation speed will decrease. When the footswitch is released, the LED will turn red again and the speed will return to the value you had set originally.
    Knobs at a Glance
    • Mix knob: Controls the amount of effect added to dry (unprocessed) signal. Turn this knob clockwise for more effect or counterclockwise for less effect.
    • Speed knob: Controls the rate of the modulation effect. Turn the knob clockwise to increase the rate or counterclockwise to decrease the rate.
    • Depth knob: Controls the intensity of the effect. Turn this knob clockwise for more intensity or counterclockwise for less intensity.
    • Voices knob: This knob works differently, depending on whether you are using the stompbox as a flanger or a chorus pedal. In Chorus mode, the Voices knob works as a tone control, enhancing the high frequencies the more you turn the knob clockwise. In Flanger mode, the knob controls the amount feedback/regeneration, dramatically enhancing the flanger’s harmonics during the sweep.
    Key Features at a Glance
    • Chorus and flanger in one pedal
    • 1 to 8 voices for chorus
    • 1 to 4 voices for flanger
    • Slow to fast or fast to slow foot-switchable speeds
    • Soft-click vacuum-style footswitch
    • True stereo I/O
    • True bypass circuitry preserves your tone when the pedal is not in use
    • High-voltage operation for uncompromised signal quality
    • Includes StompLock knob guard to lock your tone in place and prevent accidental knob adjustments onstage
    • Includes custom-fitted hook-and-loop pedalboard pad to secure the Nautila to your pedalboard
UPC: 691991005510 In the Box DigiTech Nautila Stereo Chorus and Flanger Pedal
  • StompLock
  • Die-Cut Hook-and-Loop Pedalboard Pad
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the DigiTech Nautila Stereo Chorus and Flanger Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    DigiTech NAUTILA-U Specs

    Audio I/O 2 x 1/4" TS balanced input, unbalanced
    2 x 1/4" TS balanced output, unbalanced
    Input Impedance Effect on: >1 MOhm (stereo), >500 kOhms (mono)
    Effect off: True hardwire bypass
    Output Impedance Effect on: 1 kOhm
    Effect off: True hardwire bypass
    Control Knobs Mix knob
    Drift knob
    Speed/Depth knob
    Emphasis/Voices knob
    Switches 1 x Effect type toggle switch
    1 x Soft-click, vacuum-style footswitch

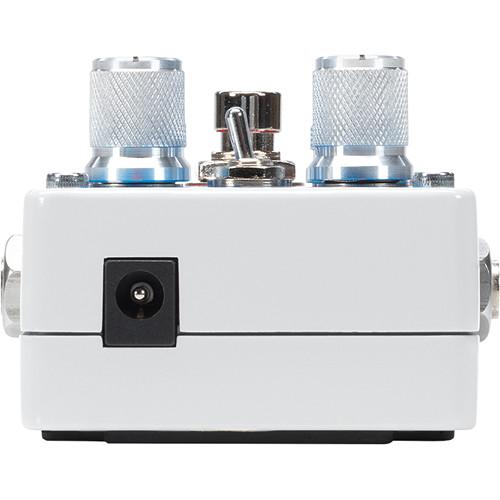

    Power Requirements 9 VDC external power supply (required)
    Power Consumption 675 mW (<75 mA at 9 VDC)
    Current Draw 75 mA (typical at 9 VDC)
    Power Supply PS0913DC-01 (available separately)
    Power Supply Output 9 VDC 1.3 A
    Dimensions (L x W x H) 4.4 x 2.7 x 2.0" / 11.2 x 6.7 x 5.1 cm
    Weight 1.0 lb / 0.5 kg
    Package Weight 1.2 lb
    Box Dimensions (LxWxH) 4.8 x 3.3 x 2.2"
