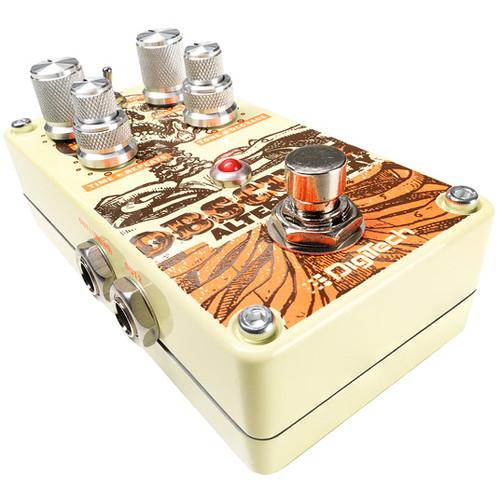

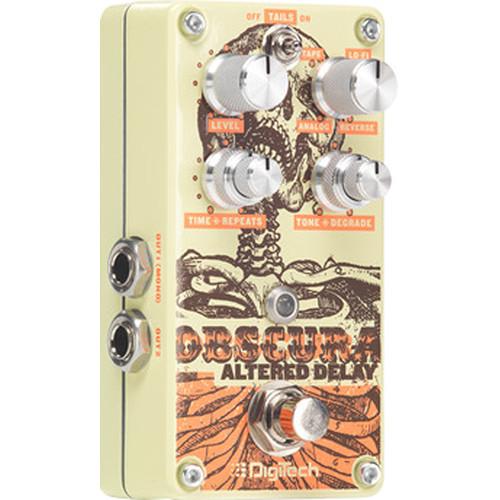

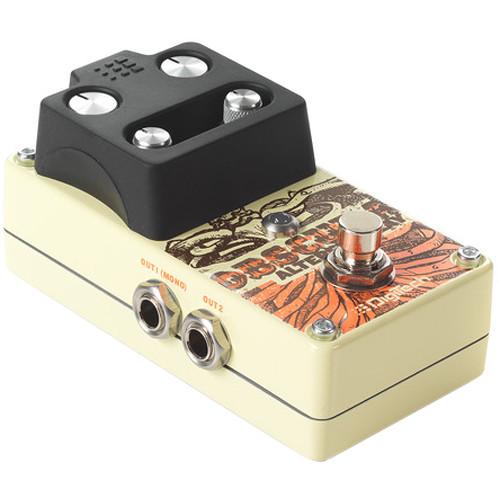

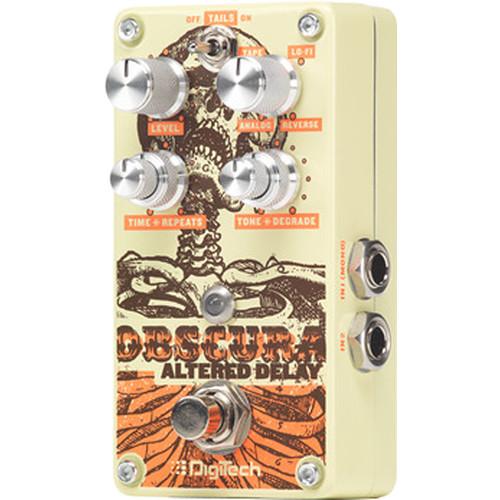

User Manual for DigiTech Obscura Altered Delay Pedal Click to enlarge the picture
Contents of the user manual for the DigiTech Obscura Altered Delay Pedal
- Product category: Effects Pedals DigiTech
- Brand: DigiTech

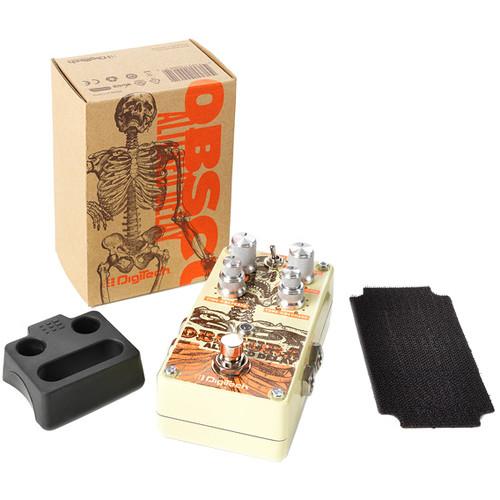

- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DigiTech Effects Pedals
 |
User manual for the DigiTech Obscura Altered Delay Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DigiTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DigiTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DigiTech product will considerably shorten its lifespan!
|
Product description Bring forth delay tones ranging from vintage, analog bucket brigade to trippy, 8-bit lo-fi with DigiTech's Obscura Altered Delay Pedal. In all, the Obscura Altered Delay pedal features four different delay types; Analog, Tape, Lo-Fi, and Reverse. The Degrade knob can then be applied to alter each delay mode differently, depending on the selection. Analog emulates a classic bucket brigade delay circuit and using the Degrade knob increases aliasing and grit. Select the Tape delay type for a sound which resembles an analog tube-based tape delay, where the Degrade knob increases wow and flutter. The Lo-Fi mode imitates a vintage digital delay with limited digital bandwidth and low 8-bit sample rates. In Lo-Fi mode, the Degrade knob emulates the input channel clipping found on the emulated legacy delay hardware. Finally, the Reverse delay type removes the dry signal and instead plays back the repeats in reverse for an ethereal sound quality. In this mode, the Degrade knob adds tape saturation to the reversed sound. Using the Repeat/Hold feature, you can layer delays for trippy swirling sounds or gurgling repeats. For even more expansive sounds, the Obscura features stereo inputs and outputs.In addition to the delay options, the Obscura features controls for output level, delay time, number of repeats, and tone. Delay time can be selected via the rotary knob or in tap-tempo mode. In tap-tempo mode you can tap out the tempo of your music on the footswitch and the Obscura will time its delay repeats accordingly. While using tap tempo, the Time knob can function as a multiplier to select eighth, dotted-eighth, and quarter-note subdivisions. A tails switch allows for the repeat signal to trail off even after the pedal has been bypassed. This mode prevents abrupt changes in signal and enables smoother transitions between on and off.All of the functionality of the Obscura delay pedal is encased in an aluminum enclosure with a true-bypass, vacuum-style footswitch. Included with the Obscura are a StompLock knob guard for protecting your settings from accidental changes and a hook-and-loop Pedalboard Pad for cleanly installing the Obscura on your pedalboard. UPC: 691991000614 In the Box DigiTech Obscura Altered Delay Pedal Hook-and-Loop Pedalboard Pad StompLock Knob Protector Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DigiTech Obscura Altered Delay Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigiTech OBSCURA Specs | Input | Connectors:
2 x unbalanced 1/4" (TS)
Impedance:
On: > 1 MOhm (stereo); > 500 kOhm (mono)
Off: True hardwire bypass | | Output | Connectors:
2 x unbalanced 1/4" (TS)
Impedance:
On: > 1 kOhm
Off: True hardwire bypass | | Power Supply | 9 VDC, 1.3 A Power Supply (available separately)
Current Draw: 75 mA
Power Consumption: < 675 mW | | Dimensions | 4.4 x 2.7 x 2" / 112 x 67 x 51 mm | | Weight | 1 lb / 453 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 4.7 x 3.3 x 2.3" |
