User Manual for DigiTech RP360 - Guitar Multi-Effects Pedal with USB Streaming Click to enlarge the picture
Contents of the user manual for the DigiTech RP360 - Guitar Multi-Effects Pedal
- Product category: Effects Pedals DigiTech
- Brand: DigiTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DigiTech Effects Pedals
 |
User manual for the DigiTech RP360 - Guitar Multi-Effects Pedal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DigiTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DigiTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DigiTech product will considerably shorten its lifespan!
|

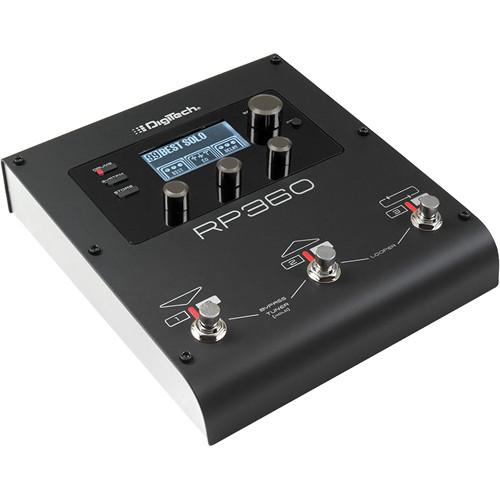

Product description The RP360 from DigiTech is a guitar multi-effects pedal with USB streaming featuring over 160 different effects including 54 amplifiers, 26 cabinets and 82 effects modeled after popular pedals and amps. It also provides a 40-second looper, nearly 200 presets, configurable footswitch modes, a built-in chromatic tuner, a dedicated headphone jack, and 60 built-in drum patterns. The pedal's USB port allows you to transfer and load presets from your computer. Plus, with the free preset editor and librarian software, you can create, transfer, and share an unlimited number of tones. The USB port also lets you record guitar tracks directly into your computer. For added flexibility, the RP360 works with GarageBand, Pro Tools, Cubase, Ableton, and more. It's compatible with PC and Mac computers as well. The pedal can be easily incorporated into your existing pedalboard and you'll be able to assign any effect in your preset to each footswitch. You can also navigate presets using the preset mode or bank mode. For added control, you can also use it with a three-button footswitch or expression pedal. The pedal supports the Sound Check feature as well, which allows you to record a phrase with your guitar and set it to repeat while you figure out which effect and setting you want to use. - Over 160 amps, cabinets and effects
- 198 presets (99 factory and 99 user)
- Durable metal chassis and footswitches
- USB audio streaming (2 x 2)
- Control input for expression pedal or three-button footswitch
- Configurable footswitch modes (Stompbox, Preset, Bank)
- Add up to eight effects to each preset
- Up to five seconds of delay time
- Nexus Editor Librarian for PC and Mac
- Stereo 1/8" headphone output
- Stereo 1/8" auxiliary input
- Amp/Mixer mode optimizes 1/4" outputs for amps and mixers
- 24-bit 44.1 kHz sample rate

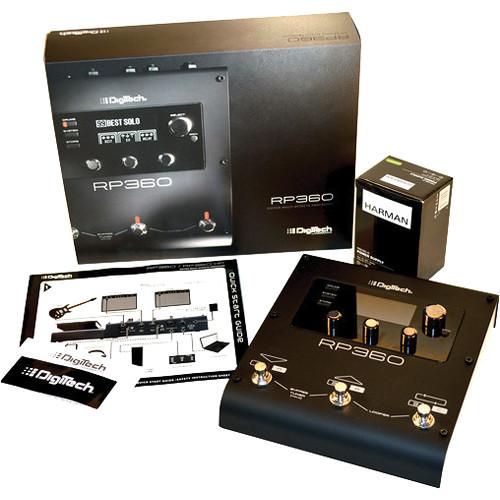

UPC: 691991202780 In the Box DigiTech RP360 - Guitar Multi-Effects Pedal with USB Streaming PS0913DC 9VDC Power Adapter wqyewbedxrzwazvstvyazvzbfaruxwrvcrbv One (1) Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DigiTech RP360 - Guitar Multi-Effects Pedal with USB Streaming in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDigiTech RP360 Specs | A/D/A Converter | 24-bit audio | | Sampling Frequency | 44.1 kHz | | A/D/A | AudioDNA2 DSP processor | | Simultaneous Effects | 10 | | Memory Preset Banks | 99 x User
99 x Factory | | Phrase Looper | 40 seconds of record time | | Drum Patterns | 60 | | Guitar Input | 1 x 1/4" (6.35 mm) TS unbalanced | | Input Impedance | 1 MΩ | | Maximum Input | +10 dBu | | Aux Input Connector | 1/8" (3.5 mm) TRS stereo mini | | Output Connector | 2 x 1/4" (6.35 mm) TS impedance unbalanced | | Output Impedance | 500 Ω (per side) | | Maximum Output | +8.5 dBu | | Headphone Output | 1 x 1/8" (3.5 mm) TRS stereo mini
118 mW per channel at 50 Ω
Optimized for headphones with an impedance of 60 Ω or less | | USB Type | 1 x USB Type B
Supports USB 1.1 Full Speed (12 Mbps bandwidth USB 2.0 compatible) | | USB Recording | Sample Rate: 44.1 kHz
Bit Depth: Supports 16-bit or 24-bit (dependent on setup in recording software) | | Power Requirements | 9 VDC
300 mA
2.7 W
Center pin GND
Outer sleeve positive | | Power Supply | PS0913DC-01 power adapter | | Dimensions (LxWxH) | 7.5 x 8.5 x 2" (191 x 216 x 51 mm) | | Weight | 2.8 lb (1.3 kg) | | | | Package Weight | 4.25 lb | | Box Dimensions (LxWxH) | 11.6 x 9.3 x 2.9" |
