User Manual for DigiTech TRIO+ Band Creator Pedal with Built-In Looper

Click to enlarge the picture
DigiTech TRIO+ Band Creator Pedal with Built-In Looper Contents of the user manual for the DigiTech TRIO+ Band Creator Pedal with
  • Product category: Effects Pedals DigiTech
  • Brand: DigiTech
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for DigiTech Effects Pedals

DigiTech TRIO+ Band Creator Pedal with Built-In Looper DigiTech TRIO+ Band Creator Pedal with Built-In Looper DigiTech TRIO+ Band Creator Pedal with Built-In Looper DigiTech TRIO+ Band Creator Pedal with Built-In Looper DigiTech TRIO+ Band Creator Pedal with Built-In Looper DigiTech TRIO+ Band Creator Pedal with Built-In Looper DigiTech TRIO+ Band Creator Pedal with Built-In Looper DigiTech TRIO+ Band Creator Pedal with Built-In Looper
User manual for the DigiTech TRIO+ Band Creator Pedal with contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any DigiTech product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official DigiTech user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a DigiTech product will considerably shorten its lifespan!



Product description

A built-in backing band in a solitary pedal, the TRIO+ from DigiTech allows you to store five individual song parts, play them back in sequence, and tailor them on the fly to your performance purposes. Also, the pedal features a teachable rhythm section which can follow the chords you're playing and intelligently generate bass and drum sections in one of twelve genres, including Rock, Blues, R&B, and more.

Furthermore, within each genre are twelve individual and selectable styles, making the possibilities for variations quite sizable. Once taught and stylized, this "backing band" can be blended into the mix to taste via on-board knobs. Or you can opt to use the pedal as a traditional looper—only with five individual loops to switch through instead of the standard one. Either way, you can store up to 12 songs on the included microSD card, preserving the ability to adjust the tempo and dynamics of each song all the while.

Connection points also abound. For instance, you can route your signal to a mixer, an amplifier, a pair of headphones, or all three at once. You can connect via USB to a computer in order to manage your song library or update firmware. Complementing the unit's built-in loop and band switches, you can route an external footswitch into the pedal, and lastly, an included effects loop allows you to include your entire pedal rig in the TRIO+'s chain, should you want to.
    Additional Features
  • Twelve built-in music genres: Blues, R&B, Rock, Alternative Rock, Metal, Pop, Electronic Pop, Hip-Hop, Country, Folk, Latin, and Jazz
  • Twelve individual styles per genre
  • Learns up to 5 different parts for any individual song
  • Programmable part-by-part intensities for instilling/preserving dynamic performances
  • Programmable part-by-part sequencer
  • Three bass line modes
  • Built-in looper with unlimited overdubs and one layer of undo/redo
  • Adjustable tempo with Audiolastic time-stretching
  • Independently adjustable level controls for bass, drums, and loops
  • Built-in guitar effects
  • Individual outputs for amp and mixer outputs
  • FX loop for connecting external effect pedals
  • 1x 1/8" headphone output with level control
  • Up to 12 songs with loops can be stored to an included microSD card
  • Downloadable Managing Software Included
  • Additional hands-free control via DigiTech FS3X footswitch (available separately)
  • Dual soft-touch switches
  • Included power adapter
UPC: 691991001802 In the Box DigiTech TRIO+ Band Creator Pedal with Built-In Looper
  • 9 VDC Power Supply
  • microSD Card
  • Limited 1-Year Warranty, Extendable to 6 Years with Registration
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the DigiTech TRIO+ Band Creator Pedal with Built-In Looper in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for DigiTech TRIO+ Band Creator Pedal with Built-In Looper can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for DigiTech TRIO+ Band Creator Pedal with Built-In Looper can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the DigiTech TRIO+ Band Creator Pedal with Built-In Looper can be downloaded in PDF format at the link stated below.
    Download PDF user manual - DigiTech TRIO+ Band Creator Pedal with Built-In LooperDownload PDF User Manual - https://www.search-manual.com/ upload/ digitech-trio-plus-band-creator-pedal-with-built-in-looper-217194-user-manual.pdf
    (PDF file, 2.88 MB)


    Technical parameters

    DigiTech TRIOPLUS Specs

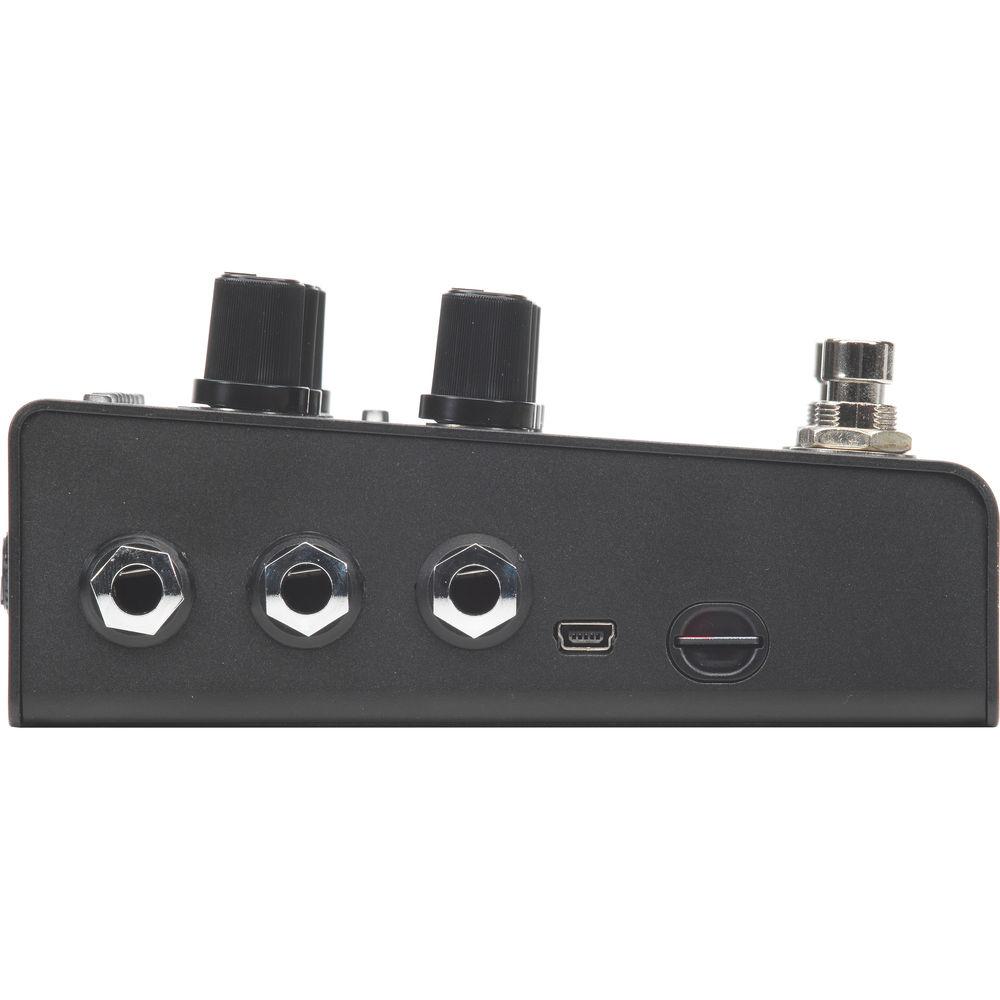

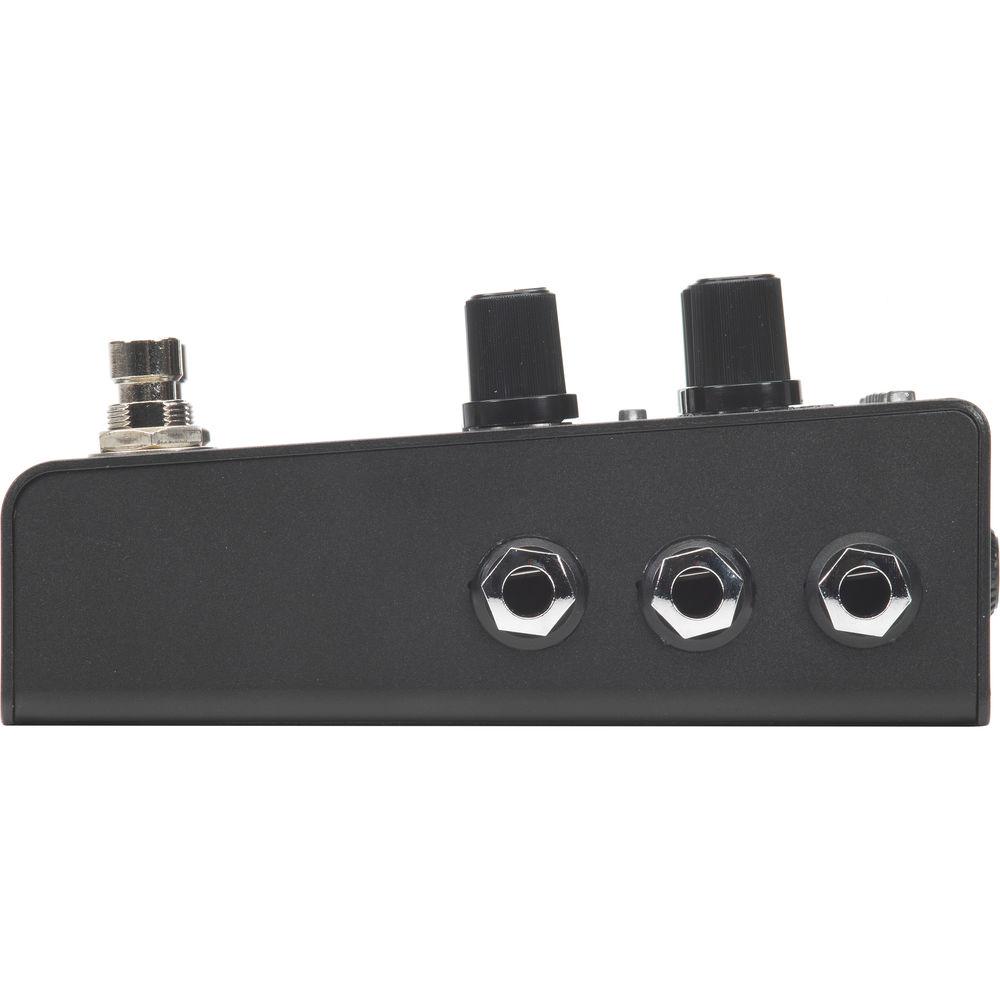

    I/O 3x 1/4" phone inputs: GUITAR IN, CONTROL IN, FX RETURN
    3x 1/4" phone outputs: AMP OUT, MIXER OUT, FX SEND
    1x 1/8" / 3.5 mm mini output: HEADPHONE OUT
    1x 9 VDC power adapter
    1x mini-B USB

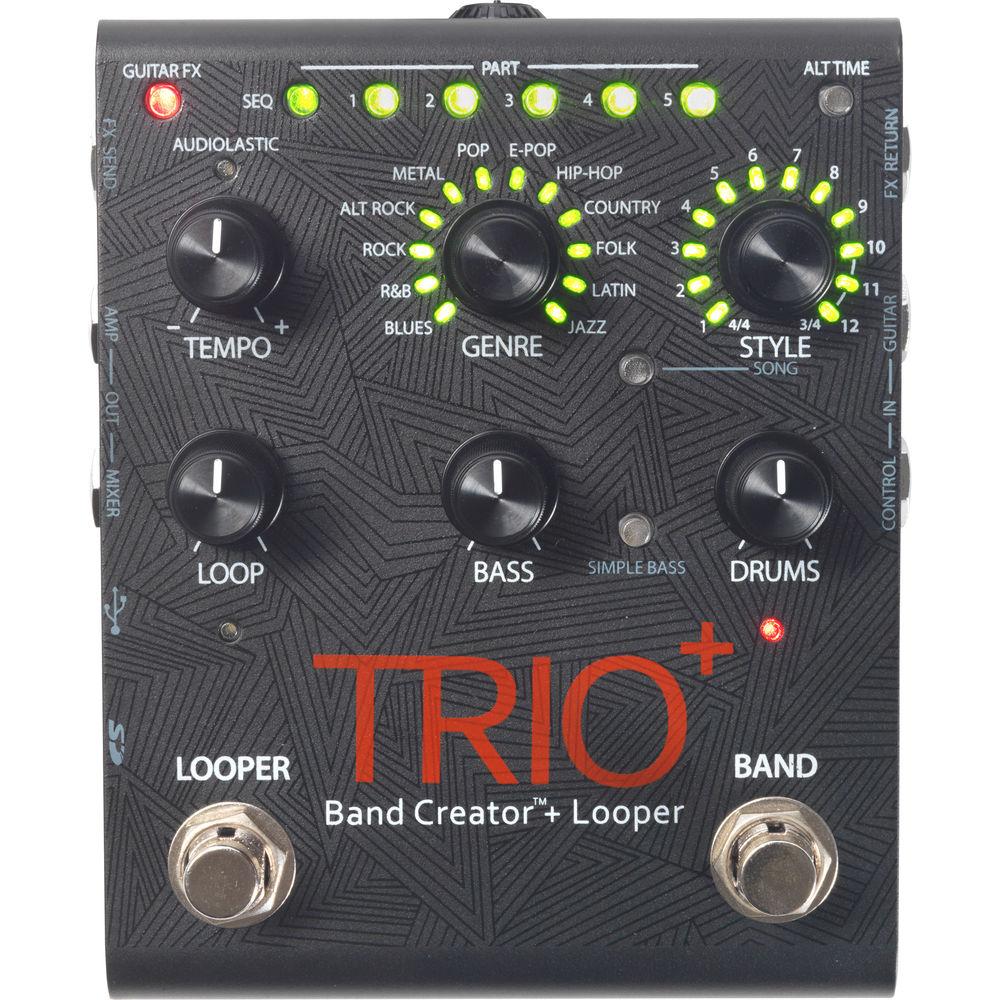

    Control Knobs TEMPO: Adjusts global playback tempo
    STYLE: Selects among genre-specific styles, 12 styles per genre
    GENRE: Selects genre type for selected song-part
    LOOP: Adjusts the level of recorded loop and overdubs in overall mix
    DRUMS: Adjusts level of drums in the overall mix
    BASS: Adjusts the level of bass in the overall mix
    HEADPHONE VOLUME: Adjusts the volume level for listening through headphones
    Buttons GUITAR FX: Apply built-in guitar effects to your signal
    SIMPLE BASS: Instantiates a simpler bass-line
    ALT TIME: Select an alternate interpretation of the selected song-part's tempo (i.e., double or halve the tempo)
    SEQUENCE: Programs a song sequence
    PART: 5x buttons for storing different song-sections (i.e., intro, verse, chorus)
    SONG: Accesses song selection
    Footswitches LOOPER: Records loops and overdubs
    BAND: Teaches the built-in "Band" to follow your recorded parts
    LEDs GENRE types, STYLE 1 through 12, AUDIOLASTIC, LOOPER, BAND
    Input Impedance Guitar Input: 1 MOhm
    FX Return: 1 MOhm
    Output Impedance Amp Output: 1 kOhm
    Mixer Output: 1 kOhm
    FX Send Output: 1 kOhm
    Headphone Output: 120 Ohms
    Headphone Output Frequency response: 20 Hz to 20 kHz
    Bit Depth 24-bit
    Sample Rate 44.1 kHz
    Signal to Noise Ratio 110 dB, A-weighted
    Bit Depth 24-bit
    Sample Rate 44.1 kHz
    Maximum Recording Time 230 seconds per song part - based on a minimum 50 BPM and 48 bars per part
    USB Type Mini-B
    microSD Card Slot Type: microSDHC, Class 10
    Min/Max Storage Size: 8 GB / 32 GB
    Power Requirements 9 VDC external power adapter
    Power Consumption 7.2 W
    Current Draw 800 mA
    Power Adapter (Included) Model PS0913DC-04, 9 VDC
    Dimensions (L x W x H) 5.4 x 4.25 x 2.5" / 137.2 x 108 x 63.5 mm
    Weight 1.46 lb / 0.66 kg
    Package Weight 2.33 lb
    Box Dimensions (LxWxH) 8.4 x 5.8 x 2.85"
