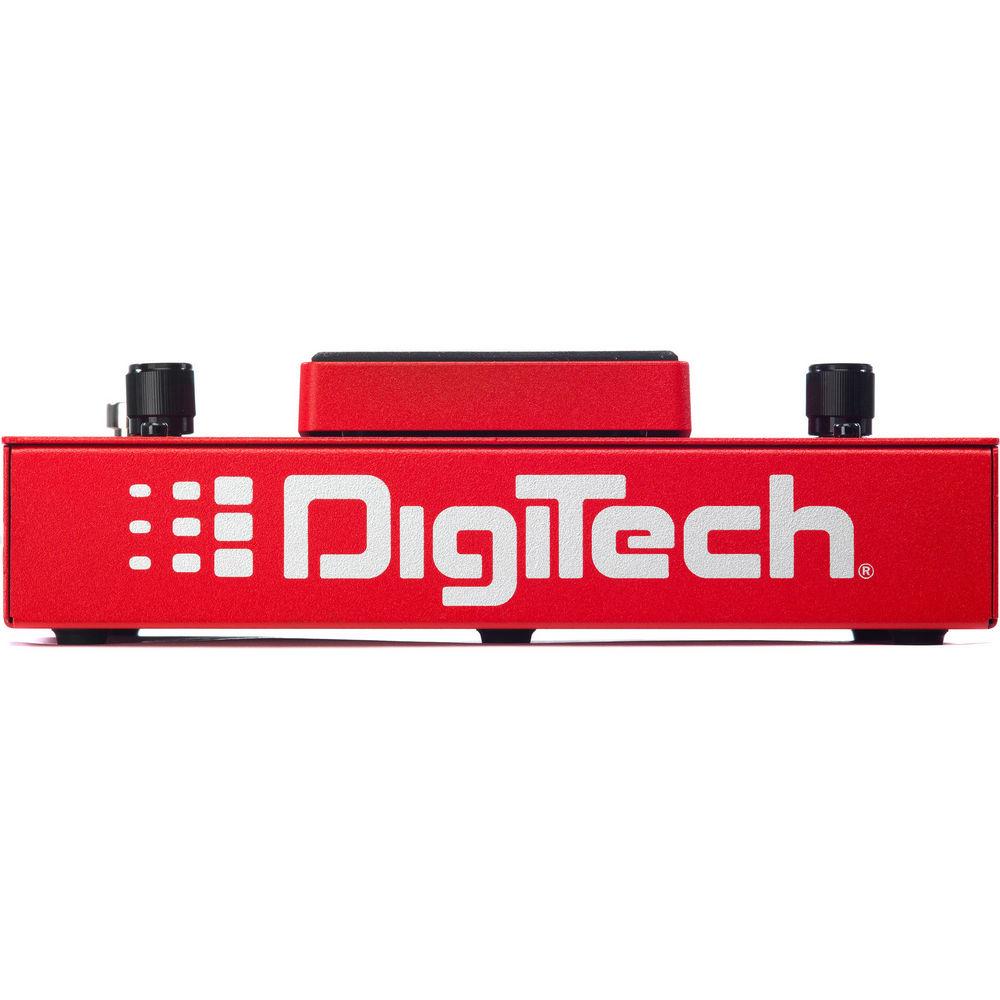

User Manual for DigiTech Whammy DT Pitch Shifting Effects Pedal Click to enlarge the picture
Contents of the user manual for the DigiTech Whammy DT Pitch Shifting Effects
- Product category: Effects Pedals DigiTech
- Brand: DigiTech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DigiTech Effects Pedals
 |
User manual for the DigiTech Whammy DT Pitch Shifting Effects contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DigiTech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DigiTech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DigiTech product will considerably shorten its lifespan!
|
Product description The Whammy DT Pitch Shifting Effects Pedal by DigiTech builds upon the legendary Whammy pedal by adding more effects, drop and raised tuning, a momentary switch for hammer-on/pull-off effects and switchable True and DSP bypass modes. Simply put, the Whammy takes your guitar sound and shifts the pitch up or down using special algorithms and is then controlled with the onboard expression pedal creating new and exciting sounds. The Whammy DT includes classic whammy voices plus three different effects; Whammy, Harmony and Detune. It also provides drop and raised tuning in half steps or over an entire octave in just one setting. Quickly stomp on the momentary switch and create cool, hammer-on/pull-off effects or hold it down for quick chord shifts and surprising note changes for that searing solo or gritty bridge. Note: The FS3X footswitch is sold separately and gives you hands-free control of the Whammy and Drop Tune effects. - Includes classic whammy voices plus Whammy, Harmony, Detune and Drop Tune effects
- Provides drop and raised tuning in half step increments or over a full octave in one setting
- Momentary switch creates hammer-on/pull-off effects, quick chord shifts and sudden note changes
- MIDI input allows you to control the Whammy DT's effects from most any MIDI controller
- Switchable True Bypass and DSP Bypass modes
- FS3X footswitch input for hands-free selection of Whammy and Drop Tune settings
- Roadworthy contstruction and flashy, Ferrari red finish
UPC: 691991202537 In the Box DigiTech Whammy DT Pitch Shifting Effects Pedal Power Supply Limited 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DigiTech Whammy DT Pitch Shifting Effects Pedal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

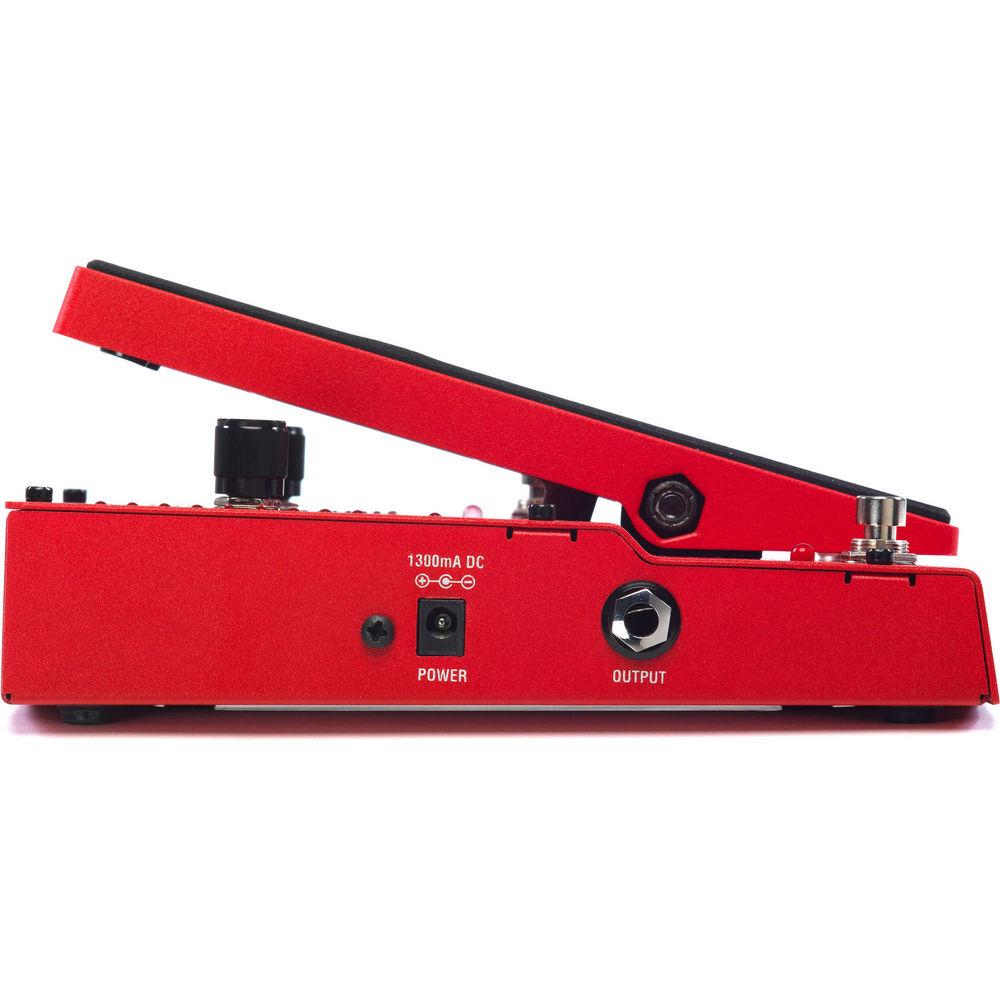

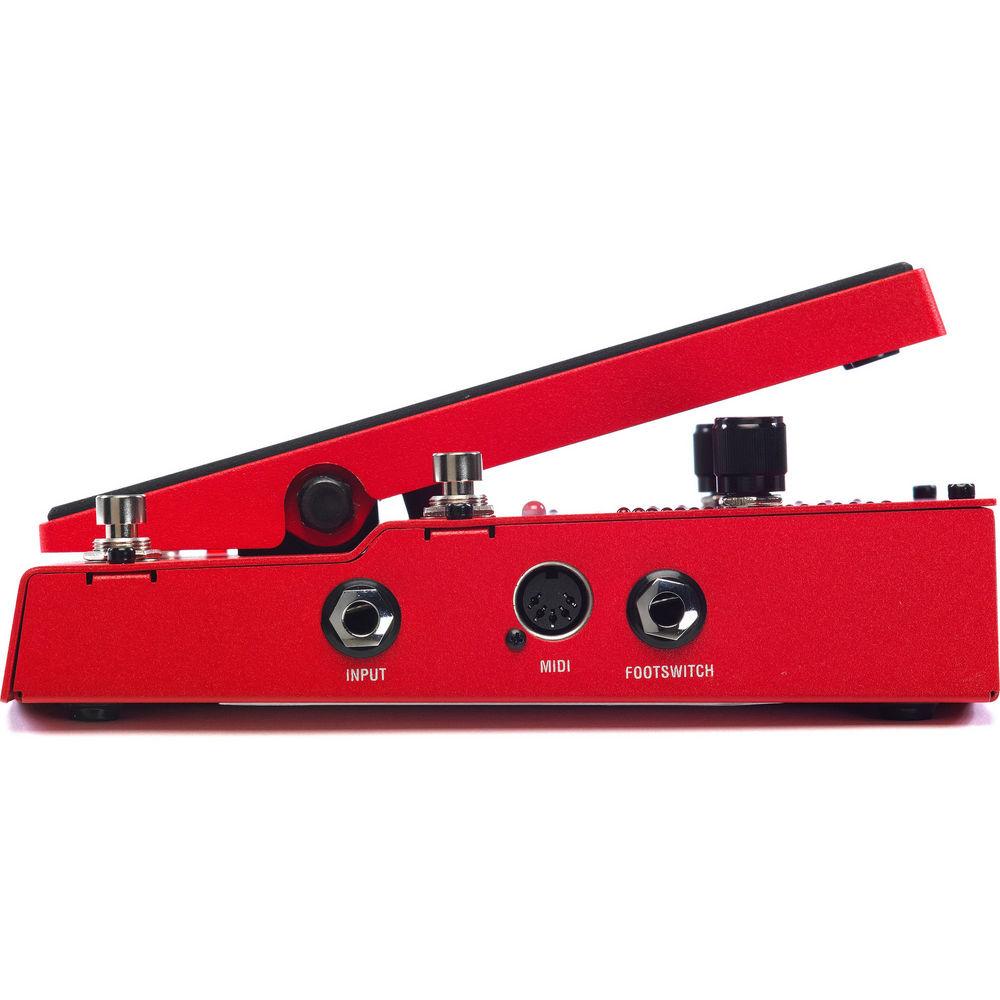

Technical parametersDigiTech WHAMMYDT Specs | Input | Unbalanced 1/4" TS | | Maximum Input Level | +5 dBu | | Input Impedance | 1 Mohm | | MIDI | 5-Pin din | | Footswitch Input | 1/4" TRS for use with optional FS3X foot pedal | | Output | 1/4" Unbalanced TS | | Maximum Output Level | +10 dBu | | Output Impedance | 1 kohm | | Sample Rate | 44.1 kHz | | Frequency Response | 20 Hz to 20 kHz | | Signal to Noise Ratio | > -105 dB (A weighted); ref = max level, 22 kHz bandwidth | | THD | 0.004% @ 1 kHz; ref = 1 dBu w/ unity gain | | A/D Conversion | 24 bit | | D/A Conversion | 24 bit | | Pitch Bend Range | +2/-3 octaves | | Detune Range | -4 to -30 cents | | Drop Tune Range | 1-7 semitones, octave, octave + dry | | Power Consumption | 2.6 watts < 288 mA at 9 VDC | | Power Requirements | 9 VDC external adapter | | Power Adapter | PS0913DC-01 (US, JA, EU)
PS0913DC-02 (AU, UK) | | Dimensions (WxDxH) | 8.2 x 7.73 x 2.36" (20.82 x 19.63 x 5.99 cm) | | Weight | 3.5 lb | | | | Package Weight | 4.5 lb | | Box Dimensions (LxWxH) | 12.3 x 8.3 x 2.7" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to DigiTech Whammy DT Pitch Shifting Effects Pedal
| Subject: Circuit | | Date: 29.10.2022 04:04:43 | Name: Ross Sakey | A Small chip on the circuit Board of my digitech Whammy DT Pedal is overheating and therefore the Pedal will not work!
The Technician who is working on repairing it for me needs the circuit to make sure he repairs the unit correctly!
Kind Regards,
Ross Sakey | | Post reply |
