User Manual for DIT MMR-B106W 10.6" LCD LED Backlit Ruggedized Display Click to enlarge the picture
Contents of the user manual for the DIT MMR-B106W 10.6" LCD LED Backlit
- Product category: Production Monitors DIT
- Brand: DIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DIT Production Monitors
 |
User manual for the DIT MMR-B106W 10.6" LCD LED Backlit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DIT product will considerably shorten its lifespan!
|

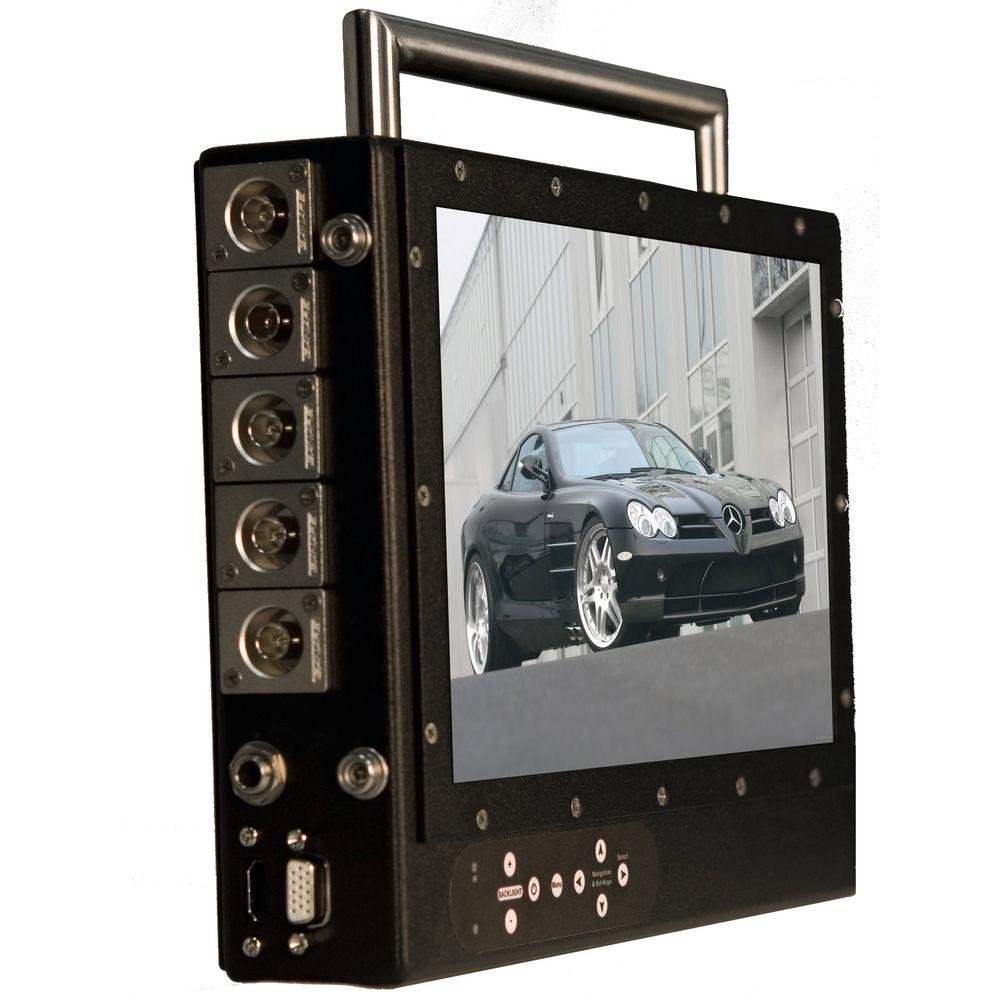

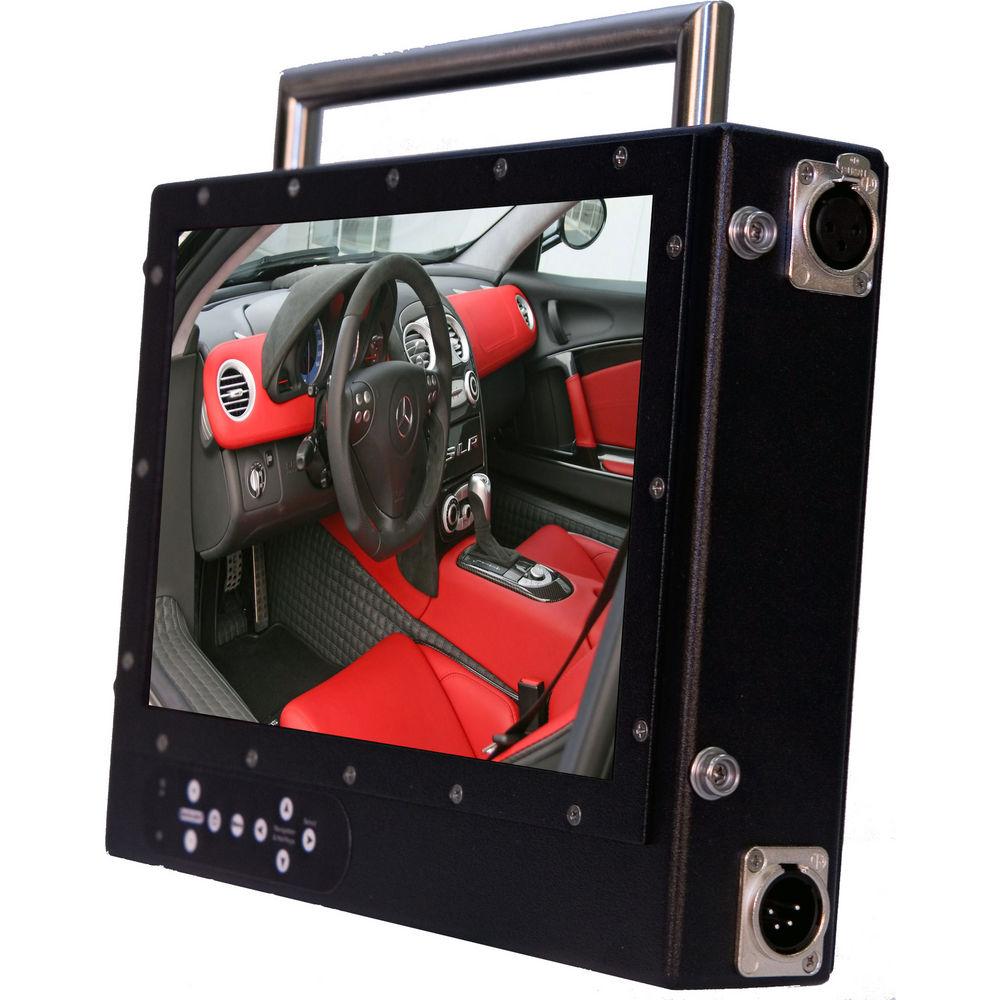

Product description The MMR-B106W 10.6" LCD LED Backlit Ruggedized Display from DIT is built for use in broadcast, film, IT, military, or mobile command, and for virtually everyone who can use a mobile monitor. It can be used on remote locations, mobile sets, or helicopter sets where, lightweight, mobile, critical viewing is necessary or required. This monitor has a 10" (269.2mm) active matrix TFT LCD panel with a native XGA (1024 x 768) resolution. It has a high brightness and contrast ratio with wide viewing angles and a protective lens with changeable field.
The all-aluminum welded construction of the display makes it both lightweight and durable, thereby satisfying the demands of the mobile professional. It is field powered via an Anton Bauer battery (Gold Mount), an IDX Battery mount, or an XLR power input (all sold separately).
The available I/O signals include the NTSC/PAL video Via composite and S-Video ports, PC video via the VGA or DVI/HDMI port, SD/HD component video via the YCbCr/YPbPr ports, HD video/audio via the HDMI port (HDCP compliant on the V09X controller), HD/SD-SDI 4:2:2 via the SDI ports (available on the V03X/V09X controller), and HD/SD-SDI 4:4:4 via the SDI 3G ports (available Q2 2010 on the V09X controller).
The display can be supported via an integrated rear support arm, a light stand (sold separately), or a tripod bracket (sold separately). It comes with a standard black powder-coated light texture finish but can be customized to any color and logo. Enclosure - Rugged all-aluminum welded construction for lightweight applications
- Designed to satisfy broadcast, industrial, and military requirements
Display - 10" (269.2mm) diagonal active matrix TFT LCD display
- XGA 1024 x 768 resolution at 60 Hz
- Wide viewing angles (70R,70L,50U,60D)
- High brightness and contrast ratio of 400 nits
Power - +12VDC operation via 110/220 power adapter
Additional Features - XLR external power connection
- Optically bonded front lens
- HD / SD-SDI 4:2:2 via the SDI Ports (Available on the V03X / V09X controller), HD / SD-SDI 4:4:4 via the SDI 3G ports (Available Q2 2010 on the V09X controller)
In the Box DIT MMR-B106W 10.6" LCD LED Backlit Ruggedized Display VGA, DVI-D / HDMI, & RS-232 Ports Anton Bauer Gold or IDX Battery Mount UHF / VHF Built-In TV Tuner BNC CVS Video Input 1/4" Audio Headset Jack BNC Antenna Input VESA 100 Mount XLR External Power (110 / 220VAC) Table Top Stand Table of Contents
|
Upload User Manual
Have you got an user manual for the DIT MMR-B106W 10.6" LCD LED Backlit Ruggedized Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDIT MMR-B106W Specs | Monitor Size | 10.6" (269.2 mm) wide | | Display Type | WXGA, color TFT-LCD, LED Backlight | | Resolution | Maximum: 1280 x 768 | | Aspect Ratio | 15:9 | | Display Color | 16.8 Million | | Brightness | 300 nits cd/m2 | | Contrast Ratio | 350:1 | | Response Time | 35 Tr/Tf ms | | Pixel Pitch (HxV) | 0.180 x 0.180 | | Power Management | EPA energy star, VESA compliance | | Viewing Angle | 70°L / 70°R / 60°D / 50°U | | MTBF | 30,000 to 50,000 hours | | Surface Treatment | Glare & hard-coating 2H low reflection | | Operating Temperature | 0 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Operating Altitude | TBD | | Storage Altitude | TBD | | Operating Humidity | <95% | | Storage Humidity | <95% | | Controllers | Applicable: V044, V044a, V034, V034a, V035, V035a, V036, V036a, V094, V095, V096 | | Video Connections | Analog RGB, DVI-D, S-Video, CVS, YPbPR, HD-SDI Input, SDI Loop Out, Audio | | Video Input | VGA | | Digital Video Inputs | DVI-D | | Serial Digital Interface Input | HD/SD-SDI | | Input | Others: CVS & CVS (2nd) | | Ethernet Control | RS-232 | | Output | HD/SD-SDI | | Weight | 5.0 lb (2.2 kg) |
