User Manual for DIT MMR-B106W 10.6" Ruggedized LCD Monitor Click to enlarge the picture
Contents of the user manual for the DIT MMR-B106W 10.6" Ruggedized LCD Monitor
- Product category: Production Monitors DIT
- Brand: DIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DIT Production Monitors
 |
User manual for the DIT MMR-B106W 10.6" Ruggedized LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DIT product will considerably shorten its lifespan!
|

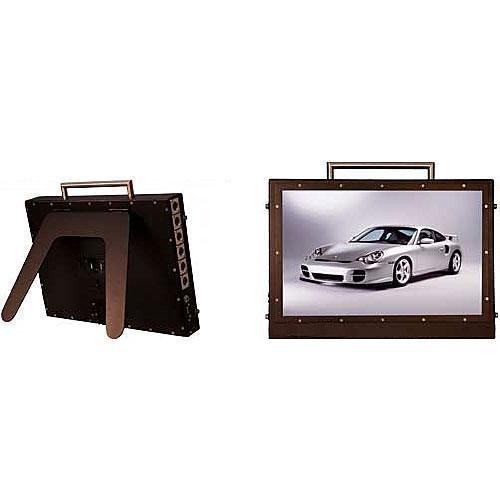

Product description The Display Integration Technologies MMR-B106W is a 10.6" ruggedized LCD monitor built to withstand a variety of unpredictable environments. With its aluminum shell, the LCD is ideal for field monitoring, broadcast, military, and industrial applications.
The monitor is equipped with a 2mm anti-reflective coating making it incredibly effective even in the presence of bright or direct sunlight. With its wide variety of inputs and outputs, multiple battery adapters, and waterproof speaker, the MMR-B106W will perform like a pro in rain, sleet, or snow. - Durable Frame
- The monitor is housed in a robust welded aluminum frame, making it both lightweight and durable. Features such as an anti-reflective coated screen make life easy under exceedingly harsh sunlight. Whatever the conditions, the MMR-B106W has all the bases covered.
- Exceptional Image Quality
- The MMR-B106W has both the resolution and scaling capability to handle even the most demanding imagery, providing users an accurate representation of their subject. Whether in the studio or on-the-go, the monitor's image will stand up in any professional applications.
- Superior Viewing Angles
- With a horizontal viewing angle of 140° the MMR-B106W is easy to see from virtually any position. This can especially be useful in the field or in small remote studios, such as an OB van.
- Multiple Inputs

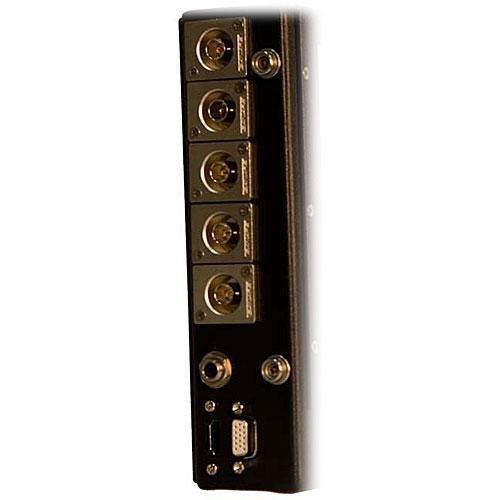

- The monitor is no slouch in the input department either. This model includes VGA, S-Video, DVI, CVS, 2 HD/SD-SDI, and RS-232.
In the Box DIT MMR-B106W 10.6" Ruggedized LCD Monitor XLR Power Adapter (110/220VAC) VESA 100 Mount Table Top Stand 1-Year Parts & Labor Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DIT MMR-B106W 10.6" Ruggedized LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDIT MMR-B106W Specs | Application | Field, Military, Medical Monitoring | | LCD Size | 10.6" | | Video System | NTSC/PAL | | Picture Elements | 1280 x 768 | | Input and Output Connectors | VGA
DVI-D
CVS
S-Video
HD/SD-SDI (x2 Input, x2 Output)
RS-232 | | Picture Controls | Front Menu | | Remote Control | No | | Power Requirements | 110-220VAC
12VDC | | Power Consumption | 20W | | Dimensions (WxHxD) | 11 x 8 x 2" (29.9 x 20.3 x 5.1cm) | | Weight | 5 lbs (2.3kg) |
