DIT MMR-B106W 10.6" Ruggedized LCD Monitor DIT MMR-B106W 10.6" Ruggedized LCD Monitor
User manual for the DIT MMR-B106W 10.6" Ruggedized LCD Monitor contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any DIT product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official DIT user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a DIT product will considerably shorten its lifespan!



Product description

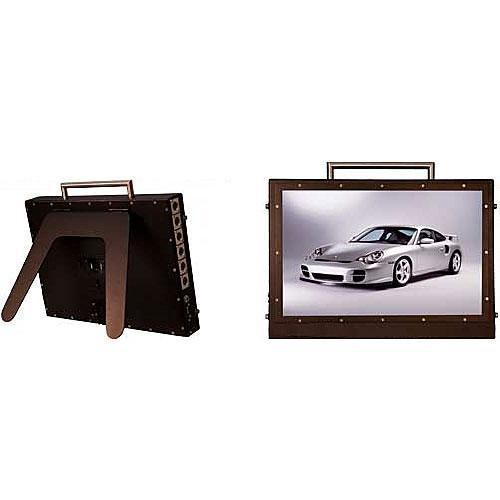

The Display Integration Technologies MMR-B106W is a 10.6" ruggedized LCD monitor built to withstand a variety of unpredictable environments. The monitor's lightweight aluminum shell is ideal for field monitoring, broadcast, military, and industrial applications. With its wide variety of inputs, outputs and multiple battery adapters, the MMR-B106W provides the flexibility, durability, and critical imaging necessary for the most challenging professional shoots.
    Durable Frame
  • The monitor is housed in a robust welded aluminum frame, making it both lightweight and durable. With optional bonded AR glass this screen makes viewing easy under exceedingly harsh sunlight. Whatever the conditions, the MMR-B106W has all the bases covered.
    Exceptional Image Quality
  • The MMR-B106W has both the resolution and scaling capability to handle even the most demanding imagery, providing users with an accurate representation of their subject. Whether in the studio or on the go, the monitor's image will stand up in any professional application.
    Superior Viewing Angles
  • With a viewing angle of 140° the MMR-B106W is easy to see from virtually any position. This can be especially useful in the field or in small remote studios, such as an OB Van.

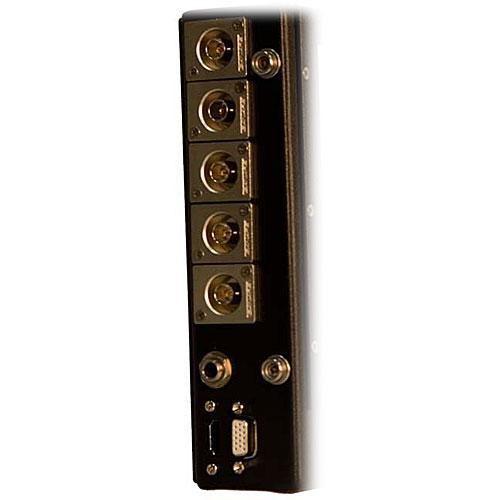

    Multiple Inputs
  • The monitor is no slouch in the input department either. This MMR model includes VGA, HDMI (HDCP compliant), CVS (x2), S-Video and YPbPr.
In the Box DIT MMR-B106W 10.6" Ruggedized LCD Monitor
  • XLR Power Adapter (110/220VAC)
  • VESA 100 Mount
  • Table Top Stand
  • 1-Year Parts & Labor Limited Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the DIT MMR-B106W 10.6" Ruggedized LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    DIT MMR-B106W Specs

    Application Field, Military, Medical Monitoring
    LCD Size 10.6"
    Video System NTSC/PAL
    Picture Elements 1280 x 768
    Input and Output Connectors VGA
    HDMI (HDCP Compliant)
    CVS x2
    S-Video
    Component
    RS-232C
    Picture Controls Front Menu (includes on-screen markers)
    Remote Control No
    Power Requirements 12VDC, 110-220VAC
    Power Consumption 20W
    Dimensions (WxHxD) 11 x 8 x 2" (29.9 x 20.3 x 5.1cm)
    Weight 5 lbs (2.3kg)
    Package Weight 1.0 lb
