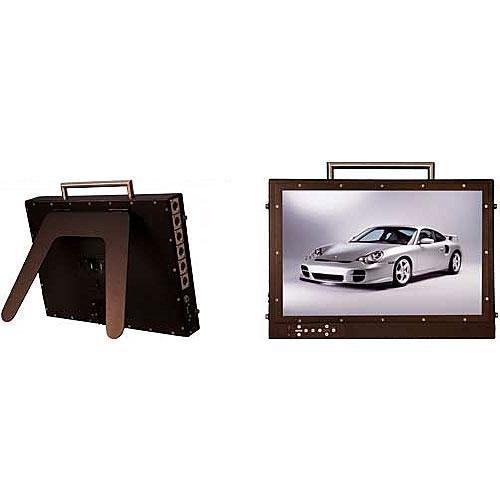

Product description The Display Integration Technologies MMR-B153W is a 15.3" ruggedized LCD monitor built to withstand a variety of unpredictable environments. With its aluminum shell, the LCD is ideal for field monitoring, broadcast, military, and industrial applications. With its wide variety of inputs and outputs and multiple battery adapters, the MMR-B153W will perform like a pro. - Durable Frame
- The monitor is housed in a robust welded aluminum frame, making it both lightweight and durable. With optional bonded AR glass this screen makes life easy under exceedingly harsh sunlight. Whatever the conditions, the MMR-B153W has all the bases covered.
- Exceptional Image Quality
- The MMR-B153W has both the resolution and scaling capability to handle even the most demanding imagery, providing users an accurate representation of their subject. Whether in the studio or on-the-go, the monitor's image will stand up in any professional applications.
- Superior Viewing Angles
- With a viewing angle of 170° the MMR-B153W is easy to see from virtually any position. This can especially be useful in the field or in small remote studios, such as an OB Van
- Multiple Inputs

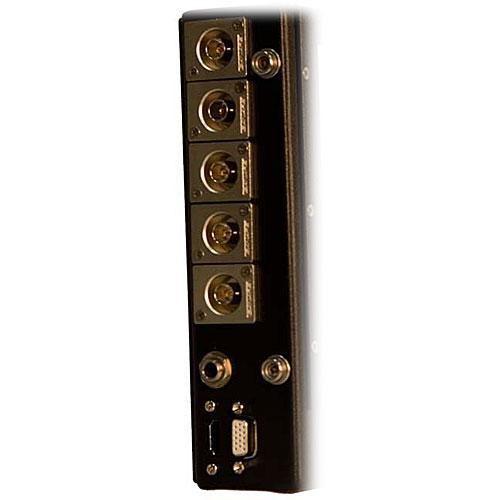

- The monitor is no slouch in the input department either. This model includes VGA, DVI-D (HDMI Conn), CVS, RS-232, S-Video and Component inputs.
In the Box DIT MMR-B153W 15.3" Ruggedized LCD Monitor XLR Power Adapter (110/220VAC) VESA 100 Mount Table Top Stand 1-Year Limited Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DIT MMR-B153W 15.3" Ruggedized LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDIT MMR-B153W Specs Application | Field, Military, Medical Monitoring | LCD Size | 15.3" | Video System | NTSC/PAL | Picture Elements | 1280 x 768 | Input and Output Connectors | VGA DVI-D CVS S-Video Component RS-232 | Picture Controls | Front Menu | Remote Control | No | Power Requirements | 12VDC | Power Consumption | 30W | Dimensions (WxHxD) | 14.5 x 11.5 x 2" (38.3 x 29.2 x 5.1cm) | Weight | 8.1 lbs (3.8kg) | | Package Weight | 14.45 lb | Box Dimensions (LxWxH) | 18.9 x 16.0 x 9.0" |
