User Manual for DIT MMR-B153W 15.3" Ruggedized LCD Monitor Click to enlarge the picture
Contents of the user manual for the DIT MMR-B153W 15.3" Ruggedized LCD Monitor
- Product category: Production Monitors DIT
- Brand: DIT
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DIT Production Monitors
 |
User manual for the DIT MMR-B153W 15.3" Ruggedized LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DIT product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DIT user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DIT product will considerably shorten its lifespan!
|

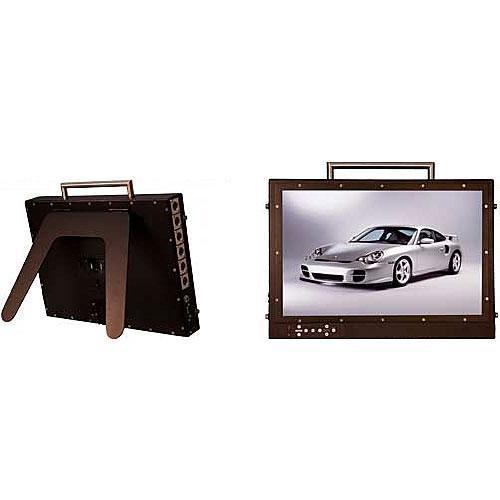

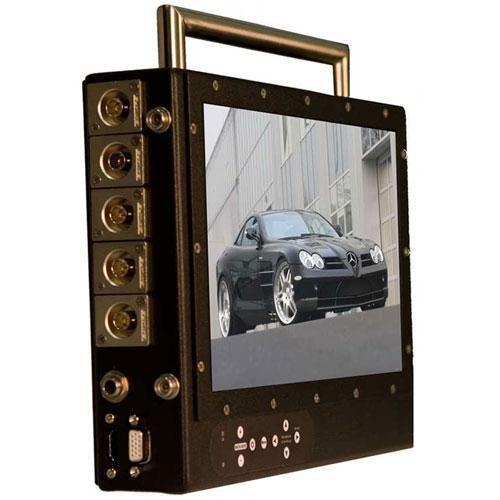

Product description The Display Integration Technologies MMR-B153W is a 15.3" ruggedized LCD monitor built to withstand a variety of unpredictable environments. With its aluminum shell, the LCD is ideal for field monitoring, broadcast, military, and industrial applications. With its wide variety of inputs and outputs and multiple battery adapters, the MMR-B153W will perform like a pro. - Durable Frame
- The monitor is housed in a robust welded aluminum frame, making it both lightweight and durable. With optional bonded AR glass this screen makes life easy under exceedingly harsh sunlight. Whatever the conditions, the MMR-B153W.V035.LA1815.19 has all the bases covered.
- Exceptional Image Quality
- The MMR-B153W.V035.LA1815.19 has both the resolution and scaling capability to handle even the most demanding imagery, providing users an accurate representation of their subject. Whether in the studio or on-the-go, the monitor's image will stand up in any professional applications.
- Superior Viewing Angles
- With a viewing angle of 170° the MMR-B153W.V035.LA1815.19 is easy to see from virtually any position. This can especially be useful in the field or in small remote studios, such as an OB Van.
- Multiple Inputs

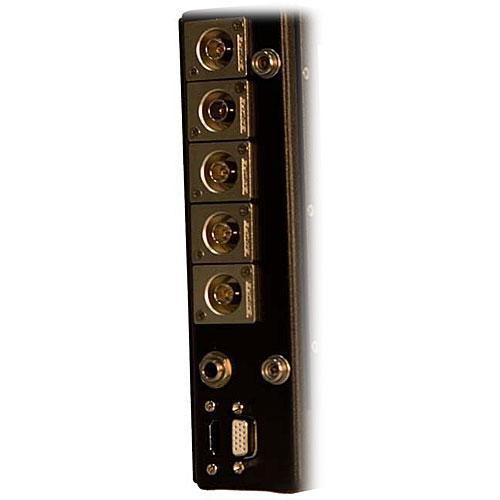

- The monitor is no slouch in the input department either. This model includes VGA, DVI-D (HDMI Conn), CVS, YPbPr, HD/SD-SDI-In/Out, RS-232
In the Box DIT MMR-B153W 15.3" Ruggedized LCD Monitor XLR Power Adapter (110/220VAC) VESA 100 Mount Table Top Stand 1-Year Limited Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DIT MMR-B153W 15.3" Ruggedized LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDIT MMR-B153W Specs | Application | Field, Military, Medical Monitoring | | LCD Size | 15.3" | | Video System | NTSC/PAL | | Picture Elements | 1280 x 768 | | Input and Output Connectors | VGA
DVI-D
CVS x1
Component
HD/SD-SDI (x1 Input, x1 Output)
RS-232 | | Picture Controls | Front Menu | | Remote Control | RS-232 | | Power Requirements | 110-220VAC, 12VDC | | Power Consumption | 30W | | Dimensions (WxHxD) | 14.5 x 11.5 x 2" (36.8 x 29.2 x 5.1cm) | | Weight | 8.1 lbs (3.7kg) |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
