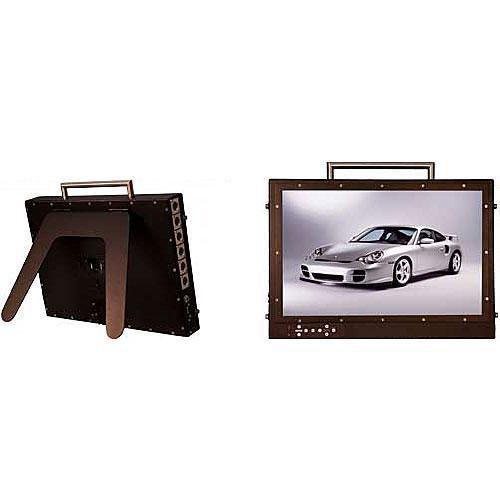

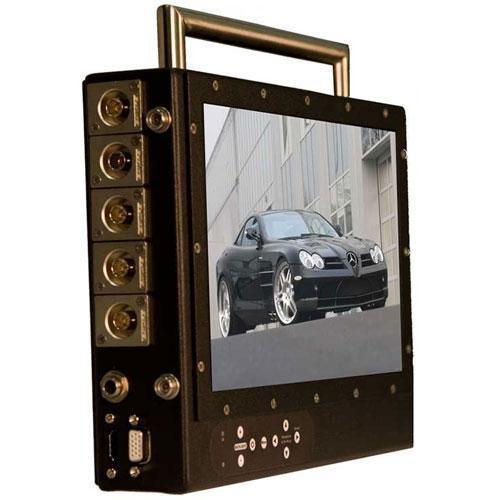

Product description Display Integration Technologies' MMR-B170W is a 17" ruggedized monitor built to withstand a variety of unpredictable environments. With its aluminum shell and optically bonded lens, the LCD is ideal for field monitoring, broadcast, military, and industrial applications. With its wide variety of inputs and outputs and multiple battery adapters, the MMR-B170W will perform like a pro. - Durable Frame
- The monitor is housed in a robust welded aluminum frame, making it both lightweight and durable. With optional bonded AR glass this screen makes life easy under exceedingly harsh sunlight. Whatever the conditions, the MMR-B170W has all the bases covered.
- Exceptional Image Quality
- The MMR-B170W has both the resolution and scaling capability to handle even the most demanding imagery, providing users with an accurate representation of their subject. Whether in the studio or on-the-go, the monitor's image will stand up in any professional applications.
- Superior Viewing Angles
- With a viewing angle of 160° the MMR-B170W is easy to see from virtually any position. This can be especially useful in the field or in small remote studios, such as an OB Van.
- Rich Feature Set
- Via its Genesis controller and high-end scalar chip set, the MMR-B170W features scaled input, pixel mapping, overscan, underscan, aspect controls, color correction, PIP, PBP and full feature OSD controls.
- Multiple Inputs

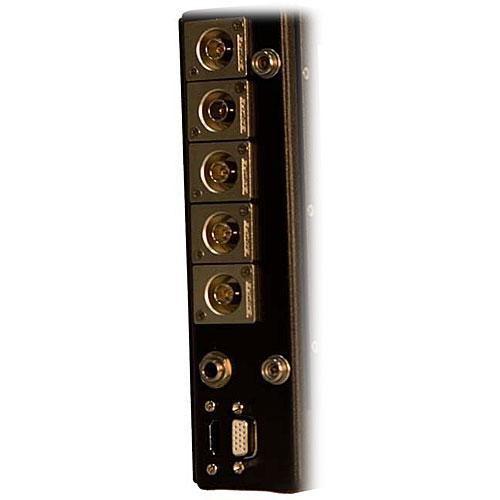

- No slouch in the input department, the monitor includes VGA, DVI-D (HDMI Conn), CVS, S-Video, Component, and HD/SD-SDI-In/Out.
In the Box DIT MMR-B170W 17" Ruggedized LCD Monitor XLR Power Adapter (110/220VAC) VESA 100 Mount Table Top Stand 1-Year Limited Parts & Labor Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DIT MMR-B170W 17" Ruggedized LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDIT MMR-B170W Specs | Application | Field, Military, Medical Monitoring | | LCD Size | 17" | | Video System | NTSC/PAL | | Picture Elements | 1920 x 1200 | | Input and Output Connectors | VGA
DVI-D
CVS
Component
HD/SD-SDI (x1 Input, x1 Output) | | Picture Controls | Front Menu | | Remote Control | No | | Power Requirements | 12VDC | | Power Consumption | 35W | | Dimensions (WxHxD) | 15.5 x 11.5 x 2" (39.4 x 29.1 x 5.1cm) | | Weight | 10.2 lbs (4.6kg) | | | | Package Weight | 15.6 lb | | Box Dimensions (LxWxH) | 18.8 x 16.1 x 8.9" |
