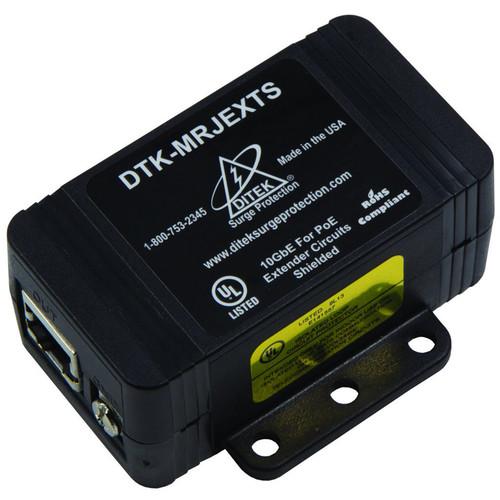

Product description The DTK-MRJEXTS Shielded Surge Protection for PoE Extender Circuits from DITEK offers protection for PoE extender circuits. It is designed to be installed on the outputs of PoE extender devices via compatible Cat cables. This device has shielded RJ45 connectors with an external grounding screw. It is compatible with PoE+ and HiPoE for high-wattage applications. It has a typical transmission range of 328', and delivers data speeds up to 10 Gb/s without signal degradation. - Utilizes SAD (silicon avalanche diode) and GDT (gas discharge tube) technologies for optimal protection
- Complies with 802.3af and 802.3at standards for PoE
- Shielded RJ45 connections with external grounding screw
- Separate earth ground not required when used with STP cabling
- DIN rail mounting kit available separately
UPC: 782980519986 In the Box DITEK DTK-MRJEXTS Shielded Surge Protection for PoE Extender Circuits Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DITEK DTK-MRJEXTS Shielded Surge Protection for PoE Extender Circuits in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDITEK DTK-MRJEXTS Specs | Service Voltage | <60 V | | Protection Modes | L-G (all), L-L (all) | | Clamping Voltage | Common Mode (L-G): 75 V
Differential Mode (L-L): 72 V | | Surge Current Rating | 20 kA per pair | | Maximum Continuous Current | 1.5 A | | Power Handling | 144 W | | Compatible Cables | Cat 3, Cat 5, Cat 5e, Cat 6, Cat 6A | | Data Rate | Up to 10 Gb/s | | Bandwidth | Up to 500 MHz | | Typical Range | 328' / 100 m | | Connectors | Shielded RJ45 I/O | | Housing | ABS | | Operating Temperature | -40 to 158°F / -40 to 70°C | | Maximum Humidity | 95%, non-condensing | | Agency Approvals | UL497B | | Standards Compliance | Cat 5e, EIA/TIA568A, EIA/TIA568B | | Dimensions (L x W x H) | 3 x 1.7 x 1.2" / 76 x 43 x 30 mm | | Weight | 4 oz / 113 g | | | | Package Weight | 0.21 lb | | Box Dimensions (LxWxH) | 5.0 x 4.0 x 2.6" |
