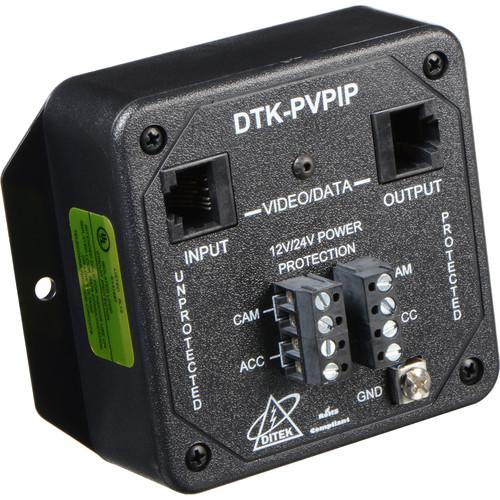

The DTK-PVPIP IP/PoE Video Power and Data Surge Protector from DITEK offers protection for IP/PoE cameras and systems (NVR, power supply) from surges on network cabling and power supply lines. Two pairs of power protection terminals (12/24V) are available to power cameras with heaters, blowers, defrosters, or PTZ motors. The DTK-PVPIP is compatible with Cat 5e, Cat 6, and Cat 6A cables. Additionally, it is compatible with PoE+ and HiPoE for high-wattage applications. This device is equipped with RJ45 and 22-14 AWG connectors, and has a typical transmission range of 328' to deliver data speeds up to 10 Gb/s.
  • Offers protection for power, data, and video connections
  • Low-impedance video/data protection with full gigabit Ethernet transmission speeds up to 10 Gb/s
  • Two pairs of power protection terminals (12/24V) to power cameras with heaters, blowers, defrosters, or PTZ motors
  • Complies with 802.3af and 802.3at standards for PoE
  • RJ45 connections with external grounding screw
  • PoE+ and HiPoE ready
  • Conforms to EIA/TIA standards for data transmission
  • DIN rail mounting kit available separately
UPC: 782980515780 In the Box DITEK DTK-PVPIP IP/PoE Video Power and Data Surge Protector
