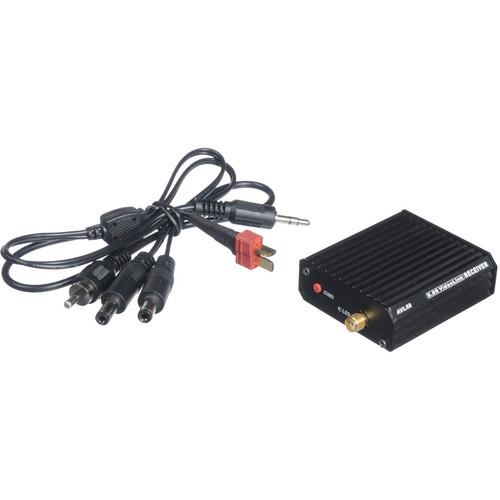

Product description The DJI 5.8GHz Video Receiver RX works with the optional transmitter to send and receive analog video to an on-screen display module. It's compatible with the DJI Phantom quadcopter and it works with the DJI OSD module to receive a video link of your aerial footage to a display. The receiver uses the ISM frequency band of 5.8GHz and it supports a wireless line of sight range up to 3937' (1200 m). The receiver supports eight wireless channels as well. - The receiver works in the ISM frequency band of 5.8GHz (5725 - 5865MHz)
- Works with the DJI OSD module for professional aerial photography and video
- Analog modulated video signals are received wirelessly by the receiver
- After signal reaches receiver, the video is demodulated and sent to a display
- Receiver supports eight wireless channels
- Works with optional cloverleaf antenna
UPC: 847628579231 In the Box DJI 5.8GHz Video Receiver RX Video Link RX Video Output Cable Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI 5.8GHz Video Receiver RX in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.AL.000003 Specs | Wireless Range | 3937' (1200 m) outdoor/RF line-of-sight range | | Receiver Sensitivity | -90 dBm ± 2 dBm | | Frequency Band | CH1: 5705 MHz
CH2: 5685 MHz
CH3: 5665 MHz
CH4: 5645 MHz
CH5: 5885 MHz
CH6: 5905 MHz
CH7: 5925 MHz
CH8: 5945 MHz | | Functionality | 5.8 GHz broadband FM video reception synchronously
Analog video output to display
8 x receiving channels | | Current | 160 mA ± 10 mA at 6 V
125 mA ± 10 mA at 8 V
103 mA ± 10 mA at 10 V
90 mA ± 10 mA at 12 V | | Antenna Type | SMA (optional) | | Supply Voltage | 3 - 6 S | | Operating Temperature | -4 to 158°F (-20 to 70°C) | | Dimensions | 2.19 x 1.89 x 0.67" (55.5 x 48 x 17 mm) | | Weight | 1.75 oz (49.5 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.6 x 3.6 x 2.0" |
