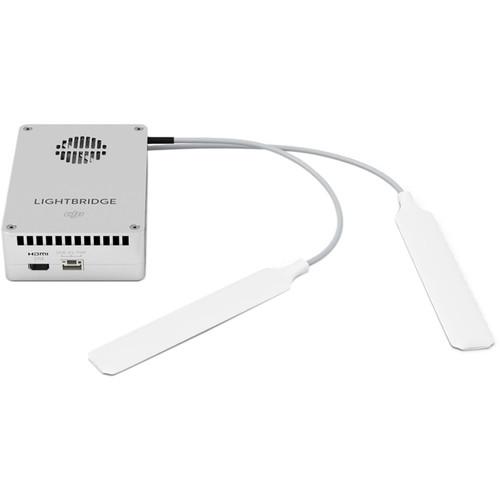

Product description The Air Unit for Lightbridge 2 from DJI acts as a transceiver unit for the Lightbridge system. It provides an interface with the flight controller and features an HDMI input for the HD video downlink. The Air Unit is compatible with the A2 and WooKong-M flight controllers. It can be installed in the following aircraft: S1000+, S1000, S900, S800 EVO, F550, and F450. Additionally, it provides a control interface for the Z15-GH4, -5D3, and -A7 gimbals. UPC: 190021001312 In the Box DJI Air Unit for Lightbridge 2 2 x Paddle Antennas Cable Pack Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Air Unit for Lightbridge 2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.AL.000025 Specs | Transmission Distance | 3.1 miles / 5 km (line-of-sight) | | Antenna Gain | 2 dBi at 2450 MHz | | EIRP | 100 mW at 2.4 GHz | | Antenna Connector | MMCX male | | Supported Input Resolutions | AV: PAL, NTSC
HDMI: 720p50, 720p60, 1080i50, 1080i60, 1080p25, 1080p30, 1080p50, 1080p60 | | Power Consumption | 650 mA at 12 VDC | | Power Requirements | 9 to 12 VDC | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Compatibility | Flight Controllers: A2, WooKong-M
Aerial Systems: S1000+, S1000, S900, S800 EVO, F550, F450 | | Operating Frequency | 5.725 to 5.825 GHz
2.400 to 2.483 GHz | | Dimensions (L x W x H) | Without Antenna: 2.7 x 1.9 x 0.8" / 68 x 48 x 21 mm | | Weight | Without Antenna: 2.5 oz / 70 g | | | | Package Weight | 0.5 lb | | Box Dimensions (LxWxH) | 4.8 x 4.0 x 1.9" |
