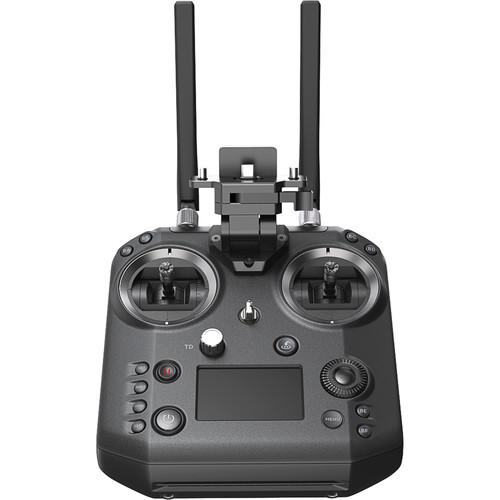

User Manual for DJI Cendence Remote Controller Click to enlarge the picture
Contents of the user manual for the DJI Cendence Remote Controller
- Product category: DJI Accessories DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI DJI Accessories
|
User manual for the DJI Cendence Remote Controller contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|
Product description New from DJI: Ronin 2 Gimbal, Goggles, and Cendence Remote Controller Read More rfwvussfaxzfbr DJI's Cendence Remote Controller is a professional transmitter for controlling the DJI Inspire 2 or Matrice 200 Series aircraft. Five analog control channels and ten customizable buttons provide a flexible platform for precise flight and video controls. Right out of the box, the Cendence controller is compatible with CrystalSky monitors, thanks to the included monitor mounting bracket. Furthermore, the controller is designed to be modular for interchangeable antennas and control stick accessories. If you prefer to use the controller with your phone or tablet, a separately available mounting bracket can be used. - Customizable Buttons
- Customizable buttons can quickly enable or disable frequently used functions like focus peaking, color waveform, obstacle avoidance, and home point resetting, or close warnings and tips midflight, all without using an app. You can also customize several shortcut buttons for particular groups of settings, or save frequently used settings.
- Modular Design with CrystalSky Compatibility
- The Cendence remote controller's antennas, PCB, mounting bracket, and battery are all detachable, making its hardware easily upgradable and allowing you to customize the controller for compatibility with future DJI aircraft. A CrystalSky monitor can be mounted to the Cendence remote controller via the included Cendence Monitor Mounting Bracket.
- Dual Operator Control
- When precision camera control is required, the Cendence remote controller can connect as either a master or slave controller with the Inspire 2's remote controller or another Cendence remote controller.
- Battery System
- Cendence uses a detachable battery that operates for up to four hours. If you run out of power, just swap in a charged battery or charge Cendence via the power port. Cendence uses the same batteries as CrystalSky monitors, unifying the two systems.
- Compatibility
- Inspire 2
Matrice 200 Series Quick Features - Provides up to five analog control channels and over ten customizable buttons, improving overall control efficiency.
- Cendence's design offers antenna interchangeability. A high-gain antenna, or DJI's Tracktenna, can augment the power of DJI Lightbridge technology, significantly increasing overall anti-interference and image quality.
- HDMI, SDI, USB, and CAN ports provide robust expansion capabilities.
- Cendence comes with the fully integrated Cendence Monitor Mounting Bracket for CrystalSky monitors.
UPC: 190021293564 In the Box DJI Cendence Remote Controller LiPo Battery Pack for DJI CrystalSky & Cendence (7.6V, 4920mAh) Monitor Mounting Bracket Remote Controller Support Rig Screwdriver 2 x Screws 2 x Control Stick Cover Control Stick Cover Mounting Key Strap Limited 1-Year Warranty on Controller Limited 6-Month Warranty on Battery User Manual PDF 10mb Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Cendence Remote Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI Cendence Specs | Operating Frequency | 2.4-2.483 GHz, 5.725-5.825 GHz | | Transmission Distance | FCC
2.4 GHz: 4.3 mi / 7 km
5.8 GHz: 4.3 mi / 7 km
CE
2.4 GHz: 2.2 mi / 3.5 km
5.8 GHz: 1.2 mi / 2 km
SRRC
2.4 GHz: 2.5 mi / 4 km
5.8 GHz: 3.1 mi / 5 km
Note: All figures are maximum distance, line-of-sight | | EIRP | FCC: 26 dBm @ 2.4 GHz, 28 dBm @ 5.8 GHz
CE: 17 dBm @ 2.4 GHz, 14 dBm @ 5.8 GHz
SRRC: 20 dBm @ 2.4/5.8 GHz | | I/O | 1 x BNC SDI output
1 x HDMI Type-A output
1 x CAN port (for Tracktenna)
1 x USB Type-A | | Environmental | Operating Temperature: -4 to 104°F / -20 to 40°C
Storage Temperature (less than 3 months): -4 to 113°F / -20 to 45°C
Storage Temperature (more than 3 months): 72 to 82°F / 22 to 28°C
Charging Temperature: 32 to 104°F / 0 to 40°C | | Weight | 2.2 lb / 1 kg | | | | Package Weight | 4.8 lb | | Box Dimensions (LxWxH) | 9.4 x 7.7 x 6.8" |
Rating76% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
