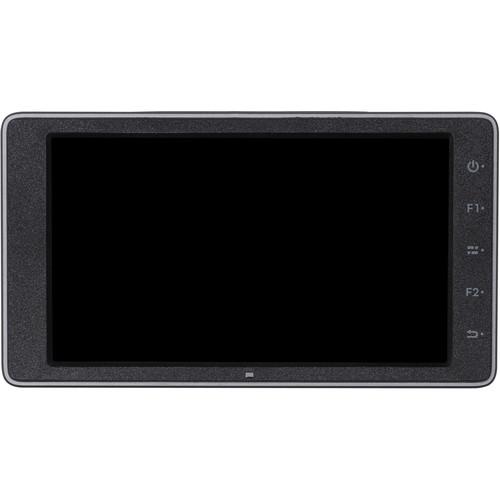

User Manual for DJI CrystalSky 5.5" High-Brightness Monitor Click to enlarge the picture
Contents of the user manual for the DJI CrystalSky 5.5" High-Brightness Monitor
- Product category: DJI Accessories DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI DJI Accessories
|
User manual for the DJI CrystalSky 5.5" High-Brightness Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|
Product description Flying drones in their natural outdoor environment requires a bright display, like the DJI CrystalSky 5.5" High-Brightness Monitor for unhindered daylight viewing. The 1000 cd/m² bright touchscreen LCD screen is daylight viewable without requiring a hood. More than a monitor specifically designed for DJI products, the CrystalSky runs an Android OS and only comes loaded with the apps necessary for operating DJI devices. You won't find any spam applications to slow the device down. Plus, the hardware is optimized for decoding video transmitted by DJI devices, reducing lag and improving picture quality. Aside from the streamlined interface, the CrystalSky acts as a mobile device with all the necessary DJI apps pre-loaded. Note: The CrystalSky includes one Intelligent Battery and a two-bay charging dock that requires a separately available charger. Chargers from the Inspire (1/2) and Phantom (3/4) will work. 57W Osmo and Phantom chargers don't supply enough power to charge both the batteries and other devices simultaneoulsy. The Mavic Pro charger is not compatible. - Smooth Video Monitoring
- The CrystalSky monitor uses optimized video decoding to decode video in real-time. Due to limitations in software access on smartphones and tablets, the video decoding abilities of other smart devices might be less than ideal. When used to view photos or videos transmitted by the camera, problems can occur including video jitter, unacceptably long latency, and more. The CrystalSky monitor's optimized decoder provides smooth, real-time video feedback from compatible drones with minimal latency.
- Dual microSD Card Recording
- Load up microSD cards to expand the CrystalSky's storage. Video can be recorded in H.264 or H.265 formats. With the ability to play back and edit 4K recorded video inside the CrystalSky, you can quickly share high-quality edited footage. Video can also be played back through the onboard HDMI output.
- I/O and Network Connectivity
- The CrystalSky monitor's HDMI port allows up to 4K video to be output to FPV goggles and other display devices. Built-in dual band Wi-Fi means it can connect to Wi-Fi networks and Wi-Fi hotspots from mobile devices, and it is also compatible with 4G dongles and USB storage through its USB Type-A port.
When connected to the Internet, the CrystalSky monitor gets easy access to system upgrades, livestreaming, photo or video sharing, data synchronization, and more. File sizes are optimized as much as possible to minimize mobile data demands.
Onboard micro-USB and USB Type-C ports make it convenient to connect the CrystalSky monitor with a remote controller or other devices. - Compatibility
- Inspire Series
Mavic Pro
Osmo Series (Osmo, Osmo+, Osmo Pro, Osmo RAW)
Phantom Series (Phantom 3, Phantom 4)
Note: In order to use this monitor with the Phantom controllers, a separately available mounting bracket is recommended. UPC: 190021290457 In the Box DJI CrystalSky 5.5" High-Brightness Monitor Intelligent Battery Intelligent Battery Charging Dock (Requires Separate Power Supply) Limited 1-Year Warranty User Manual PDF 23mb Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI CrystalSky 5.5" High-Brightness Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.BX.000222 Specs | Screen Size | 5.5" / 14 cm | | Resolution | 1920 x 1080 | | Brightness | 1000 cd/m² | | Recording Formats | H.264 (up to 30 fps), H.265 (up to 60 fps) | | Recording Media | 2 x microSD cards | | I/O | 1 x HDMI Type-A output
1 x USB Type-A
1 x micro-USB Type-B
1 x 3.5 mm headphone output
1 x USB Type-C | | Connectivity | Wi-Fi: 2.4/5.2/5.8 GHz, 802.11a/b/g/n
4G: Supported via USB dongle | | Operating system | Android | | Memory | ROM: 32 GB
RAM: 4 GB | | GPS | GPS, GLONASS | | Sensors | Gyroscope, brightness, compass | | Battery | Internal: 3.7 VDC, 980 mAh
External: 7.6 VDC, 4920 mAh | | Operating Time | 5-6 hours on battery | | Operating Temperature | -4 to 104°F / -20 to 40°C | | Dimensions | 6 x 3.3 x 0.7" / 15.4 x 8.5 x 1.9 cm | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 8.7 x 6.3 x 3.3" |
Rating78% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
