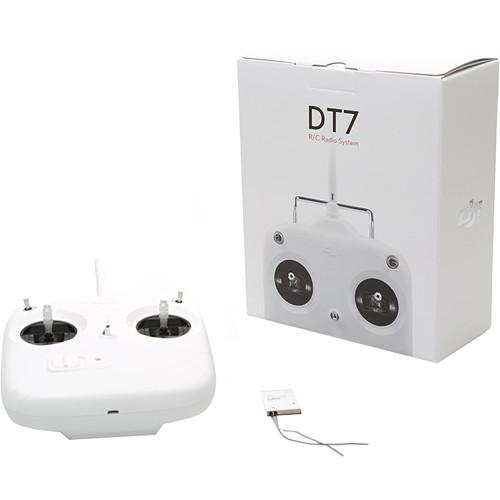

User Manual for DJI DT7 Transmitter & Receiver Kit Click to enlarge the picture
Contents of the user manual for the DJI DT7 Transmitter & Receiver Kit
- Product category: DJI Accessories DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI DJI Accessories
|
User manual for the DJI DT7 Transmitter & Receiver Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|
Product description The DT7 Transmitter & Receiver Kit from DJI is a kit which is comprised of a DT7 remote controller and a DR16 16-channel receiver. The DT7 remote controller is a wireless communication device that uses the 2.4 GHz frequency band. It is used with the 16-channel DR16 receiver to continually run for about 12 hours with a communication distance of up to one kilometer in an open area. The remote controller comes with a 3.7V 2000mAh LiPo battery which can be charged using a micro USB cable (sold separately). This kit includes a 3-pin cable and a trainer port cable. - The DR16 receiver is designed to be used with the NAZA-M Lite, NAZA-M, NAZA-M V2, WooKong-M, and A2 flight control systems
- Enhanced Spread Spectrum technology with an effective control distance of up to one kilometer using 2.4 GHz frequency
In the Box DJI DT7 Transmitter & Receiver Kit DT7 Remote Controller DR16 Receiver 3-Pin Cable Trainer Port Cable Limited 12-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI DT7 Transmitter & Receiver Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.FQ.000028 Specs | | | Operating Frequency | 2.4 GHz ISM | | Communication Distance | Open Area: 3,280.84' / 1 km | | General | 7-channel | | Working Current | 120 mA at 3.7 V | | Included Battery | 3.7 V 2000 mAh LiPo | | | | General | 2.4 GHz D-bus system | | Receiving Sensitivity | -97 dBm | | Working Current | 145 mA at 5 V | | Power Supply | 4 - 8.4 V | | Dimensions | 1.6 x 1.1 x 0.2" / 4.1 x 2.9 x 0.5 cm | | Weight | 0.4 oz / 10 g | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 9.2 x 8.7 x 4.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 95 owners. Add your rating and experience with the product.
