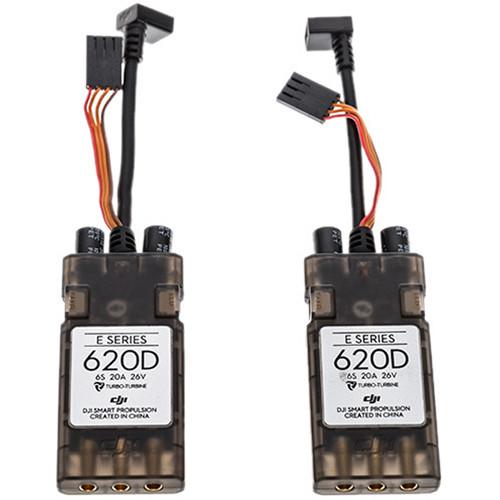

User Manual for DJI ESC Kit for Matrice 100 Click to enlarge the picture
Contents of the user manual for the DJI ESC Kit for Matrice 100
- Product category: DJI Accessories DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI DJI Accessories
|
User manual for the DJI ESC Kit for Matrice 100 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|
Product description The ESC Kit for Matrice 100 from DJI features a pair of ESCs – in most cases, one will pair with a CW motor and the other with a CCW motor. The ESC server to regulate power sent to its adjoined motor. Additionally, integrated sensors and special algorithms transmit real-time diagnostics of your propulsion system's status back to the flight controller, helping provide a more granular picture of your multi-rotor's performance. - Duplex communication port allows you to independently upgrade each ESC's firmware
- Built-in spark-proof circuitry offers enhanced protection when plugging in or unplugging the power source, extending the life of the ESCs and connectors
- Power from 3 to 6S LiPo flight power system
Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI ESC Kit for Matrice 100 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.TP.000027 Specs | Maximum Voltage | 26 VDC | | Maximum Current | Persistent: 20 A | | Signal Frequency | 30 to 450 Hz | | Battery Requirements | 3 to 6S LiPo | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 7.7 x 1.2 x 0.2" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 37 owners. Add your rating and experience with the product.
