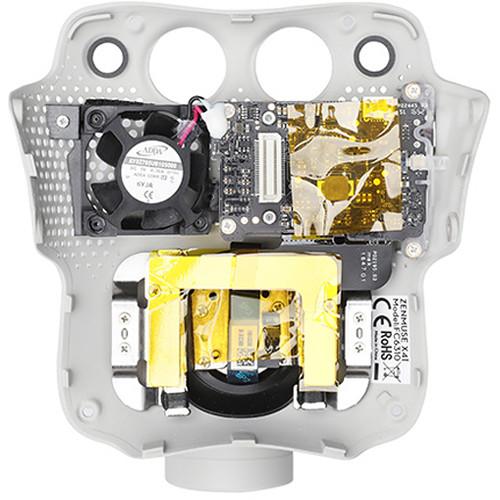

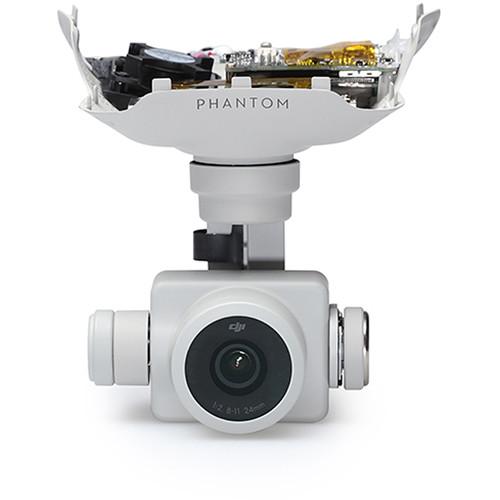

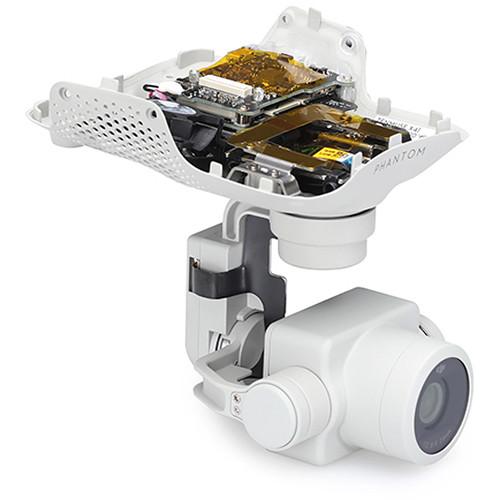

Product description The Gimbal Camera from DJI is a replacement unit that can be used with a Phantom 4 Pro/Pro+, Pro/Pro+ Obsidian, Pro/Pro+ v2.0, and Advanced/Advanced+ quadcopters.. Like the unit that shipped with your quad, this is a 3-axis-stabilized gimbal camera. It features a 20MP, 1" CMOS sensor capable of shooting up to 4K/60 fps video, as well as photo bursts at up to 14 fps. The camera uses a mechanical shutter, eliminating rolling shutter distortion that can occur when taking images of fast moving subjects or when flying at high speeds. Its video processing supports H.264 4K videos at 60 fps or H.265 4K at 30 fps, both with a 100 Mb/s bit rate. Additionally, the Gimbal Camera's enhanced sensors and processors ensure everything is captured with more image detail and with the image data needed for advanced post-production. - Cutting-Edge Camera
- The camera features a first for the Phantom line: a 1-inch 20-megapixel CMOS sensor. A custom-engineered lens made up of eight elements is arranged in seven groups. The camera boasts a mechanical aperture that eliminates rolling shutter distortion that can occur when taking images of fast moving subjects or when flying at high speed and a mechanical focus.
- 1" CMOS Sensor
- Sensor size is often more important to image quality than the number of pixels, because a larger sensor has dynamic range, better signal-to-noise ratio, and boosted low light performance. The 1" 20MP CMOS sensor is almost four times the size of the Phantom 4's 1/2.3" sensor. It uses larger pixels and has a maximum ISO of up to 12,800, as well as increased contrast.
- H.264 and H.265 4K Video Recording
- Powerful video processing supports H.264 4K videos at 60 fps or H.265 4K at 30 fps, both recorded in a 100 Mb/s bit rate. Advanced sensors and processors ensure everything is captured with more image detail and the image data needed for manipulation in post-production.
- Production-Optimized 4K
- An enhanced video processing system allows video to be captured in cinema- and production-optimized DCI 4K (4096 x 2160) at 60 fps and a bit rate of 100 Mb/s. The camera also supports the H.265 video codec at 30 fps in 4K resolution. For a given bit rate, H.265 doubles the amount of image processing as H.264, resulting in significantly enhanced image quality from a more efficient compression. Record in the camera's high dynamic range D-log mode to make the most of this image data for color grading.
- High Resolution Lens
- The camera has an aerial-optimized f/2.8 wide-angle lens with a 24mm equivalent focal length. It features eight elements, two which are aspherical, arranged in seven groups that fit into a smaller, more compact frame. Its images are consistently detailed with low distortion and low dispersion, ensuring that photos and videos are sharp and vivid.
- Mechanical Shutter
- The camera's maximum mechanical shutter speed of 1/2000-second eliminates motion blur and "jello effect" caused by shooting a fast-moving object with a rolling electronic shutter. The electronic shutter has also been improved with a max shutter speed of 1/8000-second, and there is also a Burst Mode capable of shooting 14 fps at 20 megapixels to catch the perfect moment.

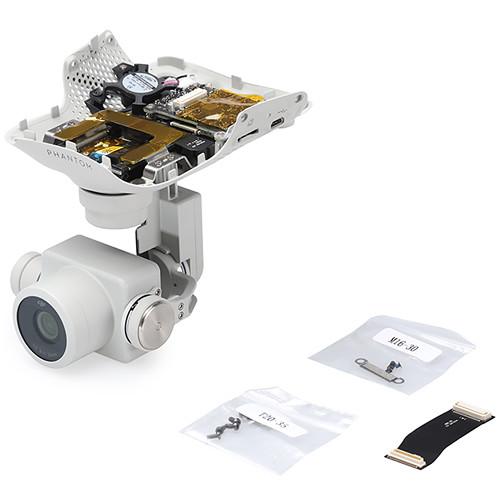

In the Box DJI Gimbal Camera for Select Phantom 4 Pro and Advanced Drones (White, 1st Gen) Limited 6-Month Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Gimbal Camera for Select Phantom 4 Pro and Advanced Drones in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.PT.000600 Specs | | | Sensor | 1" CMOS | | Effective Pixels | 20 million | | Lens | FOV (Field of View): 84°
Focal Length: 8.8 mm / 24 mm (35 mm format equivalent)
Aperture: f/2.8 - f/11
Focus Distance (Auto Focus): 3.3' (1 m) to ∞ | | Photo Resolution | 3:2 Aspect Ratio: 5472 x 3648
4:3 Aspect Ratio: 4864 x 3648
16:9 Aspect Ratio: 5472 x 3078 | | Video Resolution | 4096 x 2160 at 24/25/30/48/50p
3840 x 2160 at 24/25/30/48/50/60p
2720 x 1530 at 24/25/30/48/50/60p
1920 x 1080 at 24/25/30/48/50/60/120p
1280 x 720 at 24/25/30/48/50/60/120p | | ISO Range | Video: 100 to 3200 (Auto); 100 to 6400 (Manual)
Photo: 100 to 3200 (Auto); 100 to 12800 (Manual) | | Shutter Speed | Mechanical: 8 to 1/2000 second
Electronic Shutter: 8 to 1/8000 second | | Photo Modes | Burst Shooting: 3/5/7/10/14 frames
Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV Bias
Interval: 2/3/5/7/10/15/30/60 second | | Video Formats | H.265:
DCI 4K (4096 x 2160): 24/25/30p at 100 Mb/s
UHD 4K (3840 x 2160): 24/25/30p at 100 Mb/s
2.7K (2720 x 1530): 24/25/30p at 65 Mb/s
2.7K (2720 x 1530): 48/50/60p at 80 Mb/s
Full HD (1920 x 1080): 24/25/30p at 50 Mb/s
Full HD (1920 x 1080): 48/50/60p at 65 Mb/s
Full HD (1920 x 1080): 120p at 100 Mb/s
HD (1280 x 720): 24/25/30p at 25 Mb/s
HD (1280 x 720): 48/50/60p at 35 Mb/s
HD (1280 x 720): 120p at 60 Mb/s
H.264:
DCI 4K (4096 x 2160): 24/25/30/48/50/60p at 100 Mb/s
UHD 4K (3840 x 2160): 24/25/30/48/50/60p at 100 Mb/s
2.7K (2720 x 1530): 24/25/30p at 80 Mb/s
2.7K (2720 x 1530): 48/50/60p at 100 Mb/s
Full HD (1920 x 1080): 24/25/30p at 60 Mb/s
Full HD (1920 x 1080): 48/50/60 at 80 Mb/s
Full HD (1920 x 1080): 120p at 100 Mb/s
HD (1280 x 720): 24/25/30p at 30 Mb/s
HD (1280 x 720): 48/50/60at 45 Mb/s
HD (1280 x 720): 120p at 80 Mb/s | | Photo Formats | JPEG
DNG (raw)
JPEG and raw | | Recording Media | Type: microSDHC/SDXC card up to 128 GB Format: FAT32 / exFAT
Supported File Systems: FAT32 (up to 32 GB); exFAT (over 32 GB)
Note: Write speed of 15 MB/s and Class 10 / UHS-1 or faster card required | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Number of Axes | 3 (pitch, roll, yaw) | | Control Range | Pitch: -90° to +30° | | Angular Speed | Pitch: 90°/second | | Control Accuracy | ±0.02° | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 6.7 x 5.3 x 5.0" |
