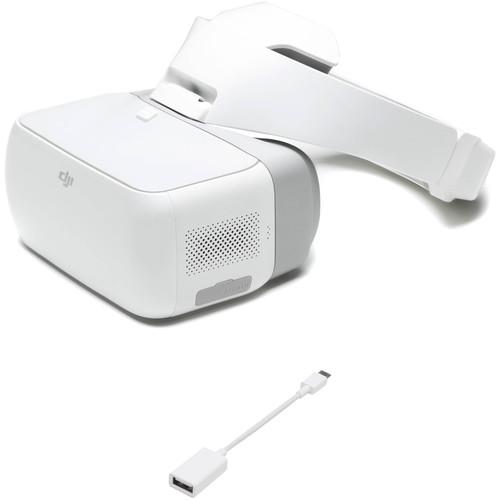

User Manual for DJI Goggles FPV Headset Kit with Micro-USB OTG Cable Click to enlarge the picture
Contents of the user manual for the DJI Goggles FPV Headset Kit with
- Product category: DJI Accessories DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI DJI Accessories
|
User manual for the DJI Goggles FPV Headset Kit with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|
Product description With the DJI Goggles FPV Headset Kit with Micro-USB OTG Cable from , you can receive video feedback and control your DJI Spark drone. The included micro-USB OTG Cable allows the DJI Goggles to connect to the Spark's controller. - DJI Goggles FPV Headset The DJI Goggles are designed for first-person viewing (FPV) applications using compatible DJI products. By receiving the video downlink from the wireless transmitter on your DJI aircraft, the Goggles facilitate a truly immersive flying experience. The Goggles feature dual 5" screens. Each screen boasts a 1080p resolution with an 85° field of view. Both 720p60 and 1080p30 video viewing are available, depending on transmission distance, with a low latency rate of only 110 ms.
The Goggles supports DJI's Intelligent Flight Modes, including Terrain Follow, ActiveTrack, TapFly, Cinematic Mode, Tripod Mode, and Fixed-Wing Mode. You can access key intelligent features though the integrated touchpad, such as focus adjustment.
Multiple interface options allow you to connect compatible devices to the Goggles via its micro-USB port, HDMI input, or 3.5mm audio jack. The Goggles also support microSD cards for recording your flight video. In terms of design, the Goggles were engineered to be worn comfortably throughout the entire 6-hour battery life, so you won't suffer from wearer's fatigue. - Dual High-Res Screens
- The DJI Goggles feature dual 1920 x 1080 screens.
- Low-Lag Transmission
- DJI Goggles offer both 720p @ 60 fps and close range 1080p @ 30 fps viewing with a low latency of just 110 ms.
- Head Tracking
- Your head movements control both aircraft yaw and camera tilt in Head Tracking Flight Mode. All you need to do is turn left or right to yaw left or right, and straighten your head to stop turning. In Head Tracking Gimbal Mode, only the gimbal will move without affecting yaw.
- Touchpad & Remote Controller
- Access to key intelligent features through the DJI Goggles or 5D button on the Mavic Pro controller makes navigating the internal menu system easy and intuitive.
- Intelligent Flight
- DJI Goggles support DJI's Intelligent Flight Modes, including Terrain Follow, ActiveTrack, TapFly, Cinematic Mode, and Tripod Mode. It also supports DJI's newest Intelligent Flight mode: Fixed-Wing Mode.
- Comfortable and Flexible
- A unique solid headband design balances and spreads the weight of DJI Goggles around the head evenly, minimizing pressure on the face and keeping them comfortable to wear for hours. People who wear glasses are also able to wear them comfortably. Additionally, the screen portion of DJI Goggles can be flipped up to glimpse the real world, or detached entirely for easy storage and portability.
UPC: 190021288560 - DJI Micro-USB Male to USB Type-A Female OTG Cable for Spark Remote With this Micro-USB Male to USB Type-A Female OTG Cable from DJI, owners of the DJI Goggles can connect the Goggles' HDMI cable to the DJI Spark drone remote controller. This will let Spark pilots enjoy FPV video from their Spark drone in their DJI Goggles.
In the Box - Goggles FPV Headset sbsdryxdydcwrfscftwwwf
- Charger
- Headband
- Wire Clip
- Cleaning Cloth
- Micro-USB Cable
- HDMI Cable
- Limited 3-Month Warranty
- Micro-USB Male to USB Type-A Female OTG Cable for Spark Remote
Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Goggles FPV Headset Kit with Micro-USB OTG Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DJI Goggles FPV Headset
| Display | 2 x 5" (12.7 cm) | | Screen Resolution | 3840 x 1080 (total)
1920 x 1080 (each screen) | | FOV | 85° (single screen) | | Interpupillary Distance | 2.3 to 2.8" (58 - 70 mm) | | Operating Frequency | 2.4 GHz | | Transmission Distance | Same as connected aircraft | | Video Downlink | 1080p @ 30 fps 720p @ 60 fps 720p @ 30 fps | | Video Latency | 110 ms (Mavic Pro, 720p60, video format: 720p120)
150 ms (Phantom 4 series, 720p60, video format: 720p60/720p120)
140 ms (Inspire 2+X5S, 720p60, video format: 1080p120)
190 ms (Inspire 2+X4S, 720p60, video format: 1080p60) | | Sensors | Gyroscope, accelerometer, proximity | | Input/Output | 1x Micro-USB
1x 3.5 mm audio jack
1x Micro-HDMI 1.4b
1x microSD card slot | | HDCP Standard | 1.4 | | Battery Capacity | 9440 mAh | | Battery Energy | 35.44 Wh | | Battery Life | Up to 6 hours | | Power Input | 100-240 VAC, 50/60 Hz, 0.5 A | | Power Output | 5 V, 3 A / 9 V, 2 A / 12 V, 1.5 A | | Operating Temperature | 32 to 104° F (0 to 40° C) | | Dimensions | Goggles: 7.7 x 6.1 x 4.3" (195 x 155 x 110 mm)
Headband (Folded): 10.0 x 8.1 x 3.6 (255 x 205 x 92 mm) | | Weight | Goggles: 495 g (17.5 oz)
Headband: 500 g (17.6 oz) | | | | Box Dimensions (LxWxH) | 11.3 x 11.1 x 7.2" | - DJI Micro-USB Male to USB Type-A Female OTG Cable for Spark Remote
| Connectors | 1 x Micro-USB Male
1 x USB Type-A Female | | | | Box Dimensions (LxWxH) | 4.0 x 3.75 x 0.5" |
