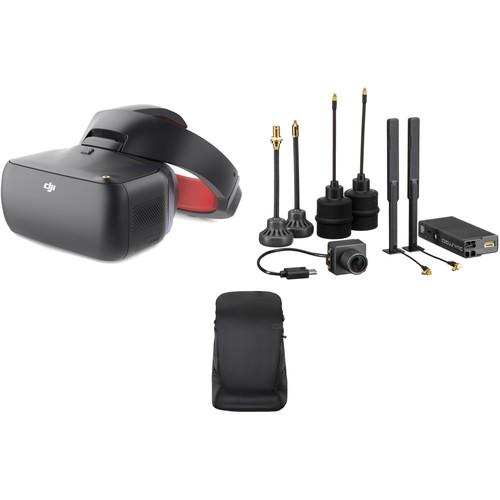

Product description The DJI Goggles Racing Edition Kit from B&H pairs the high-definition DJI Goggles with the OcuSnyc video transmission system and a backpack. Use this kit to add immersive viewing wherever you're racing or flying your DJI Mavic Pro, Spark, Phantom 4 series, or Inspire 2 aircraft. - DJI Goggles Racing Edition The DJI Goggles Racing Edition are equipped with high-performance displays and an ultra-low latency video downlink for use with the Mavic Pro, Spark, Phantom 4 series, and Inspire 2 aircrafts, giving you a real-time aerial FPV (first person view) experience. The Goggles can also be used to play HD videos, bringing you an immersive high-definition viewing experience.
Precisely engineered for racing, DJI Goggles RE are compatible with an OcuSync video transmission module and a high-performance camera module (both sold separately), which work together to transmit digital video signal from up to 4.3 miles away with latency as low as 50 ms. The Goggles feature full flight setting control, two high-resolution screens, and Head Tracking. In addition, a redesigned metallic matte black visor and headband along with padding covered by high-quality red leather offer comfort and better light blockage. - Flight Control
- DJI Goggles RE use bottom-up processing, which means a signal reception module isn't required. By connecting a third-party controller to the Goggles, users can directly control racing drones with an F3, F4, KISS, Naze, or any other supported flight controller.
- On-Screen Display
- Essential flight information including transmission resolution, battery level, and signal quality, is easily visible on screen.
- Gimbal Control
- In Head Tracking Gimbal mode, a user can control the gimbal camera just by putting on the Goggles and turning their head.
- Digital & Analog Transmission
- In addition to HD digital transmission, DJI Goggles RE offer analog transmission via their SMA port.
- Video Options
- The Goggles play videos in a variety of different formats including MP4, MOV, and MKV, so users have even more ways to experience immersive media. Users can also view 6K 360° panoramas.
- Wide-Ranging Applications
- Apart from compatibility with racing quads and fixed-wing model aircraft, the Goggles RE can be used with vehicles, robots, and industrial drones to provide clear FPV during cargo transportation, search and rescue operations, and even structural inspections.
UPC: 190021302198 - DJI OcuSync Air System The OcuSync Air System from DJI is a high-resolution wireless video transmission system that can be integrated with a variety of drones and RC vehicles, and is designed to feed video to DJI Goggles RE. Utilizing the OcuSync Air System and (optional) DJI Goggles, you can get a first-person video feed of what your drone or RC vehicle is seeing, in addition to the reception of images and essential flight controller information.
Everything you need is included, including the camera, antennas, and various connectors. Footage can be transmitted via 2.4 or 5.8 GHz signals from up to 4.4 miles away, and at a latency as low as 50 ms (for 480p). With the ability to keep tabs on your craft and its surroundings, you can have a safer and more productive RC experience with the DJI OcuSync Air System. UPC: 190021302242 - DJI Goggles Carry More Backpack The DJI Goggles Carry More Backpack is designed for carrying the DJI Goggles or DJI Goggles Racing Edition. The backpack provides lots of space, with dividers that allow you to customize the interior compartments to fit your gear. The first style can hold the DJI Googles, Mavic Pro (aircraft + 3 batteries), Spark (aircraft + 3 batteries), and two remote controllers (Mavic + Spark) with the outside pockets holding four racing drones, notebooks, and other small electronic devices. The second style can hold the DJI Goggles, Mavic Pro (aircraft + 3 batteries), Mavic Pro controller, and racing drone controller with outside pockets holding four racing drones, notebooks, and other small electronic devices. UPC: 190021304789
In the Box - Goggles Racing Edition
- Headband
- 2 x Pagoda Antenna
- Reversed SMA Connector
- Charger
- Wire Clip
- Micro-USB Cable
- HDMI Cable
- Cleaning Cloth
- Limited 1-Year Warranty on MC
- Limited 6-Month Warranty on Optical Module, Battery, and Battery Charger
- Limited 1-Month Warranty on Air Unit and Camera
- Goggles Carry More Backpack
Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Goggles Racing Edition, OcuSync & Backpack Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DJI Goggles Racing Edition
| Compatibility | Mavic Pro, Spark, Phantom 4 series, and Inspire 2 aircrafts | | Screen Size | 2 x 5" / 12.7 cm | | Screen Resolution | 3840 x 1080 (single screen: 1920 x 1080) | | Refresh Rate | 60 Hz | | FOV | 85° (single screen) | | Interpupillary Distance | 58 to 70 mm | | Frequency | 2.4 GHz / 5.8 GHz | | Transmitter Power (EIRP) | 2.4 GHz: 25.5 dBm (FCC); 18.5 dBm (CE); 19 dBm (SRRC)
5.8 GHz: 25.5 dBm (FCC); 12.5 dBm (CE); 18.5 dBm (SRRC) | | Live View | 1080p30, 720p60, 720p30 | | Video Latency | 110 ms (Mavic Pro, 720p60, video format: 720p120)
150 ms (Spark, 720p30, video format: 1080p30)
150 ms (Phantom 4 Pro/Advanced Series, 720p60, video format: 720p60/720p120)
167 ms (Phantom 4, 720p30, video format: 720p60)
140 ms (Inspire 2+X5S, 720p60, video format: 1080p120)
190 ms (Inspire 2+X4S, 720p60, video format: 1080p60) | | Video Format | MP4 (H.264) | | Supported Video Format | MP4, MOV, MKV (Video format: H264; Audio format: AAC-LC, AAC-HE, AC-3, DTS, MP3) | | I/O Interface | 1 x SMA port
1 x Micro-USB port
1 x 3.5 mm audio port
1 x HDMI Type-D port
1 x microSD card slot | | HDMI Support | HDMI 1.4b, HDCP 1.4 | | Sensor | Gyroscope, Accelerometer, Proximity sensor | | Battery Capacity | 9440 mAh | | Battery Energy | 35.44 Wh | | Battery Operating Time | 6 hours | | Charger | Input: 100 to 240 VAC, 50/60 Hz, 0.5 A
Output: 5 V = 3 A, 9 V = 2 A, 12 V = 1.5 A | | Dimensions | DJI Goggles RE Body: 7.7 x 6.1 x 4.3" / 19.5
