User Manual for DJI Ground Unit for Lightbridge 2 Click to enlarge the picture
Contents of the user manual for the DJI Ground Unit for Lightbridge 2
- Product category: DJI Accessories DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI DJI Accessories
 |
User manual for the DJI Ground Unit for Lightbridge 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|

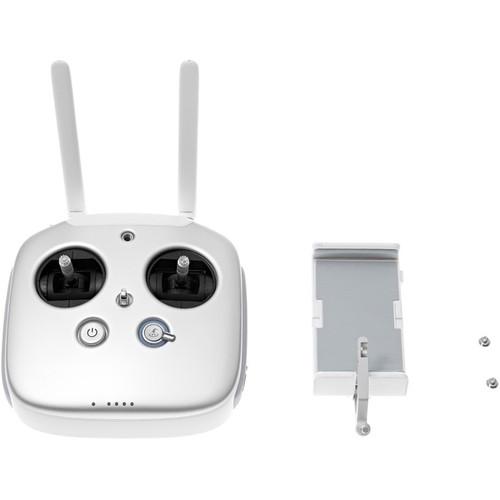

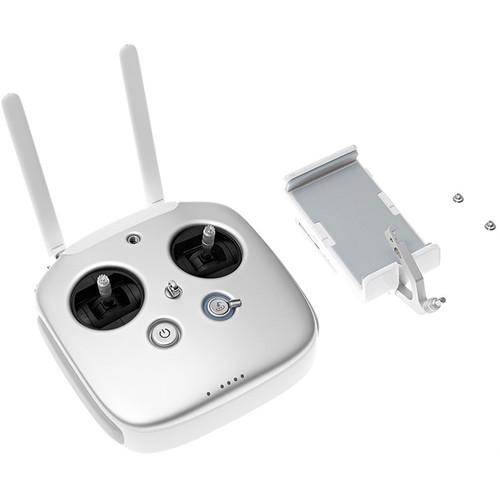

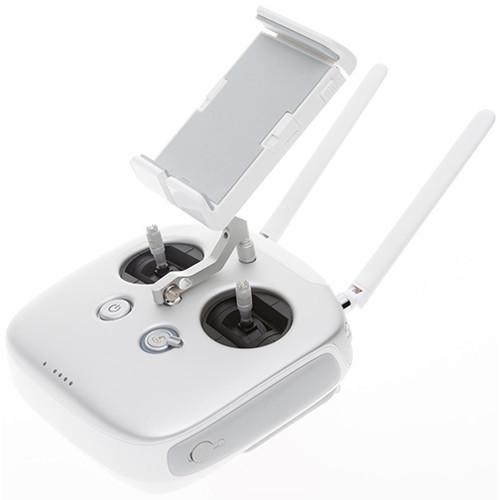

Product description The Ground Unit for Lightbridge 2 from DJI features the form factor of a regular transmitter (RC controller). However, it is much more than that, as it integrates the ground-side part of the Lightbridge 2 system. Lightbridge 2 combines ground station features telemetry OSD with live HD video monitoring and app-based control. Besides settings accessed through the app, the Ground Unit features dedicated gimbal, shutter, and record controls, along a return to home button and custom function buttons. There is a USB port to link your mobile device and an HDMI port for connecting a monitor or FPV goggles. The Ground Unit powers from a build-in 6000mAh battery. UPC: 190021001305 In the Box DJI Ground Unit for Lightbridge 2 (White) Mobile Device Holder Limited 1-Year Warranty User Manual PDF 8.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Ground Unit for Lightbridge 2 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

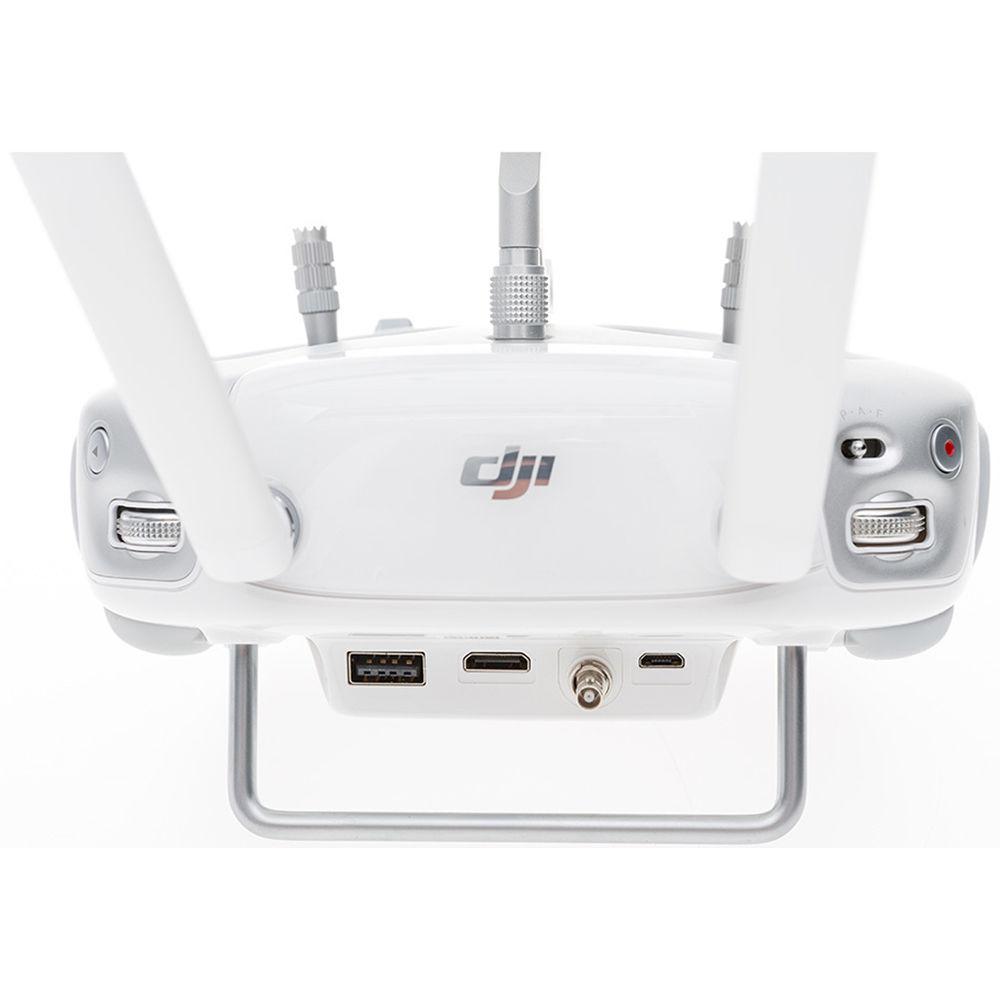

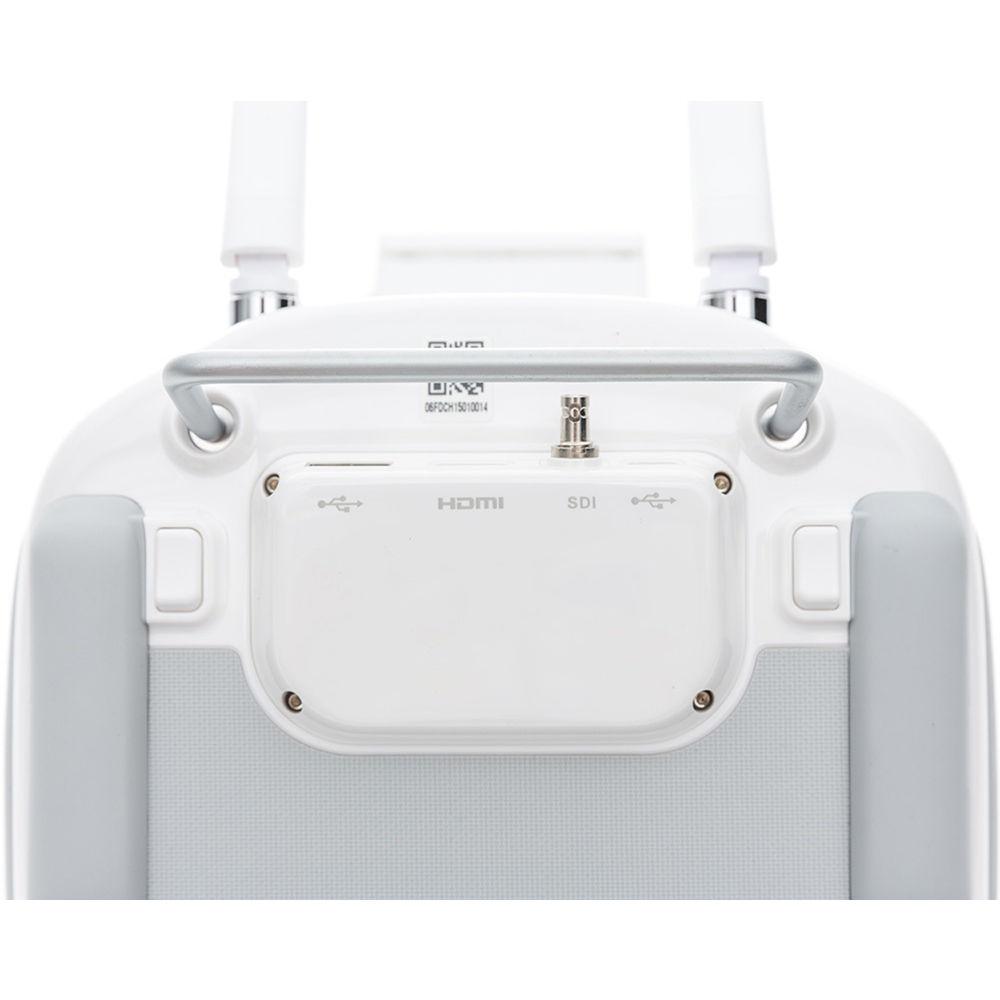

Technical parametersDJI CP.AL.000024 Specs | Range | Up to 3.1 miles / 5 km line-of-sight | | Antenna Gain | 3.5 dBi at 2450 MHz | | Connectivity | 1 x USB Type-A female (for mobile device connection)
1 x mini-HDMI
1 x 3G-SDI on BNC female
1 x micro-USB (for service) | | Supported Output Resolutions | SDI/HDMI: 720p50, 720p60, 1080i50, 1080i60, 1080p24, 1080p30, 1080p50, 1080p60 | | Power Consumption | 900 mA | | Built-In Battery | Voltage: 7.4 VDC
Capacity: 6000 mAh | | Operating Temperature | 14 to 104°F / -10 to 40° C | | Charging Temperature | 32 to 104°F / 0 to 40°C | | Dimensions (L x W x H) | 7.2 x 6.6 x 4.1" / 182 x 167 x 104 mm | | Weight | 1.8 lb / 810 g | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 8.7 x 7.1 x 4.0" |
