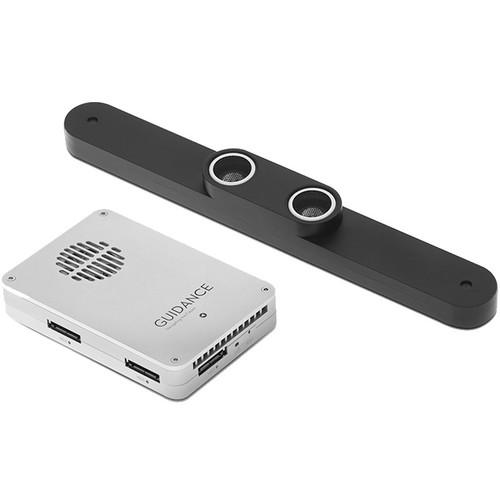

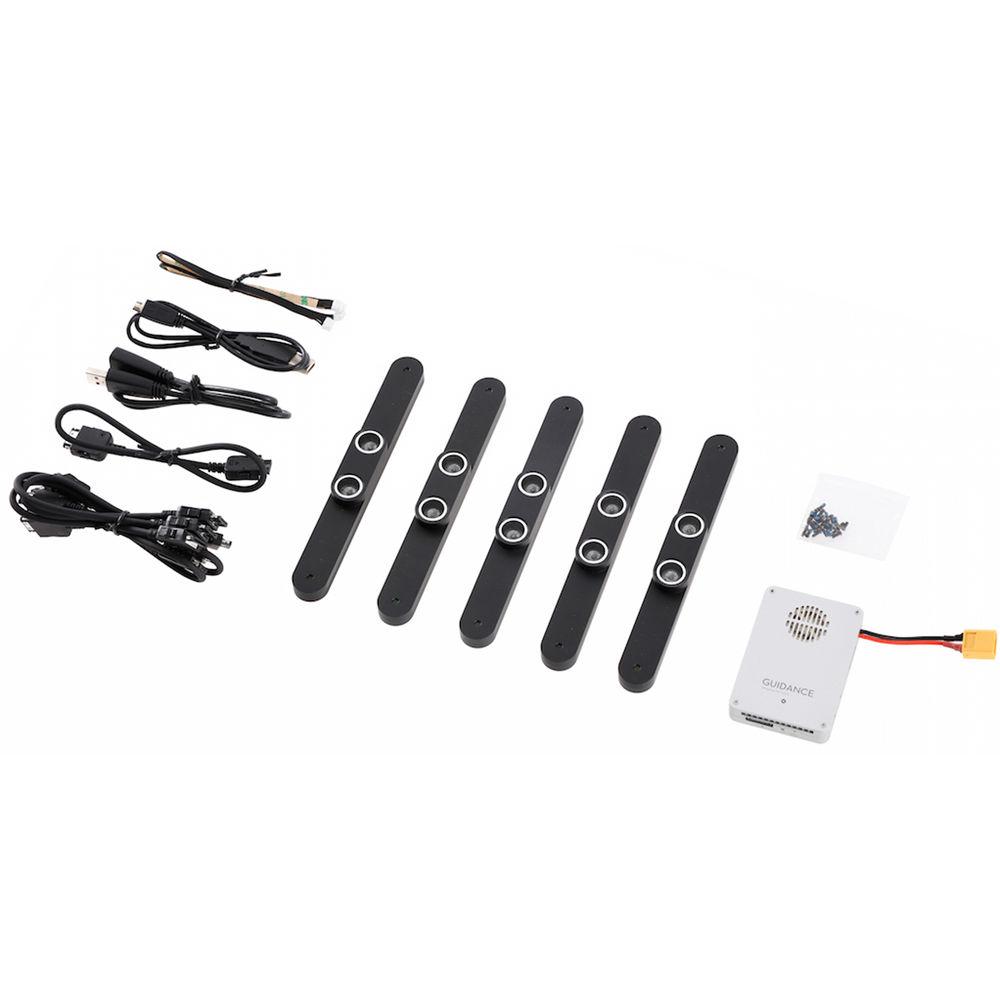

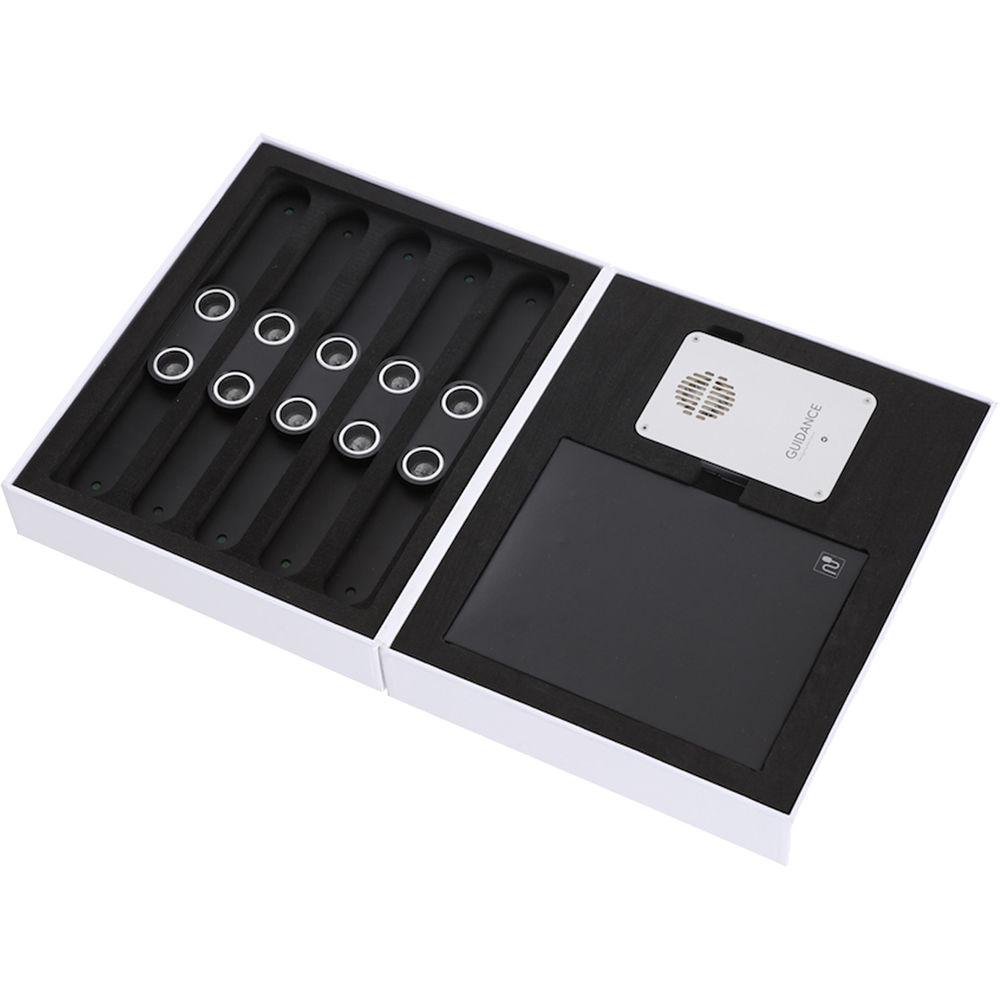

Product description DJI's Guidance is a vision position system that works with the Matrice series of UAVs or can be customized through the DJI SDK for use in just about any robotic system that requires navigational capability. Guidance obtains data from five sensors: four to cover all horizontal directions for obstacle avoidance plus a fifth aimed at the ground for X/Y positioning. The sensors use a combination of imagery along with ultrasound to generate datasets. This data is output from the CPU module via USB and UART so that it can be sent to a flight control system or used in another, custom way. - High-Precision Visual Odometer
- Specifically designed for developers, the High-Precision Visual Odometer measures the velocity of the Guidance to an accuracy of within centimeters. This includes the measurements of how the Guidance moves in the local environment. It enables developers to build customized solutions for all sorts of robotic applications
- Sensor Data
- Supplies data from multiple sensors, including ultrasonic sensors, images, and IMU readings
- 3D Sensing
- Program your own application to get information from the Guidance, which can sense the 3D world using processing techniques such as optical flow. Its imaging system provides a precision of just a few centimeters
- Obstacle Detection in Every Direction
- When used with a DJI flight controller, Guidance can tell your flight system to automatically when to avoid a collision, even at high speeds. Guidance continuously scans the nearby environment and detects obstacles using a combination of cameras and ultrasonic sensors in real-time. Working together, the sensors may even be able to identify harder-to-detect objects, such as glass and tree leaves
- Multi-Sensor Fusion
- Data from all five Guidance sensors is fused automatically. Guidance automatically selects monocular or stereo vision algorithms to achieve the best performance for positioning. This means if there is an insufficient information from one direction, the entire system will not be affected
- Positioning without GPS
- For a flying system, such as the Matrice 100, Guidance achieves positioning without GPS. Even when flying at high speeds, Guidance provides high-precision positioning information over many types of terrain with an accuracy of a few centimeters
- ARM-Based Processing Core

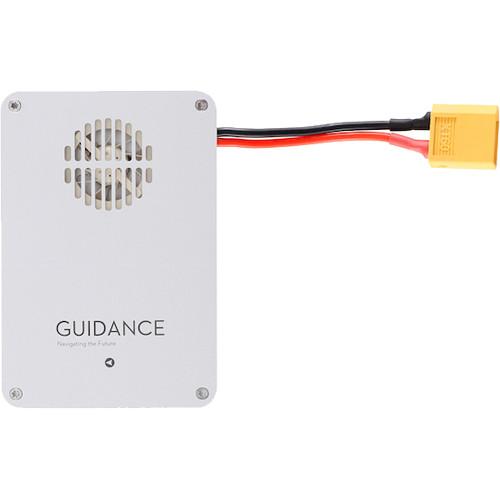

- Backing up Guidance is a computational platform consisting of several FPGA-based hardware acceleration modules and two ARM Cortex-A9 cores. This enables the Guidance to process videos from ten cameras in real-time and is reconfigurable for future updates
- SDK Support
- Guidance is fully compatible with the DJI SDK and supports multiple interfaces for easy data export. Developers are free to create customized applications and expand the use of Guidance's visual and ultrasonic sensors to suit a wide range of applications
- Supported Data Output
-
- Velocity Data: Support for aircraft velocity information output
- Obstacle Distance Data: Support for obstacle distance data output from all five sensors
- IMU Data: Support for IMU data output, including acceleration, attitude data, and more
- Ultrasonic Data: Support for ultrasonic data output from all five sensors
- Grey-scale Image: Support for grey-scale image output from all five sensors
- Depth Image: Support for dense depth image output from all five sensors
- Compatibility
- Supports DJI Matrice series flight platforms. Can be customized to specialty applications
- System Interfaces
-
- USB: Export velocity data, obstacle distance data, IMU data, ultrasonic data, grey-scale images, and depth images
- UART: Export velocity data, obstacle distance data, IMU data, and ultrasonic data
UPC: 190021000278 User Manual PDF 5.7mbvsrusbwxtecxcera Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Guidance in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.VL.000103 Specs | | | Velocity Detection Range | 0 to 52.5 fps / 0 to 16 m/s | | Positioning Accuracy | 0.2' / 0.05 m (from the ground 6.6' / 2 m) | | Effective Sensor Range | 0.7 to 65.6' / 0.2 to 20 m | | Operating Environment | Good lighting
Texture-rich surface with clear patterns | | | | Interfaces | 5 x VBUS 1 x CAN-Bus
1 x USB OTG 2.0
1 x UART (UART Level 3.3 V) | | | | Power Requirements | 11.1 to 25 V | | Power Consumption | Up to 12 W (with all five Guidance sensors) | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Dimensions | Guidance Core: 3.1 x 2.1 x 0.6" / 78.5 x 53.5 x 14 mm
Guidance Sensor: 6.7 x 0.8 x 0.6" / 170 x 20 x 16.2 mm
VBUS Cable: 7.9" / 200 mm | | Weight | Guidance Core: 2.3 oz / 64 g
Guidance Sensor (Single): 1.5 oz / 43 g
VBUS Cable (Single): 0.4 oz / 11.6 g | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 7.7 x 6.5 x 2.8" |
