Product description The Best Gets Even Better: DJI Announces the Inspire 2 and Phantom 4 Pro Read More zrystwvywt - DJI - Introducing the Inspire 2
- DJI - The Circle: A Short Film Shot Entirely on the Inspire 2

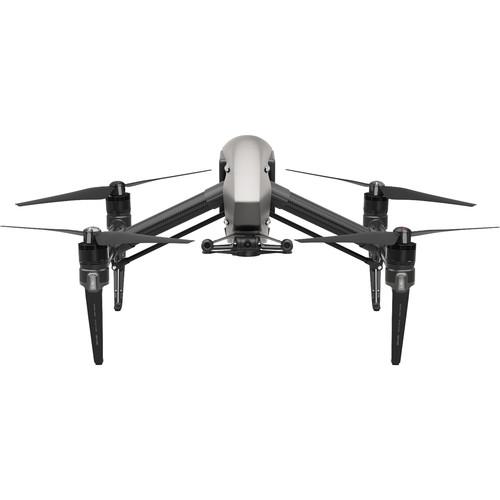

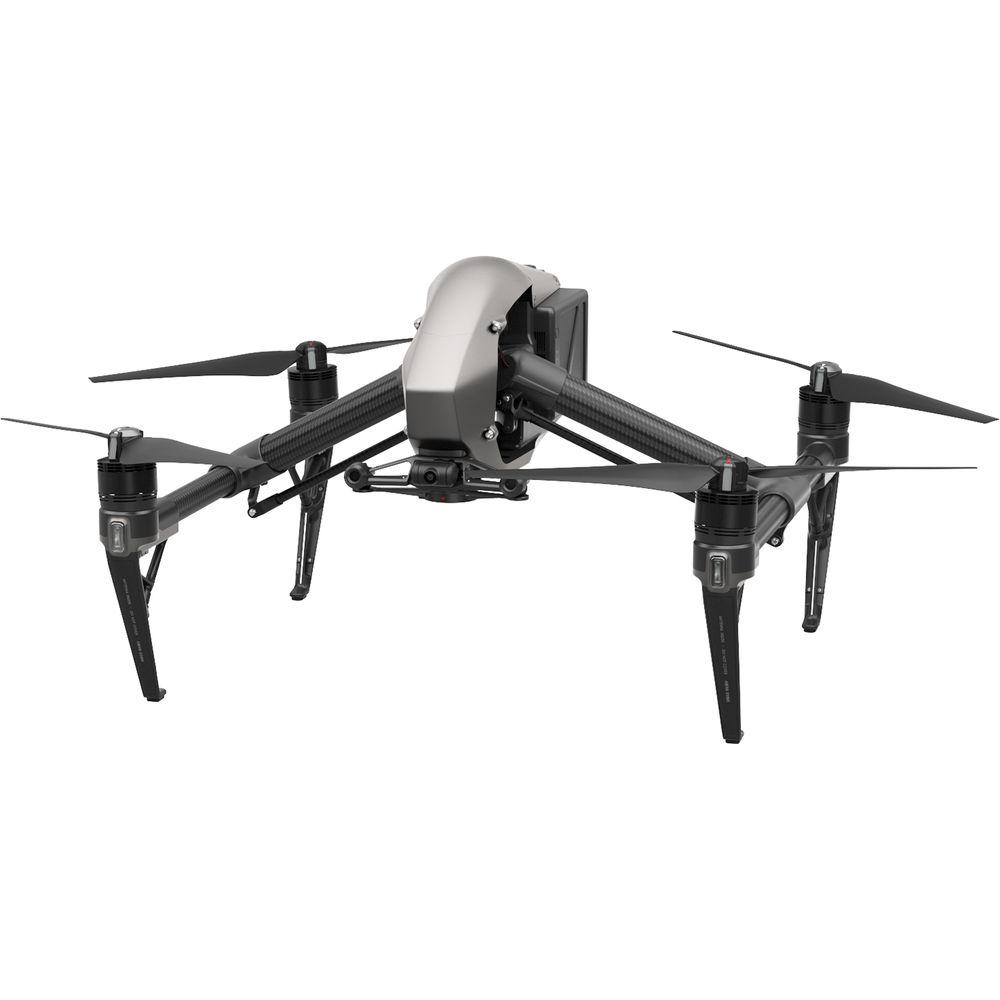

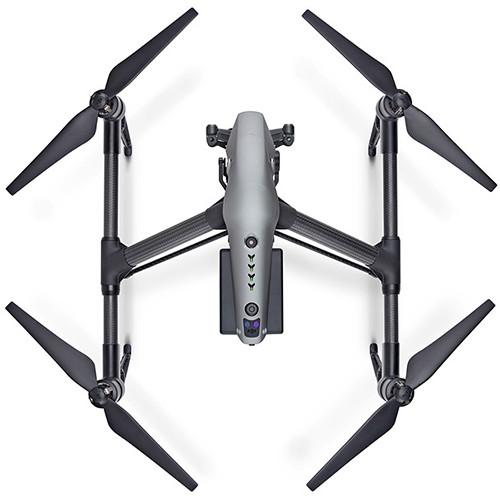

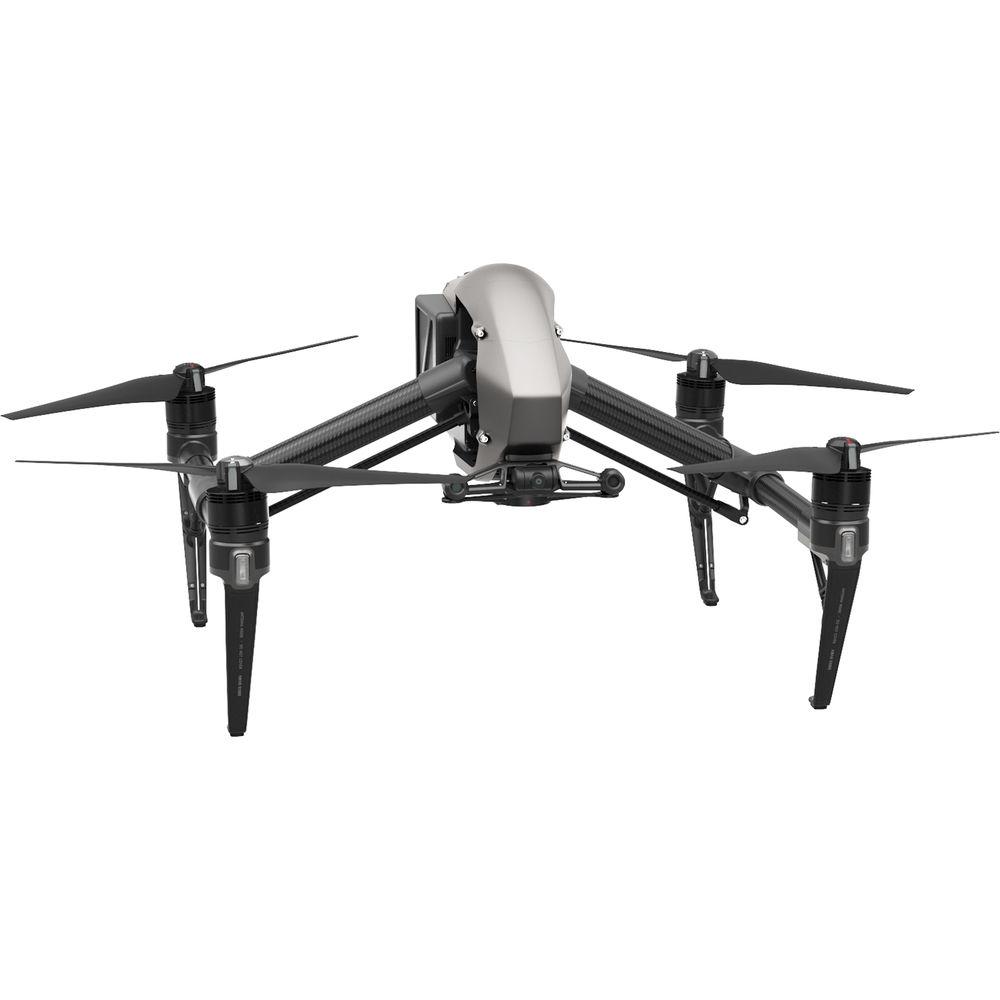

DJI's magnesium-aluminum-clad Inspire 2 Quadcopter is a powerful cinematic and photographic tool. Combining the Inspire 2 with the separately available X4S and X5S gimbal cameras yields cinema-grade images, which can be recorded in high bit rates using H.264 and H.265 formats, or, in the case of the X5R, various flavors of Apple ProRes and CinemaDNG raw using the required licenses available from DJI. All the recording functionality is processed by the Inspire 2's CineCore 2.0 image processing engine. Not all the power to be found in the Inspire 2 is in the recording functionality. DJI beefed up the flight capabilities of the Inspire 2. Able to accelerate to 50 mph in 4 seconds and reach a top speed of 58 mph, the Inspire 2 can follow fast-moving subjects for dramatic sports and action footage. The flight prowess of the Inspire 2 doesn't come at the expense of battery life. With the two included LiPo batteries onboard, up to 27 minutes of flight time can be had on a full charge. Advanced obstacle avoidance has also made its way to the Inspire 2. Built into DJI's FlightAutonomy system, objects in front of, below, and above the quadcopter can be detected and avoided automatically. The Inspire 2 can even remember flight paths in case of an emergency return-to-home without GPS enabled. What's more, using the onboard 2-axis stabilized FPV camera, the pilot can navigate the Inspire 2 without being limited to the gimbal camera's field-of-view. Everything you need to set up your Inspire 2 is included. Two batteries with a charger, an all-new transmitter controller, extra propellers, a calibration plate, and a carrying case to store and transport everything. - Advanced Obstacle Sensing
- Forward and downward vision systems enable the Inspire 2 to detect obstacles up to 30 meters ahead, allowing for protected flight at up to 34 mph at a controllable attitude angle of 25°. Upward-facing infrared sensors scan obstacles 16' above, adding protection when flying in enclosed spaces. Obstacle-sensing systems are active during normal flight, RTH, and all Intelligent Flight Modes.
- Spotlight Pro
- Spotlight Pro is a powerful tracking mode that allows even single pilots to capture complex, dramatic images. It uses advanced, visual-tracking algorithms to lock onto a subject during flight, regardless of the direction that the Inspire 2 flies, creating shots that would once have required a dedicated camera operator. If the gimbal comes close to reaching its rotation limits, the Inspire 2 itself will rotate in the same direction without affecting flight control or the shot being captured to free up gimbal movement.
Spotlight Pro has two shooting modes: Quick Mode and Composition Mode. In Quick Mode, select an object to begin tracking. In Composition Mode, select the subject and the tracking position. When the subject enters the preset tracking position, press the shortcut to begin tracking. The gimbal can be moved during shooting for composition adjustments. Spotlight Pro is available in all Intelligent Flight Modes including ActiveTrack, TapFly, Waypoint and Point of Interest. - TapFly

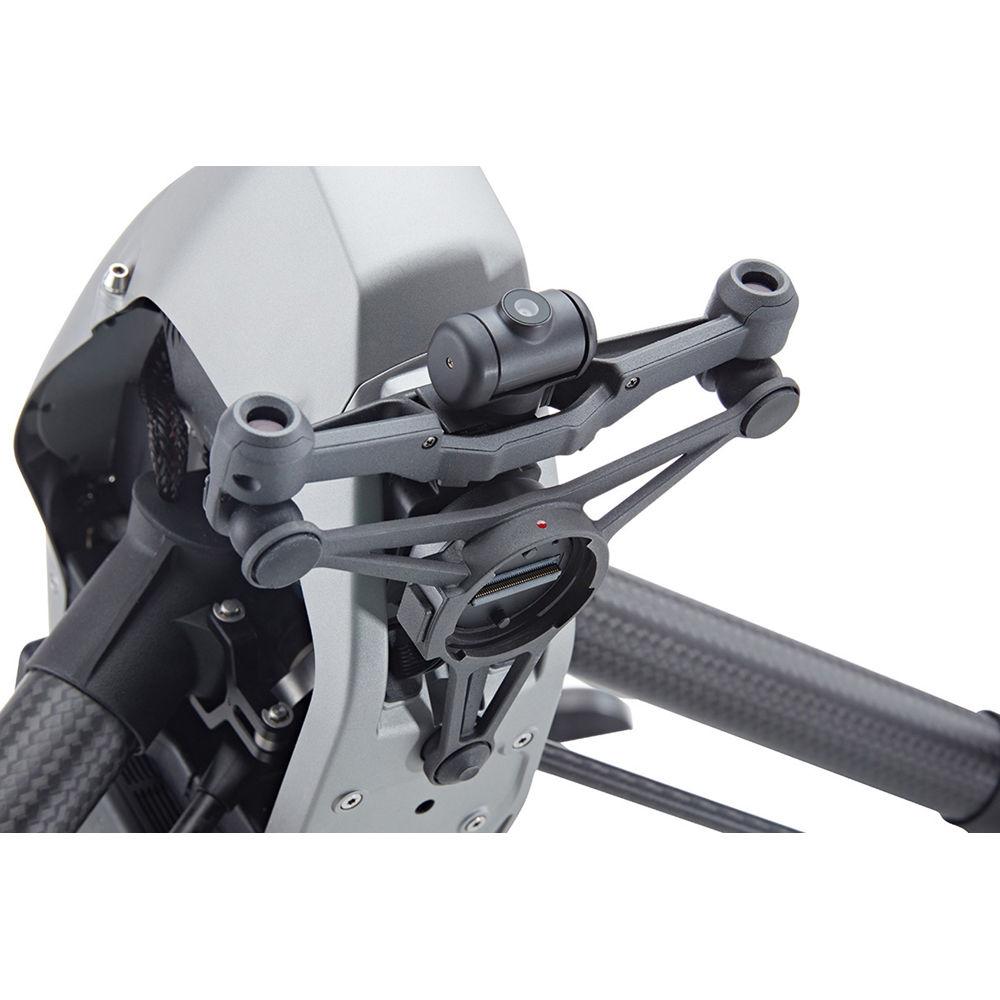

- The 2-axis onboard FPV camera separates the flight view from the main camera view, effectively giving the Inspire 2 a dedicated "tap-to-fly" camera. Tap a point onscreen in the FPV view to set a flight route and the Inspire 2 will automatically fly along that route, leaving the pilot to focus on gimbal movement.
- ActiveTrack
- The ActiveTrack Mode allows the Inspire 2 to recognize a range of objects, from people to bikes to cars to boats. Tracking profiles that can be adjusted based on the subject being tracked means greater tracking precision.
- Smart Return Home
- Forward and downward vision systems allow the Inspire 2 to create a real-time map of its flight route as it flies. If the video transmission system signal is lost and Smart Return Home is enabled, it is able to fly home along its original route and change to a straight line when it regains a signal. As it returns, it will use the primary camera to identify obstacles as far as 200m in front, allowing it to plan a safe route home. It is also able to reconnect more quickly after losing connection.
- Video Transmission System
- The Inspire 2 features DJI's Lightbridge technology. This iteration has an effective transmission distance of up to 4.3 miles (under ideal conditions) and is capable of delivering both 1080p/720p video as well as the FPV view to pilot and camera operator. Users can also switch between 2.4 GHz and 5.8 GHz control frequencies to avoid interference for greater signal stability.
Master and Slave setups are also supported. The master controller can transmit an HD video signal to the slave controller up to 300' away without image quality loss. - Broadcast Mode
- Broadcasters can broadcast direct from the Inspire 2 using its dedicated 1080i50 and 720p60 transmission signal. Aerial live-streaming direct to TV is as simple as connecting the Inspire 2 transmitter to the satellite truck.
- Powerful Flight Performance

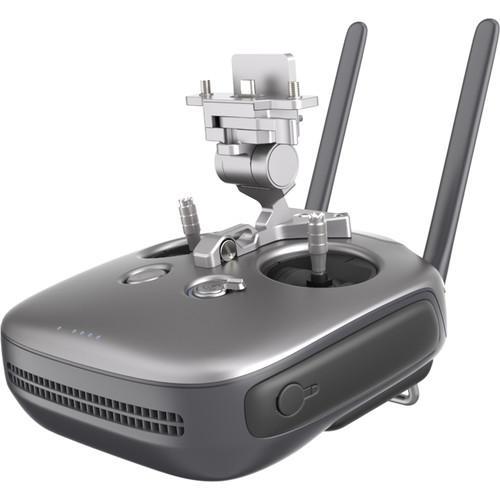

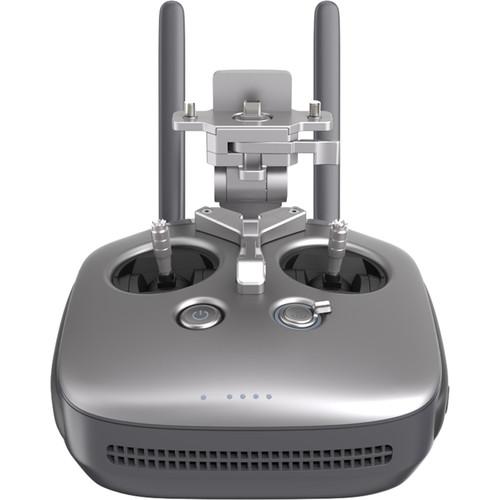

- The propulsion system can thrust the Inspire 2 up to 58 mph and allows for descents at up to 29 feet-per-second and ascents at up to 19 feet-per-second. It can accelerate from 0 to 50 mph in just four seconds and flies at a max attitude angle of 40°. The two controller sticks on the transmitter are tuned for more sensitivity, making delicate maneuvers easier.

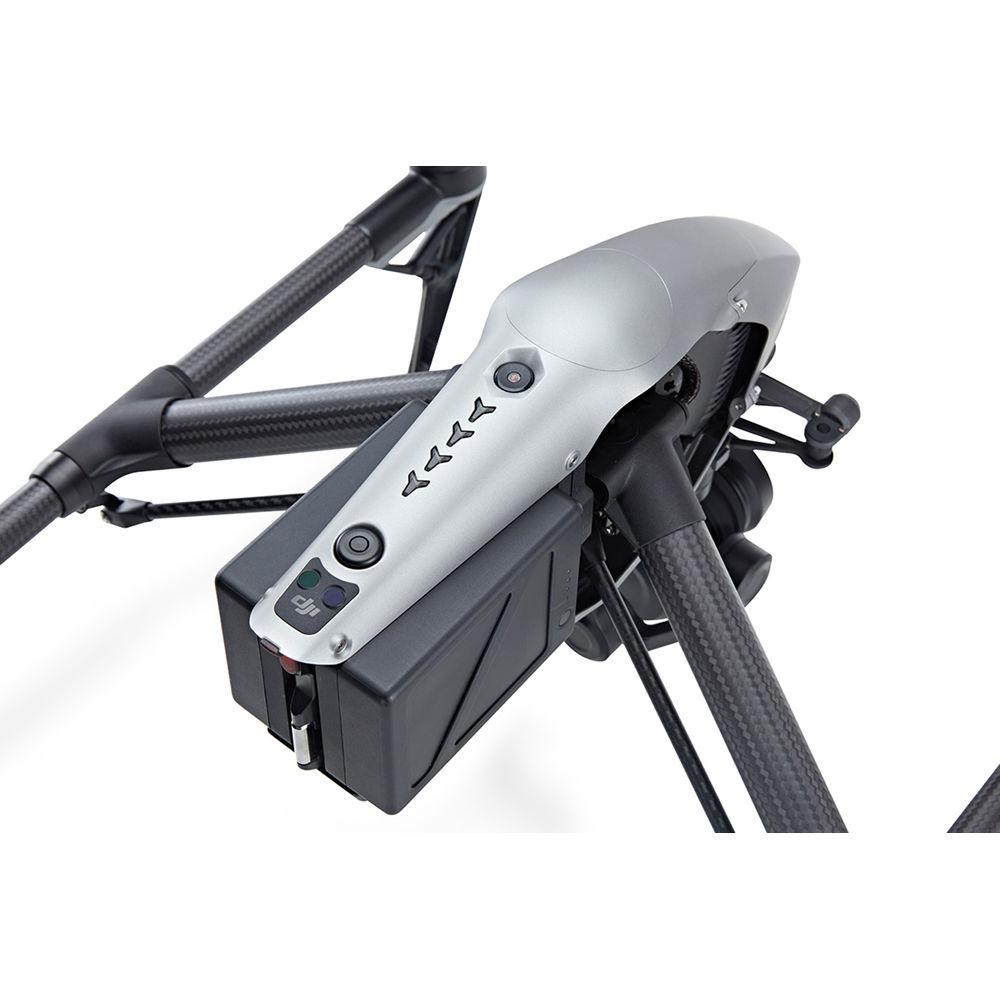

- Dual Battery Design
- Dual batteries mean that, if a problem occurs on one battery, the other is able to continue flight long enough for a safe landing. At the same time, the Inspire 2 propulsion system is driven a PWM signal with serial port signal redundancy so that if PWM signals are lost, transmission will continue through the serial port.
UPC: 190021286283 In the Box DJI Inspire 2 Quadcopter Remote Control (Transmitter) 4 x Propeller Pairs 2 x Intelligent Flight Battery Battery Charger Charging Hub Power Cable USB Cable microSD Card Vision System Calibration Plate 3 x Gimbal Damper Propeller Mounting Plates Carrying Case 4 x Battery Insulation Sticker Limited 1-Year Warranty on Aircraft (Excluding Gimbal, Camera, and Battery) Limited 6-Month / 200-Cycle Warranty on Battery (Whichever Comes First) Aerial Photography and Drone Glossary David Adler 09/04/2018 zrystwvywt Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 User Manual PDF 40mb More info from DJI Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Inspire 2 Quadcopter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI Inspire 2 Specs | | | Takeoff Weight | Maximum: 8.82 lb / 4 kg | | Maximum Flight Altitude | Standard Propellers: 8200' / 2500 m
Hi-Altitude Propellers: 16,400' / 5000 m | | Maximum Flight Time | 27 minutes (approx.) with Zenmuse X4S Gimbal Camera | | Maximum Tilt Angle | P-mode: 35° (Forward Vision System enabled: 25°)
A-mode: 35°
S-mode: 40° | | Maximum Ascent Speed | P-mode/A-mode: 16.4 ft/s (5 m/s)
S-mode: 19.7 ft/s (6 m/s) | | Maximum Descent Speed | Vertical: 13.1 ft/s (4 m/s)
Tilt: 13.1-29.5 ft/s (4-9 m/s) | | Maximum Speed | 58 mph (94 km/h) | | GPS Accuracy | Vertical: ±1.64' / 0.5 m (±0.33' / 0.1 m, with Downward Vision System enabled)
Horizontal: ±4.92' / 1.5 m (±0.98' / 0.3 m, with Downward Vision System enabled) | | | | Velocity Range | < 32.8 ft/s (10 m/s) at height of 6.56' / 2 m | | Altitude Range | < 32.8 feet / 10 m | | Operating Range | < 32.8 feet / 10 m | | Operating Environment | Surfaces with clear patterns and adequate lighting (> 15 lux) | | | | Obstacle Sensory Range | 0-16.4' / 0-5 m | | Field of View | ±5° | | Operating Environment | Large-size non-reflective obstacles | | | | Obstacle Sensory Range | 2.3-98.4' / 0.7-30 m | | Field of View | Horizontal: 60°
Vertical: 54° | | Operating Environment | Surfaces with clear patterns and adequate lighting (> 15 lux) | | | | Operating Frequency | 2.400-2.483 GHz, 5.725-5.850 GHz | | Maximum Transmission Distance | 2.4 GHz: 4.3 mi / 7 km
5.8 GHz: 4.3 mi / 7 km | | EIRP | 2.4 GHz: 26 dBm
5.8 GHz: 28 dBm | | Battery | Type: Built-in
Chemistry: Lithium-ion polymer (LiPo)
Capacity: 6000 mAh
Configuration: 2S | | Output Power | 9 W | | USB Power | iOS: 5.2 VDC, 1 A (maximum)
Android: 5.2 VDC, 1.5 A (maximum) | | Operating Temperature | 14 to 104°F / -10 to 40°C | | | | Chemistry | Lithium-ion polymer (LiPo) | | Capacity | 4280 mAh / 97.58 Wh | | Configuration | 6 S | | Voltage | 22.8 VDC | | Weight | 1.1 lb / 515 g | | Charger | Voltage: 26.1 V
Rated Power: 180 W | | Environmental | Charging Temperature: 41 to 104°F / 5 to 40°C Operating Temperature: 14 to 104°F / -10 to 40°C | | Maximum Charging Power | 180 W | | | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Dimensions | Diagonal: 23.8" / 60.5 cm (excluding propellers) | | Weight | 7.25 lb / 3.3 kg (including two batteries, without gimbal and camera) | | | | Package Weight | 27.15 lb | | Box Dimensions (LxWxH) | 25.5 x 25.3 x 12.6" |
