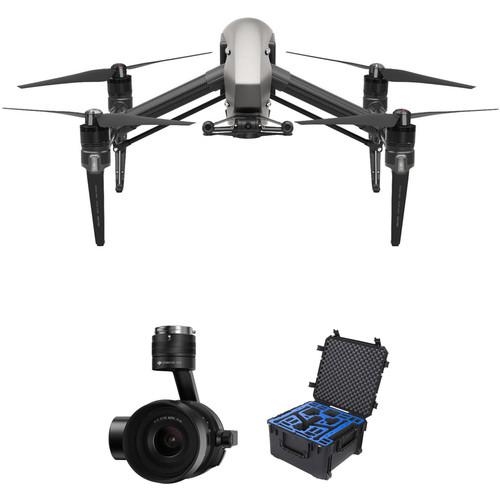

User Manual for DJI Inspire 2 Quadcopter Combo Bundle with Zenmuse X5S and Hard Case Click to enlarge the picture
Contents of the user manual for the DJI Inspire 2 Quadcopter Combo Bundle
- Product category: See All Drones DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI See All Drones
|
User manual for the DJI Inspire 2 Quadcopter Combo Bundle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|
Product description Aerial Photography and Drone Glossary Read More This Inspire 2 Quadcopter Combo Bundle from B&H offers you everything you need for shooting pro-level aerial photography, including a camera/gimbal setup, codec licenses, and secure mode of drone transportation. The kit includes the DJI Inspire 2 Quadcopter Combo with CinemaDNG and Apple ProRes licenses, a DJI Zenmuse X5S gimbal camera, and a hard case for transport.
The magnesium-aluminum-clad Inspire 2 is a powerful photographic tool. Combined with the included X5S gimbal camera, it yields cinema-grade images, which can be recorded in high bit rates using H.264 and H.265 formats. This version of the Inspire 2 features the CinemaDNG raw and Apple ProRes codec licenses pre-installed, enabling you to record 4K and 5.2K video in these low-compression, post-friendly formats. In addition to its recording functions, the Inspire 2 also features advanced flight capabilities, including a top speed of 58 mph, 27 minutes of flight time, FPV capabilities, and more.
To safely transport your Inspire 2, Zenmuse X5S, and accessories, the included hard case features a custom foam interior, watertight outer shell, and pull handle, making it a handy solution for safely storing and transporting your quadcopter and its accessories. - DJI Inspire 2 Quadcopter with CinemaDNG and Apple ProRes Licenses DJI's magnesium-aluminum-clad Inspire 2 Quadcopter is a powerful cinematic and photographic tool. Combining the Inspire 2 with the separately available X4S and X5S gimbal cameras yields cinema-grade images, which can be recorded in high bit rates using H.264 and H.265 formats, or, in the case of the X5R, various flavors of Apple ProRes and CinemaDNG raw using the required licenses available from DJI. All the recording functionality is processed by the Inspire 2's CineCore 2.0 image processing engine. Not all the power to be found in the Inspire 2 is in the recording functionality. DJI beefed up the flight capabilities of the Inspire 2. Able to accelerate to 50 mph in 4 seconds and reach a top speed of 58 mph, the Inspire 2 can follow fast-moving subjects for dramatic sports and action footage. The flight prowess of the Inspire 2 doesn't come at the expense of battery life. With the two included LiPo batteries onboard, up to 27 minutes of flight time can be had on a full charge. Advanced obstacle avoidance has also made its way to the Inspire 2. Built into DJI's FlightAutonomy system, objects in front of, below, and above the quadcopter can be detected and avoided automatically. The Inspire 2 can even remember flight paths in case of an emergency return-to-home without GPS enabled. What's more, using the onboard 2-axis stabilized FPV camera, the pilot can navigate the Inspire 2 without being limited to the gimbal camera's field-of-view. Everything you need to set up your Inspire 2 is included. Two batteries with a charger, an all-new transmitter controller, extra propellers, a calibration plate, and a carrying case to store and transport everything.
- CinemaDNG raw and Apple ProRes Installed
- This version of the Inspire 2 features the CinemaDNG raw and Apple ProRes codec licenses pre-installed, enabling you to record 4K and 5.2K video in these low-compression, post-friendly formats.
- Advanced Obstacle Sensing
- Forward and downward vision systems enable the Inspire 2 to detect obstacles up to 30 meters ahead, allowing for protected flight at up to 34 mph at a controllable attitude angle of 25°. Upward-facing infrared sensors scan obstacles 16' above, adding protection when flying in enclosed spaces. Obstacle-sensing systems are active during normal flight, RTH, and all Intelligent Flight Modes.
- Spotlight Pro
- Spotlight Pro is a powerful tracking mode that allows even single pilots to capture complex, dramatic images. It uses advanced, visual-tracking algorithms to lock onto a subject during flight, regardless of the direction that the Inspire 2 flies, creating shots that would once have required a dedicated camera operator. If the gimbal comes close to reaching its rotation limits, the Inspire 2 itself will rotate in the same direction without affecting flight control or the shot being captured to free up gimbal movement.
Spotlight Pro has two shooting modes: Quick Mode and Composition Mode. In Quick Mode, select an object to begin tracking. In Composition Mode, select the subject and the tracking position. When the subject enters the preset tracking position, press the shortcut to begin tracking. The gimbal can be moved during shooting for composition adjustments. Spotlight Pro is available in all Intelligent Flight Modes including ActiveTrack, TapFly, Waypoint and Point of Interest. - TapFly
- The 2-axis onboard FPV camera separates the flight view from the main camera view, effectively giving the Inspire 2 a dedicated "tap-to-fly" camera. Tap a point onscreen in the FPV view to set a flight route and the Inspire 2 will automatically fly along that route, leaving the pilot to focus on gimbal movement.
- ActiveTrack
- The ActiveTrack Mode allows the Inspire 2 to recognize a range of objects, from people to bikes to cars to boats. Tracking profiles that can be adjusted based on the subject being tracked means greater tracking precision.
- Smart Return Home
- Forward and downward vision systems allow the Inspire 2 to create a real-time map of its flight route as it flies. If the video transmission system signal is lost and Smart Return Home is enabled, it is able to fly home along its original route and change to a straight line when it regains a signal. As it returns, it will use the primary camera to identify obstacles as far as 200m in front, allowing it to plan a safe route home. It is also able to reconnect more quickly after losing connection.
- Video Transmission System
- The Inspire 2 features DJI's Lightbridge technology. This iteration has an effective transmission distance of up to 4.3 miles (under ideal conditions) and is capable of delivering both 1080p/720p video as well as the FPV view to pilot and camera operator. Users can also switch between 2.4 GHz and 5.8 GHz control frequencies to avoid interference for greater signal stability.
Master and Slave setups are also supported. The master controller can transmit an HD video signal to the slave controller up to 300' away without image quality loss. - Broadcast Mode
- Broadcasters can broadcast direct from the Inspire 2 using its dedicated 1080i50 and 720p60 transmission signal. Aerial live-streaming direct to TV is as simple as connecting the Inspire 2 transmitter to the satellite truck.
- Powerful Flight Performance
- The propulsion system can thrust the Inspire 2 up to 58 mph and allows for descents at up to 29 feet-per-second and ascents at up to 19 feet-per-second. It can accelerate from 0 to 50 mph in just four seconds and flies at a max attitude angle of 40°. The two controller sticks on the transmitter are tuned for more sensitivity, making delicate maneuvers easier.
- Dual Battery Design
- Dual batteries mean that, if a problem occurs on one battery, the other is able to continue flight long enough for a safe landing. At the same time, the Inspire 2 propulsion system is driven a PWM signal with serial port signal redundancy so that if PWM signals are lost, transmission will continue through the serial port.
UPC: 190021287105 - DJI Zenmuse X5S Equipped with an uprated Micro 4/3 sensor, the DJI Zenmuse X5S has a dynamic range of 12.8 stops with a much improved signal to noise ratio and color sensitivity than the X5R. Included here are the gimbal, camera, and lens.
The new CineCore 2.0 image processing system on the Inspire 2 makes the Zenmuse X5S capable of capturing 5.2K 30fps CinemaDNG video and Apple ProRes video, as well as 4K 60fps using H.264 and 4K 30fps using H.265 (both at 100Mbps). Continuous DNG burst shooting at 20fps with 20.8MP images is also supported. The Zenmuse X5S was designedto keep pace with the rigors of high-end professional aerial imaging. UPC: 190021284807 - Go Professional Cases Hard Case for DJI Inspire 2, Cendence, CrystalSky, and X7 Camera (Landing Mode) The Go Professional Cases Hard Case for DJI Inspire 2 is a custom rolling hard case for your DJI Inspire 2 in "landing mode" with a Zenmuse X4, X5S, or X7 gimbal camera. Landing mode is designed for quick deployment by keeping the Zenmuse gimbal camera attached to the Inspire 2. The case also accommodates other essentials with slots for Cendence controllers, CrystalSky monitors, batteries, chargers, recording media, and more. The case itself is made from a durable polypropylene copolymer resin, and is gasket sealed to protect against moisture and dust ingress.
- Waterjet precision-cut with closed-cell foam to resist water and dust infiltration
- Custom foam is housed in a durable SKB spec case
- Wheels for easy transport
- Padlock holes include stainless steel padlock-protector clips
- Waterproof and dust-tight design
- Molded-in hinge for added protection
- Built-in pull-handle with one-finger lock release
- Trigger-release latch system
- Snap-down rubber over-molded cushion grip handle
- Ambient pressure equalization valve
- Resistant to UV, solvents, corrosion, fungus
- Resistant to impact damage
- The GPC-DJI-INSP2-CCX-L2 Accommodates:
-
- 1 DJI Inspire 2 in "Landing Mode" configuration
- I2 controller
- I2 controller or Cendence with patch antenna
- 12 batteries (2 on Inspire 2)
- 2 Charging Hubs
- 2 chargers with cables
- 1 camera box for Zenmuse X7, X5S, or X4
- 4 lenses for X7 or X5S
- 2 CrystalSky batteries
- 2 tablets (CrystalSky or iPad)
- 1 CrystalSky charger
- 4 SSDs for Inspire 2
- 1 CineSSD Station
- Spare propellers
- Calibration plate
- Accessories
- 2 Cendence antennas
- Documentation
UPC: 857487006779 In the Box - Inspire 2 Quadcopter with CinemaDNG and Apple ProRes Licenses tttscvtddectrfxzta
- Remote Control (Transmitter)
- 4 x Propeller Pairs
- 2 x Intelligent Flight Battery
- Battery Charger
- Charging Hub
- Power Cable
- USB Cable
- microSD Card
- Vision System Calibration Plate
- 3 x Gimbal Damper
- Propeller Mounting Plates
- Carrying Case
- 4 x Battery Insulation Sticker
- Inspire 2 CinemaDNG & Apple ProRes License Key (Pre-Installed)
- Limited 1-Year Warranty on Aircraft (Excluding Gimbal, Camera, and Battery)
- Limited 6-Month / 200-Cycle Warranty on Battery (Whichever Comes First)
- Go Professional Cases - Hard Case for DJI Inspire 2, Cendence, CrystalSky, and X7 Camera (Landing Mode)
Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Inspire 2 Quadcopter Combo Bundle with Zenmuse X5S and Hard Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DJI Inspire 2 Quadcopter with CinemaDNG and Apple ProRes Licenses
| | | Takeoff Weight | Maximum: 8.82 lb / 4 kg | | Maximum Flight Altitude | Standard Propellers: 8200' / 2500 m
Hi-Altitude Propellers: 16,400' / 5000 m | | Maximum Flight Time | 27 minutes (approx.) with Zenmuse X4S Gimbal Camera | | Maximum Tilt Angle | P-mode: 35° (Forward Vision System enabled: 25°)
A-mode: 35°
S-mode: 40° | | Maximum Ascent Speed | P-mode/A-mode: 16.4 ft/s (5 m/s)
S-mode: 19.7 ft/s (6 m/s) | | Maximum Descent Speed | Vertical: 13.1 ft/s (4 m/s)
Tilt: 13.1-29.5 ft/s (4-9 m/s) | | Maximum Speed | 58 mph (94 km/h) | | GPS Accuracy | Vertical: ±1.64' / 0.5 m (±0.33' / 0.1 m, with Downward Vision System enabled)
Horizontal: ±4.92' / 1.5 m (±0.98' / 0.3 m, with Downward Vision System enabled) | | | | Velocity Range | < 32.8 ft/s (10 m/s) at height of 6.56' / 2 m | | Altitude Range | < 32.8 feet / 10 m | | Operating Range | < 32.8 feet / 10 m | | Operating Environment | Surfaces with clear patterns and adequate lighting (> 15 lux) | | | | Obstacle Sensory Range | 0-16.4' / 0-5 m | | Field of View | &plusm;5° | | Operating Environment | Large-size non-reflective obstacles | | | | Obstacle Sensory Range | 2.3-98.4' / 0.7-30 m | | Field of View | Horizontal: 60°
Vertical: 54° | | Operating Environment | Surfaces with clear patterns and adequate lighting (> 15 lux) | | | | Operating Frequency | 2.400-2.483 GHz, 5.725-5.850 GHz | | Maximum Transmission Distance | 2.4 GHz: 4.3 mi / 7 km
5.8 GHz: 4.3 mi / 7 km | | EIRP | 2.4 GHz: 26 dBm
5.8 GHz: 28 dBm | | Battery | Type: Built-in
Chemistry: Lithium-ion polymer (LiPo)
Capacity: 6000 mAh
Configuration: 2S | | Output Power | 9 W | | USB Power | iOS: 5.2 VDC, 1 A (maximum)
Android: 5.2 VDC, 1.5 A (maximum) | | Operating Temperature | 14 to 104°F / -10 to 40°C | | | | Chemistry | Lithium-ion polymer (LiPo) | | Capacity | 4280 mAh / 97.58 Wh | | Configuration | 6 S | | Voltage | 22.8 VDC | | Weight | 1.1 lb / 515 g | | Charger | Voltage: 26.1 V
Rated Power: 180 W | | Environmental | Charging Temperature: 41 to 104°F / 5 to 40°C Operating Temperature: 14 to 104°F / -10 to 40°C | | Maximum Charging Power | 180 W | | | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Dimensions | Diagonal: 23.8" / 60.5 cm (excluding propellers; Landing Mode) | | Weight | 7.25 lb / 3.3 kg (including two batteries, without gimbal and camera) | | | | Box Dimensions (LxWxH) | 25.0 x 25.0 x 12.0" | - DJI Zenmuse X5S
| | | Box Dimensions (LxWxH) | 7.3 x 5.7 x 5.6" | - Go Professional Cases Hard Case for DJI Inspire 2, Cendence, CrystalSky, and X7 Camera (Landing Mode)
| Military Specification | Waterproof and dust tight design (MIL-C-4150J / IP67)
Ambient pressure equalization valve (MIL-STD-648C)
Resistant to UV, solvents, corrosion, fungus (MIL-STD-810F)
Resistant to impact damage (MIL-STD-810F) | | Interior Dimensions | 24 x 24 x 14" / 61 x 61 x 36 cm | | Exterior Dimensions | 27 x 27 x 16" / 69 x 69 x 41 cm | | Weight | 28 lb / 13 kg | | | | Box Dimensions (LxWxH) | 25.0 x 25.0 x 14.75" |
