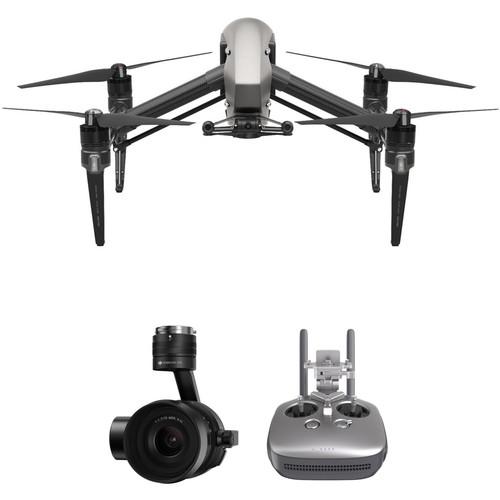

DJI Inspire 2 Quadcopter Kit with

User Manual for DJI Inspire 2 Quadcopter Kit with Zenmuse X5S

• Product category: See All Drones DJI
• Brand: DJI
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for DJI See All Drones

Product description

• DJI Inspire 2 Quadcopter with CinemaDNG and Apple ProRes Licenses DJI's magnesium-aluminum-clad Inspire 2 Quadcopter is a powerful cinematic and photographic tool. Combining the Inspire 2 with the separately available X4S and X5S gimbal cameras yields cinema-grade images, which can be recorded in high bit rates using H.264 and H.265 formats, or, in the case of the X5R, various flavors of Apple ProRes and CinemaDNG raw using the required licenses available from DJI. All the recording functionality is processed by the Inspire 2's CineCore 2.0 image processing engine. Not all the power to be found in the Inspire 2 is in the recording functionality. DJI beefed up the flight capabilities of the Inspire 2. Able to accelerate to 50 mph in 4 seconds and reach a top speed of 58 mph, the Inspire 2 can follow fast-moving subjects for dramatic sports and action footage. The flight prowess of the Inspire 2 doesn't come at the expense of battery life. With the two included LiPo batteries onboard, up to 27 minutes of flight time can be had on a full charge. Advanced obstacle avoidance has also made its way to the Inspire 2. Built into DJI's FlightAutonomy system, objects in front of, below, and above the quadcopter can be detected and avoided automatically. The Inspire 2 can even remember flight paths in case of an emergency return-to-home without GPS enabled. What's more, using the onboard 2-axis stabilized FPV camera, the pilot can navigate the Inspire 2 without being limited to the gimbal camera's field-of-view. Everything you need to set up your Inspire 2 is included. Two batteries with a charger, an all-new transmitter controller, extra propellers, a calibration plate, and a carrying case to store and transport everything.
  CinemaDNG raw and Apple ProRes Installed
  • This version of the Inspire 2 features the CinemaDNG raw and Apple ProRes codec licenses pre-installed, enabling you to record 4K and 5.2K video in these low-compression, post-friendly formats.
  Advanced Obstacle Sensing
  • Forward and downward vision systems enable the Inspire 2 to detect obstacles up to 30 meters ahead, allowing for protected flight at up to 34 mph at a controllable attitude angle of 25°. Upward-facing infrared sensors scan obstacles 16' above, adding protection when flying in enclosed spaces. Obstacle-sensing systems are active during normal flight, RTH, and all Intelligent Flight Modes.
  Spotlight Pro
  • Spotlight Pro is a powerful tracking mode that allows even single pilots to capture complex, dramatic images. It uses advanced, visual-tracking algorithms to lock onto a subject during flight, regardless of the direction that the Inspire 2 flies, creating shots that would once have required a dedicated camera operator. If the gimbal comes close to reaching its rotation limits, the Inspire 2 itself will rotate in the same direction without affecting flight control or the shot being captured to free up gimbal movement.

    Spotlight Pro has two shooting modes: Quick Mode and Composition Mode. In Quick Mode, select an object to begin tracking. In Composition Mode, select the subject and the tracking position. When the subject enters the preset tracking position, press the shortcut to begin tracking. The gimbal can be moved during shooting for composition adjustments. Spotlight Pro is available in all Intelligent Flight Modes including ActiveTrack, TapFly, Waypoint and Point of Interest.
  TapFly
  • The 2-axis onboard FPV camera separates the flight view from the main camera view, effectively giving the Inspire 2 a dedicated "tap-to-fly" camera. Tap a point onscreen in the FPV view to set a flight route and the Inspire 2 will automatically fly along that route, leaving the pilot to focus on gimbal movement.
  ActiveTrack
  • The ActiveTrack Mode allows the Inspire 2 to recognize a range of objects, from people to bikes to cars to boats. Tracking profiles that can be adjusted based on the subject being tracked means greater tracking precision.
  Smart Return Home
  • Forward and downward vision systems allow the Inspire 2 to create a real-time map of its flight route as it flies. If the video transmission system signal is lost and Smart Return Home is enabled, it is able to fly home along its original route and change to a straight line when it regains a signal. As it returns, it will use the primary camera to identify obstacles as far as 200m in front, allowing it to plan a safe route home. It is also able to reconnect more quickly after losing connection.
  Video Transmission System
  • The Inspire 2 features DJI's Lightbridge technology. This iteration has an effective transmission distance of up to 4.3 miles (under ideal conditions) and is capable of delivering both 1080p/720p video as well as the FPV view to pilot and camera operator. Users can also switch between 2.4 GHz and 5.8 GHz control frequencies to avoid interference for greater signal stability.

    Master and Slave setups are also supported. The master controller can transmit an HD video signal to the slave controller up to 300' away without image quality loss.
  Broadcast Mode
  • Broadcasters can broadcast direct from the Inspire 2 using its dedicated 1080i50 and 720p60 transmission signal. Aerial live-streaming direct to TV is as simple as connecting the Inspire 2 transmitter to the satellite truck.
  Powerful Flight Performance
  • The propulsion system can thrust the Inspire 2 up to 58 mph and allows for descents at up to 29 feet-per-second and ascents at up to 19 feet-per-second. It can accelerate from 0 to 50 mph in just four seconds and flies at a max attitude angle of 40°. The two controller sticks on the transmitter are tuned for more sensitivity, making delicate maneuvers easier.
  Dual Battery Design
  • Dual batteries mean that, if a problem occurs on one battery, the other is able to continue flight long enough for a safe landing. At the same time, the Inspire 2 propulsion system is driven a PWM signal with serial port signal redundancy so that if PWM signals are lost, transmission will continue through the serial port.
  UPC: 190021287105
• DJI Zenmuse X5S Equipped with an uprated Micro 4/3 sensor, the DJI Zenmuse X5S has a dynamic range of 12.8 stops with a much improved signal to noise ratio and color sensitivity than the X5R. Included here are the gimbal, camera, and lens.

  The new CineCore 2.0 image processing system on the Inspire 2 makes the Zenmuse X5S capable of capturing 5.2K 30fps CinemaDNG video and Apple ProRes video, as well as 4K 60fps using H.264 and 4K 30fps using H.265 (both at 100Mbps). Continuous DNG burst shooting at 20fps with 20.8MP images is also supported. The Zenmuse X5S was designedto keep pace with the rigors of high-end professional aerial imaging. UPC: 190021284807
• DJI Remote Controller for Inspire 2 Quadcopter This Remote Controller from DJI is designed for use with your Inspire 2 quadcopter. Like the transmitter that shipped with your Inspire 2 quad, this controller uses DJI Lightbridge technology and has an effective transmission distance of up to 4.6 miles. It's capable of delivering both 1080p and 720p video, as well as FPV video, to either the pilot or camera operator. The Remote Controller can switch between 2.4 and 5.8 GHz control frequencies, allowing users to cut through noise for greater signal stability.
  Master-Slave Mode
  • The Inspire 2 Remote Controller also supports master-slave functionality. The master controller can transmit video to a slave controller up to 330' away without loss of image quality.
  Broadcast Mode
  • Broadcasters can broadcast direct from the Inspire 2 using its dedicated 1080i50 and 720p60 transmission signal. Aerial live-streaming direct to TV can be achieved by connecting the Inspire 2 remote controller to the satellite truck.
  UPC: 190021286368

• Inspire 2 Quadcopter with CinemaDNG and Apple ProRes Licenses rwbwfqtqrfttxedzyaztybtafbra
• Remote Control (Transmitter)
• 4 x Propeller Pairs
• 2 x Intelligent Flight Battery
• Battery Charger
• Charging Hub
• Power Cable
• USB Cable
• microSD Card
• Vision System Calibration Plate
• 3 x Gimbal Damper
• Propeller Mounting Plates
• Carrying Case
• 4 x Battery Insulation Sticker
• Inspire 2 CinemaDNG & Apple ProRes License Key (Pre-Installed)
• Limited 1-Year Warranty on Aircraft (Excluding Gimbal, Camera, and Battery)
• Limited 6-Month / 200-Cycle Warranty on Battery (Whichever Comes First)

• Zenmuse X5S rwbwfqtqrfttxedzyaztybtafbra

• Remote Controller for Inspire 2 Quadcopter

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• DJI Inspire 2 Quadcopter with CinemaDNG and Apple ProRes Licenses

  Takeoff Weight	Maximum: 8.82 lb / 4 kg
  Maximum Flight Altitude	Standard Propellers: 8200' / 2500 m Hi-Altitude Propellers: 16,400' / 5000 m
  Maximum Flight Time	27 minutes (approx.) with Zenmuse X4S Gimbal Camera
  Maximum Tilt Angle	P-mode: 35° (Forward Vision System enabled: 25°) A-mode: 35° S-mode: 40°
  Maximum Ascent Speed	P-mode/A-mode: 16.4 ft/s (5 m/s) S-mode: 19.7 ft/s (6 m/s)
  Maximum Descent Speed	Vertical: 13.1 ft/s (4 m/s) Tilt: 13.1-29.5 ft/s (4-9 m/s)
  Maximum Speed	58 mph (94 km/h)
  GPS Accuracy	Vertical: ±1.64' / 0.5 m (±0.33' / 0.1 m, with Downward Vision System enabled) Horizontal: ±4.92' / 1.5 m (±0.98' / 0.3 m, with Downward Vision System enabled)

  Velocity Range	< 32.8 ft/s (10 m/s) at height of 6.56' / 2 m
  Altitude Range	< 32.8 feet / 10 m
  Operating Range	< 32.8 feet / 10 m
  Operating Environment	Surfaces with clear patterns and adequate lighting (> 15 lux)

  Obstacle Sensory Range	0-16.4' / 0-5 m
  Field of View	&plusm;5°
  Operating Environment	Large-size non-reflective obstacles

  Obstacle Sensory Range	2.3-98.4' / 0.7-30 m
  Field of View	Horizontal: 60° Vertical: 54°
  Operating Environment	Surfaces with clear patterns and adequate lighting (> 15 lux)

  Operating Frequency	2.400-2.483 GHz, 5.725-5.850 GHz
  Maximum Transmission Distance	2.4 GHz: 4.3 mi / 7 km 5.8 GHz: 4.3 mi / 7 km
  EIRP	2.4 GHz: 26 dBm 5.8 GHz: 28 dBm
  Battery	Type: Built-in Chemistry: Lithium-ion polymer (LiPo) Capacity: 6000 mAh Configuration: 2S
  Output Power	9 W
  USB Power	iOS: 5.2 VDC, 1 A (maximum) Android: 5.2 VDC, 1.5 A (maximum)
  Operating Temperature	14 to 104°F / -10 to 40°C

  Chemistry	Lithium-ion polymer (LiPo)
  Capacity	4280 mAh / 97.58 Wh
  Configuration	6 S
  Voltage	22.8 VDC
  Weight	1.1 lb / 515 g
  Charger	Voltage: 26.1 V Rated Power: 180 W
  Environmental	Charging Temperature: 41 to 104°F / 5 to 40°C Operating Temperature: 14 to 104°F / -10 to 40°C
  Maximum Charging Power	180 W

  Operating Temperature	14 to 104°F / -10 to 40°C
  Dimensions	Diagonal: 23.8" / 60.5 cm (excluding propellers; Landing Mode)
  Weight	7.25 lb / 3.3 kg (including two batteries, without gimbal and camera)

  Box Dimensions (LxWxH)	25.0 x 25.0 x 12.0"

• DJI Zenmuse X5S

  Box Dimensions (LxWxH)	7.3 x 5.7 x 5.6"

• DJI Remote Controller for Inspire 2 Quadcopter

  Model	GL6D10A
  Compatibility	Inspire 2 quadcopter
  Operating Frequency	2.400-2.483 GHz 5.725-5.850 GHz
  Transmission Range	To Inspire 2: Up to 4.3 miles (7 km) maximum To Slave Controller: 330' (100 m)
  Video Output Ports	1 x USB 1 x HDMI
  Power Supply	Built-in battery
  Battery Capacity	6000 mAh
  Battery Chemistry	Lithium-ion polymer
  Battery Configuration	2S
  Output Power	9 W (when not supplying power to smart device)
  USB Output Power	iOS: 1 A @ 5.2 V (max) Android: 1.5 A @ 5.2 V (max)
  Mobile Device Holder	Holds device up to 6.7" (170 mm) wide
  Operating Temperature	-4 to 104°F (-20 to 40°C)
  Storage Temperature	Less than 3 Months: -4 to 113°F (-20 to 45°C) More than 3 Months: 72 to 82°F (22 to 28°C)
  Charging Temperature	32 to 104°F (0 to 40°C)

  Box Dimensions (LxWxH)	9.0 x 7.9 x 6.9"
