User manual for the DJI iOSD Mini On Screen Display contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|

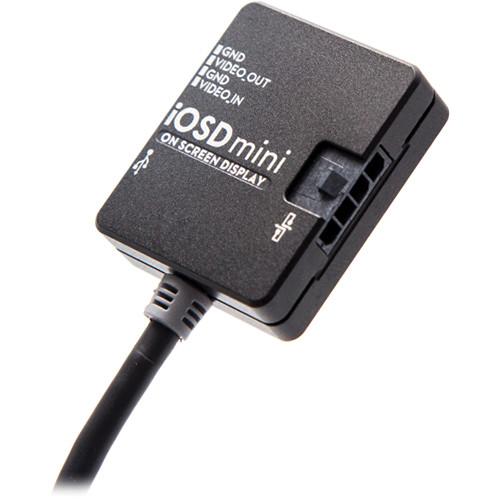

Product description The DJI iOSD Mini On Screen Display is specially designed for a DJI autopilot system and it should be used with either WooKong-M, Naza-M or Naza-M V2. It can transmit video and iOSD information in real-time, which will help you to obtain the aircraft status information during first-person view (FPV) flights. The iOSD Mini can display multiple flight information specs including power voltage, flight velocity, height, distance from the home point, horizontal attitude, GPS satellite number and more. The iOSD will even superpose this data onto the video, so the iOSD data is clearly visible. Conveniently, the iOSD Mini is compatible with both NTSC and PAL video source inputs. You can also use an R/C transmitter switch to remotely select which video source input you want to use. The R/C TX switch will change the wireless video transmitter channel remotely as long as you're using a video transmitter specified by DJI. Plus, you can achieve double video alternation during flight by setting one video mode for the aerial camera and the other for the FPV. - Supports DJI Professional Autopilot Systems
- For improved flight performance, the iOSD Mini should be used in conjunction with one of the DJI autopilot systems, such as WooKong-M, Naza-M or Naza-M V2. Based on DJI's accumulation of historic and reliable information integration technology, the iOSD Mini can grab the most accurate first-hand flight data information in the shortest amount of time.
- Accurate Real-Time Flight Data & Video Signal Superposition
- The iOSD Mini can collect real-time video and flight data, which will provide you with the aircraft's status information during flight. It can display power voltage, flight velocity, height, distance from the home point, horizontal attitude, GPS satellite number and more.
- Double Video Source Inputs Are Switchable During Flight
- The iOSD Mini supports both NTSC and PAL video input sources. It automatically recognizes which source you're using and you can also select which input source you want remotely using an R/C transmitter switch. By doing this, the pilot can achieve double video alternation during flight and can also set one video input source for the aerial camera and the other one for FPV. This will ensure that the nose direction of the aircraft is under control and that your aircraft will safely return after filming sessions.
In the Box DJI iOSD Mini On Screen Display Video Output Cable Video Input Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI iOSD Mini On Screen Display in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.IS.000004 Specs | Ports | Not specified by manufacturer | | Video Input Format | NTSC
PAL | | Video Output Format | NTSC
PAL | | Controller Supported | WooKong-M
Naza-M
Naza-M V2 | | Voltage | 6 V | | Working Current | 180 mA at 6 V (typical value) | | Operating Temperature | -4 to 140 °F (-20 to 60°C) | | Dimensions (WxHxD) | Not specified by manufacturer | | Weight | 0.5 oz (14 g) | | | | Package Weight | 0.05 lb | | Box Dimensions (LxWxH) | 7.3 x 3.6 x 0.2" |
