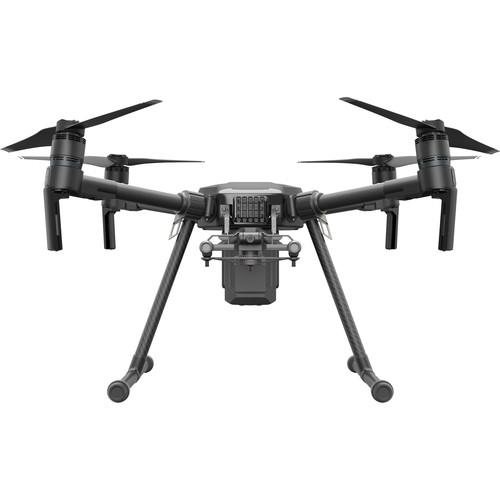

User Manual for DJI Matrice 200 Professional Quadcopter Click to enlarge the picture
Contents of the user manual for the DJI Matrice 200 Professional Quadcopter
- Product category: See All Drones DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI See All Drones
|
User manual for the DJI Matrice 200 Professional Quadcopter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|
Product description Aerial Photography and Drone Glossary Read More Built with enterprise users in mind, DJI's Matrice 200 Professional Quadcopter leverages the Inspire 2 platform but is ruggedized and built to withstand harsh conditions. The body of the drone itself is rated at IP43 for weather and water resistance in the field. Dual battery bays can house two included TB50 or separately available TB55 batteries to power the drone for flights lasting up to 38 minutes. The advanced electronics found in the Matrice 200 include computer-vision intelligent flight modes using DJI's FlightAutonomy system. With this system objects in front of, below, and above the drone can be detected and avoided automatically. What's more: using the onboard 2-axis stabilized FPV camera, the pilot can navigate the Matrice 200 without being limited to a mounted gimbal camera's field-of-view. For image capture and analysis, the Matrice 200 is compatible with DJI's separately available Zenmuse gimbal cameras, including the X4S, X5S, and Z30 — with each model offering different FOV options, as well as the XT, which offers thermal imaging. - Intelligent Flight Features
- The M200 Series drones utilize computer vision for intelligent flight modes to help more efficiently collect data. These features are available for multiple DJI sensors, enabling advanced shots such as zooming while tracking an object:
- Spotlight - Lock the camera onto a subject during flight while the aircraft moves freely
- Point of Interest - Circle around an object for a smooth orbit
- Tripod - Fine-tune position and angle for position framing and safe navigation in narrow environments
- ActiveTrack - Follow a person or object while keeping it in frame
These modes are enabled by two front visual sensors, an ultrasonic/visual downward-positioning system, and an upper infrared sensor. - App and Software Support
- The DJI GO 4 mobile app can be used to control and customize the Matrice 200 Series. iPad users can also plan flights through DJI's GS Pro app. In addition to that, the M200 Series supports the brand new DJI Pilot Android app, which is specifically designed for enterprise users, optimizing user experience and flight performance.
- DJI FlightHub
- The DJI Pilot app is compatible with DJI FlightHub, a web-based software package allowing teams to share real-time data with offsite parties over the Internet. This includes remote emergency control rooms being able to keep track of first-response teams or asset-management centers inspecting global infrastructure networks.
In an easy-to-use control center, DJI FlightHub lets users plan flights with multiple drones and keep track of each aircraft's status. An offsite control room can simultaneously monitor live feeds and remotely control gimbal and camera. The software enables managers to plan flights in advance using waypoints and dynamic geofencing. Industry Applications - Critical Infrastructure Inspections
- Working near power lines, telecommunications towers, and bridges puts inspectors at risk of falls and electric shock. DJI's M200 improves safety as work can be done from a distance. Extensive power line networks can be visualized with detail, and vertical infrastructure can be inspected from all angles with the stable and weather-resistant M200 platform.
- Energy Facility Inspections
- Maintenance planning can be costly to ensure high public-safety standards. The M200 can identify faults in buildings, roads, and bridges in real time, making those operations more efficient and effective.
- Construction Site Mapping
- Surveying and mapping often need to be conducted regardless of weather conditions and other external factors. The M200 is a rugged platform designed to handle unpredictable conditions, which gives construction site managers an efficient tool to review progress and workflow, ensuring more efficient use of resources.
- Public Safety
- When time is of essence and weather conditions turn foul, first responders require a versatile and reliable aerial platform. Able to carry separately available visual and/or thermal sensors, the M200 provides situational awareness of potentially dangerous situations, such as fires and natural disasters. Incident commanders can use data collected by the M200 to make smarter and better decisions, protecting life and property while minimizing the safety risk to rescue personnel.
UPC: 190021292659 In the Box DJI Matrice 200 Professional Quadcopter Remote Control (Transmitter) 4 x Propeller Pairs 2 x TB50 Intelligent Flight Batteries 4 x Battery Insulation Stickers Battery Charger Charging Hub Power Cable USB Cable microSD Card Vision System Calibration Plate 3 x Gimbal Dampers Propeller Mounting Plates Carrying Case Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 bvfqtuaqwtdyccexrd Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Matrice 200 Professional Quadcopter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI Matrice 200 Specs | | | Takeoff Weight | Maximum: 13.5 lb / 6.14 kg | | Maximum Flight Altitude | 8200' / 2500 m (above sea level) | | Maximum Flight Time | 38 minutes (approx.) with TB55 batteries and no payload | | Maximum Tilt Angle | P-mode: 35° (Forward Vision System enabled: 25°)
A-mode: 35°
S-mode: 35° | | Maximum Ascent Speed | 16.4 ft/s (5 m/s) | | Maximum Descent Speed | 9.8 m/s (3 m/s) | | Maximum Speed | P Mode: 37 mph (61 km/h)
S Mode: 51.6 mph (83 km/h)
A Mode: 51.6 mph (83 km/h) | | Hovering Accuracy (GPS Mode) | Vertical: ±1.64' / 0.5 m (±0.33' / 0.1 m, with Downward Vision System enabled)
Horizontal: ±4.92' / 1.5 m (±0.98' / 0.3 m, with Downward Vision System enabled) | | | | Velocity Range | < 32.8 ft/s (10 m/s) at height of 6.56' / 2 m | | Altitude Range | < 32.8 feet / 10 m | | Operating Range | < 32.8 feet / 10 m | | Operating Environment | Surfaces with clear patterns and adequate lighting (>15 lux) | | | | Obstacle Sensory Range | 0-16.4' / 0-5 m | | Field of View | ±5° | | Operating Environment | Large-sized object with diffuse reflecting surface or high reflective rate (>10%） | | | | Obstacle Sensory Range | 2.3-98.4' / 0.7-30 m | | Field of View | Horizontal: 60°
Vertical: 54° | | Operating Environment | Surfaces with clear patterns and adequate lighting (>15 lux) | | | | Operating Frequency | 2.400-2.483 GHz, 5.725-5.850 GHz | | Maximum Transmission Distance | 2.4 GHz: 4.3 mi / 7 km
5.8 GHz: 4.3 mi / 7 km | | EIRP | 2.4 GHz: 26 dBm
5.8 GHz: 28 dBm | | Battery | Type: Built-in
Chemistry: Lithium-ion polymer (LiPo)
Capacity: 6000 mAh
Configuration: 2S | | Output Power | 9 W | | USB Power | iOS: 5.2 VDC, 1 A (maximum)
Android: 5.2 VDC, 1.5 A (maximum) | | Operating Temperature | 14 to 104°F / -10 to 40°C | | | | Operating Temperature | -4 to 113°F / -20 to 45°C | | Dimensions | Folded: 28.2 x 8.7 x 9.3" / 71.6 x 22 x 23.6 cm
Unfolded: 34.9 x 34.6 x 14.9" / 88.7 x 88 x 37.8 cm | | Weight | With TB50 Batteries: 8.2 lb / 3.7 kg
With TB55 Batteries: 9.9 lb / 4.5 kg | | | | Package Weight | 31.0 lb | | Box Dimensions (LxWxH) | 34.5 x 19.0 x 14.0" |
