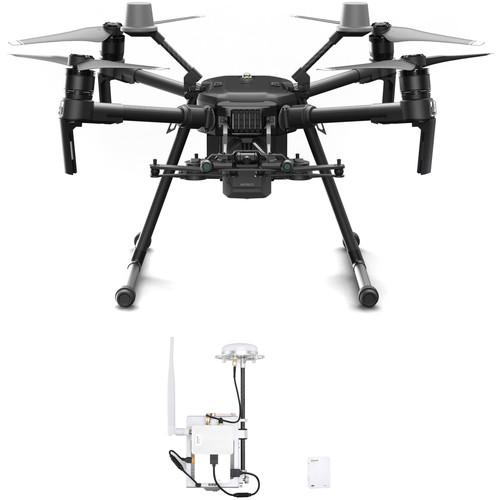

User Manual for DJI Matrice 210 Quadcopter with D-RTK GNSS and DATALINK PRO 900 Kit Click to enlarge the picture
Contents of the user manual for the DJI Matrice 210 Quadcopter with D-RTK
- Product category: See All Drones DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI See All Drones
|
User manual for the DJI Matrice 210 Quadcopter with D-RTK contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|
Product description Aerial Photography and Drone Glossary Read More The DJI Matrice 210 Quadcopter with D-RTK GNSS and DATALINK PRO 900 Kit from B&H includes the DJI Matrice 210 professional quadcopter and the DJI D-RTK GNSS with DATALINK PRO 900. This kit is designed to give you an enterprise-level UAV and the ability to utilize it in precise surveying and mapping applications. By itself, the Matrice 210 is a ruggedized quadcopter that's IP43 certified for weather and water resistance in the field. With dual battery bays that can keep it aloft for up to 38 minutes, it makes for an ideal tool in performing safety and inspection tasks.
With the D-RTK GNSS and DATALINK PRO 900 hardware attached, the Matrice 210 can provide you with precise positioning, and the ability to utilize GPS and GLONASS satellite networks for inch-level surveying and mapping. The system also gives the Matrice 210 true heading references that are more accurate than those utilizing a single compass sensor. This system is also resistant to magnetic interference, providing more accurate flights in environments that contain metal structures or high-voltage power lines. - DJI D-RTK GNSS with DATALINK PRO 900 (GPS + GLONASS) If you're utilizing a drone for commercial, industrial, or scientific purposes, and precision is a top priority, then you may need the D-RTK GNSS with DATALINK PRO 900 from DJI. Designed for drones that use A3 flight controllers, such as the Matrice 600, this navigation and positioning system comprises three D-RTK antennas, a DATALINK PRO 900 base station, a mobile station, and all of the hardware needed to mount the D-RTK antennas and mobile station to your UAV.
The system passes signals between the base and mobile stations via the A3 flight controller during flight, and utilize the D-RTK antennas to access GPS + GLONASS via a dual-positioning module for centimeter-level, precision 3D positioning, enhanced altitude accuracy, and a true heading that is resistant to magnetic interference. For additional flight management, drone calibration, and more, D-RTK supports both the DJI GO and Assistant 2 apps. - DATALINK PRO
- This wireless datalink supports the A3 flight controller and D-RTK antennas to provide Full Duplex or Broadcast transmission modes to your UAV. In Full Duplex Mode, the base and mobile station conduct two-way communication, but in Broadcast Mode, data is only sent from base station to mobile station, with the ability to transmit to up to 32 different UAVs with mobile stations attached to them. If your craft is highly customized, DATALINK PRO supports a range of ports if needed, such as USB, CAN, and UART. Ports can be individually selected by toggling a switch, and data is automatically transmitted from one to another
- Precision Positioning
- Precise positioning of one centimeter vertically and horizontally is made possible through dynamic differential technology. This extreme accuracy allows for the creation of repeatable flight routes that provide reliable and valuable visual data that can be essential for commercial and industrial scenarios.
- Altitude Accuracy
- Barometers commonly found in UAS systems may suffer from altitude discrepancies when faced with fluctuations in airflow, such as during takeoff, under braking, or after extended flying. This affects an aircraft's flight, and introduces unwanted data variation that complicates workflows. D-RTK's precision altitudinal calculations reduce variation to one centimeter, effectively eliminating variations, giving you data that you can rely on.
- True Heading
- Dual antennas create heading references that are significantly more accurate than possible with a single compass sensor. By removing compass dependence, the system is also resistant to magnetic interference, such as those generated by metal structures and high voltage power lines, allowing for accurate flight in environments where other aircraft cannot function.
UPC: 190021300484 In the Box - Matrice 210 RTK-G Drone Combo
- D-RTK GNSS with DATALINK PRO 900 (GPS + GLONASS)
Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 xxtxtryavvewbrry Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 xxtxtryavvewbrry Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Matrice 210 Quadcopter with D-RTK GNSS and DATALINK PRO 900 Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DJI D-RTK GNSS with DATALINK PRO 900 (GPS + GLONASS)
| Compatibility | Drones with DJI A3 flight controllers | | Transmission Mode | Full Duplex
Broadcast | | Navigation System | GPS + GLONASS | | Precision | 0.4" / 1.0 cm (vertically and horizontally) | | Ports | Base and Mobile Station
Antenna Interface
Micro-USB
CAN/UART (CAN and UART can be used simultaneously) | | Dimensions | 8.1 x 13.9 x 6.1" / 20.7 x 35.2 x 15.5 cm | | Weight | 3.3 lb / 1.5 kg | | | | Box Dimensions (LxWxH) | 14.0 x 8.0 x 6.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 34 owners. Add your rating and experience with the product.
