User Manual for DJI Mavic 2 Enterprise Click to enlarge the picture
Contents of the user manual for the DJI Mavic 2 Enterprise
- Product category: See All Drones DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI See All Drones
|
User manual for the DJI Mavic 2 Enterprise contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|
Product description Aerial Photography and Drone Glossary Read More Built upon the Mavic 2 flight platform, the Mavic 2 Enterprise from DJI is an advanced, enterprise-level drone solution for demanding applications. Whether you need an eye in the sky for search and rescue, policing and firefighting support, or for inspections of vital infrastructure, the Mavic 2 Enterprise is designed to be a compact solution that's easily deployable. To help with these tasks, the Mavic 2 Enterprise features a top extended port for mounting helpful modular accessories. You also get 24GB of onboard storage to capture all of the vital data you need when in the field.
Like the Mavic 2 Zoom, the Mavic 2 Enterprise features a 2x 24-48mm optical zoom camera with a 1/2.3" 12MP sensor, and the ability to capture up to UHD 4K resolution video at 30 fps. The low-drag aerodynamic body design can achieve speeds of up to 44.7 mph, and the four-cell LiPo battery provides up to 31 minutes of flight time. The Mavic 2 Enterprise also supports the same OcuSync 2.0 video transmission system.
OcuSync 2.0 video transmission technology is engineered to provide a stable feed from up to 5 miles away in Full HD 1080p quality, letting you deal with situations in real time without having to be in harm's way. The Mavic 2 Enterprise also features the same omnidirectional obstacle sensing and avoidance that can be crucial when navigating around sensitive equipment or in rapidly changing emergency scenarios. While navigating the ground, DJI AirSense is included to help avoid hazards in the air. These and a myriad of other features help make for a dependable aerial solution to extend your data gathering capabilities. - Modular Accessory Port with Accessories
- As if having a fast-moving, 4K-recording, aerial assistant wasn't helpful enough, the Mavic 2 Enterprise expands your ability to help people in need with the inclusion of three modular accessories. These accessories are designed to mount securely to the top of the Mavic 2 Enterprise's extended port. During critical missions in the field, you can use the following:
M2E Spotlight: Dual lamps help to spotlight and illuminate the area, helping both people who need to leave an area, and the first responders rushing in to help.
M2E Speaker: A loudspeaker that lets you communicate with people on the scene, projecting your voice at 100 dB up to 3.3' away.
M2E Beacon: This flashing beacon makes it easier for other pilots and personnel to spot the Mavic 2 Enterprise from a distance during night missions. - Dynamic Zoom
- The Mavic 2 Enterprise can quickly use it's 2x optical and 3x digital zoom abilities to hone in on far away targets.
- Password-Controlled Data
- The 24GB of built-in storage can possibly contain footage that might range from emergency incidents to critical infrastructure inspections. All of which can be sensitive in nature and should be kept secure from prying eyes and the possibility of being leaked to unauthorized individuals. DJI has recognized the need for data protection and has equipped the Mavic 2 Enterprise with password security in order to gain access to both the drone and the data it holds.
- Omnidirectional Obstacle Sensing
- To keep your Mavic 2 Enterprise safe and your footage pristine, DJI has covered all sides of the Mavic 2 with obstacle sensors. The array is comprised of eight high-resolution vision and two infrared sensors, and can detect the following:
Forward Sensor: Measurement range of 1.6 to 65.6', and a detectable range of 65.6 to 131.2'. The Mavic 2 is designed to safely stop when obstacles are detected while flying at up to 31.3 mph.
Downward Sensor: Measurement range of 1.6 to 36.1' and a detectable range of 36.1 to 72.2'.
Left and Right Sensors: Measurement range of 1.6 to 32.8', with a horizontal/vertical FOV of 80°/65°. The Mavic 2 is designed to safely stop when obstacles are detected while flying at up to 17.9 mph.
Backward Sensor: Measurement range of 1.6 to 52.5' and a detectable range of 52.5 to 105'. The Mavic 2 has a horizontal/vertical FOV of 60°/77°, and is designed to safely stop when obstacles are detected while flying at up to 27 mph.
Upward Sensor: Measurement range of 0.3 to 26.2'. - DJI AirSense
- With omnidirectional object avoidance, the Mavic 2 Enterprise is engineered to avoid hazards on all sides within its relative immediate area, but with AirSense, you get instant real-time positioning alerts of nearby manned aircraft as well.
- GPS Timestamping
- All images can be GPS timestamped with the time and date that the images were taken in order to provide industrial applications with accurate data if needed.
- Self-Heating Battery
- The Mavic 2 Enterprise supports self-heating batteries, which allow you to properly operate the Mavic 2 Enterprise in sub-zero climates.
- OcuSync 2.0 Video Transmission
- The OcuSync 2.0 system is designed to provide you with a stable, high-quality video feed. DJI has engineered OcuSync 2.0 to deliver 1080p feeds to your controller from up to 5 miles away. From that distance, DJI helps keep things streaming smoothly with dual-band, real-time autoswitching between 2.4 and 5.8 GHz bands. Footage is downloaded at up to 40 Mb/s, and latency can be as low as 120 ms.
- Discreet Mode
- When stealth and uninterrupted flight are essential, use Discreet Mode to shut down all of the LED lights on the Mavic 2 Enterprise.
- Powerful Apps
- The Mavic 2 Enterprise supports both DJI Pilot, which is a robust app that gives you full control over the drone's features, and DJI FlightHub, which lets you manage operations for this drone and the rest of your aerial fleet.

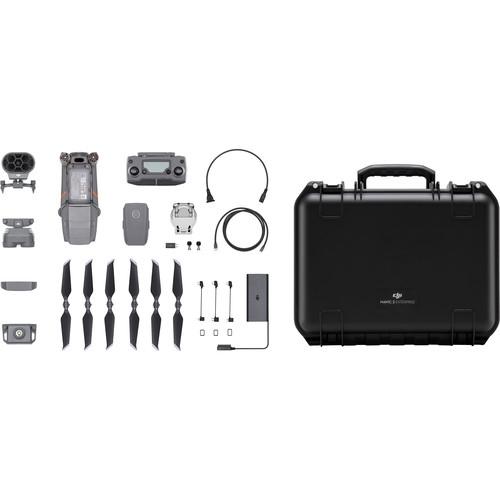

UPC: 190021327122 In the Box DJI Mavic 2 Enterprise Remote Controller Speaker Module Spotlight Module Beacon Module Self-Heating Battery Hard-Shell Case Battery Charger 3 x Pair of Propellers Power Cable USB Type-C Cable USB Adapter Extra Pair of Control Sticks Extended Port Cover Lightning RC Cable Micro-USB RC Cable USB Type-C RC Cable Limited 1-Year Warranty (Main Controller, Remote Controller, Charger, M2E Spotlight, M2E Speaker, and M2E Beacon) Limited 6-Month Warranty (Gimbal and Camera, Vision Positioning System, Propulsion System (excluding propellers), Battery, and Battery Charging Hub) Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 wxbbxutqsbysvduzdzxvyesbvsxywvvawx Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Mavic 2 Enterprise in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI Mavic 2 Enterprise Specs | | | Maximum Takeoff Weight | 1.99 lb / 905 g | | Maximum Horizontal Speed | 44.7 mph / 72 km/h (S-Mode)
31.1 mph / 50 km/h (P-Mode) | | Maximum Ascent Speed | 16.4 ft/s / 5 m/s | | Maximum Descent Speed | 9.8 ft/s / 3 m/s | | Maximum Wind Resistance | 23.6 mph / 38 km/h | | Flight Ceiling | 3 mi / 6000 m | | Maximum Flight Time | 31 Minutes | | Maximum Hover Time | 29 Minutes | | Maximum Tilt Angle | 35° | | Hovering Accuracy | ±0.33' / 0.1 m Vertical with Vision Positioning
±1.64' / 0.5 m Vertical with GPS
±0.98' / 0.3 m Horizontal with Vision Positioning
±4.92' / 1.5 m Horizontal with GPS | | | | GNSS Support | GPS, GLONASS | | | | Operating Range | 36.1 to 131.2' / 11.0 to 40.0 m | | Required Object Reflectivity | >20% | | | | Vision System | Downward, Forward, Backward, Left, Right | | Operating Range | 1.6 to 131.2' / 0.5 to 40.0 m | | Obstacle Sensory Range | 36.1 to 131.2' / 11.0 to 40.0 m | | Forward Field of View | 40° (Horizontal)
70° (Vertical) | | Backward Field of View | 60° (Horizontal)
77° (Vertical) | | Operating Environment | Surface with Clear Patterns at >15 lux | | | | Operating Frequency | 2.4 GHz (2.400 - 2.483)
5.8 GHz (5.725 - 5.850) | | Maximum Operating Distance | 4.97 mi / 8000 m at 2.4 G
4.97 mi / 8000 m at 5.8 G | | Transmitter Power | 26 dBm (2.4 G)
26 dBm (5.8 G) | | Connectivity | 1 x Lightning
1 x Micro-USB
1 x USB Type-C | | Battery Type | 1 x Built-In | | Battery Chemistry | Lithium-Ion | | Battery Capacity | 3950 mAh | | Battery Configuration | 1 S / 3.83 V | | Mobile Device Compatibility | Devices up to 6.30" / 160 mm Wide and 0.33" / 8.5 mm Thick | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Sensor | 1/2.3" CMOS | | Effective Pixels | 12 MP | | Focal Length | 24 to 48mm (35mm Equivalent) | | Lens Field of View | Horizontal: 82.6 to 47.8° | | Aperture | f/2.8 - 3.8 | | Minimum Focusing Distance | 1.6' / 0.5 m | | Photo ISO Range | 100 - 1600 (Auto)
100 - 3200 (Manual) | | Video ISO Range | 100 - 3200 (Auto) | | Electronic Shutter Speed | 8 - 1/8000 Second | | Photo Resolution | 4:3: 4000 x 3000 | | Photo Format | JPEG, DNG | | Video Format | 3840 x 2160p at 24/25/30 fps
2720 x 1530p at 24/25/30/48/50/60 fps
1920 x 1080p at 24/25/30/48/50/60/120 fps | | Recording Media | microSD (Up to 128 GB) | | Photo Modes | Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot | | | | Number of Axes | 3 (Pitch, Roll, Yaw) | | Control Range | Pitch: -90 to 30°
Yaw: -75 to 75° | | Angular Speed | Pitch: 120°/s | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Capacity | 3850 mAh / 59.29 Wh | | Battery Configuration | 4 S / 15.4 V | | Maximum Charging Power | 80 W | | Charging Temperature | 41 to 104°F / 5 to 40°C | | Weight | 10.48 oz / 297 g | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 1.8 A | | Output Voltage | 17.6 V, 3.41 A
17 V, 3.53 A
5 V, 2 A | | Power Rating | 60 W | | | | Number of Rotors | 4 | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Diagonal Size | 13.9" / 354 mm | | Overall Dimensions | 3.6 x 3.3 x 8.4" / 91.0 x 84.0 x 214.0 mm (Folded)
9.5 x 3.3 x 12.7" / 242.0 x 84.0 x 322.0 mm (Unfolded) Unfolded Height with Spotlight = 4.5" / 11.4 cm Unfolded Height with Beacon = 4.0" / 10.1 cm Unfolded Height with Speaker = 5.5" / 14.0 cm | | | | Package Weight | 11.345 lb | | Box Dimensions (LxWxH) | 18.0 x 15.4 x 8.9" |
