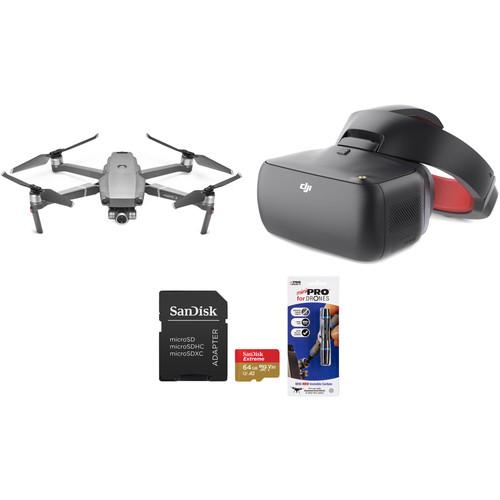

DJI Mavic 2 Zoom with Racing

User Manual for DJI Mavic 2 Zoom with Racing Edition Goggles Kit

• Product category: See All Drones DJI
• Brand: DJI
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for DJI See All Drones

Product description

• DJI Mavic 2 Zoom
  • Introducing the DJI Mavic 2
  The Mavic 2 Zoom from DJI is a professional quality filmmaking drone that gives you the ability to get closer to the action, thanks to its 2x 24-48mm optical zoom camera with a 1/2.3" 12MP sensor. With 4x lossless zoom (including 2x optical zoom) you can capture sensitive subjects from an even greater distance. There's even a single-tap aerial mode called Dolly Zoom that gives a Hitchcockian effect to your footage.

  The Mavic 2 Zoom utilizes a low-drag aerodynamic body design for achieving speeds up to 44.7 mph, a four-cell LiPo battery for up to 31 minutes of flight time, and low-noise propellers for filming without being distracting. This power and performance are coupled with a variety of shooting modes and capabilities for cinematic results.

  To help keep the Mavic 2 Zoom safe and in control, DJI has provided OcuSync 2.0 video transmission technology that can transmit a video feed to the included controller from up to five miles away in Full HD 1080p quality. There's also omnidirectional obstacle sensing that provides object avoidance with sensors on all sides of the Mavic 2 Zoom.
  Additional Gimbal Camera Features
  • • Mid-range shots: Capture epic midrange shots with the 48mm telephoto lens, designed to compress your perspective and enhance the parallax effect.
    • Hybrid autofocus: Combines phase and contrast detection for higher focus speed and accuracy, helping to keep subjects in focus while zooming in and out.
  Super-Resolution Photos
  • Take your aerial landscape photography to another level with Super Resolution. By utilizing the 24mm field of view on the Mavic 2 Zoom, you can take a 48MP super-resolution photo where a series of nine different photos are captured and automatically patched together. Unlike a regular panorama, super-resolution photos are designed to retain the original look of the shooting targets with a more accurate composition.
  Hyperlapse Time-Lapse Shots
  • With a single tap, you can use your Mavic 2 Zoom to capture stunning time-lapse shots in Hyperlapse mode, processing everything automatically and saving you time in post-processing. You can even simultaneously save photos in JPEG and raw on a microSD card (not included). Hyperlapse shots can be captured with four distinct modes:
    • Free: Move the Mavic 2 where you want with total freedom.
    • Circle: Select a subject for the Mavic 2 to automatically circle around.
    • CourseLock: This flies the Mavic 2 on a locked course in a straight line, forward and backwards or right to left, allowing you to adjust the gimbal along the way for dramatic results.
    • WayPoint: Set a specific savable flight path in 3D space for a single time-lapse, or for multiple shots at different times to edit together later.
  Enhanced HDR Photos
  • With a 13 EV the Mavic 2 Zoom is designed to capture clear, ghost-free images by blending together a sequence of individual photos taken at varying exposures.
  HyperLight Noise Reduction
  • With HyperLight mode switched on, the Mavic 2 Zoom can capture low-light images with reduced noise.
  H.265/HEVC Support
  • By utilizing the H.265/HEVC codec in your 4K videos, you can benefit from advanced compression that includes 50% more information than H.264/AVC, resulting in higher-quality results and videos with more detail.
  OcuSync 2.0 Video Transmission
  • The OcuSync 2.0 system is designed to provide you with a stable, high-quality video feed. DJI has engineered OcuSync 2.0 to deliver 1080p feeds to your controller from up to five miles away. From that distance, DJI helps keep things streaming smoothly with dual-band, real-time autoswitching between 2.4 and 5.8 GHz bands. Footage is downloaded at up to 40 Mb/s, and latency can be as low as 120 ms.

    OcuSync 2.0 also lets you share and save your footage and images without having to download content from the drone itself. Footage can be edited and uploaded to social media from the cache, and images can be automatically saved to your mobile device.
  Omnidirectional Obstacle Sensing
  • To keep your Mavic 2 Zoom safe and your footage pristine, DJI has covered all sides of the Mavic 2 with obstacle sensors:
    • Forward sensor: Dual vision sensors with a measurement range up to 65', and a detectable range of 65 to 131'. The Mavic 2 is designed to safely stop when obstacles are detected while flying at up to 31.3 mph.
    • Downward sensor: Dual vision sensors with a measurement range up to 36', and a detectable range of 36 to 72'. It also has an infrared sensor that can measure up to 26' away. The sensors also allow for accurate hovering at up to 164' and can detect land to land safely. A bottom auxiliary light helps the sensor in low-light conditions.
    • Left and right sensors: Detects obstacles at speeds of up to 18 mph in both ActiveTrack and Tripod modes.
    • Backward sensor: Dual vision sensors with a measurement range up to 52', and a detectable range of 52 to 104.9'. The Mavic 2 is designed to safely stop when obstacles are detected while flying at up to 27 mph.
    • Upward sensor: Infrared sensor that can precisely measure at ranges up to 26'.
  ActiveTrack 2.0 Sensing and Tracking
  • • Precise recognition: Maps a 3D view of the surrounding environment through the camera and forward dual sensors for greater recognition and accuracy.
    • Trajectory prediction: Algorithms help maintain tracking when the subject is temporarily blocked by an obstruction.
    • High-speed tracking: In open environments, the Mavic 2 Zoom can track subjects moving at up to 44.7 mph.
    • Obstacle sensing: Plan a flight path on the 3D map and shoot your target without interruption. Obstacles are sensed, recognized, and avoided with forward and backward sensors.
  Aerial Shooting Modes
  • • Dolly zoom: Providing a Hitchcock-like effect, the Mavic 2 Zoom adjusts focus while flying to deliver a warped effect. With proper focus speed values, you can get more creative when flying manually.
    • Point of interest (POI) 2.0: Thanks to vision and GPS distance measurement technologies, you can circle around and shoot a specific subject.
    • Waypoint 2.0: By tapping the desired waypoints and point of interest in the app, you can plan a flight path quickly and save it for your next flight.
    • Asteroid: The Mavic 2 quickly flies down from a height while spinning in on a subject.
    • Boomerang: Centering on a subject, the Mavic 2 will fly around it in an elliptical pattern until reaching its starting location.
  Additional Features
  • • Low-drag body design helps provide a top speed of up to 44.7 mph.
    • Four-cell LiPo battery can provide up to 31 minutes of flight time.
    • A combination of an FOC sinusoidal drive ESCs and low-noise propellers keeps flights quiet.
    • Panorama image mode with support for Sphere, 180°, Horizontal, and Vertical modes.
  UPC: 190021320604
• DJI Goggles Racing Edition
  • Introducing the DJI Mavic 2
  The DJI Goggles Racing Edition are equipped with high-performance displays and an ultra-low latency video downlink for use with the Mavic Pro, Spark, Phantom 4 series, and Inspire 2 aircrafts, giving you a real-time aerial FPV (first person view) experience. The Goggles can also be used to play HD videos, bringing you an immersive high-definition viewing experience.

  Precisely engineered for racing, DJI Goggles RE are compatible with an OcuSync video transmission module and a high-performance camera module (both sold separately), which work together to transmit digital video signal from up to 4.3 miles away with latency as low as 50 ms. The Goggles feature full flight setting control, two high-resolution screens, and Head Tracking. In addition, a redesigned metallic matte black visor and headband along with padding covered by high-quality red leather offer comfort and better light blockage.
  Flight Control
  • DJI Goggles RE use bottom-up processing, which means a signal reception module isn't required. By connecting a third-party controller to the Goggles, users can directly control racing drones with an F3, F4, KISS, Naze, or any other supported flight controller.
  On-Screen Display
  • Essential flight information including transmission resolution, battery level, and signal quality, is easily visible on screen.
  Gimbal Control
  • In Head Tracking Gimbal mode, a user can control the gimbal camera just by putting on the Goggles and turning their head.
  Digital & Analog Transmission
  • In addition to HD digital transmission, DJI Goggles RE offer analog transmission via their SMA port.
  Video Options
  • The Goggles play videos in a variety of different formats including MP4, MOV, and MKV, so users have even more ways to experience immersive media. Users can also view 6K 360° panoramas.
  Wide-Ranging Applications
  • Apart from compatibility with racing quads and fixed-wing model aircraft, the Goggles RE can be used with vehicles, robots, and industrial drones to provide clear FPV during cargo transportation, search and rescue operations, and even structural inspections.
  UPC: 190021302198
• SanDisk 64GB Extreme UHS-I microSDXC Memory Card with SD Adapter
  • Introducing the DJI Mavic 2
  Designed for microSD devices such as smartphones, interchangeable-lens cameras, drones, or GoPro action cameras that can capture Full HD, 3D, and 4K video, as well as raw and burst photography, the 64GB Extreme UHS-I microSDXC Memory Card from SanDisk has a capacity of 64GB, is compatible with the UHS-I bus, and features a speed class rating of V30, which guarantees minimum write speeds of 30 MB/s. If your device does not support the V30 standard, this card also supports the U3 standard, which also guarantees minimum write speeds of 30 MB/s. Read speeds are supported up to 160 MB/s and write speeds max out at 60 MB/s.

  While this card has been designed for cameras that are UHS-I / V30 / U3 compatible, it may be used in devices that do not support UHS-I / V30 / U3. However, bear in mind that this card will then default to your device's speed class and bus rating, such as UHS-I and U1, which supports minimum write speeds of 10 MB/s, or Class 10, which also supports minimum write speeds of 10 MB/s.

  Aside from support for UHS-I, V30, and U3, SanDisk also built this card with support for the Application Performance Class 2 (A2) spec, which includes optimizations to give Android users an improved mobile experience, delivering faster mobile app performance. The A2 spec allows the card to manage random read input-output access per second (IOPS) operations so it can quickly open apps and process accompanying tasks, such as audio, graphics, saved profiles, and in-app permissions.

  As with most SanDisk media, this memory card is shockproof, X-ray proof, and waterproof, while also being able to withstand temperatures, allowing you to take this card with you into extreme environments. Should the card's data become compromised, you also benefit from the option to download RescuePRO Deluxe software, and SanDisk's Memory Zone app offers users a simple way to organize, browse, and back up files on their Android mobile device. Additionally, included is a microSD to SD adapter with a write protect switch, allowing this card to be used in SD-compatible devices.

  General Features

  • Read speeds up to 160 MB/s, write speeds up to 60 MB/s, and minimum write speeds of 30 MB/s
  • Class 10, App Performance Class 2 (A2), Video Speed Class 30 (V30), and UHS Speed Class 3 (U3)
  • Water / temperature / shock / x-ray proof
  • SanDisk Memory Zone included
  • RescuePRO Deluxe one-year file recovery software (download offer)
  • SD adapter included
  UPC: 619659169770
• Lensless LensPen MiniPro for Drones
  • Introducing the DJI Mavic 2
  This LensPen MiniPro from Lensless is designed to let you quickly and safely clean off your drone's lens or filter. This pocket-sized pen features a retractable design that extends a flexible natural goat hair brush that's coated in a carbon cleaning compound.

  As you clean, the brush contours to your drone's optics to removes dust, dirt, and oily fingerprints. The compound dries clear and is designed to not dry out while inside the pen, so it's always ready when you need it most.
  Additional Features
  • Up to 500 uses
    Safe on drone and other camera optics
    Dry clear carbon compound that's designed to not dry out
    Temperature resistant
  UPC: 776293051875

• Mavic 2 Zoom cfuyvysadv
• Remote Controller
• Intelligent Flight Battery for Mavic 2 Pro/Zoom
• Battery Charger for Mavic 2
• Power Cable
• 3 x Low-Noise Propellers for Mavic 2 Pro/Zoom/Enterprise (One Pair)
• RC Cable with Lightning Connector
• RC Cable with Micro-USB Connector
• RC Cable with USB Type-C Connector
• Gimbal Protector
• Communication Cable with USB 3.0 Type-C Connector
• USB Adapter
• Large RC Cable Slider
• 2 x Small RC Cable Slider
• Pair of Spare Control Sticks
• Limited 1-Year Warranty for MC, Remote Controller, Charger
• Limited 6-Month Warranty for Gimbal Camera, Vision Positioning System, Propulsion System (Excluding Propellers) & Battery (< 200 Charge Cycles)

• Goggles Racing Edition cfuyvysadv

Includes Free

• SanDisk - 64GB Extreme UHS-I microSDXC Memory Card with SD Adapter

• Lensless - LensPen MiniPro for Drones

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• DJI Mavic 2 Zoom

  Maximum Takeoff Weight	1.99 lb / 905 g
  Maximum Horizontal Speed	44.7 mph / 72 km/h (S-Mode)
  Maximum Ascent Speed	16.4 ft/s / 5 m/s
  Maximum Descent Speed	9.8 ft/s / 3 m/s
  Maximum Wind Resistance	23.6 mph / 38 km/h
  Flight Ceiling	3 mi / 6000 m
  Maximum Flight Time	31 Minutes
  Maximum Hover Time	29 Minutes
  Maximum Tilt Angle	35°
  Hovering Accuracy	±0.33' / 0.1 m Vertical with Vision Positioning ±1.64' / 0.5 m Vertical with GPS ±0.98' / 0.3 m Horizontal with Vision Positioning ±4.92' / 1.5 m Horizontal with GPS

  GNSS Support	GPS, GLONASS

  Operating Range	36.1 to 131.2' / 11.0 to 40.0 m
  Required Object Reflectivity	>20%

  Vision System	Downward, Forward, Backward, Left, Right
  Operating Range	1.6 to 131.2' / 0.5 to 40.0 m
  Obstacle Sensory Range	36.1 to 131.2' / 11.0 to 40.0 m
  Forward Field of View	40° (Horizontal) 70° (Vertical)
  Backward Field of View	60° (Horizontal) 77° (Vertical)
  Operating Environment	Surface with Clear Patterns at >15 lux

  Operating Frequency	2.4 GHz (2.400 - 2.483) 5.8 GHz (5.725 - 5.850)
  Maximum Operating Distance	4.97 mi / 8000 m at 2.4 G 4.97 mi / 8000 m at 5.8 G
  Transmitter Power	26 dBm (2.4 G) 26 dBm (5.8 G)
  Connectivity	1 x Lightning 1 x Micro-USB 1 x USB Type-C
  Battery Type	1 x Built-In
  Battery Chemistry	Lithium-Ion
  Battery Capacity	3950 mAh
  Battery Configuration	1 S / 3.83 V
  Mobile Device Compatibility	Devices up to 6.30" / 160 mm Wide and 0.3" / 7.62 mm Thick
  Operating Temperature	32 to 104°F / 0 to 40°C

  Sensor	1/2.3" CMOS
  Effective Pixels	12 MP
  Lens Field of View	Horizontal: 83°
  Aperture	f/2.8 - 3.8
  Minimum Focusing Distance	1.6' / 0.5 m
  Photo ISO Range	100 - 1600 (Auto) 100 - 3200 (Manual)
  Video ISO Range	100 - 3200 (Auto)
  Electronic Shutter Speed	8 - 1/8000 Second
  Photo Resolution	4:3: 4000 x 3000
  Photo Format	JPEG, DNG
  Video Format	3840 x 2160p at 24/25/30 fps 2688 x 1512p at 24/25/30/48/50/60 fps 1920 x 1080p at 24/25/30/48/50/60/120 fps
  Recording Media	microSD (Up to 128 GB)
  Photo Modes	Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot

  Number of Axes	3 (Pitch, Roll, Yaw)
  Control Range	Pitch: -90 to 30° Yaw: -75 to 75°
  Angular Speed	Pitch: 120°/s

  Battery Chemistry	Lithium-Ion Polymer (LiPo)
  Capacity	3850 mAh / 59.29 Wh
  Battery Configuration	4 S / 15.4 V
  Maximum Charging Power	80 W
  Charging Temperature	41 to 104°F / 5 to 40°C
  Weight	10.48 oz / 297 g

  AC Input Power	100 to 240 VAC, 50 / 60 Hz at 1.8 A
  Output Voltage	17.6 V, 3.41 A 17 V, 3.53 A 5 V, 2 A
  Power Rating	60 W

  Number of Rotors	4
  Operating Temperature	14 to 104°F / -10 to 40°C
  Overall Dimensions	3.6 x 3.3 x 8.4" / 91.0 x 84.0 x 214.0 mm (Folded) 9.5 x 3.3 x 12.7" / 242.0 x 84.0 x 322.0 mm (Unfolded)

  Box Dimensions (LxWxH)	11.3 x 11.0 x 4.4"

• DJI Goggles Racing Edition

  Compatibility	Mavic Pro, Spark, Phantom 4 series, and Inspire 2 aircrafts
  Screen Size	2 x 5" / 12.7 cm
  Screen Resolution	3840 x 1080 (single screen: 1920 x 1080)
  Refresh Rate	60 Hz
  FOV	85° (single screen)
  Interpupillary Distance	58 to 70 mm
  Frequency	2.4 GHz / 5.8 GHz
  Transmitter Power (EIRP)	2.4 GHz: 25.5 dBm (FCC); 18.5 dBm (CE); 19 dBm (SRRC) 5.8 GHz: 25.5 dBm (FCC); 12.5 dBm (CE); 18.5 dBm (SRRC)
  Live View	1080p30, 720p60, 720p30
  Video Latency	110 ms (Mavic Pro, 720p60, video format: 720p120) 150 ms (Spark, 720p30, video format: 1080p30) 150 ms (Phantom 4 Pro/Advanced Series, 720p60, video format: 720p60/720p120) 167 ms (Phantom 4, 720p30, video format: 720p60) 140 ms (Inspire 2+X5S, 720p60, video format: 1080p120) 190 ms (Inspire 2+X4S, 720p60, video format: 1080p60)
  Video Format	MP4 (H.264)
  Supported Video Format	MP4, MOV, MKV (Video format: H264; Audio format: AAC-LC, AAC-HE, AC-3, DTS, MP3)
  I/O Interface	1 x SMA port 1 x Micro-USB port 1 x 3.5 mm audio port 1 x HDMI Type-D port 1 x microSD card slot
  HDMI Support	HDMI 1.4b, HDCP 1.4
  Sensor	Gyroscope, Accelerometer, Proximity sensor
  Battery Capacity	9440 mAh
  Battery Energy	35.44 Wh
  Battery Operating Time	6 hours
  Charger	Input: 100 to 240 VAC, 50/60 Hz, 0.5 A Output: 5 V = 3 A, 9 V = 2 A, 12 V = 1.5 A
  Dimensions	DJI Goggles RE Body: 7.7 x 6.1 x 4.3" / 19.5 Rating 86% users recommend this product to others. And what about you? This product has already been rated by 45 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
