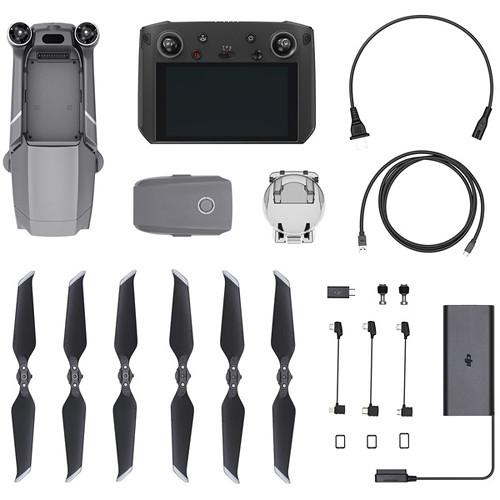

• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for DJI See All Drones

Product description

Additional Gimbal Camera Features
• • Mid-range shots: Capture epic midrange shots with the 48mm telephoto lens, designed to compress your perspective and enhance the parallax effect.
  • Hybrid autofocus: Combines phase and contrast detection for higher focus speed and accuracy, helping to keep subjects in focus while zooming in and out.

Super-Resolution Photos
• Take your aerial landscape photography to another level with Super Resolution. By utilizing the 24mm field of view on the Mavic 2 Zoom, you can take a 48MP super-resolution photo where a series of nine different photos are captured and automatically patched together. Unlike a regular panorama, super-resolution photos are designed to retain the original look of the shooting targets with a more accurate composition.

Hyperlapse Time-Lapse Shots
• With a single tap, you can use your Mavic 2 Zoom to capture stunning time-lapse shots in Hyperlapse mode, processing everything automatically and saving you time in post-processing. You can even simultaneously save photos in JPEG and raw on a microSD card (not included). Hyperlapse shots can be captured with four distinct modes:
  • Free: Move the Mavic 2 where you want with total freedom.
  • Circle: Select a subject for the Mavic 2 to automatically circle around.
  • CourseLock: This flies the Mavic 2 on a locked course in a straight line, forward and backwards or right to left, allowing you to adjust the gimbal along the way for dramatic results.
  • WayPoint: Set a specific savable flight path in 3D space for a single time-lapse, or for multiple shots at different times to edit together later.

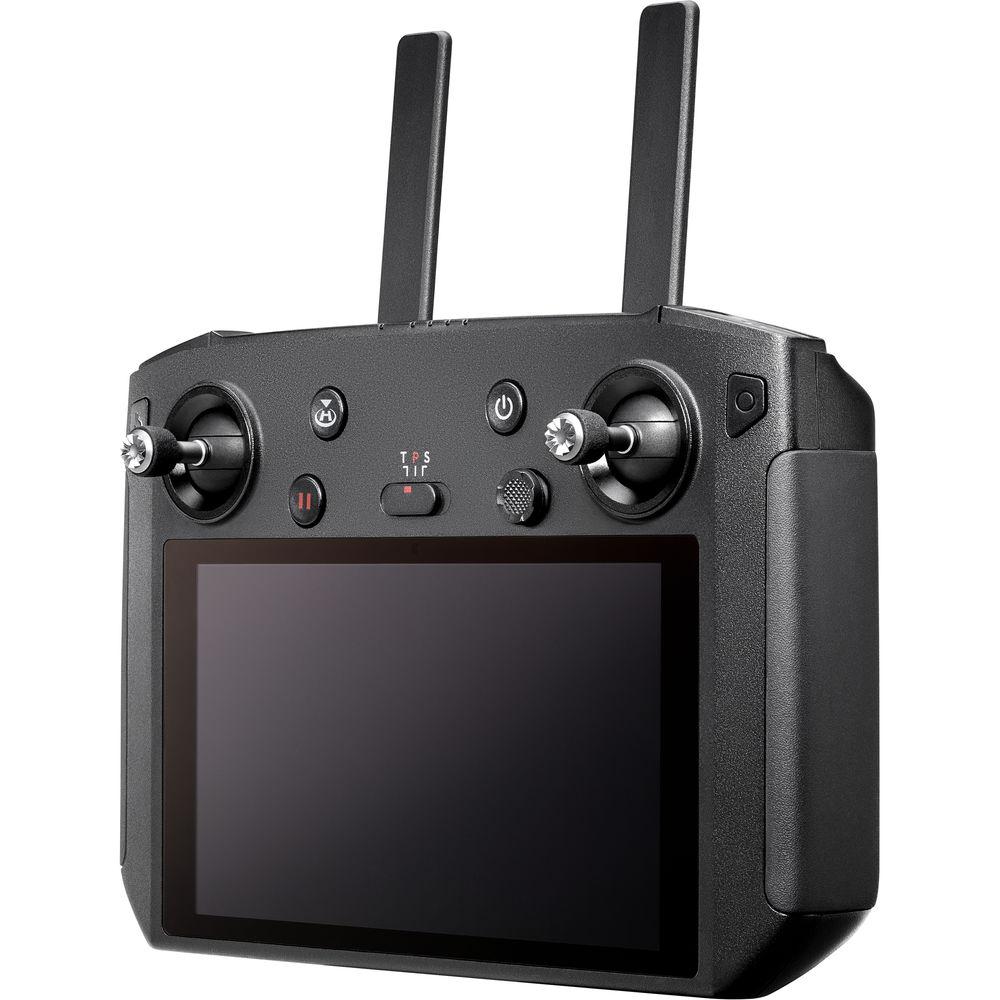

Smart Controller
• The Smart Controller has been engineered and designed to drastically improve your piloting experience and your ability to quickly connect your work with the world. With the Smart Controller, you can experience the joy of flying via a built-in 5.5" screen that displays your gimbal footage and flight data in Full HD 1080p resolution. It's also designed to be extremely viewable, even in direct sunlight, with 1000 cd/m² of brightness.

  To help with sharing your content from the 16GB of built-in storage, DJI provides DJI Go Share, a function of the DJI GO 4 app, and SkyTalk. DJI Go Share accesses these images and video and transfers them to a smartphone or tablet. Once there, you can share them via social media. Speaking of social media, DJI's SkyTalk was created to share your content even more quickly by live streaming in real time to social platforms, such as Facebook and Instagram.

  The DJI Smart Controller offers these and many other features. Traveling with the Smart Controller is made easier thanks to its detachable thumbsticks and slim form factor. It connects to your drone as soon as you turn it on, so you can start flying right away. Its robust construction lets you fly in extreme conditions, supporting temperatures ranging from -4 to 104°F. And with a built-in 5000mAh battery, you can do all of this for up to 2.5 hours per charge.

Enhanced HDR Photos
• With a 13 EV, the Mavic 2 Zoom is designed to capture clear, ghost-free images by blending together a sequence of individual photos taken at varying exposures.

HyperLight Noise Reduction
• With HyperLight mode switched on, the Mavic 2 Zoom can capture low-light images with reduced noise.

H.265/HEVC Support
• By utilizing the H.265/HEVC codec in your 4K videos, you can benefit from advanced compression that includes 50% more information than H.264/AVC, resulting in higher-quality results and videos with more detail.

OcuSync 2.0 Video Transmission
• The OcuSync 2.0 system is designed to provide you with a stable, high-quality video feed. DJI has engineered OcuSync 2.0 to deliver 1080p feeds to your controller from up to five miles away. From that distance, DJI helps keep things streaming smoothly with dual-band, real-time autoswitching between 2.4 and 5.8 GHz bands. Footage is downloaded at up to 40 Mb/s, and latency can be as low as 120 ms.

  OcuSync 2.0 also lets you share and save your footage and images without having to download content from the drone itself. Footage can be edited and uploaded to social media from the cache, and images can be automatically saved to your mobile device.

Omnidirectional Obstacle Sensing
• To keep your Mavic 2 Zoom safe and your footage pristine, DJI has covered all sides of the Mavic 2 with obstacle sensors:
  • Forward sensor: Dual vision sensors with a measurement range up to 65', and a detectable range of 65 to 131'. The Mavic 2 is designed to safely stop when obstacles are detected while flying at up to 31.3 mph.
  • Downward sensor: Dual vision sensors with a measurement range up to 36', and a detectable range of 36 to 72'. It also has an infrared sensor that can measure up to 26' away. The sensors also allow for accurate hovering at up to 164' and can detect land to land safely. A bottom auxiliary light helps the sensor in low-light conditions.
  • Left and right sensors: Detect obstacles at speeds of up to 18 mph in both ActiveTrack and Tripod modes.
  • Backward sensor: Dual vision sensors with a measurement range up to 52', and a detectable range of 52 to 104.9'. The Mavic 2 is designed to safely stop when obstacles are detected while flying at up to 27 mph.
  • Upward sensor: Infrared sensor that can precisely measure at ranges up to 26'.

ActiveTrack 2.0 Sensing and Tracking
• • Precise recognition: Maps a 3D view of the surrounding environment through the camera and forward dual sensors for greater recognition and accuracy.
  • Trajectory prediction: Algorithms help maintain tracking when the subject is temporarily blocked by an obstruction.
  • High-speed tracking: In open environments, the Mavic 2 Zoom can track subjects moving at up to 44.7 mph.
  • Obstacle sensing: Plan a flight path on the 3D map and shoot your target without interruption. Obstacles are sensed, recognized, and avoided with forward and backward sensors.

Aerial Shooting Modes
• • Dolly zoom: Providing a Hitchcock-like effect, the Mavic 2 Zoom adjusts focus while flying to deliver a warped effect. With proper focus speed values, you can get more creative when flying manually.
  • Point of interest (POI) 2.0: Thanks to vision and GPS distance measurement technologies, you can circle around and shoot a specific subject.
  • Waypoint 2.0: By tapping the desired waypoints and point of interest in the app, you can plan a flight path quickly and save it for your next flight.
  • Asteroid: The Mavic 2 quickly flies down from a height while spinning in on a subject.
  • Boomerang: Centering on a subject, the Mavic 2 will fly around it in an elliptical pattern until reaching its starting location.

Additional Features
• • Low-drag body design helps provide a top speed of up to 44.7 mph.
  • Four-cell LiPo battery can provide up to 31 minutes of flight time.
  • A combination of an FOC sinusoidal drive ESCs and low-noise propellers keeps flights quiet.
  • Panorama image mode with support for Sphere, 180°, Horizontal, and Vertical modes.
