Product description Unveiled: DJI Mavic Air Drone Takes to the Skies Read More - Hands-On Review | DJI Mavic Air
- DJI MAVIC Air Intro

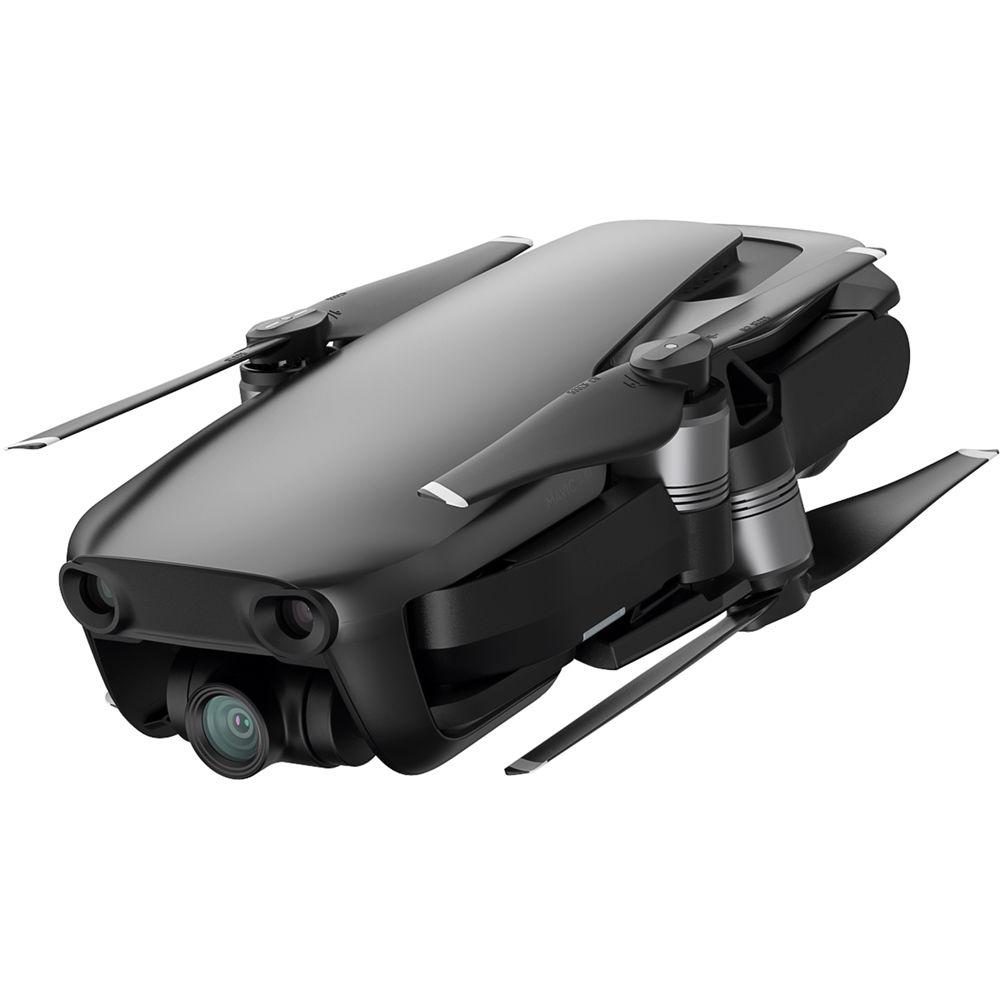

Capture all your adventures in stunning detail with the Mavic Air Fly More Combo from DJI. This foldable, pocket-portable drone was designed with travelers and outdoor enthusiasts in mind. It features a 3-axis gimbal-stabilized camera with a 1.2/3" CMOS sensor that shoots 12MP stills and is capable of capturing 4K video at 30 fps that it can transfer at speeds up to 100 Mb/s or store on its 8GB of internal storage.
In terms of performance, the Mavic Air offers multiple flight modes, can reach a top speed of up to 43 mph, and offers a max flight time of up to 21 minutes. For safety and security, the Mavic Air uses an advanced flight control system that draws on several sophisticated technologies, including Visual Inertial Odometry (VIO) and Advanced Pilot Assistance Systems (APAS), to locate itself in 3D space, detect objects, and avoid collisions.
The Mavic Air works in tandem with DJI's GO 4 mobile app for accessing settings, getting a telemetry readout, viewing a low-latency video feed, as well as more advanced features, such as accessing QuickShots, ActiveTrack, and more. In addition to traditional joystick style controls, you can fly the Mavic with simple tap-based commands or using specific hand gestures.
In addition to the contents included with the standard Mavic Air, this Fly More Combo includes additional batteries, a shoulder bag, battery hub, and more. - 3-Axis Gimbal Camera
- The portable Mavic Air houses a 3-axis mechanical gimbal with an angular vibration range reduced to 0.005° and is equipped with dampeners that help ensure steady shooting
- 4K Video at 100 Mb/s
- The Mavic Air can shoot 4K video at 30 fps and record footage at 100 Mb/s
- Advanced Onboard Camera
- The Mavic Air's onboard camera integrates a 1/2.3" 12MP CMOS sensor and an f/2.8 lens with a 35mm-equivalent focal length of 24mm to shoot high-quality photos and videos
- 32 MP Sphere Panoramas
- In addition to horizontal, vertical, and 180° panoramas, the Mavic Air can stitch 25 photos together in eight seconds to create clear 32MP spherical panoramas
- Slow-Motion Video
- With support for recording 1080p 120 fps slow-motion video, the Mavic Air can capture even your most high-speed adventure
- Improved HDR Photos
- New HDR algorithms help you obtain the right exposure settings intelligently, based on lighting conditions
- 8GB Internal Storage
- In addition to an integrated microSD card slot, the Mavic Air comes with 8GB of internal storage so you can save photos and videos directly to the aircraft

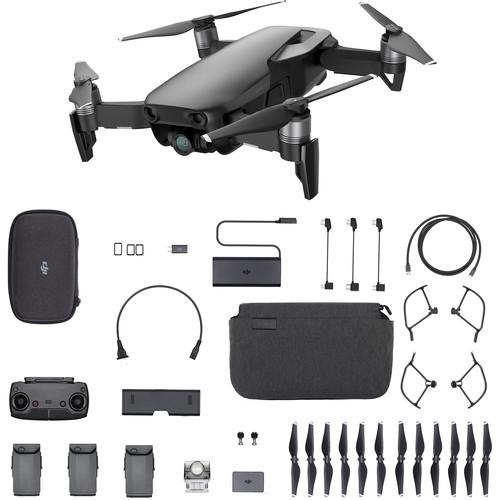

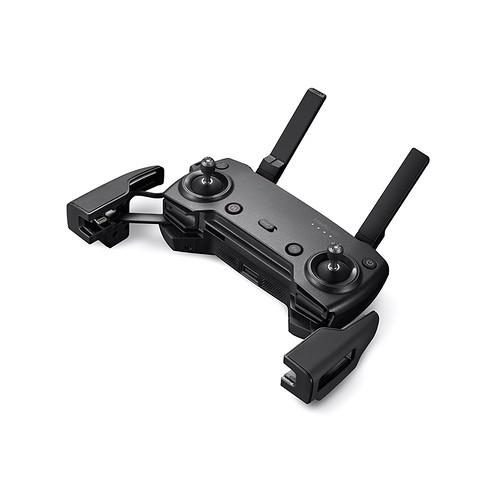

UPC: 190021305953 In the Box DJI Mavic Air Fly More Combo (Onyx Black) DVI Mavic Air (Onyx Black) Remote Controller 3 x Intelligent Flight Batteries Charger Power Cable 5 x Pairs of Props Set of Prop Guards RC Cable (Lightning) RC Cable (Micro-USB) RC Cable (USB Type-C) Gimbal Protector Communication Cable USB Adapter RC Cable Slider (Large) 2 x RC Cable Slider (Small) Carrying Case Battery Charging Hub Battery to Power Adapter Shoulder Bag Limited 6-Month Warranty on Gimbal Camera Limited 6-Month Warranty on Vision Positioning System Limited 6-Month Warranty on Propulsion System (Excluding Propellers) Limited 12-Month Warranty on Remote Controller Limited 6-Month / 200-Cycle Warranty on Battery (Whichever Comes First) Limited 6-Month Warranty on Battery Charger Aerial Photography and Drone Glossary David Adler 09/04/2018 Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 User Manual PDF 12.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Mavic Air Fly More Combo in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI Mavic Air Specs | | | Maximum Horizontal Speed | 42.5 mph / 68.4 km/h (S Mode)
17.9 mph / 28.8 km/h (P Mode)
17.9 mph / 28.8 km/h (Wi-Fi Mode) | | Maximum Ascent Speed | 9.84 ft/s / 3 m/s | | Maximum Descent Speed | 6.56 ft/s / 2 m/s | | Maximum Wind Resistance | 23.61 mph / 38 km/h | | Flight Ceiling | 16,404' / 5000 m | | Maximum Flight Time | 21 Minutes | | Maximum Hover Time | 20 Minutes | | Maximum Tilt Angle | 35° | | Hovering Accuracy | ±1.64' / 0.5 m Vertical with GPS
±0.33' / 0.1 m Vertical with Vision Positioning
±4.92' / 1.5 m Horizontal with GPS
±0.33' / 0.1 m Horizontal with Vision Positioning | | | | GNSS Support | GPS, GLONASS | | | | Vision System | Downward, Forward, Backward | | Velocity Range | 26.2 ft/s / 8 m/s at 1.6' / 0.5 m | | Maximum Altitude | 26' / 8 m | | Operating Range | 1.6 to 98.4' / 0.5 to 30.0 m | | Obstacle Sensory Range | 1.6 to 78.7' / 0.5 to 24.0 m | | Forward Field of View | 50° (Horizontal)
±19° (Vertical) | | Backward Field of View | 50° (Horizontal)
±19° (Vertical) | | Operating Environment | Surface with Clear Patterns at >15 lux | | | | Operating Frequency | 2.4 GHz (2.4 - 2.483)
5.8 GHz (5.725 - 5.850) | | Maximum Operating Distance | 13,123.36' / 4000 m at 2.4 G
13,123.36' / 4000 m at 5.8 G | | Transmitter Power | 26 dBm (2.4 G)
30 dBm (5.8 G) | | Connectivity | 1 x USB Type-C
1 x USB Type-A | | Battery Type | 1 x Built-In | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Battery Capacity | 2970 mAh | | Mobile Device Compatibility | Devices up to 6.30" / 160 mm Wide and 0.334" / 8.48 mm Thick | | App Operating System Requirements | iOS 9.0 and later
Android 4.4 and later | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Sensor | 1/2.3" CMOS | | Effective Pixels | 12 MP | | Focal Length | 24mm / 35mm (35mm Equivalent) | | Lens Field of View | Diagonal: 85° | | Aperture | f/2.8 | | Minimum Focusing Distance | 19.7" / 50.0 cm | | Photo ISO Range | 100 - 1600 (Auto)
100 - 3200 (Manual) | | Video ISO Range | 100 - 1600 (Auto)
100 - 1600 (Manual) | | Electronic Shutter Speed | 8 - 1/8000 Second | | Photo Resolution | 4:3: 4056 x 3040
16:9: 4056 x 2280 | | Photo Format | JPEG, DNG | | Video Format | 3840 x 2160p at 24/25/30 fps (100 Mb/s MP4 via H.264)
2720 x 1530p at 24/25/30/48/50/60 fps (100 Mb/s MP4 via H.264)
1920 x 1080p at 24/25/30/48/50/60/120 fps (100 Mb/s MP4 via H.264)
1280 x 720p at 24/25/30/48/50/60/120 fps (100 Mb/s MP4 via H.264) | | Recording Media | microSD (Up to 128 GB) | | Photo Modes | Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot | | | | Number of Axes | 3 (Pitch, Roll, Yaw) | | Control Range | Pitch: -90 to 17° | | Angular Speed | Pitch: 120°/s | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Capacity | 2375 mAh / 27.43 Wh | | Battery Configuration | 3 S / 11.55 V | | Maximum Charging Power | 60 W | | Charging Temperature | 41 to 104°F / 5 to 40°C | | Weight | 4.94 oz / 140 g | | | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Output Voltage | 13 V, 4 A | | Power Rating | 50 W | | | | Number of Rotors | 4 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Diagonal Size | 8.4" / 213 mm (Without Propellers) | | Overall Dimensions | 6.6 x 7.2 x 2.5" / 168.0 x 184.0 x 64.0 mm (Folded) | | Weight | 0.95 lb / 430 g | | | | Package Weight | 5.9 lb | | Box Dimensions (LxWxH) | 11.25 x 7.5 x 7.25" |
