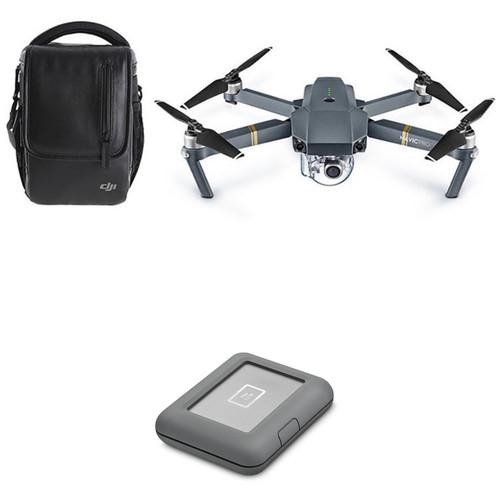

User Manual for DJI Mavic Pro Fly More Drone with LaCie 2TB Copilot BOSS Hard Drive Kit

• Product category: See All Drones DJI
• Brand: DJI
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for DJI See All Drones

Product description

• DJI Mavic Pro (Fly More Combo)
  • First Look: DJI Mavic Pro
  • DJI - Introducing the DJI Mavic
  The Mavic from DJI packs features you once thought possible only on much larger platforms into a compact quadcopter that is snappy, agile, and captures high-resolution images. The drone features an advanced flight control system that draws on a host of sensors — including a ground-facing camera, ultrasound, GPS, dual redundant IMUs, and more — to keep track of where it is flying in 3D space and even avoid collisions. The Mavic works in tandem with DJI's GO mobile app for accessing settings, getting a telemetry readout, viewing a low-latency video feed, and even editing and sharing your footage. In addition to traditional joystick style controls, you can fly with simple tap-based commands, and the Mavic can even recognize gestures for the perfect selfie.

  In addition to the stand accessories, the Fly More Combo features two additional flight batteries (three total), two additional propeller pairs five total), a Battery Charging Hub, and a Shoulder Bag to carry the Mavic around in.

  Long Range Flying

  OcuSync Transmission Technology
  • OcuSync long-range-transmission technology is capable of relaying a signal up to 4.3 miles line-of-sight while supporting 720p HD video (1080p HD transmission in short-range mode). Every time you fly, OcuSync scans a range of available frequencies to find and use the one with the least interference to give you more reliability and control. Tightly integrated with the DJI GO app, OcuSync transfers vital statistics of the Mavic to you in real time, and can also be used to download photos and videos at up to 40 Mbps while flying.
  Efficient Design
  • Custom-designed, high-energy-density batteries; an optimized propulsion system; and advanced power management give the Mavic a much longer flight time than many compatible platforms in its size class. This results in flight times of up to 27 minutes under ideal conditions and up to 21 minutes for average flights.

  Integrated Camera and Gimbal

  3-Axis Gimbal Stabilizer
  • Using three specially miniaturized brushless motors and advanced algorithms, the camera moves in the opposite direction to the Mavic, cancelling out unwanted movement for the smoothest possible video.
  DCI & UHD 4K and Full HD Video
  • The Mavic Pro camera shoots 4K video (up to 4096 x 2160) at 30 frames per second and Full HD 1080p at 96 frames per second, so you can create incredible slow motion. Its minimum focusing distance is just 19", making it perfect for everything from the ultimate aerial selfies to landscape shots.
  ActiveTrack Subject Tracking Modes
  • With ActiveTrack, just tell the Mavic who to track and it handles the rest. No GPS bracelets or transmitters are required. The Mavic has been trained to detect and recognize a number of common subjects including people, bike riders, vehicles, and even animals. Once you have marked your subject, you can fly around them to create a huge variety of shots, depending on the mode you are in. As the Mavic is tracking, you can even select exactly where you want the subject in the frame.

    Three modes are available:

    Trace - Follow behind or in front of your subject, or circle it as it moves
    Profile - Fly alongside your subject
    Spotlight - Keep the camera trained on your subject while you fly almost anywhere
  12MP Raw/JPEG Still Photos
  • Every photo you take with the Mavic can be as big as 12 megapixels, with the ability to save in DNG raw or JPEG. You can even flip the camera 90-degrees for portrait oriented shots, just like you do with your phone.
  Selfie Mode with Gestures
  • Put away your controller and phone to get that perfect, natural selfie. All you need to do is put the Mavic in Gesture Mode and walk in front of it. The Mavic will automatically detect you. Raise your arms or wave to it to make it follow you, and when you're ready for your photo, make a box shape with your fingers. The lights under the Mavic's front arms will start to flash, and you will have three seconds to strike your pose before it takes a photo.
  Tripod Mode
  • Tripod Mode caps the Mavic's maximum speed at just 2.2 mph, while the control stick sensitivity of the remote controller is dulled to give you the precision you need for accurate framing. It is also great for flying indoors or other small spaces where the Mavic's normal speed may make it more challenging to fly.

  Flight Control System

  FlightAutonomy
  • FlightAutonomy is the Mavic's brain and nervous system: a complex network of hardware and software that includes five cameras, GPS/GLONASS, a pair of ultrasonic range finders, redundant sensors, and a group of 24 CPUs to process and fuse all of this information.
  Navigation System
  • The Mavic is able to position itself accurately in a range of environments, beyond what is possible using basic "optical flow" technology, which depends on a single downward-facing camera and assumes that the ground below is always flat. Mavic is able to sense its environment in 3-dimensions and react to it, ensuring it hovers steadily, whether it is high up on the side of a cliff where downward sensors have no target, or under a forest canopy where satellite positioning is blocked and the ground is covered in uneven markings and obstacles.
  Precision Landing
  • Precision Landing technology means the Mavic is able to automatically land almost exactly where you took off. Every time you take off, the two downward-facing vision sensors record a burst of video of the ground pair it with satellite coordinates. When you tell the Mavic to fly home, it will return to that coordinate, match the video, and land back at your feet.
  Collision Avoidance
  • As the Mavic flies, it scans the world around it, creating a 3D map that tells it exactly where it can fly and what it needs to avoid. Because it uses vision processing, it can see up to 98' in front and can accurately measure distance up to 49' in front, making it significantly more accurate than sonar based avoidance technologies. When the Mavic detects an obstacle and sees a way around it, it will simply adjust its route to fly around it. If it can't see a way around, it will slow to a stop gently and hover until you tell it what to do next.

    This obstacle avoidance system is activated in every Intelligent Flight Mode, including all ActiveTrack modes, TapFly, and Terrain Follow. If you use Automatic Return to Home, it switches on too, so that as the Mavic makes its way back to you, it won't bump into anything in its path. Avoidance is effective when flying at speeds up to 22 mph.
  Sport Mode
  • Sport Mode was designed for fun, giving the Mavic a top speed of 40 mph, all the while ramping up agility and responsiveness, to give you a taste of drone racing. You can also use it to film something fast, or zip out to catch a shot before the moment passes. Even in Sport Mode, the Mavic will stop immediately if you let go of the controls.
  Dual-Sensor Redundancy
  • In flight, the Mavic uses its compass to tell it where it is heading and the Inertial Measurement Unit (IMU) to tell it how it is flying. An interruption in the data flow from either of these may cause it to fly less reliably, which is why the Mavic has not one, but two of each. Whenever the system detects an inconsistency in one, it switches to the other, keeping your flight steady and reliable.
  Terrain Follow
  • When you are flying over changing terrain, like following bikers riding uphill, the Mavic's Terrain Follow function uses height information gathered by the on-board ultrasonic system, and its downward-facing cameras to keep you flying at the same height above the ground even as the ground moves. Just set the height from the ground you want — from 9 to 33' — and focus on getting the right shot.

  DJI GO Mobile App

  • DJI GO is your Mavic's control center. When your phone or device is connected to the Mavic, it shows you everything the camera sees in near real-time, so you can set up and frame every shot as if you are actually there. It also gives you full manual camera controls for photos and videos, including ISO, shutter, and file format. It even lets you fine-tune your Mavic so that it flies exactly how you want it to.
  Fly-by-Phone
  • Sometimes a phone is all you need to fly. Not only does the Mavic support flying on your phone with virtual joysticks, but you also have full access to all of its Intelligent Flight Modes: TapFly, Trace, Spotlight, Profile, and Circle.
  Tap Flying
  • When you tap on your phone's screen, software translates your touch into a heading, including whether you want it to climb or descend. When you want to change direction, just tap somewhere else on your screen and the Mavic will smoothly turn to the new destination.
  Shoot. Edit. Share.
  • Automatic video editing templates, simple video editing functions, and easy photo and video management bring together the tools you need to make epic videos right in your phone. All you need to do is choose the shots you think will amaze, which you can then share straight to Facebook, YouTube, Twitter, Instagram, and more, as well as SkyPixel, DJI's own community dedicated to aerial imaging.

  DJI Goggle Compatibility

  • The separately available DJI Goggle are FPV goggles designed to make flying totally immersive. The feature two 1080p LTPS displays with a wide 85° angle of view to give you a bird's eye view of the world around you. Built-in OcuSync connectivity means that it links directly to the Mavic and not through a cable or a Wi-Fi link to the controller. This seamless connection yields a delay of only 120 milliseconds.

  Intelligent Flight Batteries

  • The Intelligent Flight Battery has its own integrated battery-management system that takes into account everything from remaining voltage, amount of power being used, temperature, and more to calculate remaining flight times, so you always know when to head home. It also has a host of protection mechanisms in place to prevent overcharging and over draining, both of which can damage a LiPo battery permanently. When placed in longer term storage, LiPo batteries should only be kept at 50% charge. Any more or less could cause permanent damage. If left unused, DJI Intelligent Flight Batteries will discharge power until 50% to maintain good health.
  • If you live in a cold place or plan to fly on a winter break, low-temperature protection will activate. This controls available propulsion power based on the temperature of the battery, so that only a fully-warmed-up battery can offer full power.
  UPC: 190021283442
• LaCie 2TB DJI Copilot BOSS External Hard Drive
  • First Look: DJI Mavic Pro
  • DJI - Introducing the DJI Mavic
  Photographers, videographers, and drone pilots who already have enough gear to lug around will welcome the arrival of the 2TB DJI Copilot BOSS Hard Drive from LaCie. BOSS, which is short for Backup On-Set Solutions, will help users spend more time shooting and adventuring in the field, and less time stuck behind a computer. The DJI Copilot BOSS provides up to 2TB of storage for up to 60 hours of 4K video at 30 fps and is especially well-suited for those who require an in-field backup solution with direct ingestion that does not require a computer, while also providing mobile file management and mobile device charging.

  Files can be copied directly from drones, memory cards, action cameras, DSLR cameras, phones, USB hard drives, USB flash drives, and more. Using the integrated status screen, file transfer status, storage capacity, and battery power can be monitored, and using the DJI BOSS app, footage stored on this drive can be reviewed on a phone or tablet, and files can be managed, filed, renamed, and deleted. If one of your devices needs charging, the DJI Copilot can be used as a mobile battery pack, and thanks to built-in drop, splash, and dust resistance, it is well-equipped to handle life outdoors.

  LaCie's DJI Copilot BOSS is compatible with mobile phones and tablets running iOS 10.3 or Android 4.4 or later, as well as systems running Windows 10 or higher and Mac OS X 10.10 or higher with an available USB 3.1 Type-C, Thunderbolt 3, USB 3.0, or USB 2.0 port. It comes equipped with a USB 3.1 Type-C port, a USB 3.0 Type-A port, and an SD card reader, and includes a microSD to SD card adapter, a USB 3.1 Type-C cable, a USB Type-C to Type-A cable, a Lightning cable for iOS, a micro-USB cable for most Android devices, a USB Type-C cable for newer Android devices, a wall charger for recharging its internal battery, and a removable cover. Additional protection is provided by a limited 3-year Rescue Data Recovery Services plan and also included is a 1-month membership to Adobe Creative Cloud.

  Note: In order to take advantage of the 1-month membership to Adobe Creative Cloud, customers will need to register this drive on Seagate.com once it has been received. Upon registration, they will then receive an email with code redemption instructions for one complimentary month of all Adobe Creative Cloud apps, including Lightroom CC, Photoshop CC, Illustrator CC, Adobe XD CC, Premiere Pro, Dreamweaver, 100GB of cloud storage, and more. This offer is stackable with existing Adobe Creative Cloud memberships and expires July 21, 2020. It is not available in all countries, so please check eligibility.

  For any LaCie product purchased on or after April 1, 2018 that does not contain the Adobe activation code flyer in the box, please contact Customer Support at https://support2.lacie.com/ with a valid proof of purchase for your code.

  General Features

  • No laptop needed
  • Copy files directly from drones, memory cards, action cams, DSLR cameras, phones, USB hard drives, USB flash drives, and more
  • Monitor or check file transfer status, available capacity, and battery power using the integrated status screen
  • Review your footage on your mobile phone or tablet. Just attach the cable and view/playback with the DJI BOSS app
  • Manage and organize files too. Rename, file, and delete with the DJI BOSS app.
  • Use as a backup battery pack for USB chargeable devices
  • Drop resistant, splash resistant, and dust resistant
  • 2TB stores over 60 hours of 4K video, based on 1 hour of 4K compressed footage at 30 fps that creates 30GB of data
  • Limited 3-year Rescue Data Recovery Services plan
  • Publish videos and photos with 1-month membership to Adobe Creative Cloud All Apps plan, which is redeemable during product registration. A network connection and an Adobe ID are required
  UPC: 763649123447

• Mavic Pro (Fly More Combo) zqvbvsxzyfquadcuqscazvbfzrzawxqz
• Remote Controller
• 3 x Intelligent Flight Battery for Mavic Quadcopter
• 5 x 8330 Quick Release Folding Propellers for Mavic Drone
• Gimbal Clamp
• Charger
• AC Power Cable for Charger
• 16GB microSD Card
• Micro-USB Cable
• RC Cable for Mavic Controller (Lightning)
• RC Cable for Mavic Controller (Reverse Micro-USB)
• 2 x RC Cable Slider
• Car Charger for Mavic Pro
• Power Bank Adapter for Mavic Intelligent Flight Battery
• Battery Charging Hub for Mavic Pro
• Shoulder Bag for Mavic Pro
• Limited 12-Month Warranty on MC
• Limited 6-Month Warranty on Gimbal Camera
• Limited 6-Month Warranty on Vision Positioning System
• Limited 6-Month Warranty on Propulsion System (Excluding Propellers)
• Limited 12-Month Warranty on Remote Controller
• Limited 6-Month / 200-Cycle Warranty on Battery (Whichever Comes First)
• Limited 6-Month Warranty on Battery Charger

• LaCie - 2TB DJI Copilot BOSS External Hard Drive

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• DJI Mavic Pro (Fly More Combo)

  Maximum Speed	Sport Mode: 40 mph / 65 km/h (no wind)
  Maximum Ascent Speed	Sport Mode: 16.4 ft/second (5 m/second)
  Maximum Descent Speed	Sport Mode: 9.8 ft/second (3 m/second)
  Flight Ceiling	16,404' / 5000 m above sea level
  Flight Time	Up to 27 minutes (no wind at a consistent 15.5 mph / 25 km/h)
  Hover Time	Up to 24 minutes (no wind)
  Flight Distance	Up to 8' / 13 km (no wind)

  GPS Mode	GPS / GLONASS

  Sensor Range	Precision Measurement Range: 2 to 49' / 0.7 to 15 m Detectable Range: 49 to 98' / 15 to 30 m

  Velocity Range	Up to 22.4 mph (36 km/h) at 6.6' (2 m) above ground level
  Altitude Range	1 to 43' / 0.3 to 13 m
  Operating Environment	Surface with clear pattern and adequate lighting (> 15 lux)

  Frequency	2.4 to 2.483 GHz
  Communication Distance	4.3 miles / 7 km (line-of-sight)
  Transmit Power	Up to 26 dBm
  Operating Current	950 mA at 3.7 V
  Battery	Chemistry: Lithium-ion polymer (LiPo) Capacity: 2970 mAh
  Mobile Device Holder	Thickness Supported: 0.24 to 0.33" / 6.5 to 8.5 mm Max Length: 6.3" / 160 mm Supported USB Port Types: Lightning, micro-USB, USB Type-C

  Sensor	Type: 1/2.3" CMOS Effective Pixels: 12.35 million Total Pixels: 12.71 million
  Lens	FOV: 78.8° Focal Length: 28 mm (35 mm format equivalent) Aperture: f/2.2 Distortion: < 1.5% Focus Range: 1.6' (0.5 m) to ∞
  ISO Range	Video: 100 to 3200 Photo: 100 to 1600
  Electronic Shutter Speed	8 second to 1/8000 second
  Photo Resolution	Up to 4000 x 3000 (12 MP)
  Photo Modes	Single shot Burst shooting: 3/5/7 frames Auto Exposure Bracketing (AEB): 3/5 bracketed frames at 0.7 EV bias Interval
  Video Resolutions	DCI 4K (4096 x 2160): 24p UHD 4K (3840 x 2160): 24/25/30p 2.7K (2704 x 1520): 24/25/30p FHD (1920 x 1080): 24/25/30/48/50/60/96p HD (1280 x 720): 24/25/30/48/50/60/120/180p
  File Formats	Video: MPEG-4 AVC/H.264 in MOV wrapper Photo: JPEG, DNG RAW
  Recording Media	60 Mbps
  Recording Media	Type: microSDHC/SDXC card up to 64 GB Format: FAT32 / exFAT Note: Class 10/U1/V10 or faster card required (64 GB maximum size)
  Operating Temperature	32 to 104°F / 0 to 40°C

  Number of Axes	3-axis (pitch, roll, yaw)
  Control Range	Pitch: -90° to +30° Roll: 0° / 90° (horizontally / vertically)

  Chemistry	Lithium-ion polymer (LiPo)
  Capacity	3830 mAh / 43.6 Wh
  Configuration	3 S
  Voltage	11.4 V
  Maximum Charging Power	100 W
  Operating Temperature	41 to 104°F / 5 to 40°C
  Weight	0.5 lb / 240 g

  Output Voltage	13.05 V
  Rated Power	50 W

  Operating Temperature	32 to 104°F / 0 to 40°C
  Weight	Including Battery and Propellers: 1.62 lb / 734 g (excluding gimbal cover) 1.64 lb / 743 g (including gimbal cover)

  Box Dimensions (LxWxH)	12.0 x 10.6 x 10.3"

• LaCie 2TB DJI Copilot BOSS External Hard Drive

  Storage Capacity	2 TB
  Connection Interface	1 x USB 3.1 Gen 2 (USB Type-C) 1 x USB 3.1 Gen 1 (USB Type-A)
  Pre-Format	None

  Internal Interface	SATA (Unspecified)
  Type	Hard Disk Drive
  Form Factor	2.5"

  Bus Power	USB
  Dimensions (L x W x H)	5.4 x 4.4 x 1.4" / 137.2 x 111.8 x 35.6 mm
  Weight	1.2 lb / 0.5 kg

  Box Dimensions (LxWxH)	9.4 x 7.1 x 2.8"
