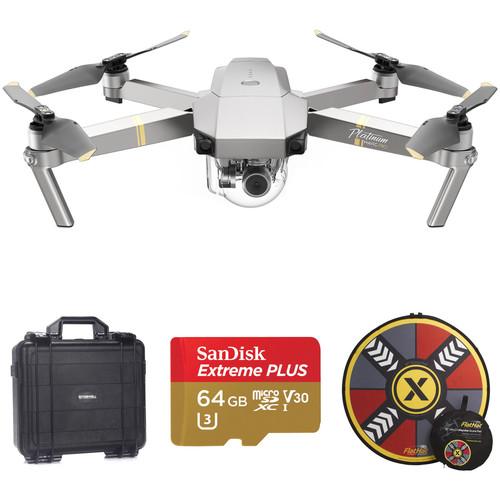

User Manual for DJI Mavic Pro Platinum with Hard Case & Accessories Kit

• Product category: See All Drones DJI
• Brand: DJI
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for DJI See All Drones

Product description

• DJI Mavic Pro Platinum The Mavic Pro Platinum from DJI provides an upgraded motor and propellers that are designed to provide increased performance when compared to the Mavic Pro. The Pro Platinum also packs features once thought possible only on much larger platforms into a compact quadcopter that is snappy, agile, and captures high-resolution images. The drone features an advanced flight control system that draws on a host of sensors including a ground-facing camera, ultrasound, GPS, dual redundant IMUs, and more to keep track of where it is flying in 3D space and even avoid collisions. The Mavic Pro Platinum works in tandem with DJI's GO mobile app for accessing settings, getting a telemetry readout, viewing a low-latency video feed, and even editing and sharing your footage. In addition, traditional joystick style controls, you can fly with simple tap-based commands, and the Mavic Pro Platinum can even recognize gestures for the perfect selfie.

  Platinum Design

  Increased Flight Time
  • Compared to the Mavic Pro, the Pro Platinum features new FOC ESC sinusoidal drivers that are designed to provide improved motor communication and control. The improved motors deliver a maximum flight time of 30 minutes to the Mavic Pro Platinum.
  Noise Reduction
  • Compared to the Mavic Pro, the Pro Platinum includes upgraded 8331 propellers that have been engineered to provide a decrease in noise. The new aerodynamic design, the Pro Platinum's aircraft noise has been reduced by up to 4 dB.

  Long Range Flying

  OcuSync Transmission Technology
  • OcuSync long-range-transmission technology is capable of relaying a signal up to 4.3 miles line-of-sight while supporting 720p HD video (1080p HD transmission in short-range mode). Every time you fly, OcuSync scans a range of available frequencies to find and use the one with the least interference to give you more reliability and control. Tightly integrated with the DJI GO app, OcuSync transfers vital statistics of the Mavic to you in real time, and can also be used to download photos and videos at up to 40 Mbps while flying
  Efficient Design
  • Custom-designed, high-energy-density batteries; an optimized propulsion system; and advanced power management give the Mavic a much longer flight time than many compatible platforms in its size class. This results in flight times of up to 27 minutes under ideal conditions and up to 21 minutes for average flights

  Integrated Camera and Gimbal

  3-Axis Gimbal Stabilizer
  • Using three specially miniaturized brushless motors and advanced algorithms, the camera moves in the opposite direction to the Mavic, cancelling out unwanted movement for the smoothest possible video
  DCI & UHD 4K and Full HD Video
  • The Mavic Pro camera shoots 4K video (up to 4096 x 2160) at 30 frames per second and Full HD 1080p at 96 frames per second, so you can create incredible slow motion. Its minimum focusing distance is just 19", making it perfect for everything from the ultimate aerial selfies to landscape shots
  ActiveTrack Subject Tracking Modes
  • With ActiveTrack, just tell the Mavic who to track and it handles the rest. No GPS bracelets or transmitters are required. The Mavic has been trained to detect and recognize a number of common subjects including people, bike riders, vehicles, and even animals. Once you have marked your subject, you can fly around them to create a huge variety of shots, depending on the mode you are in. As the Mavic is tracking, you can even select exactly where you want the subject in the frame

    Three modes are available:

    Trace - Follow behind or in front of your subject, or circle it as it moves
    Profile - Fly alongside your subject
    Spotlight - Keep the camera trained on your subject while you fly almost anywhere
  12MP Raw/JPEG Still Photos
  • Every photo you take with the Mavic can be as big as 12 megapixels, with the ability to save in DNG raw or JPEG. You can even flip the camera 90-degrees for portrait oriented shots, just like you do with your phone
  Selfie Mode with Gestures
  • Put away your controller and phone to get that perfect, natural selfie. All you need to do is put the Mavic in Gesture Mode and walk in front of it. The Mavic will automatically detect you. Raise your arms or wave to it to make it follow you, and when you're ready for your photo, make a box shape with your fingers. The lights under the Mavic's front arms will start to flash, and you will have three seconds to strike your pose before it takes a photo
  Tripod Mode
  • Tripod Mode caps the Mavic's maximum speed at just 2.2 mph, while the control stick sensitivity of the remote controller is dulled to give you the precision you need for accurate framing. It is also great for flying indoors or other small spaces where the Mavic's normal speed may make it more challenging to fly

  Flight Control System

  FlightAutonomy
  • FlightAutonomy is the Mavic's brain and nervous system: a complex network of hardware and software that includes five cameras, GPS/GLONASS, a pair of ultrasonic range finders, redundant sensors, and a group of 24 CPUs to process and fuse all of this information
  Navigation System
  • The Mavic is able to position itself accurately in a range of environments, beyond what is possible using basic "optical flow" technology, which depends on a single downward-facing camera and assumes that the ground below is always flat. Mavic is able to sense its environment in 3-dimensions and react to it, ensuring it hovers steadily, whether it is high up on the side of a cliff where downward sensors have no target, or under a forest canopy where satellite positioning is blocked and the ground is covered in uneven markings and obstacles
  Precision Landing
  • Precision Landing technology means the Mavic is able to automatically land almost exactly where you took off. Every time you take off, the two downward-facing vision sensors record a burst of video of the ground pair it with satellite coordinates. When you tell the Mavic to fly home, it will return to that coordinate, match the video, and land back at your feet
  Collision Avoidance
  • As the Mavic flies, it scans the world around it, creating a 3D map that tells it exactly where it can fly and what it needs to avoid. Because it uses vision processing, it can see up to 98' in front and can accurately measure distance up to 49' in front, making it significantly more accurate than sonar based avoidance technologies. When the Mavic detects an obstacle and sees a way around it, it will simply adjust its route to fly around it. If it can't see a way around, it will slow to a stop gently and hover until you tell it what to do next.

    This obstacle avoidance system is activated in every Intelligent Flight Mode, including all ActiveTrack modes, TapFly, and Terrain Follow. If you use Automatic Return to Home, it switches on too, so that as the Mavic makes its way back to you, it won't bump into anything in its path. Avoidance is effective when flying at speeds up to 22 mph
  Sport Mode
  • Sport Mode was designed for fun, giving the Mavic a top speed of 40 mph, all the while ramping up agility and responsiveness, to give you a taste of drone racing. You can also use it to film something fast, or zip out to catch a shot before the moment passes. Even in Sport Mode, the Mavic will stop immediately if you let go of the controls
  Dual-Sensor Redundancy
  • In flight, the Mavic uses its compass to tell it where it is heading and the Inertial Measurement Unit (IMU) to tell it how it is flying. An interruption in the data flow from either of these may cause it to fly less reliably, which is why the Mavic has not one, but two of each. Whenever the system detects an inconsistency in one, it switches to the other, keeping your flight steady and reliable
  Terrain Follow
  • When you are flying over changing terrain, like following bikers riding uphill, the Mavic's Terrain Follow function uses height information gathered by the on-board ultrasonic system, and its downward-facing cameras to keep you flying at the same height above the ground even as the ground moves. Just set the height from the ground you want - from 9 to 33' - and focus on getting the right shot

  DJI GO Mobile App

  • DJI GO is your Mavic's control center. When your phone or device is connected to the Mavic, it shows you everything the camera sees in near real-time, so you can set up and frame every shot as if you are actually there. It also gives you full manual camera controls for photos and videos, including ISO, shutter, and file format. It even lets you fine-tune your Mavic so that it flies exactly how you want it to
  Fly-by-Phone
  • Sometimes a phone is all you need to fly. Not only does the Mavic support flying on your phone with virtual joysticks, but you also have full access to all of its Intelligent Flight Modes: TapFly, Trace, Spotlight, Profile, and Circle
  Tap Flying
  • When you tap on your phone's screen, software translates your touch into a heading, including whether you want it to climb or descend. When you want to change direction, just tap somewhere else on your screen and the Mavic will smoothly turn to the new destination
  Shoot. Edit. Share.
  • Automatic video editing templates, simple video editing functions, and easy photo and video management bring together the tools you need to make epic videos right in your phone. All you need to do is choose the shots you think will amaze, which you can then share straight to Facebook, YouTube, Twitter, Instagram, and more, as well as SkyPixel, DJI's own community dedicated to aerial imaging

  DJI Goggle Compatibility

  • The separately available DJI Goggle are FPV goggles designed to make flying totally immersive. The feature two 1080p LTPS displays with a wide 85° angle of view to give you a bird's eye view of the world around you. Built-in OcuSync connectivity means that it links directly to the Mavic and not through a cable or a Wi-Fi link to the controller. This seamless connection yields a delay of only 120 milliseconds

  Intelligent Flight Batteries

  • The Intelligent Flight Battery has its own integrated battery-management system that takes into account everything from remaining voltage, amount of power being used, temperature, and more to calculate remaining flight times, so you always know when to head home. It also has a host of protection mechanisms in place to prevent overcharging and over draining, both of which can damage a LiPo battery permanently. When placed in longer term storage, LiPo batteries should only be kept at 50% charge. Any more or less could cause permanent damage. If left unused, DJI Intelligent Flight Batteries will discharge power until 50% to maintain good health
  • If you live in a cold place or plan to fly on a winter break, low-temperature protection will activate. This controls available propulsion power based on the temperature of the battery, so that only a fully-warmed-up battery can offer full power
  UPC: 190021298941
• Freewell Hard Case for DJI Mavic Quadcopter and Accessories This Hard Case from Freewell is a ruggedized carrying case designed to store your Mavic quadcopter and accessories. The exterior of the case is made of durable composite injection plastic, while the interior features tri-layer foam cushioning that protects against impacts, drops, and bumps. A built-in carrying handle makes the case well-suited for travel.
  The Hard Case Accommodates:
  • 1 x Mavic quadcopter
  • 1 x Power supply
  • 4 x Propellers
  • 1 x USB cable
  • 2 x Flight batteries
  • 1 x Radio controller
  UPC: 691054645776
• FlatHat FlatHat Collapsible Drone Pad (32") The 32" (12" collapsed) FlatHat Collapsible Drone Pad from ExpoImaging is a portable landing surface for your drone. The pad provides a target to help making landing easier and protects from debris being blown into the camera or gimbal. A carrying case is included.
  Additional Features
  • • Improve landing skills: learn to land safely and accurately
    • Helps protect drone sensors and camera from rotor wash debris
    • Provides easy-to-see landing target and "return-home" location
    • Makes small drones on the ground easier to see
    • Made with heavy-duty fabric
    • Weighs just 13 oz
    • 12" carrying case included
  UPC: 751751050003

• Mavic Pro Platinum fuqqbyetvuvvbdyzsdtcaxreevdb
• Remote Controller
• Intelligent Flight Battery for Mavic Quadcopter
• 3 x Low-Noise, Quick Release Propellers for Mavic-Series Quadcopters (Golden, 1 Pair)
• Gimbal Clamp
• Charger
• AC Power Cable for Charger
• 16GB microSD Card
• Micro-USB Cable
• RC Cable for Mavic Controller (Lightning)
• RC Cable for Mavic Controller (Reverse Micro-USB)
• 2 x RC Cable Slider
• Limited 12-Month Warranty on MC
• Limited 6-Month Warranty on Gimbal Camera
• Limited 6-Month Warranty on Vision Positioning System
• Limited 6-Month Warranty on Propulsion System (Excluding Propellers)
• Limited 12-Month Warranty on Remote Controller
• Limited 6-Month / 200-Cycle Warranty on Battery (Whichever Comes First)
• Limited 6-Month Warranty on Battery Charger

• Freewell - Hard Case for DJI Mavic Quadcopter and Accessories fuqqbyetvuvvbdyzsdtcaxreevdb

• FlatHat - FlatHat Collapsible Drone Pad (32")

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• DJI Mavic Pro Platinum

  Maximum Horizontal Speed	40 mph / 65 km/h (Sport)
  Maximum Ascent Speed	16.4 ft/s / 5 m/s
  Maximum Descent Speed	9.8 ft/s / 3 m/s
  Flight Ceiling	16,404' / 4999 m
  Maximum Flight Time	30 Minutes
  Maximum Hover Time	27 Minutes
  Hovering Accuracy	±0.33' / 0.1 m Vertical with Vision Positioning ±0.98' / 0.3 m Horizontal with Vision Positioning

  GNSS Support	GPS, GLONASS

  Vision System	Downward, Forward
  Velocity Range	22.4 mph / 36 km/h at 6.6' / 2 m
  Maximum Altitude	43' / 13 m
  Operating Range	1.0 to 43.0' / 0.3 to 13.1 m
  Obstacle Sensory Range	2.0 to 98.0' / 0.6 to 29.9 m
  Operating Environment	Surface with Clear Patterns at >15 lux

  Operating Frequency	2.4 GHz (2.4 - 2.483)
  Maximum Operating Distance	262.47' / 80 m at 5.8 G
  Transmitter Power	26 dBm (2.4 G)
  Connectivity	1 x Micro-HDMI 1 x USB Type-C 1 x Lightning
  Battery Type	1 x Built-In
  Battery Chemistry	Lithium-Ion
  Battery Capacity	2970 mAh
  App Operating System Requirements	Android iOS 9.0 and later
  Operating Temperature	32 to 104°F / 0 to 40°C

  Sensor	1/2.3" CMOS
  Effective Pixels	12 MP
  Lens Field of View	78.8°
  Aperture	f/2.2
  Photo ISO Range	100 - 1600 (Auto)
  Video ISO Range	100 - 3200 (Auto)
  Electronic Shutter Speed	8 - 1/8000 Second
  Photo Resolution	4:3: 4000 x 3000
  Photo Format	JPEG, DNG
  Video Format	1280 x 720p at 24/25/30/48/50/60/96/120 fps 1920 x 1080p at 24/25/30/48/50/60 fps 2720 x 1530p at 24/25/30 fps 3840 x 2160p at 24/25/30 fps 4096 x 2160p at 24 fps
  Recording Media	microSD (Up to 128 GB)
  Photo Modes	Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot
  Operating Temperature	32 to 104°F / 0 to 40°C

  Number of Axes	3 (Pitch, Roll, Yaw)
  Control Range	Pitch: -90 to 30° Roll: 0 to 90°

  Battery Chemistry	Lithium-Ion Polymer (LiPo)
  Capacity	3830 mAh / 43.6 Wh
  Battery Configuration	3 S / 11.4 V
  Weight	8.47 oz / 240 g

  Output Voltage	13 V
  Power Rating	50 W

  Number of Rotors	4
  Operating Temperature	32 to 104°F / 0 to 40°C
  Diagonal Size	1.1' / 335 mm
  Weight	1.64 lb / 0.74 kg (Including Propellers, Battery, Gimbal, Camera)

  Box Dimensions (LxWxH)	9.8 x 9.7 x 4.4"

• Freewell Hard Case for DJI Mavic Quadcopter and Accessories

  Compatibility	DJI Mavic quadcopter and accessories
  Dimensions	13.4 x 12.2 x 4.7" (34 x 31 x 12 cm)
  Weight	5.0 lb (2.26 kg)

  Box Dimensions (LxWxH)	13.5 x 12.6 x 5.3"

• FlatHat FlatHat Collapsible Drone Pad (32")

  Diameter	Expanded: 32" / 81.3 cm Collapsed: 12" / 30.5 cm
  Weight	13 oz / 370 g

  Box Dimensions (LxWxH)	12.3 x 10.6 x 2.4"
