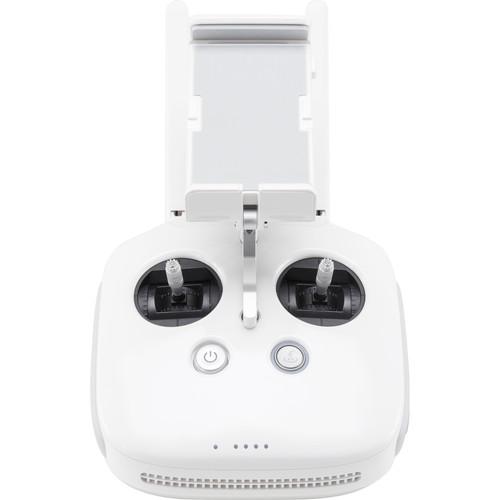

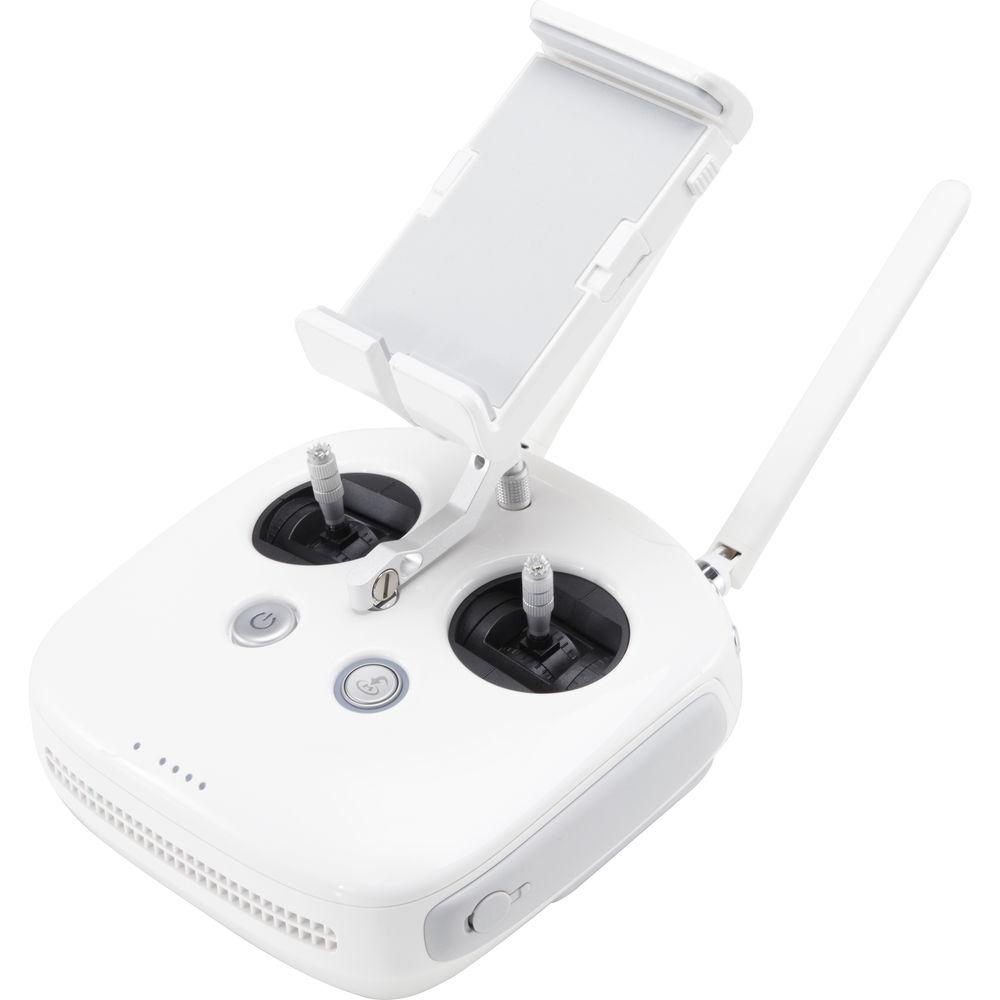

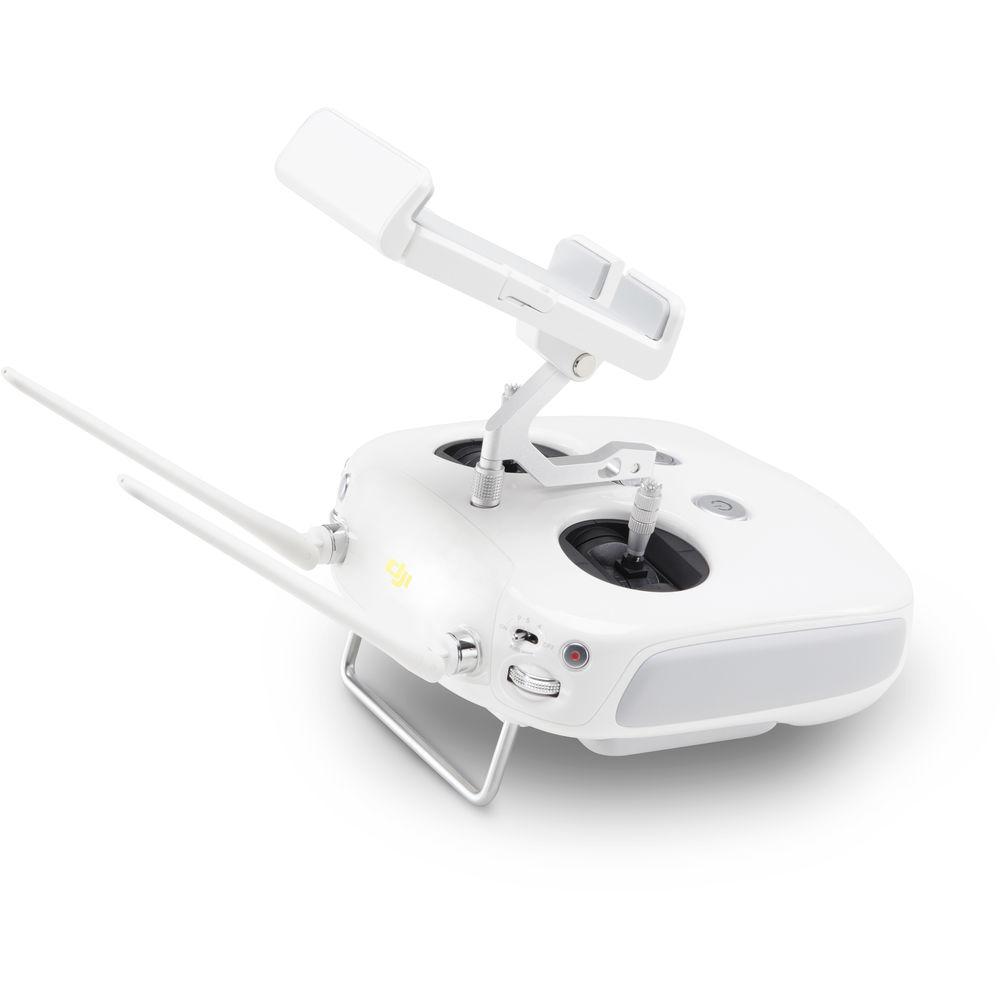

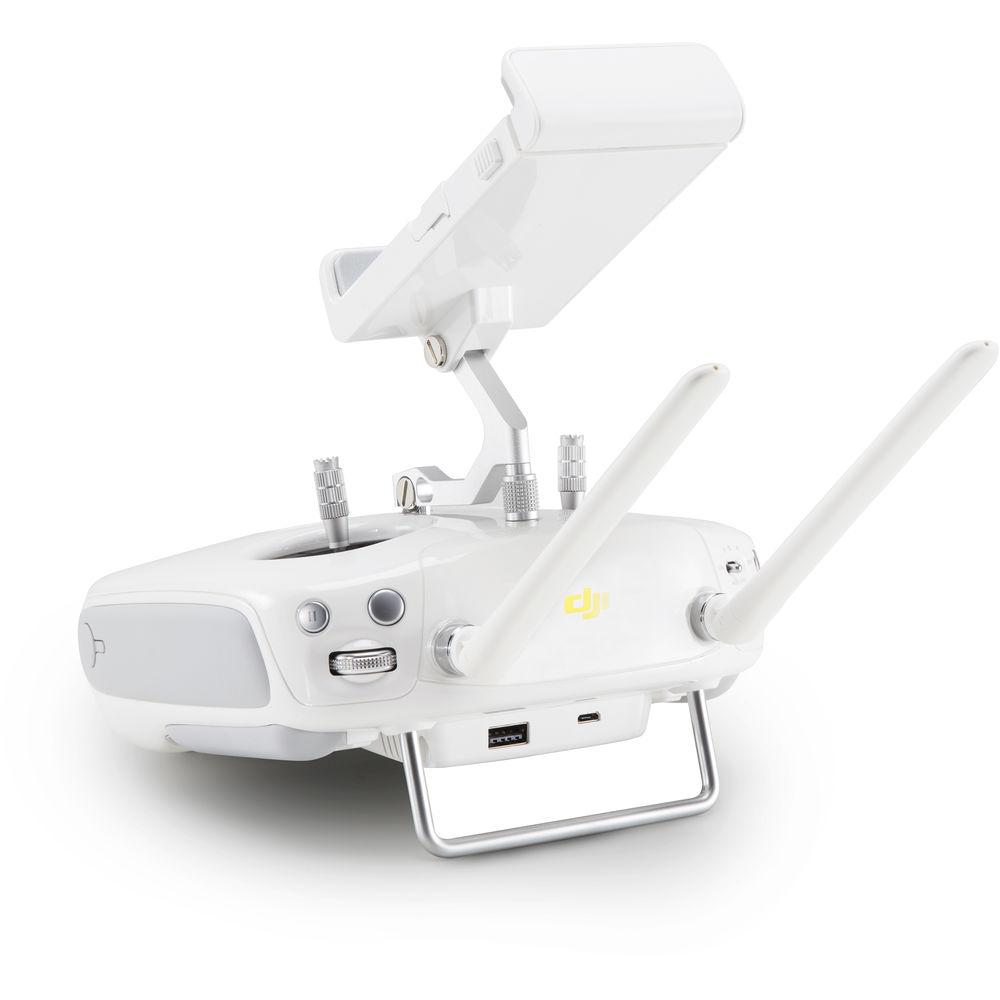

User Manual for DJI OcuSync Remote Controller for Phantom 4 Pro v2.0 Click to enlarge the picture
Contents of the user manual for the DJI OcuSync Remote Controller for Phantom
- Product category: DJI Accessories DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI DJI Accessories
 |
User manual for the DJI OcuSync Remote Controller for Phantom contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|
Product description Take control of your quadcopter with this OcuSync Remote Controller for Phantom 4 Pro v2.0 from DJI. This controller is specifically designed to support OcuSync video transmission technology which is compatible with Phantom 4 Pro v2.0 quadcopters. When the controller is turned on, the OcuSync system scans both 2.4 and 5.8 GHz frequencies to find the one with the lowest interference, then automatically switches accordingly to the fastest one. With support for dual-frequency transmission, the maximum operational range is up to 4.35 miles. - Built-In Smartphone/Tablet Bracket
- Enjoy streaming FPV video from your drone on a display of your choosing. The bracket built into the controller works with both smartphones and tablets that are utilizing the DJI GO app for iOS and Android. With the app, you can use the touchscreen to gain more control over the Phantom and the footage it captures.
- 2 Controllers or Controller + Goggles
- Utilizing OcuSync technology, this controller can link up with a second controller or a pair of DJI Goggles for additional functionality. When connected to DJI Goggles, you can wirelessly transmit video from the drone at up to 45 mph in S-mode.
- Additional Features
- Built-in loudspeaker
Built-in microphone
Wi-Fi connectivity UPC: 190021311138 In the Box DJI OcuSync Remote Controller for Phantom 4 Pro v2.0 Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI OcuSync Remote Controller for Phantom 4 Pro v2.0 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.PT.00000254.01 Specs | Operating Frequency | 2.400 to 2.483 GHz and 5.725 to 5.850 GHz | | Maximum Transmission Distance | 2.400 to 2.483 GHz (Unobstructed, Free of Interference)
FCC: 4.3 miles / 7 km
CE: 2.5 miles / 4 km
SRRC: 2.5 miles / 4 km
5.725 to 5.850 GHz (Unobstructed, Free of Interference)
FCC: 4.3 miles / 7 km
CE: 1.2 miles / 2 km
SRRC: 3.1 miles / 5 km | | Operating Temperature Range | 32 to 104°F / 0 to 40°C | | Battery | 2S / 6000 mAh Lithium-Ion Polymer (LiPo) | | Transmission Power | 2.400 to 2.483 GHz (EIRP)
FCC: 26 dBm
CE: 20 dBm
SRRC: 20 dBm
MIC: 17 dBm
5.725 to 5.850 GHz (EIRP)
FCC: 26 dBm
CE: 14 dBm
SRRC: 20 dBm | | Operating Current | 1.2 A at 7.4 VDC | | Output Port | USB | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 10.8 x 8.5 x 7.2" |
