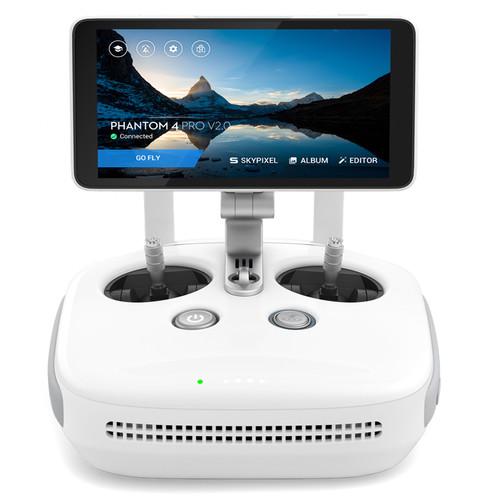

User Manual for DJI OcuSync Remote Controller with HD Display for Phantom 4 Pro Pro V2.0 Click to enlarge the picture
Contents of the user manual for the DJI OcuSync Remote Controller with HD
- Product category: DJI Accessories DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI DJI Accessories
|
User manual for the DJI OcuSync Remote Controller with HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|
Product description Take control of your quadcopter with this OcuSync Remote Controller with HD Display for Phantom 4 Pro/Pro+ V2.0 from DJI. This controller is specifically designed to support the OcuSync video transmission technology compatible with Phantom 4 Pro and Pro+ V2.0 quadcopters. When the controller is turned on, the OcuSync system scans both 2.4 and 5.8 GHz frequencies to find the one with the lowest interference, then automatically switches accordingly to the fastest one. With support for dual-frequency transmission, the maximum operational range is up to 4.35 miles. - Built-In 5.5" 1080p Display
- With this controller you can continue to use your smartphone or tablet like normal because this remote features a built-in 5.5" touchscreen display of its own. Your FPV video stream will be displayed in Full HD 1080p resolution via the preloaded DJI GO 4 app, which lets you gain more control over the Phantom and the footage it captures.
There are also popular social media apps installed so you can share your flight with the world. Additional apps can be installed, but that may require a firmware upgrade. You can also control the 5.5" display's brightness automatically or manually to better see what's happening during your flight. - Two Controllers or Controller + Goggles
- Utilizing OcuSync technology, this controller can link up with a second controller or a pair of DJI Goggles for additional functionality. When connected to DJI Goggles, you can wirelessly transmit video from the drone at up to 45 mph in S-mode.
- Additional Features
- Built-in loudspeaker
Built-in microphone
Wi-Fi connectivity UPC: 190021311145 In the Box DJI OcuSync Remote Controller with HD Display for Phantom 4 Pro/Pro+ V2.0 Limited 6-Month Warranty on Screen Limited 1-Year Warranty on Controller Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI OcuSync Remote Controller with HD Display for Phantom 4 Pro Pro V2.0 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.PT.00000253.01 Specs | Display | 5.5" screen
Resolution: 1920 x 1080
Brightness: 1000 cd/m2
OS: Android
Memory: 4 GB RAM and 16 GB ROM | | Operating Frequency | 2.400 to 2.483 GHz and 5.725 to 5.850 GHz | | Maximum Transmission Distance | 2.400 to 2.483 GHz (Unobstructed, No Interference)
FCC: 4.3 miles / 7 km
CE: 2.5 miles / 4 km
SRRC: 2.5 miles / 4 km
5.725 to 5.850 GHz (Unobstructed, No Interference)
FCC: 4.3 miles / 7 km
CE: 1.2 miles / 2 km
SRRC: 3.1 miles / 5 km | | Operating Temperature Range | 32 to 104°F / 0 to 40°C | | Battery | 2S / 6000 mAh Lithium-ion polymer (LiPo) | | Transmission Power | 2.400 to 2.483 GHz (EIRP)
FCC: 26 dBm
CE: 20 dBm
SRRC: 20 dBm
MIC: 17 dBm
5.725 to 5.850 GHz (EIRP)
FCC: 26 dBm
CE: 14 dBm
SRRC: 20 dBm | | Operating Current | 1.2 A at 7.4 VDC | | Output Port | HDMI | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 8.6 x 7.5 x 6.0" |
