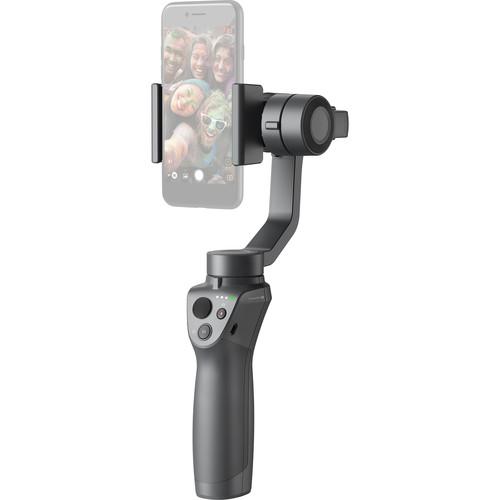

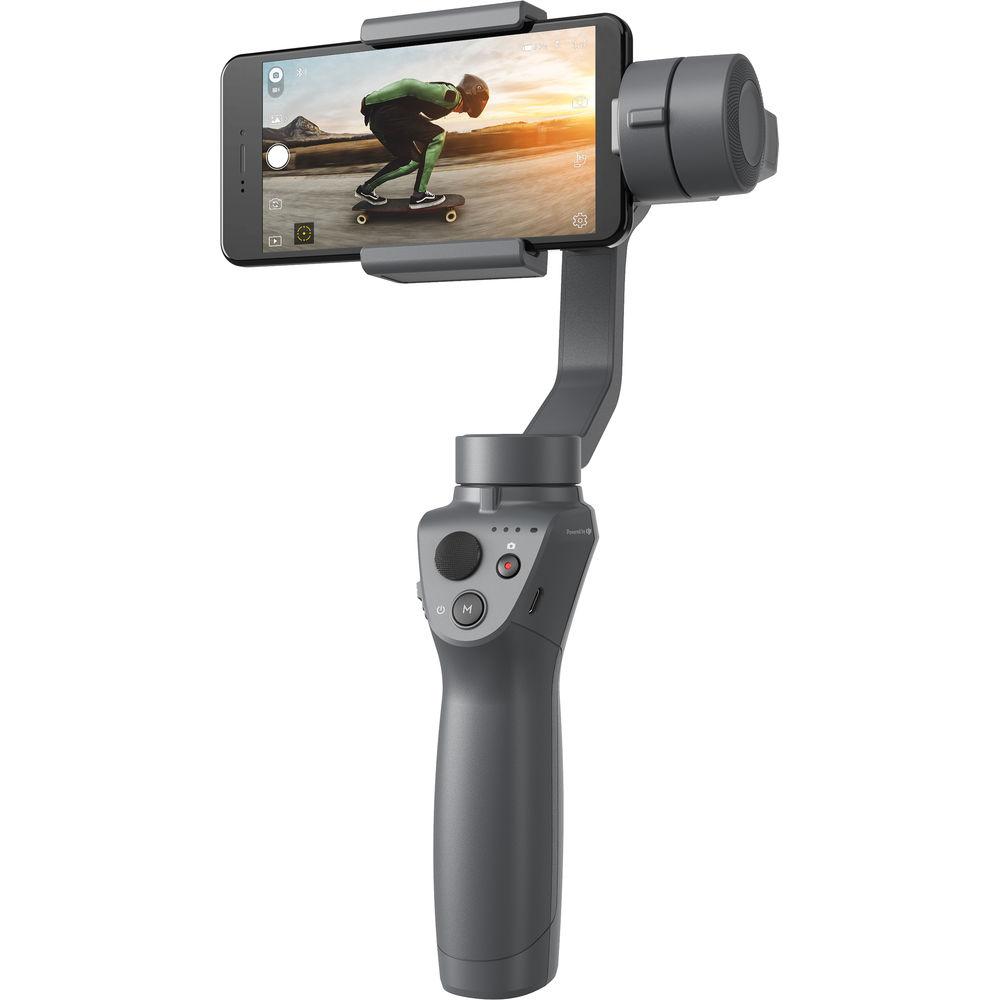

User Manual for DJI Osmo Mobile 2 Smartphone Gimbal Click to enlarge the picture
Contents of the user manual for the DJI Osmo Mobile 2 Smartphone Gimbal
- Product category: See All Gimbal Stabilizers DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI See All Gimbal Stabilizers
 |
User manual for the DJI Osmo Mobile 2 Smartphone Gimbal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|

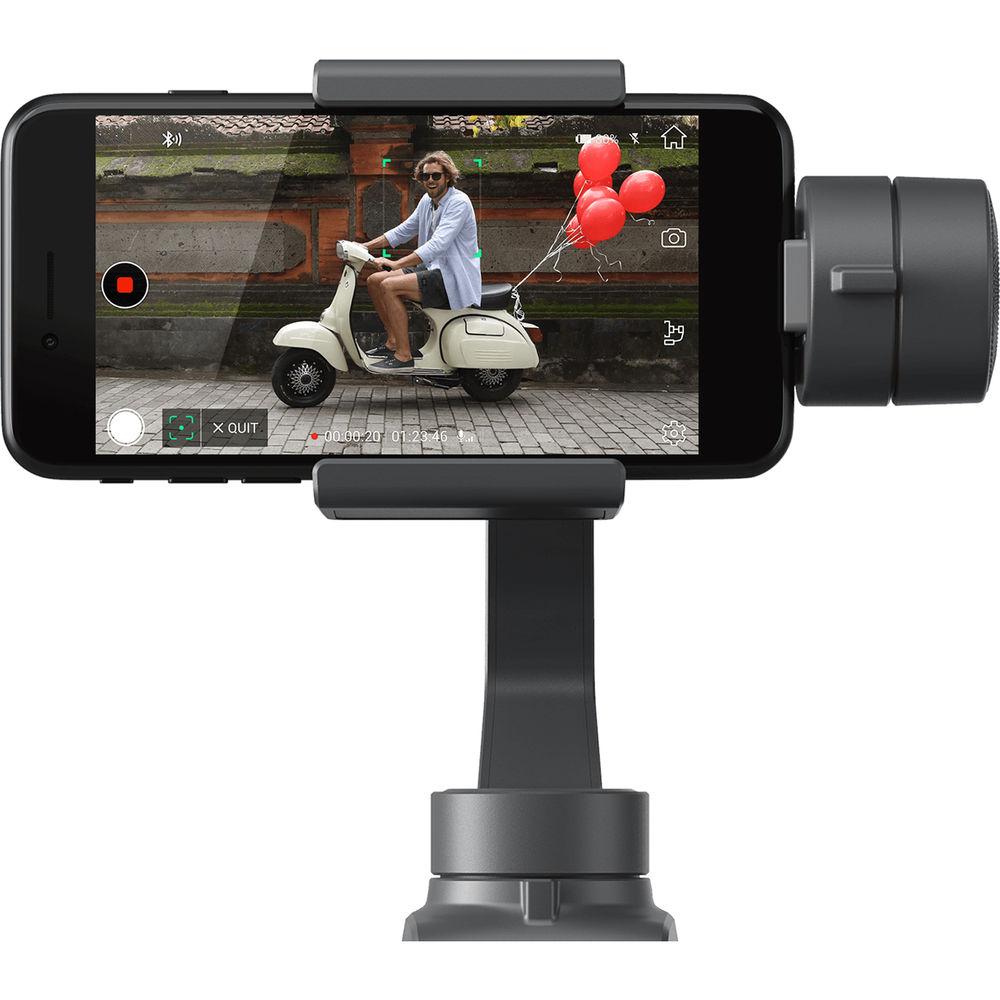

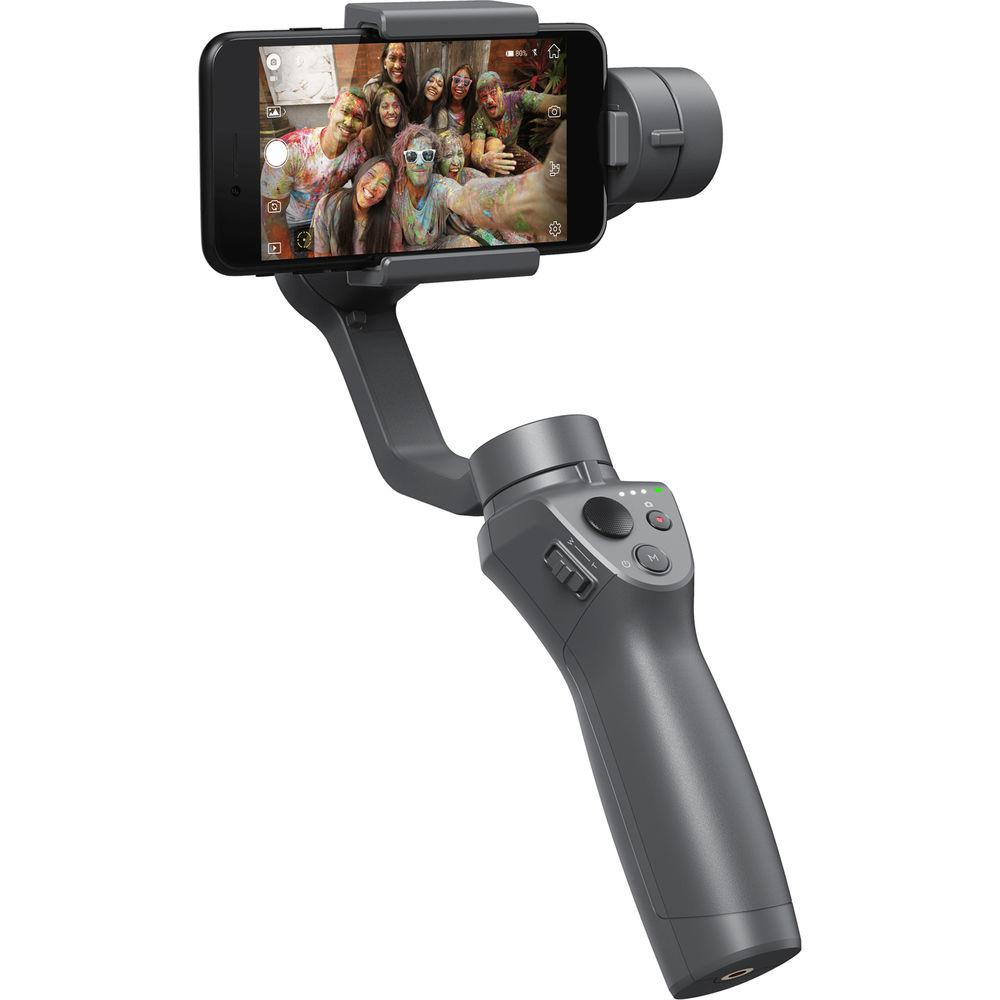

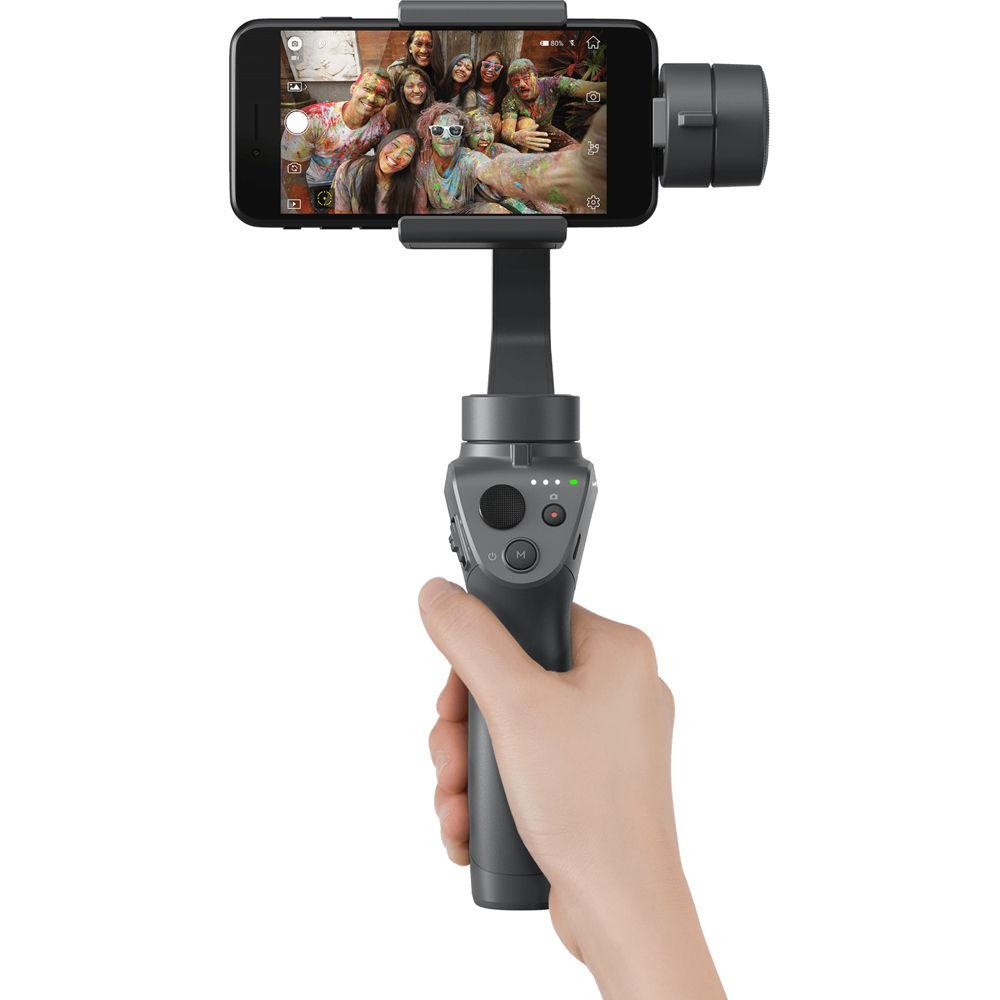

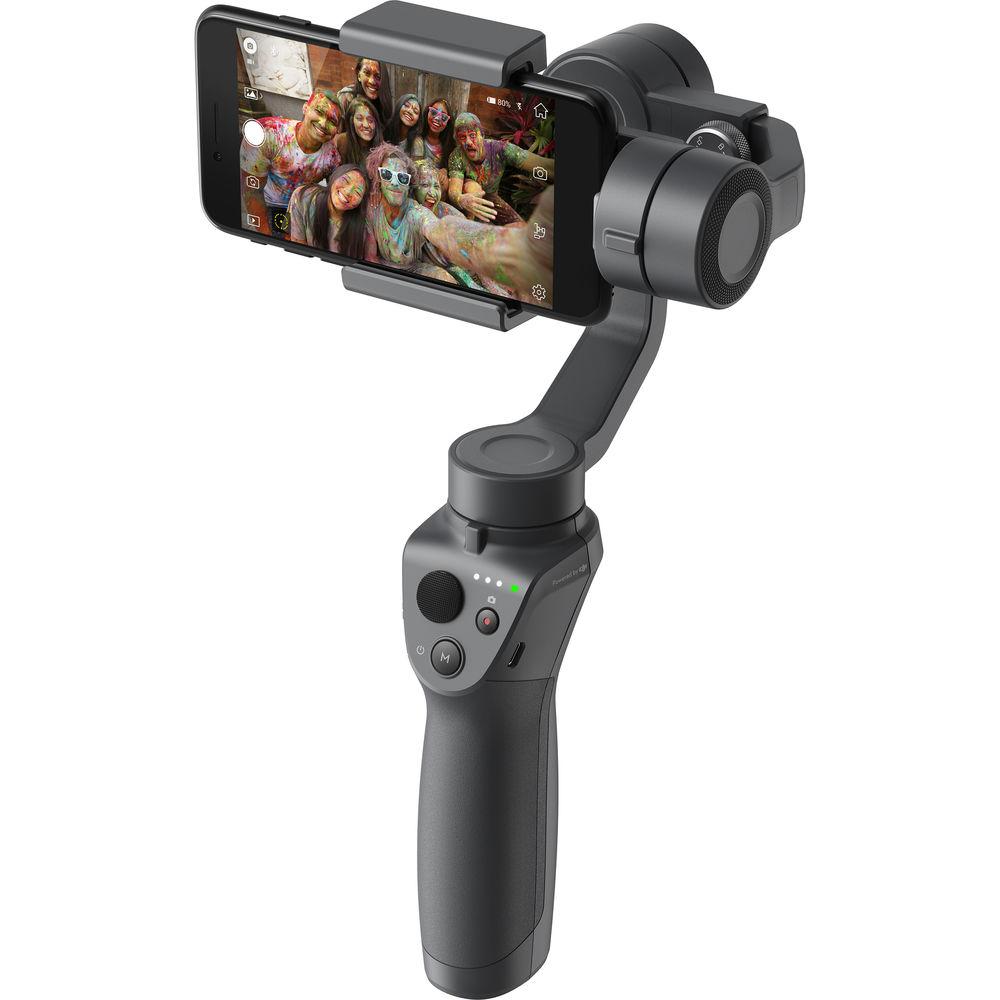

Product description CES 2018: DJI Unveils Osmo Mobile 2 with 15-Hour Run Time Read More - Osmo Mobile 2 Product Intro Video
The DJI Osmo Mobile 2 carries over most of the features from the original version and offers several key improvements. It's a bit lighter. The motion ranges are expanded. And run-time is tripled to approximately 15 hours!
Mount any smartphone up to 3.3" wide and capture smooth footage in handheld operation. The Osmo Mobile 2 syncs up with an included DJI GO app to provide you with a comprehensive workflow consisting of multiple shooting modes and functions, including Portrait, Underslung, Flashlight, Time-Lapse, and Panorama. - Key Features
-
- Supports up to 3.3" wide smartphones
- Controllable Range: ±160° pan / ±155° tilt (horizontally mounted)
- Mechanical Range: ±170° pan / -90 to 70° roll / ±170° tilt
- Controllable Speed: 120°/s max
- Battery: Up to 15-hour run-time / 18Wh capacity, 2600mAh
- 1/4"-20 tripod mount
- DJI GO App
-
- ActiveTrack technology built into the app allows the Osmo Mobile 2 to automatically keep your phone facing you as you move
- Modes/Functions: Standard, Portrait, Underslung, Flashlight, Time-Lapse (on the move), Panorama
- Live stream moments using YouTube Live
- Take one-second long exposures to produce light trails, star trails, and dramatically blurred cars without a tripod
UPC: 190021308411 In the Box DJI Osmo Mobile 2 Smartphone Gimbal Charging Cable Limited 1-Year Warranty (6-Months for Battery) User Manual PDF 3.6mb More info from DJI Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Osmo Mobile 2 Smartphone Gimbal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI Osmo Mobile 2 Specs | | | Controllable Range | Pan: ±160°
Tilt: ±155° (horizontally mounted) | | Mechanical Range | Pan: ±170°
Roll: -90 to 70°
Tilt: ±170° | | Controllable Speed | 120°/s | | Power Consumption | 1.2 W (when balanced and static) | | | | Model | 2ICR19/66 | | Type | 18650 lithium-ion | | Capacity | 18 Wh | | mAh | 2600 mAh | | Voltage | 7.2 V | | Typical Run-Time | 15 hours (when balanced) | | Charging Time | 2 hours | | Charging Temperature | 41 to 104°F / 5 to 40°C | | Operating Temperature | 32 to 113°F / 0 to 45°C | | | | Compatibility | Physical: 2.3 - 3.3" / 58.6 - 85 mm
iOS: 10.0 or later
Android: 4.4 or later | | Wireless Mode | Bluetooth 4.0 LE | | Mount Type | 1/4"-20 tripod mount | | Dimensions | 1.2 x 4.3 x 2.8" / 3 x 11 x 7.2 cm | | Weight | 1 lb / 485 g (including battery) | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 13.4 x 6.2 x 3.0" |
Rating74% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
