User Manual for DJI Osmo Pocket Gimbal Click to enlarge the picture
Contents of the user manual for the DJI Osmo Pocket Gimbal
- Product category: Sports & Action Cameras DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI Sports & Action Cameras
 |
User manual for the DJI Osmo Pocket Gimbal contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|
Product description DJI Unveils the Osmo Pocket Read More - DJI Osmo Pocket - Hands-On Review
- DJI - Meet Osmo Pocket

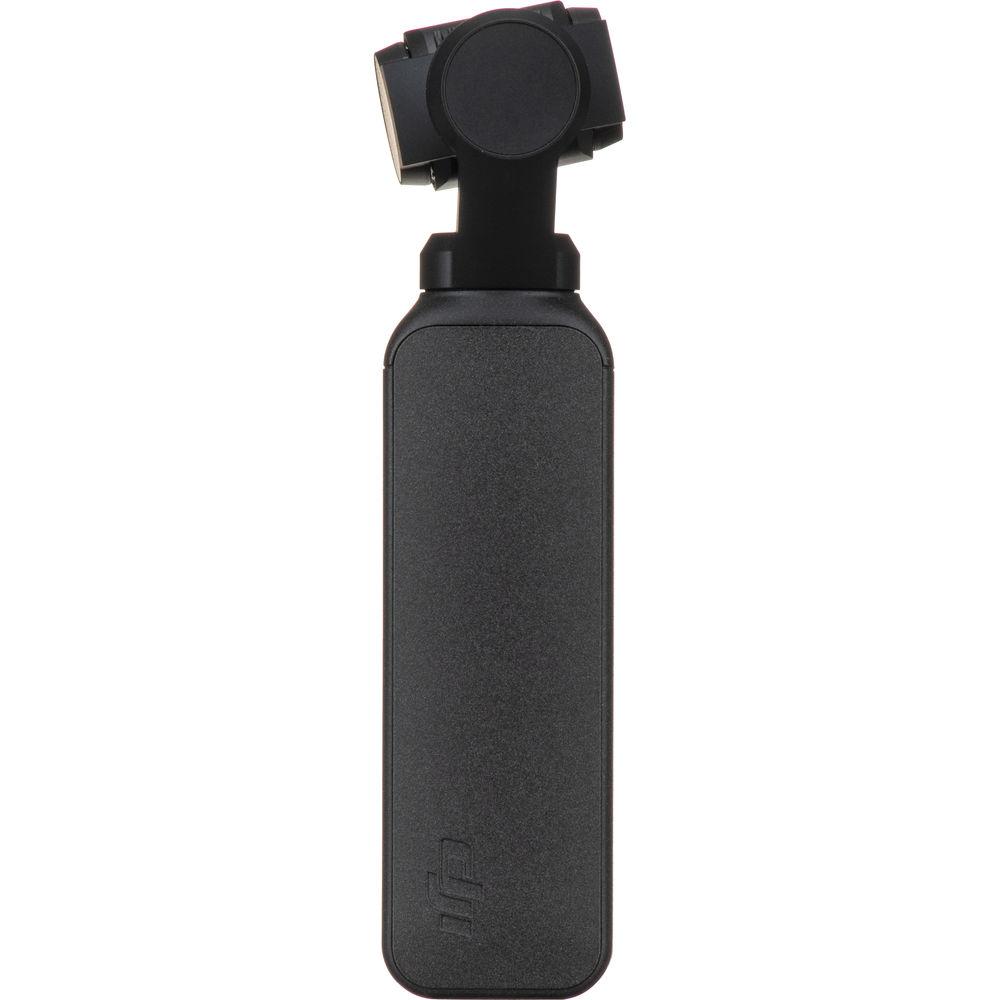

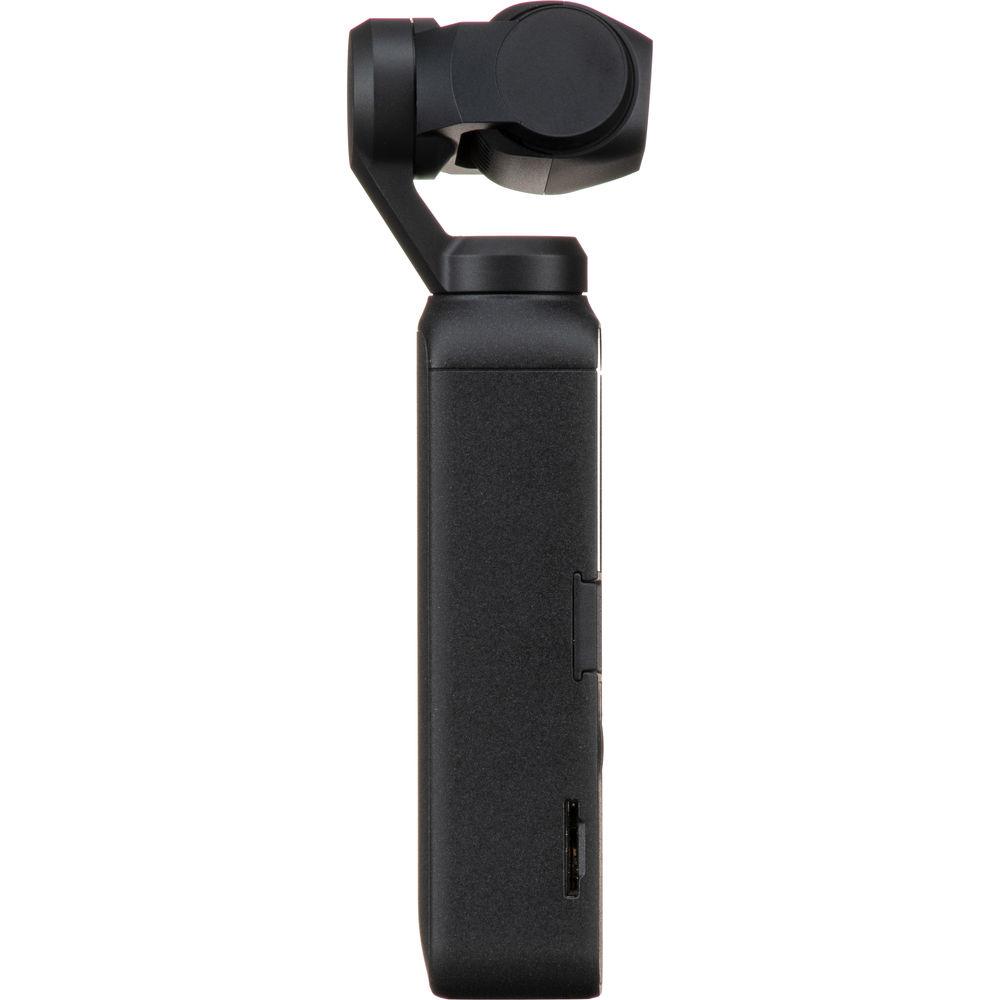

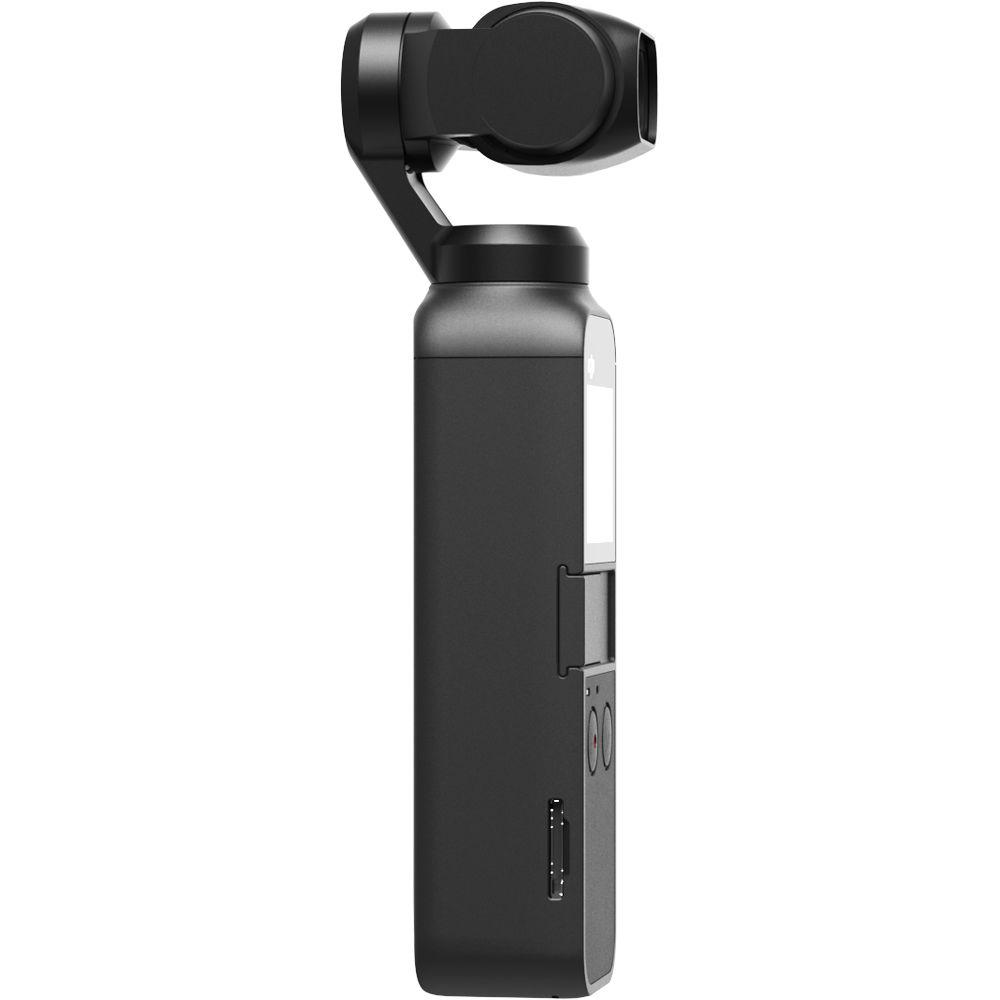

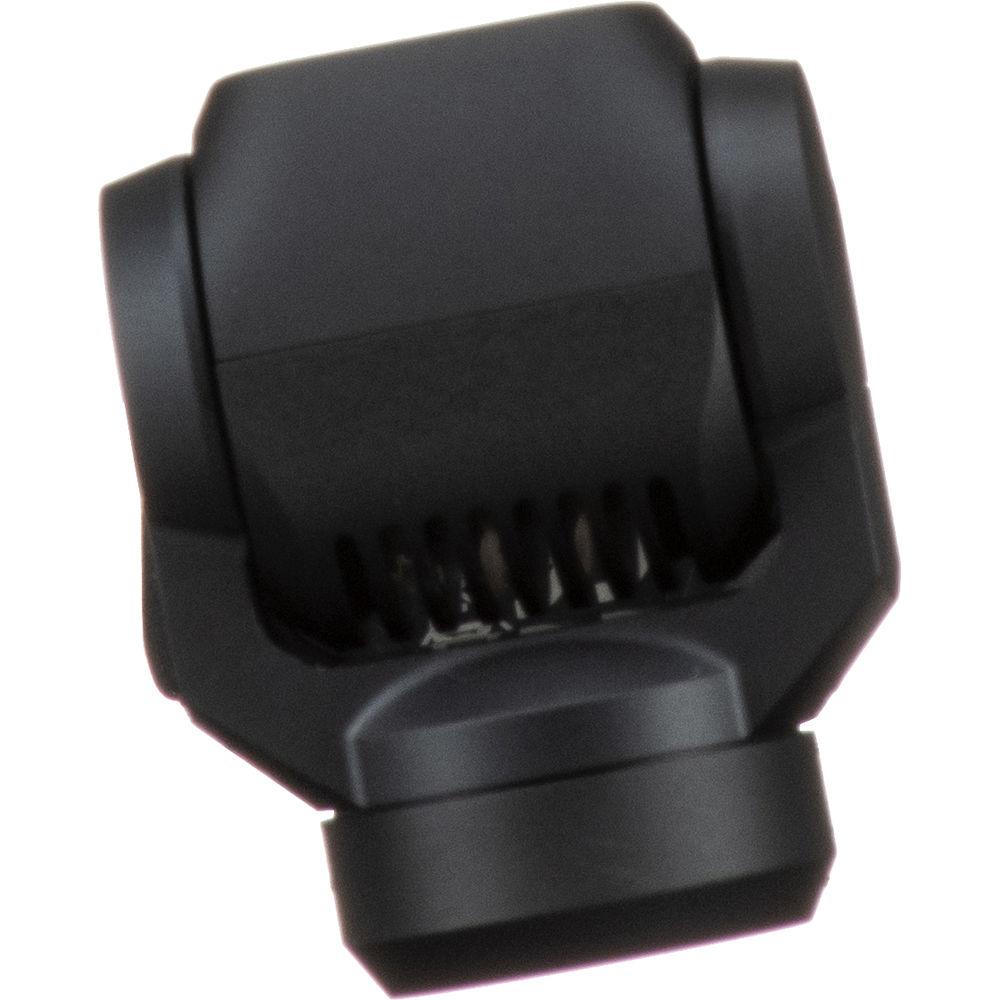

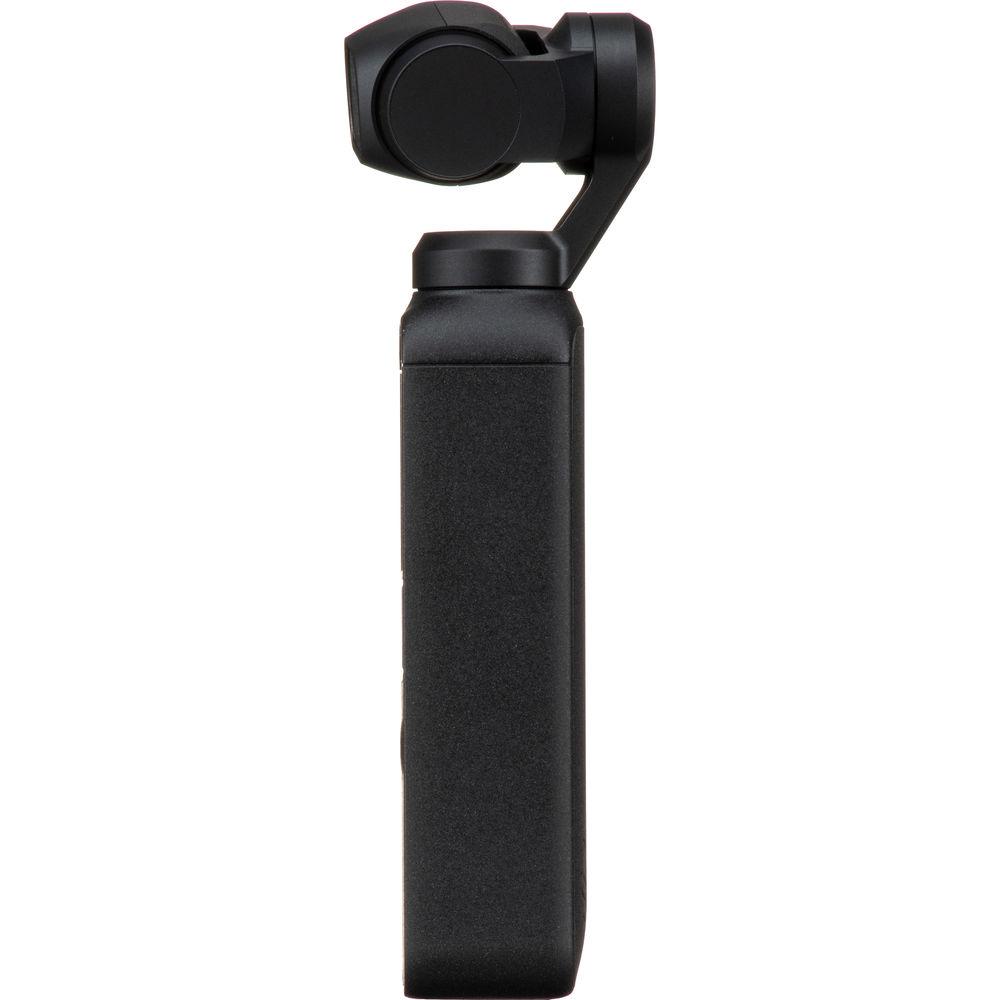

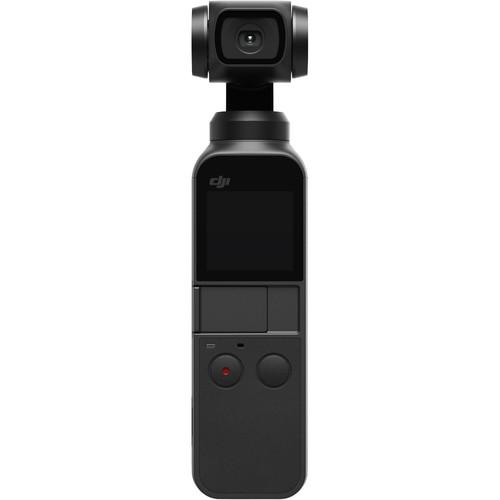

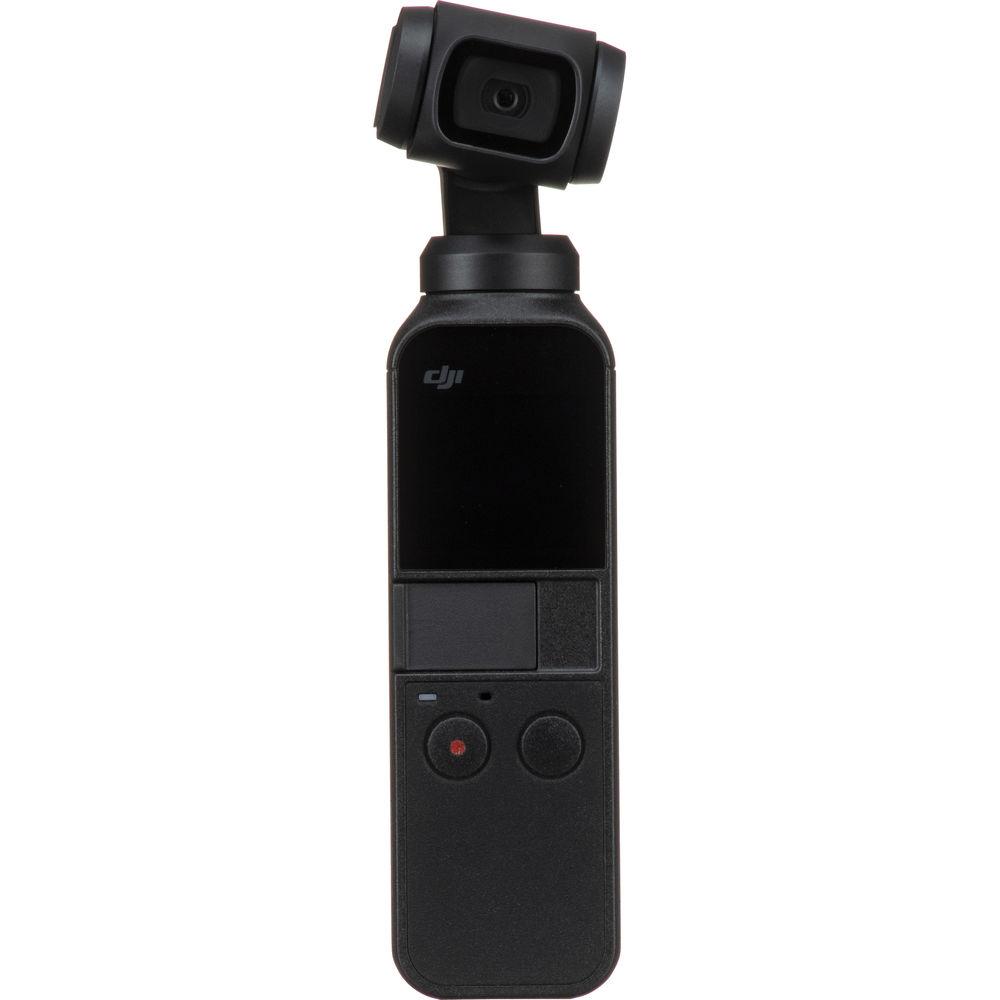

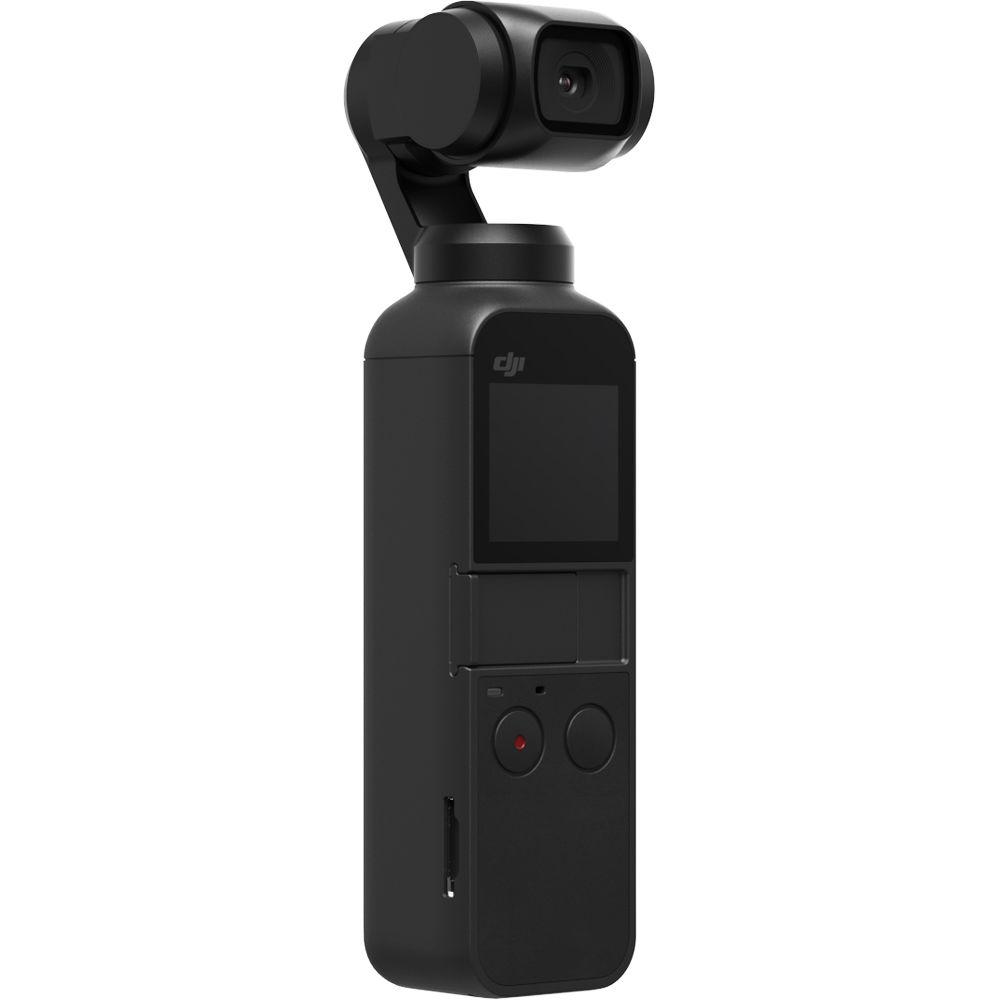

The DJI Osmo Pocket Gimbal is a lightweight gimbal stabilizer and 4K camera combination that is compact enough to carry wherever you go. Weighing just over four ounces and measuring only 4.8" high, this all-in-one unit features 3-axis stabilization to smooth out your movements. The Osmo Pocket incorporates a 1/2.3" sensor and a wide f/2.0, 80° angle-of-view lens to record up to 4K60 cinematic video and 12MP still photos on up to a 256GB microSD card. Use DJI's Mimo app and your iOS or Android smartphone to polish your footage with preset shooting patterns, camera motions, filters, and soundtracks. Connect the Osmo Pocket via the included USB Type-C or Lightning adapters to use your smartphone as a larger viewfinder with the Mimo app. Add the separately available Wireless Module for remote control and transmission. A Pro mode enables you to adjust the camera's ISO and exposure settings for maximum creativity. Unlike a similarly sized smartphone, the candy bar-sized Osmo Pocket offers intelligent functions like Active Track, FaceTrack, and Motionlapse to create compelling, creative effects. Choose between 180° and 3 x 3 panoramic shots to capture wide landscape vistas. The FPV mode provides a selfie perspective, and NightShot can be used to capture moonlit or low-light scenes. The Osmo Pocket's passive cooling system quietly dissipates heat, and a rechargeable battery enables the camera to record up to 140 minutes of 1080p video. Accessories like ND filters, a retractable extension stick, a waterproof case, and an accessory mount are available separately to round out your Osmo Pocket experience. Note: The optional Bluetooth Module is required for Bluetooth and Wi-Fi connectivity. Gimbal Features - Controllable range:
- Pan: -230 to +50°
- Tilt: -95 to +50°
- Roll: ±45°
Key Features -
- 3-axis stabilized 4K camera in an ultra-compact, lightweight form
- Capture up to 4K60 video and 12MP still photos
- Use with the Mimo app for Active Track, Face Track, Motionlapse, and other creative functions
- Links to your iOS or Android smartphone via the included Lightning and USB Type-C adapters
- Connects to use your smartphone as a larger display
- Employs a 1/2.3-inch sensor and an f/2.0 aperture for crisp, vivid 80° FOV images
- Rechargeable internal Li-Po battery lasts for up to 140 minutes
- Up to 100 Mb/s bit rate
- Records to up to a 256GB microSD card
Mimo App - iOS
Requires iOS 10.0 or later and is compatible with:- iPhone XS Max / XS / XR / X
- iPhone 8 Plus / 8
- iPhone 7 Plus / 7
- iPhone 6s Plus / 6s / 6 Plus / 6
- iPhone SE
- Android
Requires Android version 5.0 or later and is compatible with:- Google Pixel 2XL / Pixel
- Huawei P20 / P10 / Mate 10 Pro / Mate 10 / Mate 9 Pro / Mate 9
- Honor 10 / 9
- Mi Mix 2S / 8 / 6
- OnePlus 6T / 5T
- Vivo NEX
UPC: 190021324985 In the Box DJI Osmo Pocket Gimbal USB-C Adapter Lightning (iOS) Smartphone Adapter Charging Cable Cover Limited 1-Year Warranty for Camera, Handle, Charger Limited 6-Month Warranty for Battery (< 400 Charge Cycles) Quick start Guide PDF 7.3mb More info from DJI Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Osmo Pocket Gimbal in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI Osmo Pocket Specs | | | Sensor | 1-Chip 2/3" | | Effective Pixels | 12 MP (Photo) | | | | Maximum Aperture | f/2 | | Angle of View | Wide: 80° | | | | Recording Media | 1 x microSD (256 GB Maximum) | | Video Format | 3840 x 2160p at 24/25/30/48/50/60 fps (100 Mb/s MP4 via MPEG-4)
1920 x 1080p at 24/25/30/48/60 fps (100 Mb/s MP4 via MPEG-4) | | Still Image Resolution | JPEG: 12 Megapixel, 4000 x 3000 | | Sampling Frequency | AAC: 48.0 kHz | | | | Display Type | LCD | | Touchscreen | Yes | | Screen Size | 1.08" | | Status Display | Yes LED | | | | Shutter Speed | 8 - 1/8000 Second (Photo, Video) | | Photo ISO Range | 100 - 3200 (Manual) In Pro mode using the Mimo app. | | Video ISO Range | 100 - 3200 (Manual) In Pro mode using the Mimo app. | | Shooting Modes | Panorama
Self-Portrait
Time-Lapse Movie Face Track, Motionlapse, Object Track | | | | Image Stabilization | Digital 3-axis gimbal stabilization | | Scene Modes | Preset: Yes | | Built-In Mic | Yes | | Built-In Speaker | No | | Wi-Fi | Optional Requires optional module. | | Tripod Mount | None | | | | Inputs | 1 x USB 2.0 Type-C Charging | | Outputs | 1 x USB 2.0 Type-C Monitoring Via included USB Type-C or Lightning (iOS) adapter. | | Microphone Input | None | | | | Battery | Rechargeable Lithium-Ion Polymer Battery Pack, 7.7 VDC, 875 mAh
Battery Charge Time: 2 hours | | Charging Method | USB | | Charging Time | 1.25 Hours | | Dimensions (W x H x D) | 4.8 x 1.5 x 1.1" / 121.9 x 36.9 x 28.6 mm | | Weight | 4.09 oz / 116 g | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 6.0 x 3.6 x 2.0" |
