User Manual for DJI Phantom 4 Pro Pro Obsidian Edition Aircraft Click to enlarge the picture
Contents of the user manual for the DJI Phantom 4 Pro Pro Obsidian
- Product category: See All Drones DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI See All Drones
 |
User manual for the DJI Phantom 4 Pro Pro Obsidian contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|

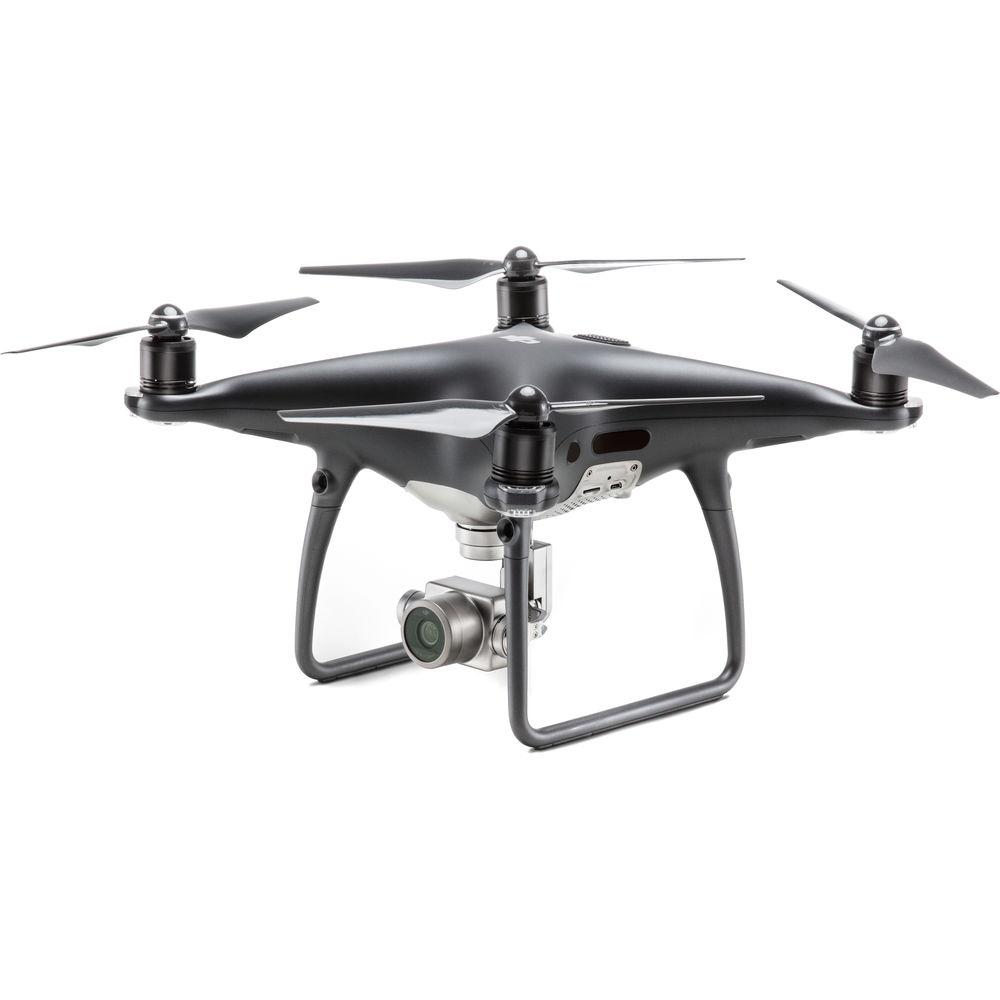

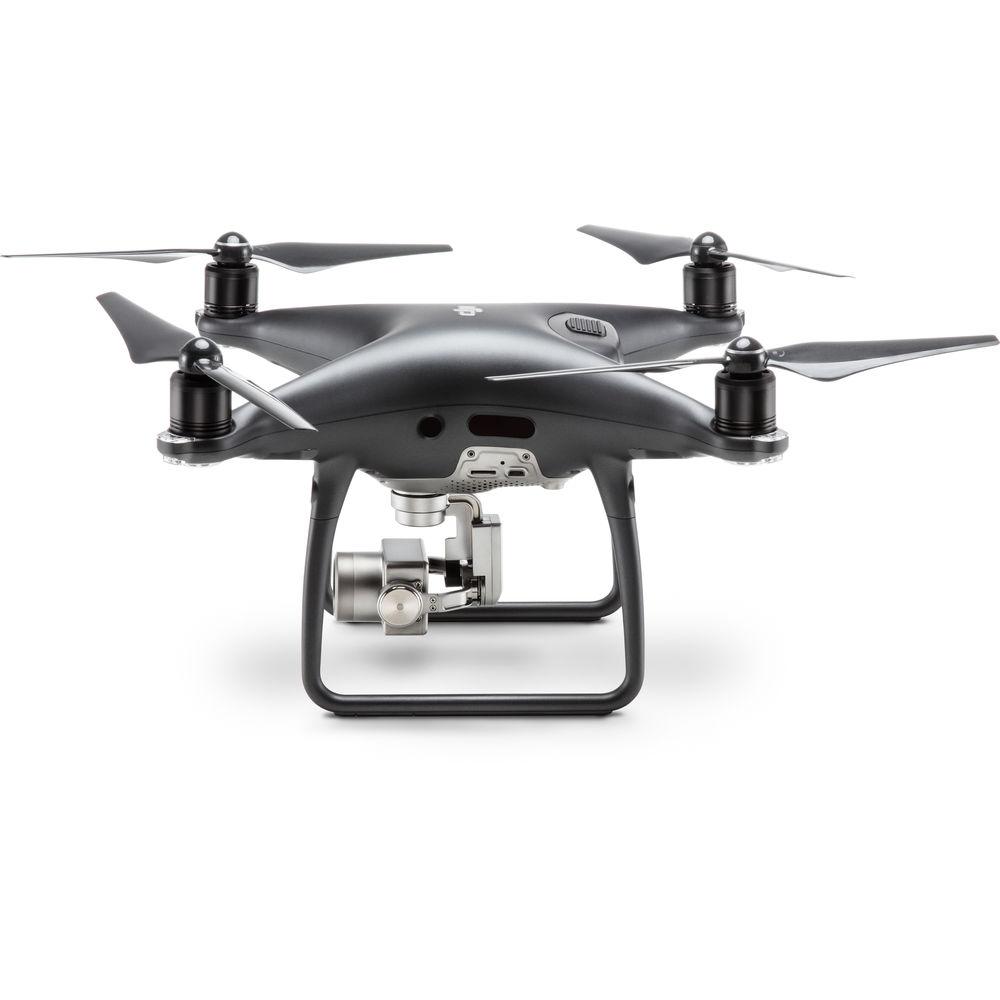

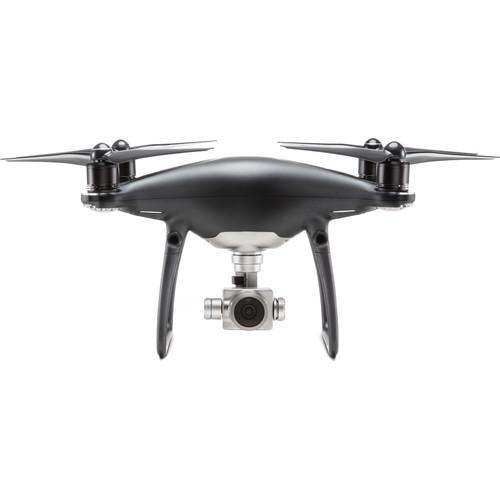

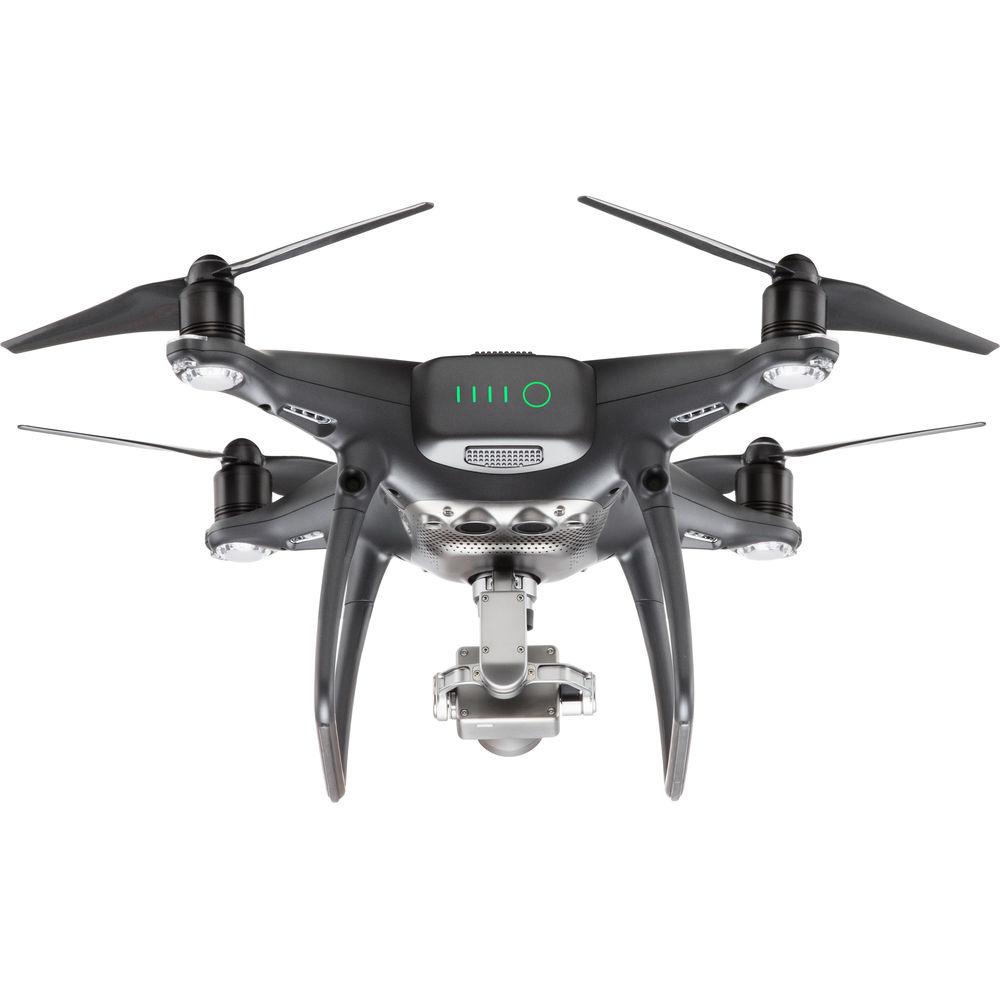

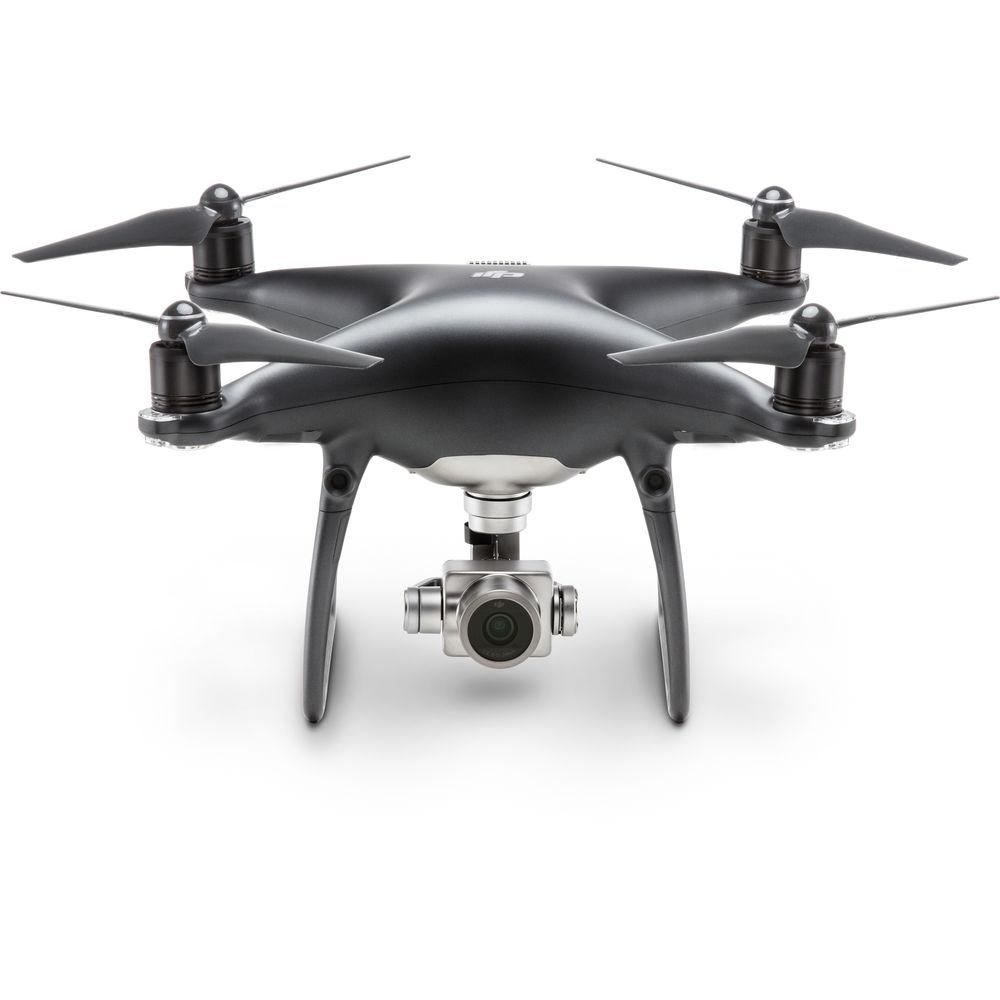

Product description Aerial Photography and Drone Glossary Read More tzqeedsxzqyvfcwz The Phantom 4 Pro/Pro+ Obsidian Edition Aircraft from DJI is designed as a replacement aircraft. It features the drone itself, gimbal, camera, a set of propellers, and a flight battery. Additional original accessories, including the battery charger and remote controller, are available separately. UPC: 190021297487 Camera in the Sky: Using Drones in Wedding Photography and Videos Peter Ward_1 02/29/2016 Some Good News for Photographers and Filmmakers Who Use Drones Peter Ward_1 02/23/2015 User Manual PDF 25.1mb Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Phantom 4 Pro Pro Obsidian Edition Aircraft in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI Phantom 4 Pro Obsidian Specs | | | Maximum Horizontal Speed | 45 mph / 72 km/h (S-Mode)
36 mph / 58 km/h (A-Mode)
31 mph / 50 km/h (P-Mode) | | Maximum Ascent Speed | 19.7 mph / 6 m/s | | Maximum Descent Speed | 13.1 mph / 4 m/s | | Maximum Flight Time | 30 Minutes | | Maximum Tilt Angle | 42° | | Hovering Accuracy | ±0.3' / 0.09 m Vertical with Vision Positioning
±1.6' / 0.49 m Vertical with GPS
±1' / 0.30 m Horizontal with Vision Positioning
±4.9' / 1.49 m Horizontal with GPS | | Maximum Angular Velocity | 250°/s (Pitch) | | | | GNSS Support | GPS, GLONASS | | | | Vision System | Downward, Forward, Backward | | Velocity Range | 31 mph / 50 km/h at 6.6' / 2 m | | Maximum Altitude | 33' / 10 m | | Operating Range | 0.0 to 33.0' / 0.0 to 10.1 m | | Obstacle Sensory Range | 2.0 to 98.0' / 0.6 to 29.9 m | | Forward Field of View | ±60° (Vertical)
±27° (Horizontal) | | Downward Field of View | ±70° (Front to Back)
±50° (Side to Side) | | Backward Field of View | ±60° (Vertical)
±27° (Horizontal) | | Measuring Frequency | 10 Hz (Forward)
10 Hz (Backward)
20 Hz (Downward) | | Operating Environment | Surface with Clear Patterns at >15 lux | | | | Obstacle Sensory Range | 0.6 to 23.0' / 0.2 to 7.0 m | | Field of View | 70° (Horizontal)
±10° (Vertical) | | Measuring Frequency | 10 Hz (Forward) | | Required Object Reflectivity | >8% | | | | Sensor | 1" CMOS | | Effective Pixels | 20 MP | | Focal Length | 8.8mm / 24mm (35mm Equivalent) | | Lens Field of View | Diagonal: 84° | | Aperture | f/2.8 - 11 | | Minimum Focusing Distance | 39.4" / 100.1 cm | | Photo ISO Range | 100 - 3200 (Auto)
100 - 12,800 (Manual) | | Video ISO Range | 100 - 3200 (Auto)
100 - 6400 (Manual) | | Electronic Shutter Speed | 8 - .000125 Second | | Photo Resolution | 3:2: 5472 x 3648
4:3: 4864 x 3648
16:9: 5472 x 3078 | | Photo Format | JPEG, DNG | | Video Format | 4096 x 2160p at 24/25/30/48/50/60 fps (100 Mb/s MP4 via H.265)
3840 x 2160p at 24/25/30/48/50/60 fps (100 Mb/s MP4 via H.265)
2720 x 1530p at 48/50/60 fps (100 Mb/s MP4 via H.265)
1920 x 1080p at 120 fps (100 Mb/s MP4 via H.265)
1280 x 720p at 120 fps (60 Mb/s MP4 via H.265)
4096 x 2160p at 24/25/30/48/50/60 fps (100 Mb/s MP4 via H.264)
3840 x 2160p at 24/25/30/48/50/60 fps (100 Mb/s MP4 via H.264)
2720 x 1530p at 48/50/60 fps (100 Mb/s MP4 via H.264)
1920 x 1080p at 120 fps (100 Mb/s MP4 via H.264)
1280 x 720p at 24/25/30 fps30 Mb/s | | Recording Media | microSD (Up to 128 GB) | | Photo Modes | Auto-Exposure Bracketing (AEB), Burst Shooting, Interval, Single Shot | | Operating Temperature | 32 to 104°F / 0 to 40°C | | | | Number of Axes | 3 (Pitch, Roll, Yaw) | | Control Range | Pitch: -90 to 30° | | Angular Speed | Pitch: 90°/s | | Control Accuracy | ±0.02° | | | | Battery Chemistry | Lithium-Ion Polymer (LiPo) | | Capacity | 5870 mAh / 89.2 Wh | | Battery Configuration | 4 S / 15.2 V | | Maximum Charging Power | 100 W | | Charging Temperature | 41 to 104°F / 5 to 40°C | | | | Number of Rotors | 4 | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Diagonal Size | 13.8" / 350 mm | | Weight | 48.96 oz / 1388 g (Including Propellers, Battery, Gimbal, Camera) | | | | Package Weight | 4.6 lb | | Box Dimensions (LxWxH) | 12.6 x 12.5 x 8.4" |
