DJI Phantom 4 Quadcopter

Search your instruction manual in PDF to download

User Manual for DJI Phantom 4 Quadcopter

Click to enlarge the picture
DJI Phantom 4 Quadcopter Contents of the user manual for the DJI Phantom 4 Quadcopter
  • Product category: Uncategorized DJI
  • Brand: DJI
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for DJI Uncategorized

DJI Phantom 4 Quadcopter DJI Phantom 4 Quadcopter DJI Phantom 4 Quadcopter
User manual for the DJI Phantom 4 Quadcopter contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any DJI product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!



Product description

A sleek new design with magnesium unibody construction, obstacle avoidance sensor, dynamic range enhancing video modes, and a two-point-of-contact gimbal mount are just some the features DJI have introduced with the Phantom 4 Quadcopter. Thanks to improvements in efficiency as well as its intelligent power management system, the quadcopter boasts up to 28 minutes flying time. Its camera shoots DCI 4K (4096 x 2160) video at 24/25 fps and UHD 4K (3480 x 2160) at up to 30 fps. There is also a 120 fps mode in 1080p resolution for slow-motion effects. The camera will also take 12MP still photos in either DNG RAW or JPEG, with single shot, HDR, burst, and time-lapse modes to choose from.

Computerized flight control is nothing new, but the Phantom 4 is the first Phantom to be given a pair of eyes. Among other features, these front-facing visual sensors enable obstacle avoidance during automatic return home and allow it to track a subject. It also features Vision Position, a carryover from the Phantom 3 Professional and Advanced, which provides navigation for times when GPS is unavailable and the quadcopter is close to the ground.

One area where fixed-wing planes have traditionally held an advantage over multi-rotors is performance. The Phantom 4 aims to shake off this stigma. With its Sport Mode, the quadcopter can achieve a top speed of 44.7mph. That's enough speed to take to the races or follow fast-moving subjects, such as a vehicle or skier hurling down the slopes. Since you may need to slow down in a hurry, Active Braking brings to the quadcopter to a halt much faster than drag alone otherwise would.

Flight Control System

    GPS Navigation
  • Because of the complexity associated with multi-rotor aircraft, the Phantom 4 relies on a GPS-based navigation system, drawing upon up to 24 satellites to maintain flight stability and provide other features. While fully manual operation is possible, most users, especially videographers hoping to get the smoothest possible shoots, will opt for one of the GPS-assisted modes
    Vision Positioning System for Indoor Navigation
  • Vision Positioning System uses dual downward-facing cameras and dual ultrasonic sensors to provide comparable stability function indoors or relatively close to the ground (up to 32.8') as GPS does outdoors. This technology allows the Phantom 4 to hold its location, stop when the controls are released, and quickly respond to pilot commands, even when GPS is unavailable
    Sense and Avoid
  • A small camera above each leg allows the aircraft to detect an obstacle in the flight path, coming to a stop to try to avoid it. By turning on Active Obstacle Avoidance, the aircraft will attempt to fly around or over the obstacle, rather than braking. The pilot will also receive audible and visual warnings to alert you of when an obstacle is detected. This feature will also be active when you trigger Return to Home, providing for a safer flight back to the pilot
    Touch-Controlled Flying
  • The TapFly mode lets you use the power of touch for easy flight control. With the mode activated, you simply need to tap on the screen of a connected smartphone or tablet, and the Phantom 4 will begin to fly in that direction. If an obstacle appears in flight path, the quadcopter's auto sense-and-avoid feature will either bring the camera to a stop or avoid it completely
    ActiveTrack Visual Tracking
  • The built-in camera, combined with object recognition technology, allows the Phantom 4 to lock onto and track a three-dimensional subject – be it a face, pet, or stationary object. Just tap the subject you want the camera to lock on to, and the Phantom 4 does the rest, with the camera following your subject as it (or the quadcopter) moves, keeping it centered within the frame
    Optimized Flight Modes
  • Change the Phantom 4's flight modes to suit your mood or the task at hand.

    Normal: Standard flight mode with positioning support and both intelligent and visual tracking features
    Sport: Adds an extra burst of speed
    Atti: Holds the Phantom's altitude and level, but switches off satellite positioning to enabling smooth tracking shots for filmmakers
    Automatic Flight Logs
  • The Phantom 4 automatically logs and remembers the details of every flight you take. Complete route, duration, distance, location, and speed tracking allow you to playback a previous flight path and even check your control stick movements. Cached versions of any photos and videos taken during your flights are kept at your fingertips for future reference. At the same time, an advanced flight recorder constantly records data from its internal mechanisms, which can be easily shared with the DJI support team if you ever have any questions or issues

Aircraft

    Enhanced Aerodynamics and Stability
  • The Phantom 4's lightweight magnesium unibody core and streamlined body combine to create a smooth, responsive flying experience with predictable and precise movements. The integrated gimbal has been moved closer to the body, shifting the center of gravity closer to the quadcopter's core and boosting stability even further.
    High-Speed Flight and Braking
  • Switch the flight mode to Sport to enjoy a new level of thrill, enabling a top speed of around 40mph. This allows you to capture faster moving subjects than with previous generation Phantom models, such as motor vehicles or downhill skiers. To bring the camera a halt at these faster speeds, the Phantom 4 features active braking
    Flight Time
  • High-efficiency motors and a larger capacity battery gives lets you enjoy up to 28 minutes of flying time with the Phantom 4 (without GPS active)
    Push-and-Release Propellers
  • Each prop is fast and easy to install – no props nuts to tighten here – and can be locked securely in place. When you're done flying, pop them off so the Phantom can be packed away in a compact case such as a backpack

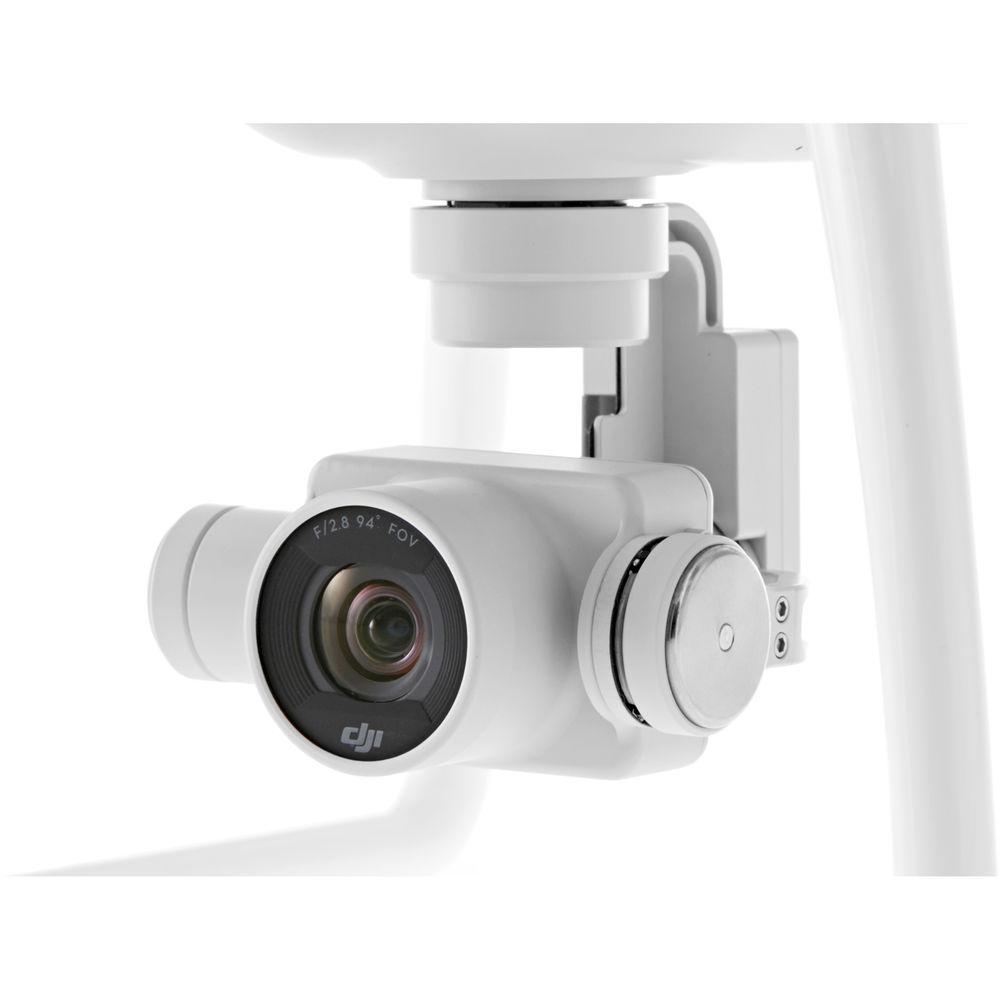

Gimbal-Stabilized 4K Camera

    Up to 4K Video and 12MP Stills
  • Whether for cinematography or just shooting for fun, the Phantom 4 gives you the ability to capture DCI-spec 4K (4096 x 2160) at 24 or 25 fps and UHD 4K (3840 x 2160) at up to 30 fps. In addition, the Full HD (1080 x 1920) mode enables recording at up to 120 fps, ideal for creating slow-motion effects in post. Video is recorded at full quality in-camera using a microSDHC/XC card in the H.264 codec
    12MP RAW Photos
  • The camera isn't just for video. It shoots 12MP still photos in widely-supported DNG RAW as well as JPEG. Time-lapse, burst shooting, and HDR modes are all available, in addition to single shot
    Video Resolutions and Frame Rates
  • DCI 4K (4096 x 2160): 24p, 25p
    UHD 4K (3840 x 2160): 24p, 25p, 30p
    2.7K (2704 x 1520): 24p, 25p, 30p
    1080p (1920 x 1080): 24p, 25p, 30p, 48p, 50p, 60p, 120p
    720p (1280 x 720): 24p, 25p, 30p, 48p, 50p, 60p
    Professional Video Color Profiles
  • Under high-contrast lighting, such as outdoors in direct sunlight, you will profit from high dynamic range with a flat response curve to give you maximum detail to work with in post-production. To this end, the Phantom 4 features both Cine-D and D-Log modes to help increase dynamic range and flatten the image
    94° Wide-Angle Lens
  • The camera features a 94° angle-of-view lens, which is a narrower angle than a fisheye for less distortion while still being wide enough to capture establishing shots. The lens features an f/2.8 aperture and is comprised of 9 elements, including an aspherical element
    Reinforced Gimbal
  • Updated from previous designs, the gimbal supports both sides of the camera, secured by a U-shaped frame designed to keep footage stable and secure even in high winds and harsh flying environments. It is coupled with custom-designed dampers to ensure vibrations from the motors to not translate into camera shake. A magnesium construction gives it lightness and rigidity, boosting stabilization capabilities even further

DJI GO App

    Live Monitoring and Control
  • Watch a live HD video feed direct from the camera right on your screen. Adjust camera settings and use this real-time view to line up the perfect shot
    YouTube Live Streaming
  • Stream your flight live to YouTube as you fly and share your excitement with family and friends around the world
    Instant Video Downloading
  • The live video stream from your camera is automatically saved on your mobile device for preview and editing later. Use this video as a reference, and download the full-quality videos and photos with a few taps
    In-App Editing
  • Make basic tweaks and apply preset templates you get your videos prepped for sharing
    Common Media Library
  • All of your photos and videos that were shot using a DJI product and the GO app are stored in one place, making it easy to browse, share, and send your footage anywhere you like
    Share on Social Media
  • Share your best work on SkyPixel, a dedicated platform for aerial photographers and filmmakers from around the world. The GO app also connects to your Facebook, Twitter, and Tumblr accounts for quick posting
    Live Map and Radar
  • See yourself or your flight platform on a live map, and log exactly where you are filming
    Detailed Records and Achievements
  • DJI GO records telemetry data from each of your shoots and flights, ready for your review later
    Manage Your DJI Account
  • Access all of your DJI information in one place. Participate in the DJI Forum, earn DJI Credit for future purchases, and review your preferences directly in the GO app
    Interactive Flight Simulator
  • Practice flying and perfect your skills anywhere. The included flight simulator gives you the lifelike experience of flying your quadcopter in a safe, controlled virtual environment

Other Features

    Built-In Redundancies
  • Dual compass modules and dual Inertial Measurement Units (IMUs) allow the Phantom 4 to constantly check the data it is receiving. This means any incorrect data can be isolated and ignored without affecting your flight
    Beginner Mode
  • Beginner flyers should build confidence by flying low and close. Beginner mode prevents new pilots from going beyond their skills. An adjustable maximum height and distance can also be set when flying skills improve
    Customizable Remote Controller
  • All the controls on the Phantom 4 can be customized to match your flying style, from control stick sensitivity to the functionality of dedicated buttons
    DJI SDK
  • The Phantom 4 is compatible with DJI's SDK, offering up access to additional sensors and even more control so that developers can create customized apps and exciting new features

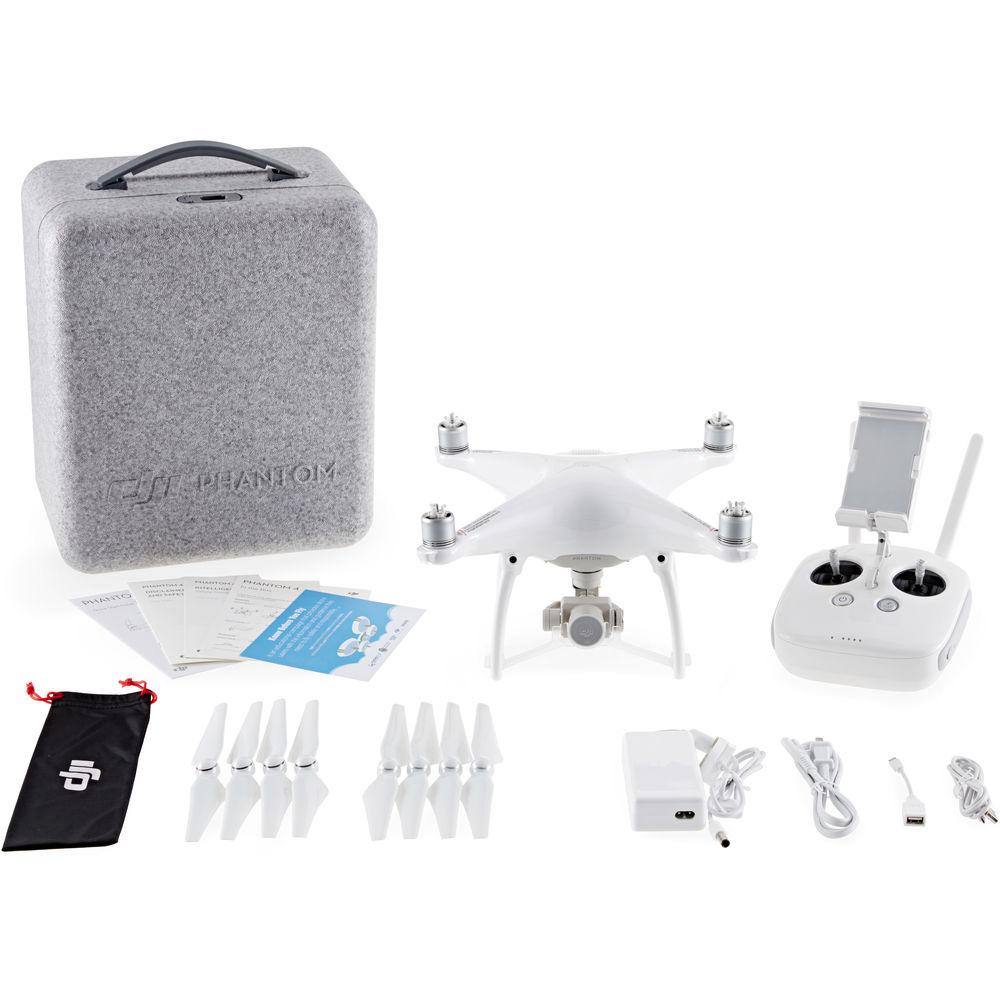

In the Box DJI Phantom 4 Quadcopter
  • Remote Control for Phantom 4 Quadcopter dvtectytdbwucvzzuerdbybvrtwdwu
  • 4 x 9450S Quick Release Propeller Pair for Phantom 4 / Phantom 4 Pro / Phantom 4 Pro+ Quadcopter
  • Intelligent Flight Battery for Phantom 4/4 Pro/4 Pro+ Quadcopter
  • Flight Battery Charger
  • AC Cable for Charger
  • Gimbal Clamp
  • USB OTG Cable
  • Micro-USB Cable
  • 16GB microSD Card
  • Limited 12 Month Warranty on MC
  • Limited 6 Month Warranty on Gimbal Camera
  • Limited 6 Month Warranty on Vision Positioning System
  • Limited 6 Month Warranty on Propulsion System (Excluding propellers)
  • Limited 12 Month Warranty on Radio Controller
  • Limited 6 Month / 200 Cycle Warranty on Flight Battery (whichever Comes First)
  • Limited 6 Month Warranty on Battery Charger
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the DJI Phantom 4 Quadcopter in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Maximum Speed 65.6' per second / 20 m/s (Sport mode) Ascent: 19.7' per second / 6 m/s (Sport mode)
    Descent: 13.1' per second / 4 m/s (Sport mode)
    Maximum Altitude Above Sea Level: 19,685' / 6000 m Above Takeoff Point: 400' / 122 m (Software limit)
    Hovering Accuracy Vertical: ±0.3' / 0.1 m (when Vision Positioning is active) or ±1.6' / 0.5 m

    Horizontal: ±1' / 0.3 m (when Vision Positioning is active) or ±4.9' / 1.5 m
    Flight Time 28 minutes (depending on conditions)
    GPS Mode GPS / GLONASS
    Vision Positioning Velocity Range: ≤ 32.8' per second / 10 m/s (6.6' / 2 m above the ground)
    Altitude Range: 0 to 32.8' / 0 to 10 m
    Operating Range: 0 to 32.8' / 0 to 10 m

    Operating Environment: Surface with clear pattern and adequate lighting (> 15 lux)
    Obstacle Sensory Range 2 to 49' / 0.7 to 15 m

    Operating Environment: Surface with clear pattern and adequate lighting (> 15 lux)
    Frequency 2.400 to 2.483 GHz
    Communication Distance Up to 3.1 miles / 5 km (outdoors and unobstructed)
    Transmitter Power 23 dBm
    Operating Current 7.4 VDC at 1.2 A
    Battery 6000 mAh lithium-ion polymer (LiPo) 2S
    Operating Temperature 32 to 104°F / 0 to 40°C
    Sensor 1/2.3" 12 MP CMOS
    Lens FOV: 94°
    Focal Length: 20 mm (35 mm equivalent)
    Aperture: f/2.8
    Photo Resolution Up to 12 MP (4000 x 3000)
    ISO Range Video: 100 to 3200
    Photo: 100 to 1600
    Electronic Shutter Speed 8 to 1/8000 second
    Video Resolutions DCI 4K (4096 x 2160): 24p, 25p
    UHD 4K (3840 x 2160): 24p, 25p, 30p
    2.7K (2704 x 1520): 24p, 25p, 30p
    1080p (1920 x 1080): 24p, 25p, 30p, 48p, 50p, 60p, 120p
    720p (1280 x 720): 24p, 25p, 30p, 48p, 50p, 60p
    Photo Modes Single Shot
    Burst Shooting: 3/5/7 shots
    Auto Exposure Bracketing (AEB): 3/5
    Bracketed Frames at 0.7 EV Bias
    Time-lapse, HDR
    File Formats Video: MPEG-4 AVC/H.264 in MOV wrapper (up to 60 Mbps)
    Photo: JPEG, DNG RAW
    Recording Media Type: microSDHC/SDXC card up to 64 GB
    Format: FAT32 / exFAT

    Note: Class 10, UHS-1 or faster card required (64 GB maximum size)
    Operating Temperature 32 to 104°F / 0 to 40°C
    Control Range -90° to +30°
    Chemistry Lithium-ion polymer (LiPo)
    Capacity 5350 mAh, 81.3 Wh
    Configuration 4S
    Voltage 15.2 VDC
    Weight 16.3 oz / 462 g
    Maximum Charging Power 100 W
    Operating Temperature 14 to 104°F / -10 to 40°C
    Charger Voltage: 17.4 VDC
    100 W
    Operating Temperature 32 to 104°F / 0 to 40°C
    Dimensions Not specified by manufacturer
    Weight With battery: 3 lb / 1.4 kg
    Package Weight 10.5 lb
