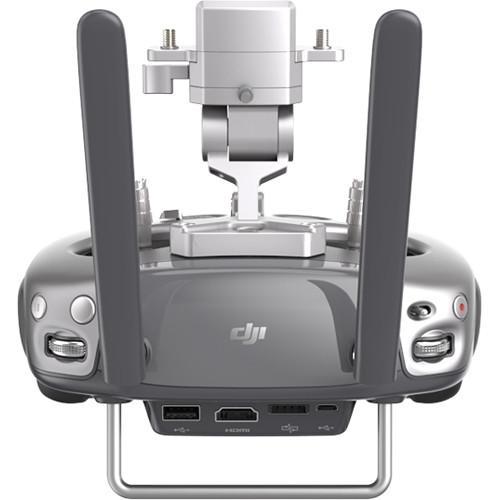

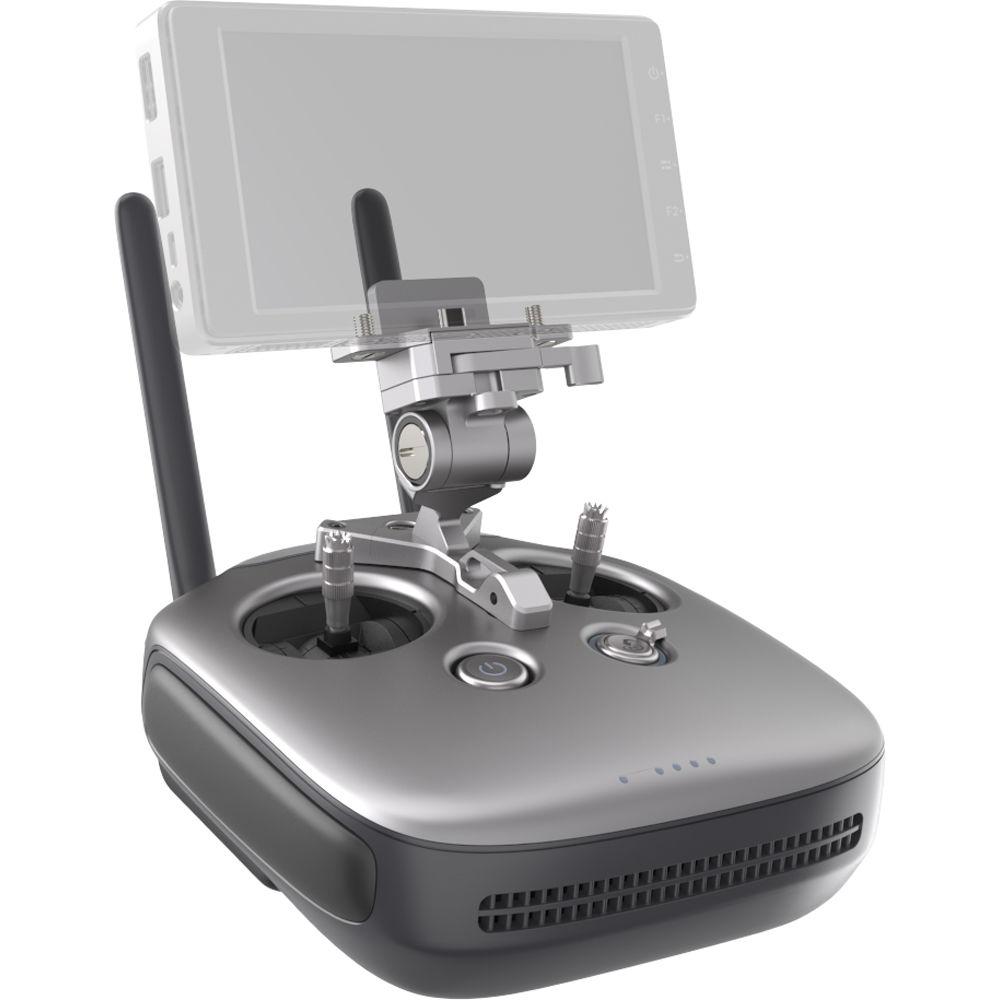

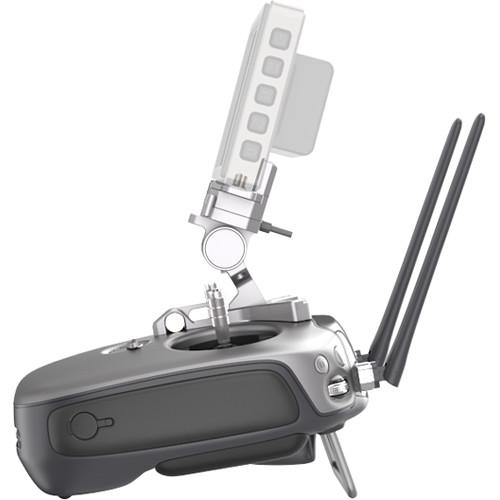

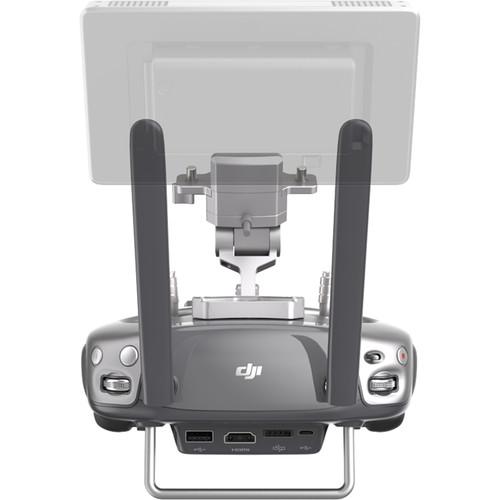

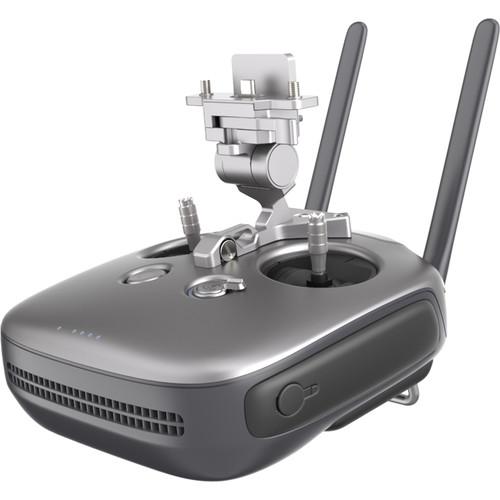

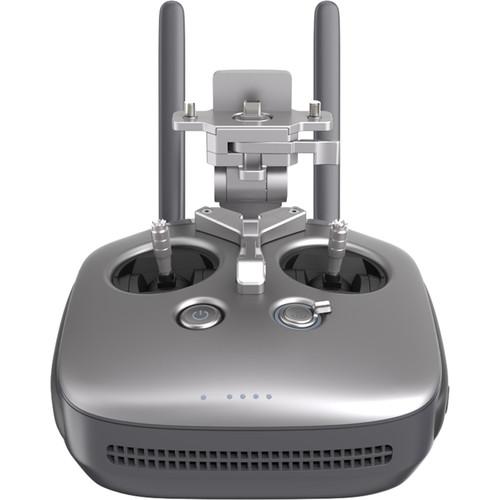

User Manual for DJI Remote Controller for Inspire 2 Quadcopter Click to enlarge the picture
Contents of the user manual for the DJI Remote Controller for Inspire 2
- Product category: DJI Accessories DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI DJI Accessories
 |
User manual for the DJI Remote Controller for Inspire 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|
Product description This Remote Controller from DJI is designed for use with your Inspire 2 quadcopter. Like the transmitter that shipped with your Inspire 2 quad, this controller uses DJI Lightbridge technology and has an effective transmission distance of up to 4.6 miles. It's capable of delivering both 1080p and 720p video, as well as FPV video, to either the pilot or camera operator. The Remote Controller can switch between 2.4 and 5.8 GHz control frequencies, allowing users to cut through noise for greater signal stability. - Master-Slave Mode
- The Inspire 2 Remote Controller also supports master-slave functionality. The master controller can transmit video to a slave controller up to 330' away without loss of image quality.
- Broadcast Mode
- Broadcasters can broadcast direct from the Inspire 2 using its dedicated 1080i50 and 720p60 transmission signal. Aerial live-streaming direct to TV can be achieved by connecting the Inspire 2 remote controller to the satellite truck.
UPC: 190021286368 In the Box DJI Remote Controller for Inspire 2 Quadcopter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the DJI Remote Controller for Inspire 2 Quadcopter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersDJI CP.BX.000178.02 Specs | Model | GL6D10A | | Compatibility | Inspire 2 quadcopter | | Operating Frequency | 2.400-2.483 GHz
5.725-5.850 GHz | | Transmission Range | To Inspire 2: Up to 4.3 miles (7 km) maximum
To Slave Controller: 330' (100 m) | | Video Output Ports | 1 x USB
1 x HDMI | | Power Supply | Built-in battery | | Battery Capacity | 6000 mAh | | Battery Chemistry | Lithium-ion polymer | | Battery Configuration | 2S | | Output Power | 9 W (when not supplying power to smart device) | | USB Output Power | iOS: 1 A @ 5.2 V (max)
Android: 1.5 A @ 5.2 V (max) | | Mobile Device Holder | Holds device up to 6.7" (170 mm) wide | | Operating Temperature | -4 to 104°F (-20 to 40°C) | | Storage Temperature | Less than 3 Months: -4 to 113°F (-20 to 45°C)
More than 3 Months: 72 to 82°F (22 to 28°C) | | Charging Temperature | 32 to 104°F (0 to 40°C) | | | | Package Weight | 3.0 lb | | Box Dimensions (LxWxH) | 9.0 x 7.9 x 6.9" |
