Product description

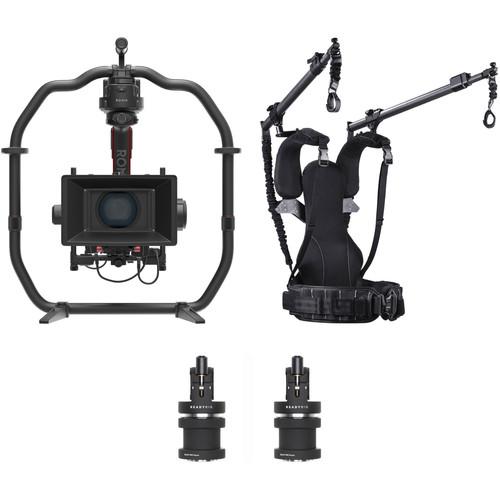

• DJI Ronin 2 3-Axis Handheld / Aerial Stabilizer Basic Combo The versatile Ronin 2 gimbal from DJI is suitable for use handheld, or mounted in a variety of ways including to a drone, Steadicam, vehicle mount, and more. An update from the original Ronin, this motorized stabilization system is suitable for a range of camera and lens configurations, boasting a payload capacity of 30 pounds. This means it can be used for everything from DSLRs up to cinema cameras such as the ARRI ALEXA Mini and Sony FS7.

  Like its predecessor, the Ronin 2 features support for underslung, upright, and briefcase operation modes to help you achieve the best angle. However, it has been redesigned to enable easy transition between upright and underslung modes without changing the position of the camera. It also offers several other improvements, such as enhancements to the control software and physical design to simplify taking complex shots without sacrificing performance, all the while making important functions more readily accessible.

  This is the Basic Combo edition of the Ronin 2. It offers the same features and functionality as the Professional Combo; however, it does not come with a remote controller, battery, charger, and other optional accessories.

  Performance

  • Upgraded high torque motors allow the gimbal to support a wider range of cameras, resist high winds and G-forces caused when mounted onto a car, and keep it moving smoothly in flight.
  Boosted Torque
  • With up to eight times more powerful motors than previous iterations, Ronin 2 can withstand sustained speeds of over 75 mph with camera builds as heavy as 30 pounds. Thanks to encoded motors and enhanced precision, the Ronin maintains the same 0.02° of accuracy as its predecessors.

  Versatility

  Detachable Grip
  • A detachable grip allows Ronin 2 to stand up on its own, and is easily separated when the lower part of the handgrip is not needed. In addition to handheld work, the Ronin 2 supports mounting on cable cams, drones, Steadicams, vehicle mounts, and more.

  Simplified Operation

  Easier Setup
  • Making fine adjustments, which is essential for proper camera balancing, is now simplified with integrated adjustment knobs and a redesigned camera mounting base.
  Integrated Screen
  • A dedicated high-brightness touchscreen for settings and adjustments has been integrated into Ronin 2, streamlining and accelerating gimbal setup. Tactile buttons including motor pause are placed easily within reach.
  Assistant App
  • The extensively refined, redesigned, and expanded Gimbal Assistant app helps create content with minimum effort via new features such as CamAnchor, Time-Lapse, and Panorama, providing a more intuitive and easier-to-use full control system for Ronin 2.
  Intelligent
  • Enhanced intelligence means filmmakers can get shots with Ronin 2 that would once have needed specialist expertise or additional equipment, from total smoothness control to studio-oriented smart features. Intelligent features include Panorama, Time-Lapse, and CamAnchor modes.

  Powering

  Hot-Swap Batteries
  • Two batteries on Ronin 2, and the ability to run with only one, allows batteries to be charged and swapped without interrupting a shoot.
  Accessory Support
  • The Ronin power hub enables essential accessories, such as DJI Focus and wireless video transmission systems, to be powered by the Ronin 2 battery, as well as communicate with the gimbal controller.

  Design

  Integrated GPS
  • The built-in GPS provides Ronin 2 with essential information for gimbal acceleration and speed, which is crucial for maintaining the camera's position and the horizon level when moving at high speeds while mounted to a vehicle or drone.
  Robust Batteries
  • Robust and resilient in extreme weather conditions, Ronin 2's self-heating batteries ensure stable power output for high performance in temperatures as low as -4°F and high-heat environments. Dual batteries capable of operating simultaneously and independently provide complete redundancy, keeping the shoot going.

  Compatible Cameras

  • The Ronin 2 supports a range of cameras from DSLRs to cinema cameras, even with high-grade lenses and other accessories mounted. Compatible camera/lens configurations include:
  RED DRAGON
  • • Angenieux Optimo Anamorphic 6-152 A-2S
    • ARRI Master Prime lenses up to 150mm
    • ARRI Master Anamorphic lens
    • Canon CN7x17 KAS S 17-120mm T2.95
  ARRI ALEXA Mini
  • • Angenieux Optimo Anamorphic 56-152 A-2S
    • ARRI Master Prime lenses up to 150mm
    • ARRI Master Anamorphic lens
    • Canon CN7x17 KAS S 17-120mm T2.95
  Blackmagic URSA Mini
  • • Angenieux Optimo Anamorphic 56-152 A-2S
    • ARRI Master Prime lenses up to 150mm
    • Fujinon ZK19-90mm T2.9
    • Canon CN7x17 KAS S 17-120mm T2.95
  Canon C300
  • • Canon CN7x17 KAS S 17-120mm T2.95
    • Canon CN-E Prime lenses
    • Canon EF lenses up to 400mm
    • Zeiss Compact Zoom lenses
  Sony FS7
  • • Sony CineAlta 4K lens series
    • E-Mount lenses
    • ARRI Ultra Prime lenses
    • A-Mount lenses up to 300mm f/2.8 G II
  UPC: 190021308329
• Ready Rig Ready Rig GS Stabilizer + ProArm Kit with Case Use the Ready Rig GS Stabilizer + ProArm Kit to transfer the weight of a gimbal-mounted camera away from an operator's arms and shoulders. By redistributing the load to the user's hips and core, this rig enables you to extend your shooting time and lessens operator fatigue. It also reduces the bounce motion sometimes seen during handheld gimbal shots. The Ready Rig GS Stabilizer works with any gimbal in standard or underslung mode.The Ready Rig ProArms increase the basic GS Stabilizer's load range from 30 to 40 pounds. They telescope from 23 to 37", producing an effective boom range of 55". For greater operating convenience, the ProArms also feature 1/4"-20 and 3/8-16" threads, enabling you to mount an onboard monitor to either arm.The Ready Rig GS with ProArms features a load capacity range of 1 to 40 pounds, carbon fiber support arms, and an aluminum frame. Its slim, compact profile suits it for use in tight spaces and car interior shots. A soft, zippered carrying case is included with this kit.
  • Supports any gimbal or camera rig from 1 to 40 pounds
  • Adjustable arms telescope from 23 to 37", with an effective boom range of 55"
  • An onboard monitor can be mounted to the 1/4"-20 or 3/8"-16 threads on each arm
  • Provides vertical axis stabilization while reducing operator fatigue
  • Slim, lightweight design with carbon fiber support arms and aluminum components
  • Operate gimbal in over- or underslung configuration
  • A soft, zippered carrying case is included in the kit
  UPC: 869681000026
• DJI Quick-Connect Adapter for Ronin 2 to Ready Rig (Pair) Get ready to capture stunning cinematic handheld shots by mounting your Ronin 2 onto your Ready Rig with this pair of Quick-Connect Adapters from DJI. These mounting adapters connect the Ready Rig to the grip of the Ronin 2 stabilizer or to another device with a 25 or 30mm tube. UPC: 190021303041

• Ronin 2 3-Axis Handheld / Aerial Stabilizer Basic Combo facesvewba
• Gimbal
• Grip
• Dual TB50 Battery Mount
• Hex Tool
• USB Type-C Data Cable
• 5 x 3/8"-16 Camera Screws
• 5 x 1/4"-20 Camera Screws
• Assembly Hardware
• Limited 6-Month Warranty for Gimbal Motors
• Limited 1-Year Warranty for Gimbal Mechanics

• Ready Rig - Ready Rig GS Stabilizer + ProArm Kit with Case

• Quick-Connect Adapter for Ronin 2 to Ready Rig (Pair)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• DJI Ronin 2 3-Axis Handheld / Aerial Stabilizer Basic Combo

  Working Current	Static: 300 mA (at 22.8 V) Dynamic: 500 mA (at 22.8 V) Locked Motor: Up to 15 A (at 22.8 V)

  Payload Capacity	30 lb / 13.6 kg
  Precision of Control	± 0.02°
  Maximum Controlled Rotation Speed	Pan Axis: 360°/s Tilt Axis: 360°/s Roll Axis: 360°/s
  Controlled Rotation Range	Pan Axis Control: 360° continuous rotation Tilt Axis Control: Rating 70% users recommend this product to others. And what about you? This product has already been rated by 41 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
