User Manual for DJI Ronin-MX 3-Axis Gimbal Stabilizer Click to enlarge the picture
Contents of the user manual for the DJI Ronin-MX 3-Axis Gimbal Stabilizer
- Product category: Uncategorized DJI
- Brand: DJI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for DJI Uncategorized
 |
User manual for the DJI Ronin-MX 3-Axis Gimbal Stabilizer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any DJI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official DJI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a DJI product will considerably shorten its lifespan!
|

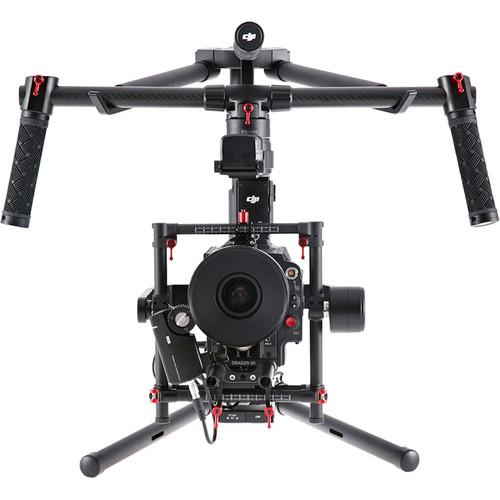

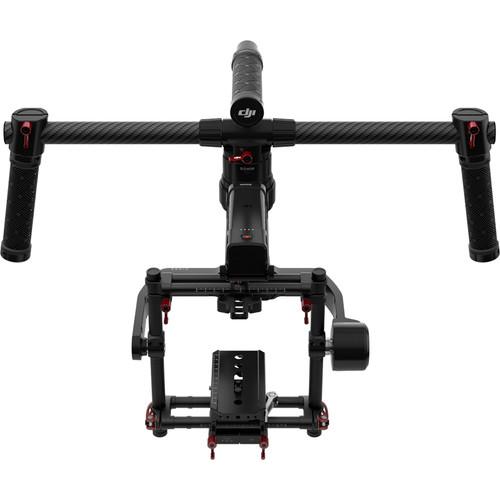

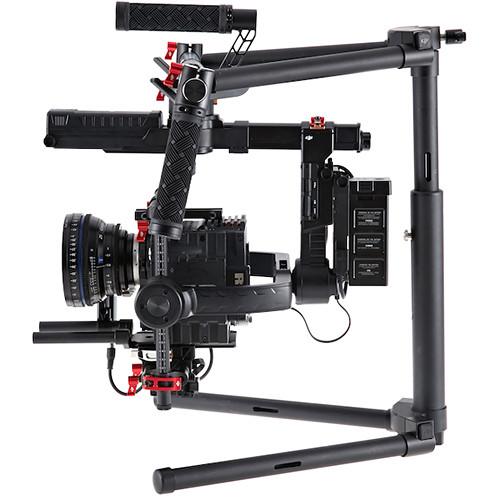

Product description The Ronin-MX from DJI is dual-use gimbal suitable both for mounting on the Matrice 600 aerial platform as well as deployment closer to the ground. Improving over the Ronin-M, it features magnesium construction to yield high rigidity while keeping the weight down. The gimbal is suitable for cinema cameras, mirrorless cameras, and DSLRs weighing up to 10 pounds. Out of the box it supports two-operator operation, and includes a radio controller (transmitter) for the camera operator. There is also an optional Thumb Controller (available separately) for solo operation. When installed on the Matrice 600 aircraft, the gimbal can be controlled via the DJI GO app. An included universal mounting adapter allows it to be adapted for use with jibs, car mounts, and various other types of camera support equipment. There is also a handlebar for handheld use. - Built to Perform
- Designed to resist high G-forces using powerful motors and IMUs, the Ronin-MX is engineered to maintain stability and hold horizon when mounted to an aircraft or a vehicle. When mounted to the Matrice 600 aerial system, it communicates directly with DJI's flight controller. When attached to vehicles, it connects to an optional GPS module that allows it to stabilize actively for a smoother shot
- 360° Freedom of Movement
- A slip ring allows the Ronin-MX to rotate 360° continuously when mounted to aircraft or vehicles, opening up more creative options. This is further enhanced by an increase in tilt-axis range (compared to the Ronin-M) from 90° straight down and beyond to 135°. Popular features of the Ronin series, such as the three modes of operation and SmoothTrack, are also present, giving film makers a range of creative angles and movements
- Wireless Control and Transmission
- The Ronin-MX is compatible with Lightbridge 2, providing long-range HD video transmission from the air to the ground from up to 3.1 miles away. If combined with the separately available DJI Focus and Focus Expansion Module, focus or aperture can also be pulled remotely with a twist of the wrist. An optional Remote Start/Stop add-on provides the ability to control shooting on a range of airborne cameras
- App Control
- Using DJI Assistant and the dedicated Assistant app for iOS and Android allows complete customization of the Ronin-MX and its behavior. If connected to Lightbridge 2, the DJI GO app can be used to control the gimbal and see an HD live feed from the camera
System Design - Refined Balance
- A redesigned structure moves the Ronin-MX battery from the back to the front. This centers the weight of the camera, minimizing instability when flying directly forwards. It also dramatically increases the Ronin's agility and ability to handle rapid movements or high-G situations
- Magnesium Construction
- Built extensively of lightweight magnesium, the Ronin-MX weighs just 6.1 lb. This lightness allows it to be mounted to the Matrice 600, even when equipped with cameras as advanced as the RED EPIC, and to vehicles, with a minimum impact on vehicle handling
Power - Strengthened Motors and ESCs
- A combination of stronger motors and ESCs makes the Ronin-MX 50% more powerful than the Ronin-M. This additional stiffness and power allows the system to better withstand wind resistance, when mounted to moving vehicles and aircraft, as well as more rapid movements
- External Camera Battery
- Cameras such as the RED EPIC need an external battery for power. A dedicated position designed for an optional battery plate provides an easy, cable-free mounting point for a second DJI Intelligent Battery. This provides two 12V D-Tap power sources for powering cameras and accessories
- Intelligent Batteries
- Ronin-MX batteries offer a battery life of up to three hours. Over-charge and over-depletion protection are built in, as is individual cell charge balancing. Remaining power is shown by clear LEDs and in the DJI GO app
- Built-In Power Distribution
- A dedicated power distribution box keeps wiring to a minimum while providing power to essential accessories. Two regulated 12V D-Taps, one 500mAh full-size USB connector, and a DJI Lightbridge connector enable connectivity and power to nearly everything a filmmaker might need
Control - Solo Mode with Optional Thumb Controller
- The separately available Ronin Wireless Thumb Controller makes controlling the Ronin-MX easy and intuitive, enabling the capture of shots that would otherwise be impossible for a single operator
- Second Operator Control
- A wireless 2.4 GHz remote controller is included with the Ronin-MX enabling a second operator to remotely control pan, tilt, roll, and other functions
- Three Operation Modes
- Upright Operation Mode
Upright Mode allows the gimbal to be flipped over so the camera can be operated closer to eye level without straining to lift the gimbal. This can be used in various situations, such mounting on the top of the vehicle
Underslung (Suspended) Operation Mode
Suspended Operation Mode is the standard operation mode for Ronin-M. Low slung, close to the ground, or simply holding the gimbal in front of you offers stabilized handheld footage. This mode would also be used when mounted the gimbal on a flying platform such as a multirotor RC helicopter
Briefcase Mode
When a slimmer gimbal profile is needed – such as when moving through doorways or narrow paths – Briefcase Mode is ideal. It allows the gimbal to be held to the side and close to the legs, much like a briefcase Additional Features - SmoothTrack Technology
- Even with only one operator, SmoothTrack technology is designed to ensure the Ronin-MX translates movements into smooth camera angle changes. SmoothTrack settings, from speed to deadband to acceleration, are fully customizable. A "Single Axis Follow Mode" enables two axes to be locked while SmoothTrack guides the camera along only one axis of motion
- Universal Mounting
- Mount the Ronin-MX to aircraft using a specially designed mounting plate. A separate universal Quick Release system that doubles as a vibration-dampening system allows the Ronin-MX to be connected to everything from jib to tripod and anything in between. This plate isolates the Ronin-MX from unwanted vibrations coming from the platforms it is mounted to
- Short Range Wireless Transmission
- On the ground, the separately available SRW-60G allows film makers to see the image from the camera without running cables up the Ronin-MX
Note: The SRW-60G is not permitted for use on aerial platforms In the Box DJI Ronin-MX 3-Axis Gimbal Stabilizer Handle Bar 2.4 GHz Remote Control Tuning Stand 2 x Intelligent Battery Charger Cable Pack Micro-USB Cable Camera Mounting Plate Upper Mounting Plate Vibration Absorber 2 x Camera Screw A (1/4"-20) 2 x Camera Screw B (3/8") 2 x Camera Screw C (1/4"-20) 2 x Camera Screw D (3/8") Lens Support 4 x Allen Wrench Table of Contents
|
